Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

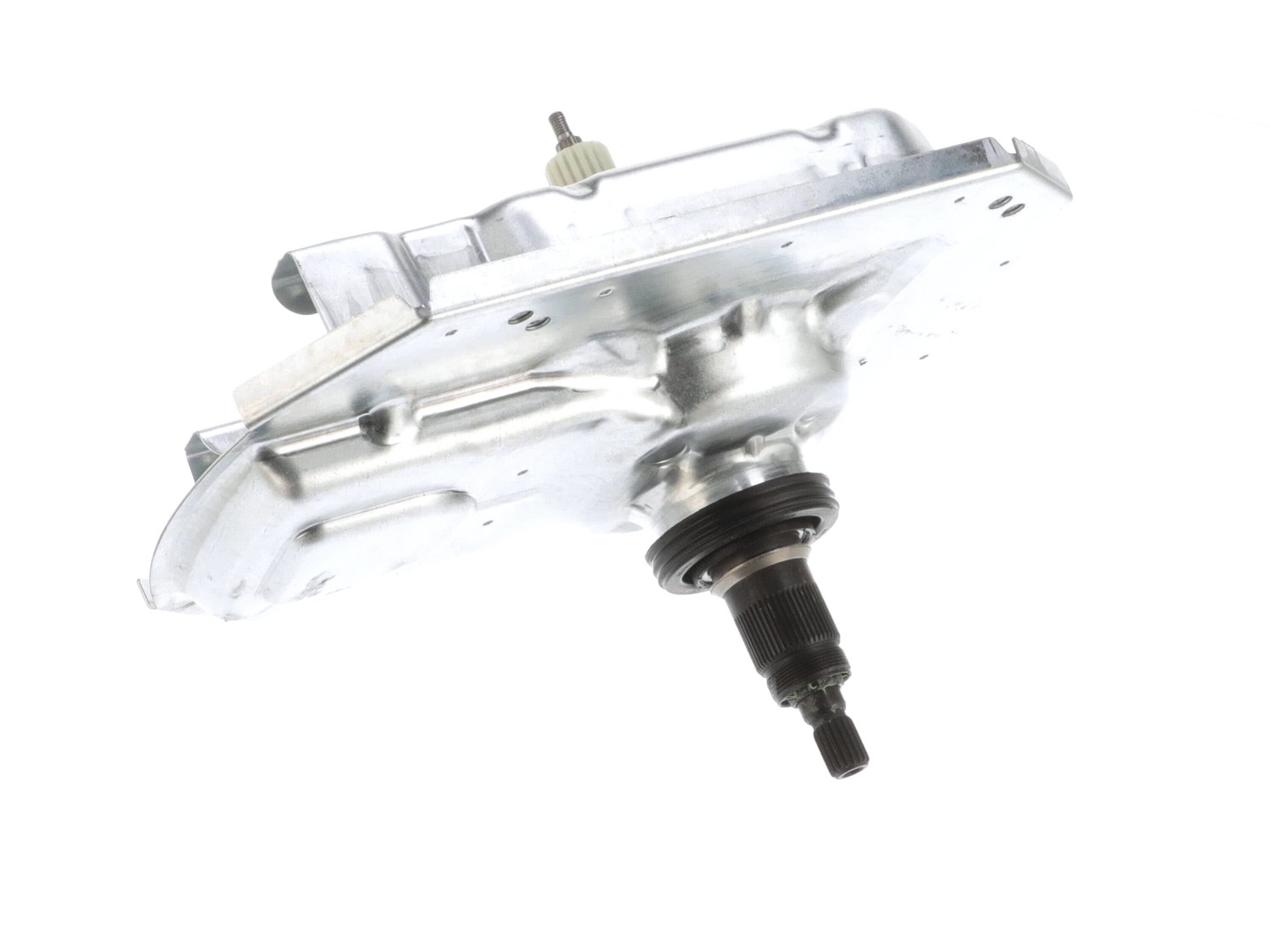

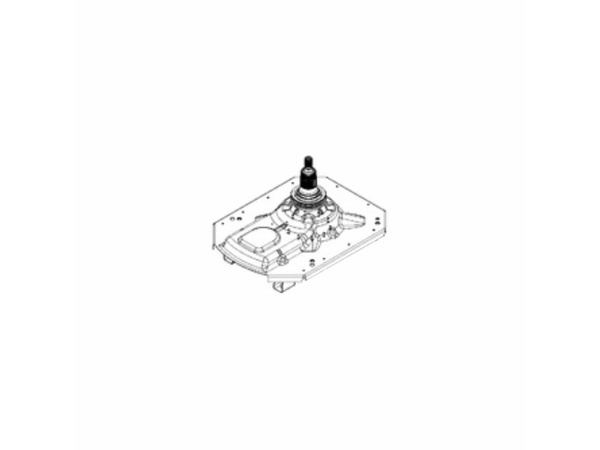

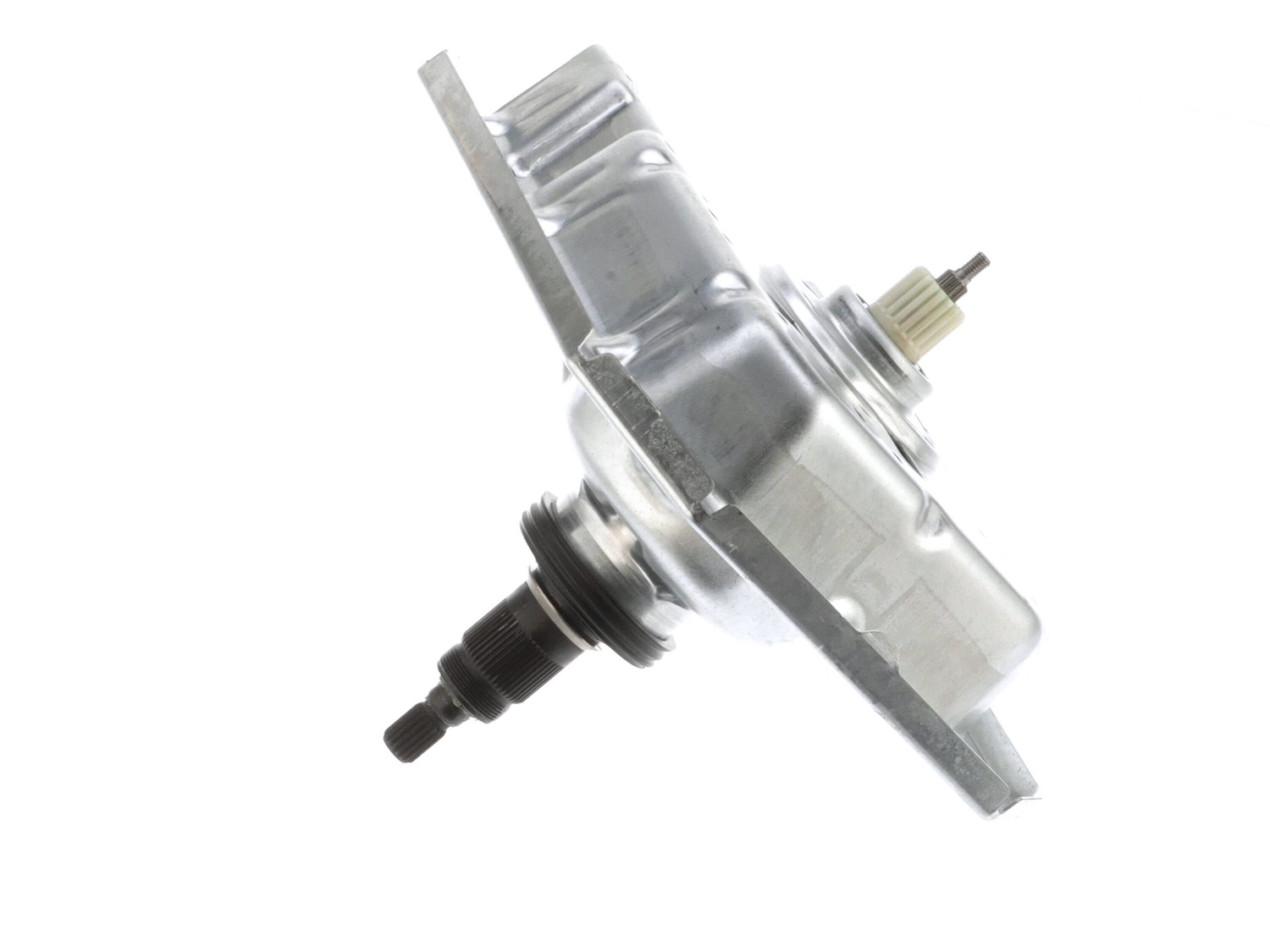

This washer gearcase assembly is a critical internal component designed for select top-load washing machines. It serves as the transmission system that drives both the agitator and the spin basket, enabling effective cleaning and water extraction. During the wash cycle, it powers the agitator to scrub clothes thoroughly, while in the spin cycle, it rotates the basket at high speeds to remove excess water using centrifugal force. This assembly ensures smooth transitions between agitation and spinning modes, contributing to the overall performance and efficiency of the washer. Replacement may be necessary if the machine exhibits symptoms such as failure to agitate or spin, excessive vibration, or unusual operational noises like grinding or rattling. Installation should be performed with the washer unplugged, and model compatibility must be verified prior to purchase.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Ask our experts a question about this part and we'll get back to you as soon as possible!
6 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Matt
May 11, 2024
Does the tub seal come already attached to this part, or can you buy separately? Thanks.
For model number MVW6230HW1
Hi Matt, thank you for getting in touch. Based on our research, the tub seal comes with the gearcase, part number PS16730207. We hope this information helps!
3 people found this helpful.
Did this question help you?
Thank you for voting!
Rudy
March 30, 2023
I replaced the gear case , actuator and splotch assembly. Everything is working fine for now ! Thanks
For model number WTW5105HW2
Hi Rudy, thank you for reaching out. We are glad your problem is solved. We are available 7 days a week. Do contact us if you need any further help!
2 people found this helpful.
Did this question help you?
Thank you for voting!
Rudy
March 28, 2023
What comes with this kit.do all the bearings and seals ?
For model number WTW5105HW2
Hi Rudy, thank you for reaching out. The gearcase, part number PS16730207, includes a bearing attached to the shaft of the gearcase. The washer, part number PS16620404, comes separately. We hope this information helps!
hello I'm ordering the gear box for this washer its making a lot of grinding noise , but its also leaking water from the center of the machine its my thoughts that the seal is bad and I want to replace the seal that goes in to the bottom of the drum while im there.
but i cant find a part in the selection for the seal or is it included in the gear box
For model number MVW6230HW1
Hi James, thank you for contacting us. Yes, the tub seal comes attached to the gearcase, part number PS16730207. You may need to replace it to fix the issue. We hope this solves your problem!
1 person found this helpful.
Did this question help you?
Thank you for voting!
Jeffery
October 24, 2025
My washer is very loud on the spin cycle and I think i don’t know if it’ll need a transmission or just a bearing. When spinning, it makes a loud noise like it’s going to take off
For model number MVW6230HW1
Hi Jeffery, thank you for reaching out. The issue is most probably because of the fault in the bearings, but they come attached to the gear case, part number PS16730207. You may need to replace it to fix the issue. We hope this solves your problem!
Did this question help you?
Thank you for voting!
Steven
17 days ago
I need the gear case for my Maytag PetPro washer machine. I wanted to ask what else is recommended as I repair this gear case on machine?? Thank you
Model # MVW6500MBKO and SER # cc0700767
My machine doesn’t have a 1 ending on the model # it’s a zero…
For model number MVW6500MBK1
Hello Steven, thank you for reaching out. The gearcase for your model is part number PS16730207. If you require assistance to place an order, please contact customer service!
Did this question help you?
Thank you for voting!
