Randy S - July 6, 2021
Verified Purchase
Speedy Service, Parts worked great as expected!
Parts arrived very quickly, I installed them, they worked great and fixed the oven problem!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
8 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Mike
March 13, 2019
I have burners that are intermittent and behaving oddly. The front burners turn on sometimes but not others. Occasionally, if i turn on a rear burner, the front burner on the same side will turn on as well. Is this a problem with the relay board?
For model number LRE3083ST
Hi Mike,
Thank you for your question. Yes, this could be an issue with the electronic control board. I would also check the wiring connections between the control panel and electronic control board to make sure what is causing the issue. I hope this helps. Thank you and have a great day!
4 people found this helpful.
Was this helpful?
Thank you for voting!
Kristina
January 25, 2020
My oven will not heat at all, and the broiler will not turn on either. The range top appears to be working fine. 2 days ago while baking i did smell something electrical and hot, the next day it wouldn't heat. I am getting an f9 code. I have pulled it out and unplugged it to rest, but it still won't heat. Is this an issue with the relay?
For model number LG LRE3083ST
Hello and thank you for writing.
If the Control Panel Display lights up error code “F-9” it means oven failed at exceeding 150ºF after 5 minutes of preheating, which indicates a faulty thermostat PS3530468 and/or temperature sensor PS6883927 you should check the part(s) for signs of damage, and replace as necessary. We hope this helps. Please contact us anytime if you require further assistance.
My oven will not heat to the proper temperature, for example when we set it for 350 degrees the oven will say pre-heated and the actual temp is 270 degrees. Also, it will not go above 330 no matter what you set it to. Any ideas? I hate to buy the oven control board if it is not the issue.
For model number LRE3083ST/00
Hello Kevin,
Thanks for your question. This problem could be due to the thermostat of your oven. If you have a multimeter, try testing the part for continuity and replace it if it shows no continuity.
I hope this helps.

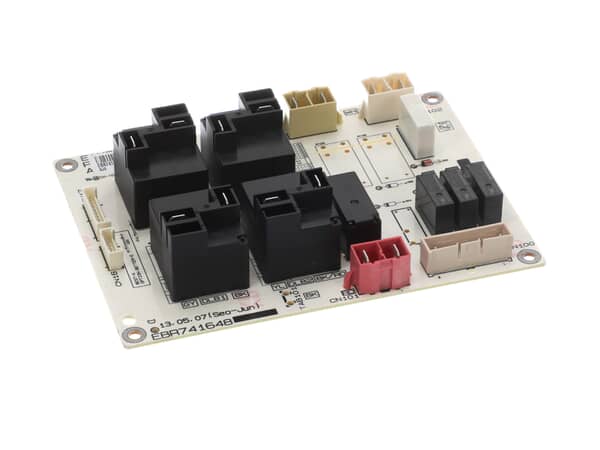

Was told by rep on phone that we need a motherboard for our range. The stove shows no power whatsoever. Part# ebr74164805 for the relay control panel.I looked up parts and only a relay control panel above was listed. Is this the same as a motherboard?
Hi Bonita, thank you for reaching out. The relay control board is an interchangeable term for the motherboard. If you need help placing an order for it, please feel free to give us a call. We look forward to hearing from you!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Frank
January 21, 2023
Hi, This board fits my LG stove, LRE3083ST, but I need to know if it controls ONLY the oven, or if it has anything to do with the stovetop burners. My left front burner is acting up, sometimes comes on, sometimes doesn't. I replaced the burner, still acting up. I replaced the PCB control board EBR64624907 for the burners, and nope, still acting up. Could this power control board (EBR74164805) be the problem, or would it more likely be the main control board (EBR77562705) since the controls for the burner board do have connectors to the main board? Sorry so long, but if you can help, most appreciated. Frank
For model number LRE3083ST
Hello Frank, Thank you for the question. The Range Oven Relay Control Board just controls the Oven. We would suggest the Main Control Board. We hope this helps!
When i turn on the rl burner the fr burner also turns on. Will replacing the pcb assembly fix the problem?
For model number LRE3083ST
Hello Kris, thank you for your question. The most likely cause of this issue is the PCB assembly part number EBR64624907. Please enter the part number into the site for current price and availability. Good luck with your repair!
Was this helpful?
Thank you for voting!
Tony
December 20, 2022
When I turn on the rear burner, the front burner on the same side comes on. What could cause that? Recommendation to fix??
For model number Lre3083sw
Hi Tony, thank you for reaching out. You need to check the control board, part number PS11773404, and the control panel, part number PS8749467, to fix the issue. We hope this information helps! If you need help placing an order, customer service is open 7 days a week. Thanks again for your great question.
When I turn the right front burner on no matter what it's set on (low, medium, high or anywhere in between) the burner only heats up to around a low heat and the eye doesn't go orange like it is heating up. What could be causing this?
For model number LRE3083ST
Hi Michael, Thank you for writing. Normally this is an indication the Switch or Board that controls the elements is faulty and will need to be replaced. Thank you for the inquiry, good luck with the repair!
