756514-1-M-GE-WH11X10033 -Knob Dial
Part Location Diagram of WH11X10033 GE Knob Dial
See part 7 in the diagram
Replacing your General Electric Washer Knob Dial
756514-1-S-GE-WH11X10033 -Knob Dial 360 view
( Grid squares measure 1x1 inch )
756514-1-S-GE-WH11X10033 -Knob Dial 756514-2-S-GE-WH11X10033 -Knob Dial 756514-1-S-GE-WH11X10033 -Knob Dial 360 view
Part Location Diagram of WH11X10033 GE Knob Dial Replacing your General Electric Washer Knob Dial
Customer Service Representative

Get in touch, we're here to help!

1-866-319-8402 Monday to Saturday
8am - 8pm EST

customerservice@partselect.com

Knob Dial WH11X10033

★★★★★
★★★★★
4 Reviews

Really Easy

Less than 15 mins

Rated by verified customers
$ Price Match
OEM badge Official OEM
$ 47.40
  In Stock
Order now and your part arrives by Apr 30

Does this part fit my model?

Need help finding your model number?
PartSelect Number PS756514
Manufacturer Part Number WH11X10033
Manufactured by GE for General Electric, Hotpoint

Jump to:

Product Description

Knob Dial Specifications

This part is a replacement knob dial for your washer. The knob dial rotates and allows you to select your desired settings. It is a round piece of white plastic with a small, triangular gray arrow on it. The knob dial is 3 inches in diameter and is sold individually. The control knob that attaches to it is sold separately. If your knob dial is worn, loose, or damaged, it may need to be replaced.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Why buy the real thing?

OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.

  • OEM from PartSelect
  • Genuine brand name
  • Guaranteed to fit
  • Superior quality and durability
  • 1 year warranty
  • Generic
  • Unknown manufacturer
  • No fit guarantee
  • Inconsistent quality and lifespan
  • Limited warranty and support
Back to Top
You May Also Need ?
Timer Knob
$13.92
  In Stock
Compression Ring
$29.47
  In Stock
Timer Knob Clip
$16.05
  In Stock
Affresh Dishwasher Cleaner Tablets - 6
$22.52
  In Stock
Affresh Washing Machine Cleaner - 3 pack
$20.36
  Special Order
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.42
  In Stock
Produce Preserver Filter
$18.22
  In Stock
Refrigerator Deodorizer
$31.58
  In Stock
Affresh Ice Machine Cleaner
$27.36
  In Stock
Back to Top
Part Videos

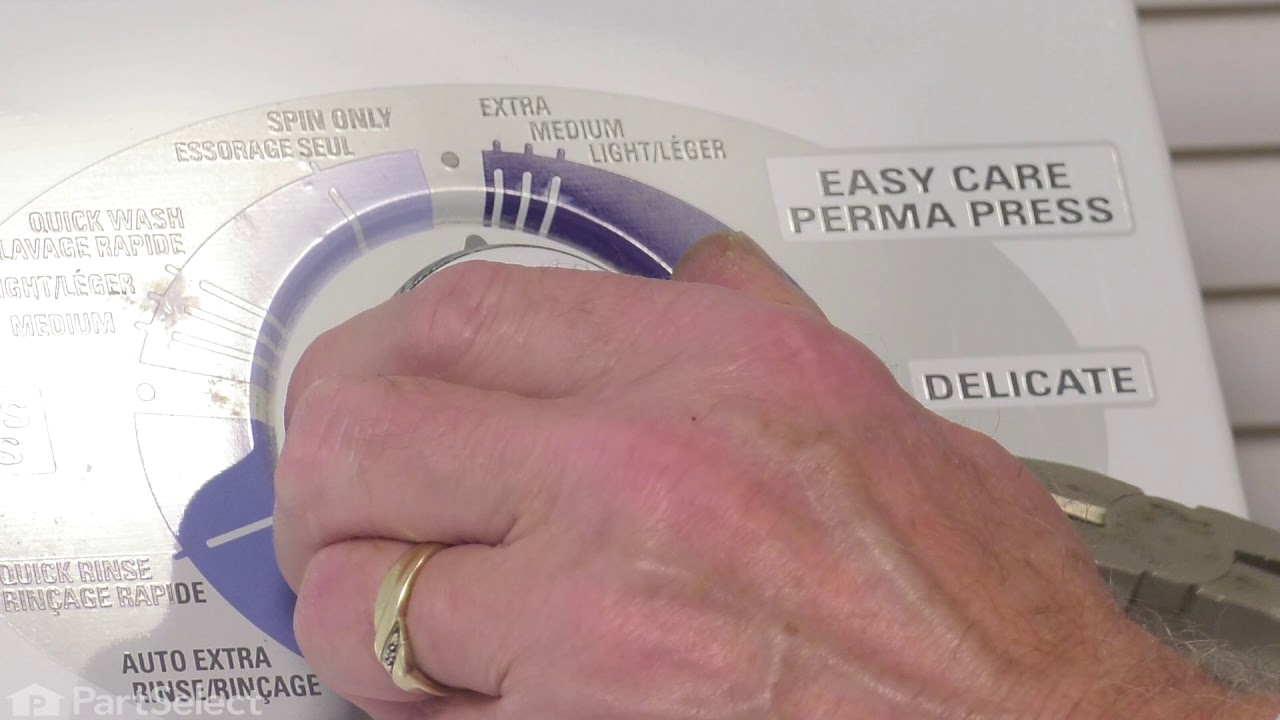

Replacing your General Electric Washer Knob Dial

Replacing your General Electric Washer Knob Dial
Back to Top
Troubleshooting
This part fixes the following symptoms:
  • Will Not Start
This part works with the following products:
  • Washer
Part# WH11X10033 replaces these:
AP3207190, 963655, WH11X10005, WH11X10011
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
4 Reviews
3.8
Filter By Rating:
  • 5 Stars
    2
  • 4 Stars
    1
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    1
Sort by:
  • 1
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Arthur B - March 19, 2018
  Verified Purchase
Washerman
Perfect fit
★★★★★
★★★★★
Thomas D - July 21, 2020
  Verified Purchase
This replacement worked first try.
The old part (fifteen years old) was shredded. Plastic chips everywhere. The replacement slid into place and everything worked immediately. No need to spend $700 on that new washer. Sure this one is a bit dirty. I mean filthy when you take the panel off. A real mess. But I will do some cleaning to save $600. A lot of cleaning. The pivot part of this: I was able to identify the part and order it online. Reasonable price. (How do they keep all these parts in inventory? It must be hundreds of thousands of parts!) And then I ordered, and few days later the parts arrived. I was very happy.
★★★★★
★★★★★
Thomas R - February 8, 2018
  Verified Purchase
Knob Dail,
Thank you
★★★★★
★★★★★
Kathleen A - July 3, 2018
  Verified Purchase
wrong part
not only did you ship and charge me for the wrong part, I wanted the knob, but you charged and sent me two dials. I need to return these and get just one knob minus the dial.
PartSelect logo
July 6, 2018
Hello , Thank you for leaving a review on the. We will be emailing you shortly with return information to return the Knob Dials ordered. Hope this helps!
  • 1
Back to Top
Installation Instructions
 Average Repair Rating: 4.4 / 5.0, 4 reviews. What's this?
Sort by:
  • 1
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Washer stopping during cycles
First, I removed the control knob by pulling it out and then used needle nosed pliers to pull the plastic retainer clip from the back side of the knob and then slid it off. I then removed the large dial knob by simply pulling it off. Next, I removed the 4 torx head screws holding on the front control panel and the whole panel came off (the 4 screws are on the top side of the panel towards the rear). I then removed the connector block from the timer mechanism and then removed the single hex nut screw which holds the timer in place. There are two plastic tabs on the bottom of the timer which fit into slots on the panel. You can simply lift the old timer mechanism out by pulling it up and out. The new timer is installed by doing this in reverse. You then tighten the hex screw and then put the connector back on the new timer. You can then put the panel back in place and put back the 4 screws taken out earlier. Next, you push the indicator dial onto the timer shaft (lining up the notch in the dial with the tab on the timer shaft). Finally, you pull the retainer clip on the control knob partially out, push the knob on the timer shaft and then using a screwdriver, push the retainer clip into place and then push the control knob all the way onto the timer shaft.
Read less
Other Parts Used:
Timer Knob Dial
  • David from Glenside, PA
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver, Pliers, Screw drivers
12 of 18 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
teeth were stripped on dial
Just followed your instructions,which were very good and simple.Took old one off then put the Knob Dial on and it clicked right on..Very,Very easy
Other Parts Used:
Knob Dial Timer Knob
  • James from Ephrata, PA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Pliers
11 of 13 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dial broke off knob. Knob stripped.
Too easy! Push on dial, push on knob, insert clip. Done. Back in the day a repairman would have probably sold me a new timer with that knob and dial!
Other Parts Used:
Knob Dial Timer Knob
  • Scott from Denver, CO
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Pliers
63 of 73 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The edge of the knob wore out
I pulled the old knob off and put the new one on.
Other Parts Used:
Knob Dial Timer Knob
  • Kelly from Lewiston, ID
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Pliers, Screw drivers
11 of 17 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Back to Top
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Back to Top
Model Cross Reference
This part works with the following models:
PartSelect Number: PS756514
Manufacturer Part Number: WH11X10033
Brand
Model Number
Description
General Electric
EJRR4170E1WW
Washer
General Electric
GCXRP090B0WW
Washer
General Electric
GCXRP090B1WW
Washer
General Electric
GCXRP090B2WW
Washer
General Electric
GCXRP090D0WW
Washer
General Electric
GCXRP090D5WW
Washer
General Electric
GCXRP090DAWW
Washer
General Electric
GJSR2130B0WW
Washer
General Electric
GJSR2130B1WW
Washer
General Electric
GJSR2130B2WW
Washer
General Electric
GJSR3140D0WW
Washer
General Electric
GJSR3140D5WW
Washer
General Electric
GJSR3140DAWW
Washer
General Electric
GJSR3140DCWW
Washer
General Electric
GJSR4170D0WW
Washer
General Electric
GJSR4170D5WW
Washer
General Electric
GJSRP080B0WW
Washer
General Electric
GJSRP080B1WW
Washer
General Electric
GJSRP080B2WW
Washer
General Electric
GJSRP080B3WW
Washer
General Electric
GJSRP080D0WW
Washer
General Electric
GJSRP080D5WW
Washer
General Electric
GJSRP080DAWW
Washer
General Electric
GJSRP080DCWW
Washer
General Electric
GJXR2130B0WW
Washer
General Electric
GJXR2130B1WW
Washer
General Electric
GJXR2130B2WW
Washer
General Electric
GJXRP080B0WW
Washer
General Electric
GJXRP080B1WW
Washer
General Electric
GJXRP080B2WW
Washer
