Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

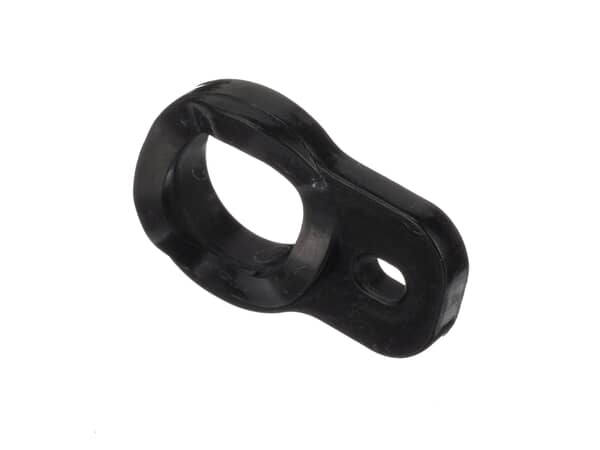

This door closer (part number DA66-00558B) is for refrigerators. Door closer DA66-00558B helps the door open and close smoothly. Wear work gloves to protect your hands when installing this part.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Average Repair Rating: 3.4 / 5.0, 3 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Freezer door not closing properly, cam broke at bottom of door
Unplug the refrigerator and turn off the water supply Remove the screws from the freezer top hinge cover and remove it Disconnect all the plugs and the grounding screw that were present under the cover Remove the front bottom grill (under the doors) 3 screws Place the drip pan under the waterline connectors On the
... Read more freezer side of the connector push the lock into the connector and pull the hoses straight out of the connector Remove the bolts from the top freezer hinge and lift it off Lift the whole freezer door straight up off of the bottom hinge and lay it on a flat surface. Remove the screws from the hinge piece on the bottom of the door and slide it out. Line the new hinge piece up and slide it into place and reinsert the screws. Remove the cam screw from the hinge bottom (still attached to the refrigerator) and remove the can pieces Place the new cam on the hinge bottom and reinstall the screw. The flat side of the cam goes down. Lift the freezer door back into place by lining up the bottom hinge pieces Slide the top hinge back into the freezer top and reinstall the bolts Reinstall the hoses into the connectors on the refrigerator bottom by pushing them in Plug all the connectors together on the freezer top and reinstall the grounding screw Space out the connectors so they will fit under the cover and put the top cover back on. Plug the refrigerator back in and turn on the water supply. Test the water and ice maker then check the bottom connectors for leaks Reinstall the bottom grill and congratulate yourself on a job well done
Unplug electrical harness Took down freezer door , disconnected water lines, took out broken pieces and install new part and replaced door
Adriana from EDINBURG, TX
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Wrench (Adjustable)
6 of 20 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Cracked left bottom door hinge
Unplug refrigerator Turn off water supply to ice maker. Unscrew plastic top cover. Unplug all of the electronic connectors Ooen both doors and remove the base plate 3 screws Disconnect the 2 water lines. Have a container to catch the water. Instructions on how to disconnect are on
... Read more a tag locates in in of the water lines Unscrew the 3 bolts holding the top door hinge and the ground wire Remove the door by lifting up . The water hoses will lift out of the broken base hinge. Remove the broken hinge by pulling straight up. It slides out. Slide the new hinge in. Remount the door by inserting the hoses through the hinge hole. 2 people is helpful. Attach the top door hinge, reconnect the water lines, base cover and Reconnect electronics wires and cover. Good to go
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
2 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Joe
December 14, 2017
Hello, I'm looking for the cam hinge for the freezer door not the one on the door itself but the one that goes on the bottom plate
For model number RSG257AARS
Hi Joe, Thank you for the question. The Lower Cam for the Freezer door is only sold as part of the Lower Hinge Assembly, PartSelect Number PS4173973. Good luck with the repair!
I hear a pop when i open the freezer door at the bottom hinge. Not seeing anything broken. Parts page shows part 6 as upper hinge closing cam - left (partselect number ps4156797), but one question ask about the lower hinge and answer say to replace the whole hinge, partselect number ps4173973. But he had a different model number. Wondering what i might need?
For model number RSG257AABP
Hello Randy, thank you for your question. Usually that pop is because the lower door cam, and hinge cam have worn. We would recommend replacing the hinge cam part number PartSelect Number PS4156797 as well as the lower hinge assembly PartSelect Number PS4173973, which includes the other plastic cam that works with the first part to open and close the door smoothly. I hope thishelps.
Did this question help you?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS4156797
Manufacturer Part Number: DA66-00558B
