12628464-1-M-Husqvarna-530071835-Primer Bulb
Part Location Diagram of 530071835 Husqvarna Primer Bulb
See part B14 in the diagram
( Grid squares measure 1x1 inch )
12628464-1-S-Husqvarna-530071835-Primer Bulb Part Location Diagram of 530071835 Husqvarna Primer Bulb
Customer Service Representative

Get in touch, we're here to help!

1-866-319-8402 Monday to Saturday
8am - 8pm EST

customerservice@partselect.com

Primer Bulb 530071835

 Fits your 220LE!
★★★★★
★★★★★
3 Reviews

A Bit Difficult

1- 2 hours

Rated by verified customers
$ Price Match
OEM badge Official OEM
$ 18.34
  In Stock
Order now and your part arrives by May 2
 Fits your 220LE!
PartSelect Number PS12628464
Manufacturer Part Number 530071835
Manufactured by Husqvarna for Poulan, Craftsman, Husqvarna, Jonsered

Jump to:

Product Description

Primer Bulb Specifications

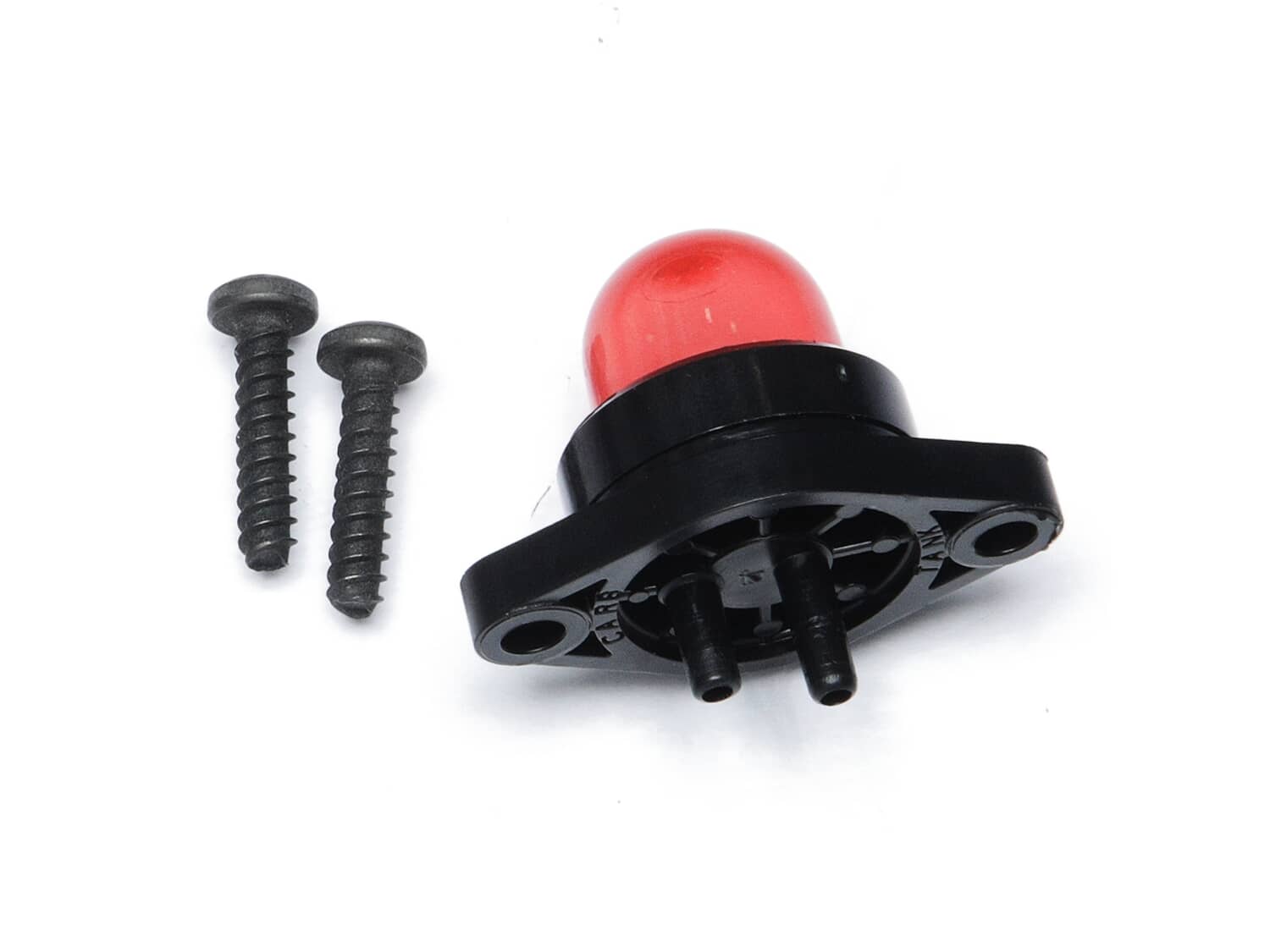

This primer bulb, also referred to as a purge bulb, is in the fuel system of handheld outdoor power equipment. Located on or near the carburetor, it assists in drawing fuel into the carburetor when you press and release it. It ensures that there is enough fuel in the carburetor for the engine to ignite and run smoothly. As the primer bulb ages, it loses elasticity and fails to regain its shape when you press it. When this happens, it is time to replace the bulb. A malfunctioning primer bulb can make engine starting difficult or result in poor engine performance. To remove a primer bulb, you will need a screwdriver or pliers to remove any fasteners holding the bulb in place. You need to also disconnect the fuel lines from the bulb. This OEM kit, sold individually, includes the bulb and two 8mm screws for secure installation.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Why buy the real thing?

OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.

  • OEM from PartSelect
  • Genuine brand name
  • Guaranteed to fit
  • Superior quality and durability
  • 1 year warranty
  • Generic
  • Unknown manufacturer
  • No fit guarantee
  • Inconsistent quality and lifespan
  • Limited warranty and support
Back to Top
You May Also Need ?
Engine Fuel Filter
$9.16
  In Stock
Fuel Line (25" Length)
$12.20
  In Stock
Purge Line
$18.34
  In Stock
Purge Bulb
$12.20
  In Stock
Foam Air Filter
$6.40
  In Stock
Fuel Cap
$10.70
  In Stock
Spark Plug
$9.16
  In Stock
Rope Kit
$7.63
  In Stock
Spark Plug - Rcj-7y
$8.29
  In Stock
Affresh Dishwasher Cleaner Tablets - 6
$22.52
  In Stock
Affresh Washing Machine Cleaner - 3 pack
$20.36
  Special Order
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.42
  In Stock
Produce Preserver Filter
$18.22
  In Stock
Refrigerator Deodorizer
$31.58
  In Stock
Affresh Ice Machine Cleaner
$27.36
  In Stock
Back to Top
Troubleshooting
This part works with the following products:
  • Chainsaw
Part# 530071835 replaces these:
530047213, 530047566, 530071835
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
3 Reviews
4.3
Filter By Rating:
  • 5 Stars
    1
  • 4 Stars
    2
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    0
Sort by:
  • 1
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Wade R - May 16, 2025
  Verified Purchase
Exactly what I ordered. Fast delivery.
It works.
★★★★★
★★★★★
Charles L - November 16, 2018
  Verified Purchase
Chainsaw part
Part took over a week to arrive. This and the other parts were the correct ones needed to repair the tool. Installation instructions were minimal and more information on how to install the parts would have been helpful.
★★★★★
★★★★★
Thomas B - June 17, 2018
  Verified Purchase
User friendly website makes ordering easy
Right part right price and delivered super fast
  • 1
Back to Top
Installation Instructions
 Average Repair Rating: 2.3 / 5.0, 1 reviews. What's this?
Sort by:
  • 1
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Deterioration of fuel line system
Removed the top cover (T25 torx), and side cover (T25 torx) with recoil starter. Drained all fuel, and removed all pieces of fuel old fuel line and the weighted filter from inside the tank by shaking out and the (long forceps). A spot headlamp makes it easier to see inside the tank for much of the procedure. Remove the foam filter to find the two 8mm nuts and remove the air filter housing and carburetor (nut driver, 8mm socket) the choke lever slides out of its slot with some wiggling and moving the carb back off the mounting studs. Leave the throttle cable attached to the filter housing and move both assemblies out of the way to access the top wall of the fuel tank. There is a cover over the carb adjust screws that wiggles out also. The fuel line and purge line both pass through the wall of the tank and need to be pulled out with some effort (long curved forceps) from inside the tank through the fuel fill port. They are a tight fit. Pay attention to the lines size and location. Large line is in the position away from the recoil starter with the little plastic fitting hanging near the top of the tank. The smaller line is closest to the recoil starter. Both new lines will need to pass through the tank wall (this is the most difficult part). To facilitate the initial entry through the wall of the tank, cut a tapered end on your new lines. Use a very slippery lube to coat the end of the line and push it into the tank as far as you can from the top (forceps or soft grip pliers) help. Look inside the tank and pull the lines through fully out of the tank fill (long curved forceps and head spot light). Don't pull all the way through the fuel fill, just enough to install the new fuel line fitting in the return purge line and the new weighted filter on the fuel line and pull the lines back inside the tank. The return line with fitting close to the top of the tank and the filter hanging so it lays at the bottom of the tank, and able to swing around so it keeps contact with fuel at all times. Remove the old purge/primer bulb two screws (Phillips). The short stem is suction, long stem is pressure. Don't mix them up and connect lines backwards, don't ask me how I know! Lol! If you have such a saw like mine, that has no fuel lines intact, it is difficult to vision the line routes. There are helpful schematics on the internet. Just remember that the purge bulb long fuel stem sends pressure back to the tank through the return line (larger line in the tank with the line fitting away from the recoil). That line can now be cut to length and pushed on the bulb long stem. The suction side of the bulb short stem, connects to the purge line on the side of the carburetor (short line). You need to cut that line to the same length as the old one. It has to curve twice to get to the suction side of the purge bulb without kinking. The only other line left is the fuel line with the filter attached hanging inside the tank. Be sure you have the filter able to lay on the floor of the tank and move around. That line connects to the carburetor opposit side from the purge bulb. Dont cut that one until the carb is installed for proper length. The fuel routes from that filtered line into the carb, then out of the carb to the purge bulb suction side, then out to the return line in the tank with the fitting end. That fitting installed into the line serves only to keep the line from pulling back out of the tank, nothing attaches to it. Make sure all lines are clear of the mounting area of the carb, and throttle function. Pass the bulb lines through the slot in the side of the case being sure the lines don't kink. Secure the bulb with the two phillips screws. Position the carb on the studs and slide the choke lever into its place in the case as you go. Place the filter housing on the studs and push the carb and housing down watching the fuel lines for any kinks, especially where the throttle cable is in close proximity to the short carb purge line. Check the throttle function for interferance, and Install the two 8mm nuts. Now route the fuel line around the throttle mechanism out of the way, hold it to the barb on the side of the carb and cut it to length and install. Put some fuel mix in the tank (dont fill it) to test. Press the primer bulb, tilting the saw with fill cap removed, and see if anything leaks, also watch fuel flow back to the tank inside as you press the bulb. You should see fuel and air bubbles from the purge line. When all air bubbles are gone the system is purged. Install the new foam filter in the housing and then the top and side cases. I did not reinstall the cover of the carb adjust needle screws so I could adjust the fuel/ air mixture to run at peak performance. Hope this helps! The kit that I got was perfect and there are some useful instructions included. Thank you! Respectfully Mark
Read less
Other Parts Used:
Primer Bulb Fuel Line (25" Length) Purge Line Foam Air Filter Fuel Line Fitting Engine Fuel Filter
  • Mark from LYNDONVILLE, NY
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Nutdriver, Pliers, Screw drivers, Socket set
101 of 114 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Back to Top
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

1 question answered by our experts.
Sort by:
  • 1
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jim
February 8, 2022
How to and where do the fuel lines from primer bulb to tank and carb routings.primer bulb (2 ports),carb (2 ports), inlets to tank-2,1 larger than the other.
For model number 260 pro-42cc 18
PartSelect logo
Hello Jim, Thank you for your inquiry. We have general repair guides and videos listed for each of these parts listed under the part descriptions of each part. We have also included the direct links below. Good luck with your repair. https://www.ereplacementparts.com/repair-center/article/4262/How_to_Replace_a_Primer_Bulb.html https://www.youtube.com/watch?v=P-7anv7UN08 https://www.youtube.com/watch?v=UmEwP6rxpLw https://www.youtube.com/watch?v=Du9v9hfN1wg

Did this question help you?
Thank you for voting!
  • 1
Back to Top
Model Cross Reference
This part works with the following models:
PartSelect Number: PS12628464
Manufacturer Part Number: 530071835
Brand
Model Number
Description
Poulan
1900
Chainsaw - Gas Chainsaw
Poulan
1900 LE
Chainsaw - Poulan Chainsaw Model 1900 LE (1900LE) Parts
Poulan
1950
Chainsaw - Gas Chainsaw
Poulan
1950LE
Chainsaw - Gas Chainsaw
Poulan
1975
Chainsaw - Gas Chainsaw
Poulan
1975LE
Chainsaw - Gas Chainsaw
Poulan
2025
Chainsaw - Gas Chainsaw
Jonsered
2035
Chainsaw - Chain Saw
Poulan
2050
Chainsaw - Gas Chainsaw
Poulan
2050LE
Chainsaw - Gas Chainsaw
Poulan
2050WT
Chainsaw - Gas Chainsaw
Poulan
2055
Chainsaw - Gas Chainsaw
Poulan
2055LE
Chainsaw - Gas Chainsaw
Poulan
2075
Chainsaw - Gas Chainsaw
Poulan
2075 LE
Chainsaw - Poulan Chainsaw Model 2075 LE (2075LE) Parts
Poulan
2075C
Chainsaw - Gas Chainsaw
Poulan
2075OC
Chainsaw - Gas Chainsaw Gas Chainsaw
Poulan
2150
Chainsaw - Gas Chainsaw
Poulan
2150 PR
Chainsaw - Poulan Chainsaw Model 2150 PR/TYPE 1 (2150PR/TYPE1) Parts
Poulan
2150 PREDATOR
Chainsaw - Poulan Chainsaw Model 2150 PREDATOR/TYPE 1 (2150PREDATOR/TYPE1) Parts
Poulan
2150 PREDATOR LE
Chainsaw - Poulan Chainsaw Model 2150 PREDATOR LE/TYPE 1 (2150PREDATORLE/TYPE1) Parts
Poulan
2150-PREDATOR -E
Chainsaw - Chainsaw
Poulan
2150LE
Chainsaw - Gas Chainsaw
Poulan
2150LE PREDATOR
Chainsaw - Poulan Chainsaw Model 2150LE PREDATOR/TYPE 1 (2150LEPREDATOR/TYPE1) Parts
Poulan
2150LX
Chainsaw - Poulan Pro Chainsaw Model 2150LX Parts
Poulan
2150PR
Chainsaw - Chainsaw
Poulan
2155
Chainsaw - Gas Chainsaw
Husqvarna
2160
Chainsaw - Bh Le
Poulan
2175
Chainsaw - LE Gas Chainsaw
Husqvarna
220
Chainsaw - Chain Saw
