Tub Seal and Bearing Kit

PartSelect Number PS3503261

Manufacturer Part Number W10435302

Manufactured by Whirlpool

Product Description

Tub Seal and Bearing Kit Specifications

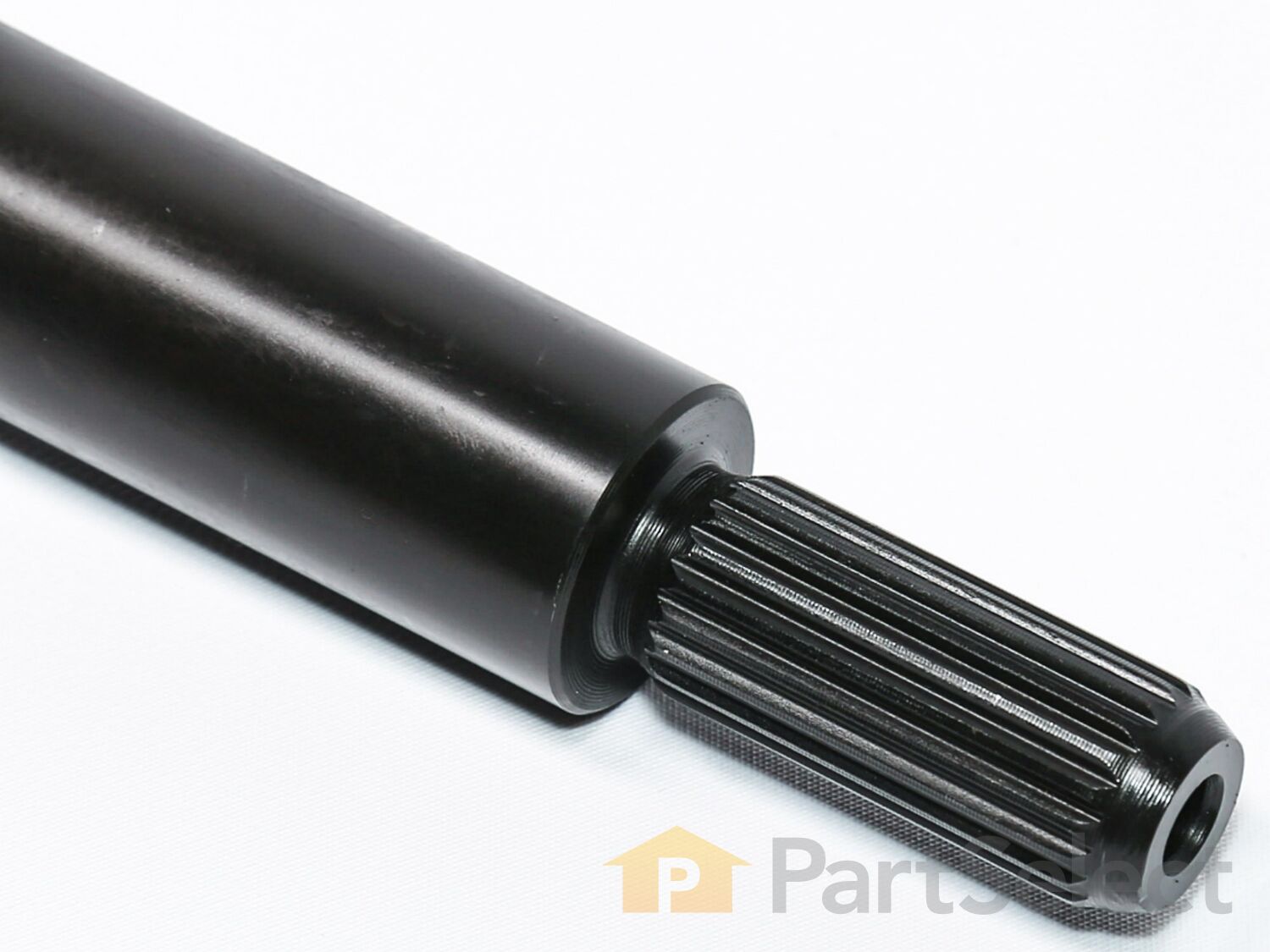

This kit includes the shaft, 3 bearings, seals , grease, adhesive and the spanner nut, which is NOT sold separately. Also may require a bearing driver tool to install. PS3503307

How Buying OEM Parts Can Save You Time and Money

Troubleshooting

This part fixes the following symptoms:

Noisy | Leaking | Shakes and moves

This part works with the following products:

Washer.

This part works with the following brands:

Maytag, Whirlpool, Kenmore.

Part # W10435302 replaces these:

AP5325033.
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
15 questions answered by our experts.
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Customer Repair Stories
Average Repair Rating: 1.9 / 5.0, 4 reviews What's this?
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
DENNIS from OELWEIN, IA
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set, Wrench set
Parts Used:
W10435302
Washer was noisy, Top seal and bearing bad
You better be confident in your repair abilities before you try this. Get the washer to a large open area, like your garage, because there are a lot of parts. Take off the back, pop the top, unsnap and remove the top ring off outer tub, take out the agitator, take out the inner tub, disconnect the pumps and electrical wires, take screw out of rotor on bottom and remove rotor, take out 4 bolts to remove motor magnet ring, and now you may be ready to unhook the outer tub from the 4 supports (springs) and lift it out of the metal frame. Then unscrew the bottom nut on the shaft, use blocks to hold the tub in place, and carefully tap the old shaft and bearings out. The instructions that came with the kit helped. The shaft and top seal comes out the top first. Then you can tap out upper bearing and then the lower bearing and spacers.Instructions called for a special tool to install the bearings but you can carefully tap them in. You will need blocks to support the tub while you tap them. First block under the tub and install top bearing, then flip over and use several blocks to hold tub while you drop the shaft, spacers, and tap lower bearing in. I did not need to tap on the inner ring of the bearings, just the outer ring. Be very careful not to damage the seal in the bearings. That's why you must tap them in careful and slow. Them install the nut on the bottom. You need to hold the shaft with damaging it while you tighten the nut. I used the hard nylon gear from the inner tub which I was replacing with a new one. Then put it all back together.
142 of 153 people found this instruction helpful.
Was this instruction helpful to you?
Daryl from Devils Lake, ND
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Parts Used:
W10435302
Washer was loud during spin cycle and began leaking water from underneath (not either pump)
I followed a youtube video by Appliance Repairs, 32-34 minutes long that was very thorough.
12 of 13 people found this instruction helpful.
Was this instruction helpful to you?
Barry from PANAMA CITY, FL
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Socket set
Parts Used:
W10435302
Replace bearings and seals on shaft
Watched a couple of videos online to get a good grasp on repair. Opted out of purchasing the bearing press tool $130. Struggled a little, but made the repair. At the very least the wash tub needed a good cleaning
6 of 7 people found this instruction helpful.
Was this instruction helpful to you?
Rachel from FARMINGVILLE, NY
Difficulty Level:
Difficult
Total Repair Time:
More than 2 hours
Tools:
Socket set, Wrench set
Parts Used:
W10447783, W10435302
Bearing
Taking the full drum apart
1 person found this instruction helpful.
Was this instruction helpful to you?
Customer Reviews
Average Rating:
10 Reviews
4.5
out of 5
Filter By Rating:
  • 5 Stars
    5
  • 4 Stars
    5
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Stars
    0
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Model Cross Reference

This part works with the following models:

PartSelect Number: PS3503261
Manufacturer Part Number: W10435302
Brand
Model Number
Description
Kenmore
11027086600
Washer - RESIDENTIAL WASHER
Kenmore
11028103310
Washer - WASHER
Maytag
7MMVWB850WL0
Washer - AUTOMATIC WASHER
Maytag
MTW6300TQ1
Washer - RESIDENTIAL WASHER
Maytag
MVWB300WQ0
Washer - AUTOMATIC WASHER
Maytag
MVWB300WQ1
Washer - AUTOMATIC WASHER
Maytag
MVWB300WQ2
Washer - AUTOMATIC WASHER
Maytag
MVWB400VQ0
Washer - RESIDENTIAL WASHER
Maytag
MVWB450WQ0
Washer - AUTOMATIC WASHER
Maytag
MVWB450WQ1
Washer - AUTOMATIC WASHER
Maytag
MVWB450WQ2
Washer - AUTOMATIC WASHER
Maytag
MVWB455YQ0
Washer - AUTOMATIC WASHER
Maytag
MVWB700VQ0
Washer - RESIDENTIAL WASHER
Maytag
MVWB750WB0
Washer - AUTOMATIC WASHER
Maytag
MVWB750WB1
Washer - AUTOMATIC WASHER
Maytag
MVWB750WB2
Washer - AUTOMATIC WASHER
Maytag
MVWB750WL0
Washer - AUTOMATIC WASHER
Maytag
MVWB750WL1
Washer - AUTOMATIC WASHER
Maytag
MVWB750WL2
Washer - AUTOMATIC WASHER
Maytag
MVWB750WQ0
Washer - AUTOMATIC WASHER
Maytag
MVWB750WQ1
Washer - AUTOMATIC WASHER
Maytag
MVWB750WQ2
Washer - AUTOMATIC WASHER
Maytag
MVWB750WR0
Washer - AUTOMATIC WASHER
Maytag
MVWB750WR1
Washer - AUTOMATIC WASHER
Maytag
MVWB750WR2
Washer - AUTOMATIC WASHER
Maytag
MVWB755YL0
Washer - AUTOMATIC WASHER
Maytag
MVWB755YQ0
Washer - AUTOMATIC WASHER
Maytag
MVWB755YR0
Washer - AUTOMATIC WASHER
Maytag
MVWB800VB0
Washer - RESIDENTIAL WASHER
Maytag
MVWB800VQ0
Washer - RESIDENTIAL WASHER
