Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

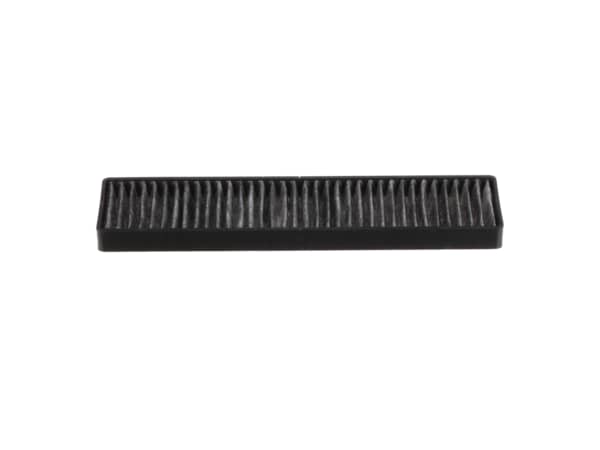

Introducing GE's charcoal air filter, specially designed to keep your GE microwave smelling fresh and free of cooking odors. Measuring 2-1/2 inches by 11 inches, this highly effective filter actively circulates through your microwave vent, efficiently eliminating any food smells. To maintain optimal performance, it's recommended to replace this feature annually. Please ensure to follow the specific instructions from your microwave's owner manual when installing this product. Keep your kitchen air fresh and your microwave operating at top-notch performance with this charcoal filter from GE.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Average Repair Rating: 5.0 / 5.0, 1 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
The piece broke upon that movement to slid the unit to the left. The replacement part I ordered fixed the need to even have it if you removed the Philips screw and placed it back into the new metal area for it to go back onto the top of the microwave.
I unplugged the microwave to be safe. Climbed on a small step stool and slid the broken unit that kept sagging without that plastic hook holding the filter in. The door sagged and the microwave would only work if I pushed the door up and held it to use it. Once secured with the newer improved fixture attached through that Phillips screw i
... Read morento the metal attachment hole it works beautifully.
Ask our experts a question about this part and we'll get back to you as soon as possible!
4 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Carol
May 18, 2023
Where and how do I install the replacement charcoal filter for my GE microwave oven?
For model number PVM9215SK6SS
Hi Carol, thank you for reaching out. First, disconnect the power at the main fuse or circuit breaker, or pull the plug. Push down 2 buttons on the filter door. Lift the filter at the bottom until it comes free of the tabs. Slide the filter down and out. To install a new charcoal filter, remove the plastic wrapping from the new filter. Insert the top of the filter. Push the bottom of the filter in until it rests in place behind the tabs. Close the filter door. We hope this helps!
Did this question help you?
Thank you for voting!
Marvin
June 26, 2023
How do I install the charcoall filter
For model number JVM71955K6SS
Hi Marvin, thank you for getting in touch. Please follow the given instructions to install the charcoal filter:
1. Unplug the microwave oven.
2. Remove the vent grille mounting screws.
3. Tip the grille forward, then lift it out to remove it.
4. Remove the old charcoal filter.
5. Slide a new charcoal filter into place.
6. Slide the bottom of the vent grille into place. Push the top until it snaps into place. Replace the mounting screws
7. Plug in the microwave oven.
We hope this information helps!
Did this question help you?
Thank you for voting!
Kent
October 1, 2023
Which filter do I need?
For model number JVM7195FL6DS
Hello Kent, thank you for reaching out. Your model comes with two filters: the charcoal filter, part number PS2355813, and the grease filter, part number PS12749195. Glad to be of help!
What part # is the charcoal filter replacement for this cafe microwave
For model number Cvm521p2m651
Hello Sandi, thank you for getting in touch. The charcoal filter, part number PS12742670, is compatible with your model. We hope this is what you were looking for!
