Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):
This valve solenoid kit is a 120-volt component designed to regulate the flow of water and steam within espresso machines, ensuring consistent pressure and optimal brewing performance. Common symptoms of a failing solenoid include buzzing sounds, low pressure, leaks, or uneven brewing. Replacing this part can restore proper function and improve overall machine reliability. The kit typically includes the safety valve, solenoid coil, and valve assembly. Always verify compatibility with your specific model before installation.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Alan B - September 25, 2024
Verified Purchase
Dispense issue solved
A fairly easy repair, just be careful with some of the fine wires. Check position of all the o-rings and use a relatively small screwdriver to press the hose against the o-ring while installing the clips.
< Prev
1
Next >
Installation Instructions
Average Repair Rating: 2.8 / 5.0, 1 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Breville Barista Express BES870XL
4-5 year old Barista Express started tripping the GFCI outlet during a descale / machine clean operation.
Removed the back of the machine and saw water / moisture around the right solenoid.
Ordered the entire valve solenoid kit, removed the connections, removed the old/original valve kit, then maneuvered the new valv
... Read moree kit in. Most difficult part was hooking up the hose to the spout on the far left side and then zip tying it.
If you are experiencing GFCI trips / power issues - order the entire valve kit. Machine ran great after the replacement.
Read less
Robert from Cranberry Township, PA
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
4 of 5 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
4 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Mark
December 4, 2024
I just need the elbow (part 149 of the exploded view). Do I need to buy this whole valve assembly or can I just buy the elbow? Thanks,
For model number BES870XL
Hello Mark, thank you for getting in touch. The part labelled as 02.149 in the exploded diagram is the solenoid valve, part number PS17016388. You can order it individually. Glad to be of assistance!
Can I use this part on my BES870XL?
Your picture seems showing two water exit, my machine only needs one.
Thank you
For model number BES870XL
Hello Charlie, thank you for your inquiry. Yes, this solenoid valve kit is compatible with your model. It contains only one water exit. We hope this information helps!
Did this question help you?
Thank you for voting!
Michael
November 6, 2025

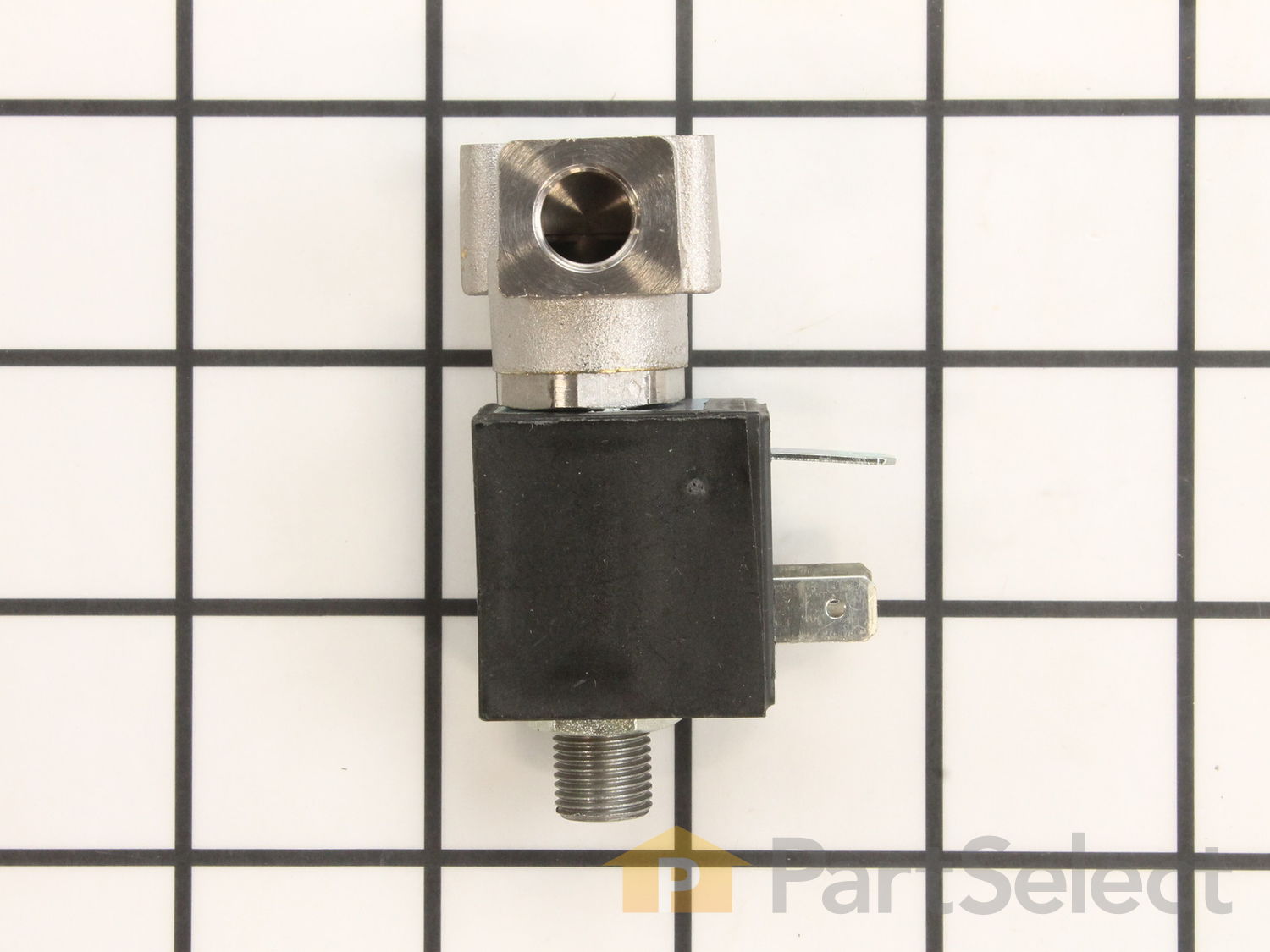

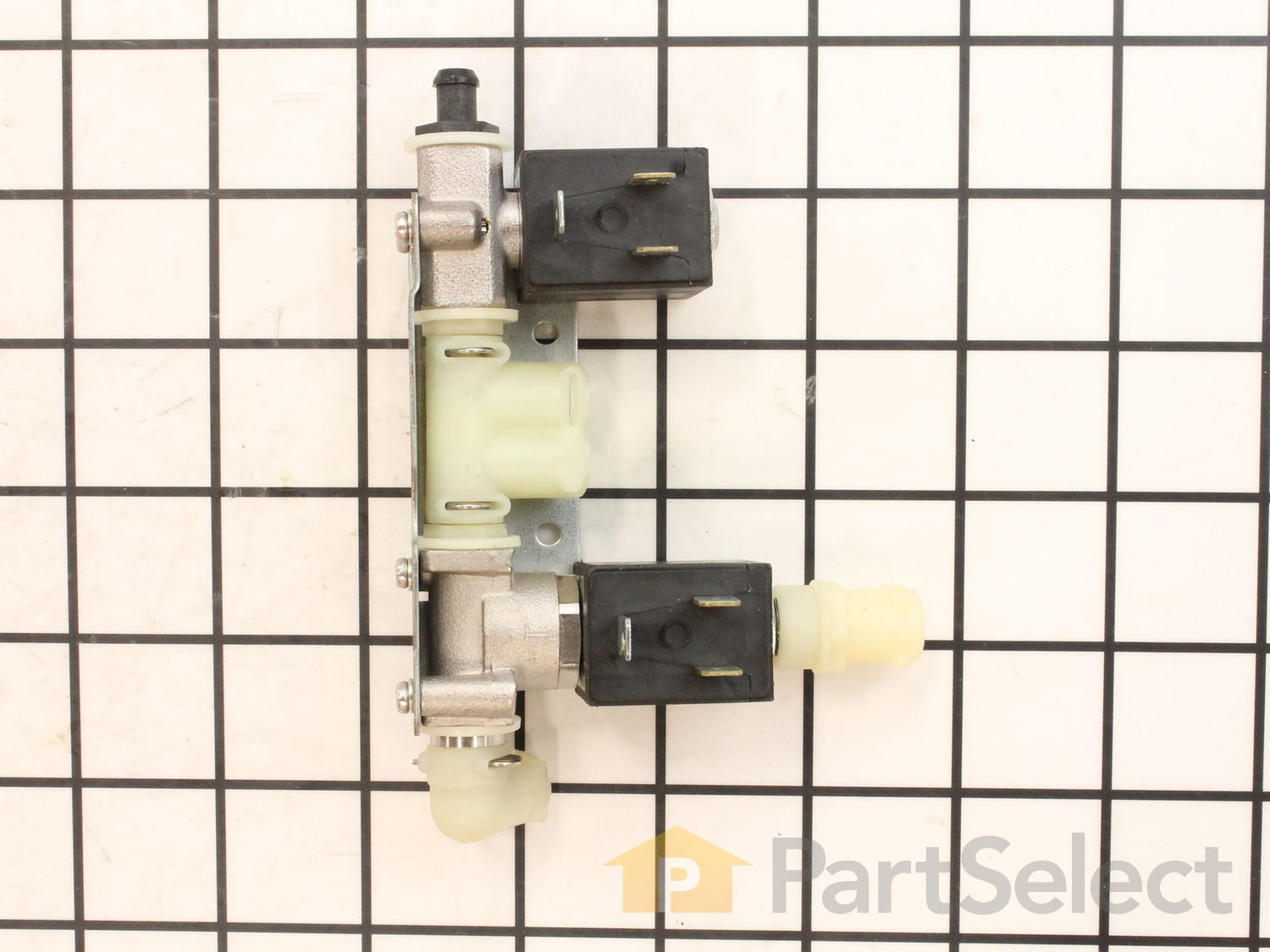

Does this come with both valves and fittings like shown in the first picture or one valve like the 2nd.
For model number BES870XL
Hello Michael, thank you for reaching out. The mentioned kit includes the safety valve, solenoid coil, and valve assembly. We hope this information helps!
Did this question help you?
Thank you for voting!
Valdas
March 14, 2026
Received and installed SP0100757 kit into Breville BES 870XL, but after installation I press "brew", the water just goes to the drain, completely bypassing the group head. Could it be a defective part?
For model number Breville BES 870XL
Hi Valdas,
Thank you for your question. If the water drains when you press brew on your Barista Express, the solenoid valve likely has a build-up of scale and will need to be cleaned. If de-scaling the solenoid valve does not fix the issue, or if the solenoid valve makes a buzzing or clicking sound, then it will need to be replaced. We hope this helps!
Did this question help you?
Thank you for voting!
