Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

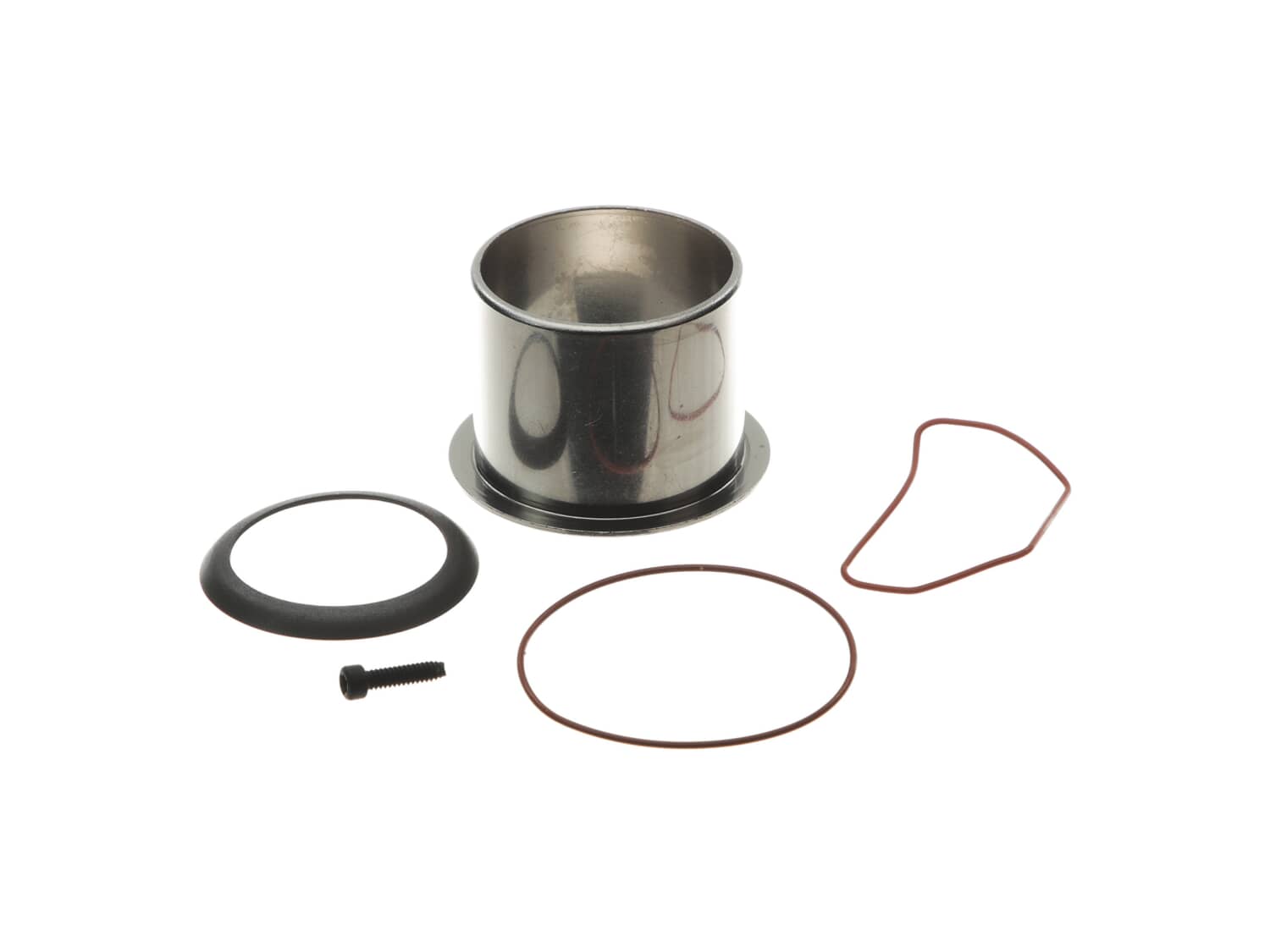

This kit is an OEM part direct from Craftsman for air compressors. This kit consists of the parts for building a piston cylinder in the compressor. It is recommended that you release air and unplug the air compressor before you install this kit. You will need a wrench set to replace this part. This kit includes two o-rings, piston ring clamp screw and the cylinder tube. This kit is made of metal and rubber components.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Kenneth B - March 14, 2019
Verified Purchase
Went back together as expected
Got parts tore compressor apart ,replaced parts torqued as needed plugged back in works great that simple.
< Prev
1
Next >
Installation Instructions
Average Repair Rating: 3.3 / 5.0, 1 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
The air was bypassing the compressor gaskets and cylinder wall was worn out
1 remove cover 2 unhook air line to tank 3 remove head bolts 4 remove intake from head 5 remove flywheel bolt to free up pump piston 6 remove screw on top of piston to change out gasket 7 remove the cylinder sleeve install piston from the top 8 reassemble piston rod end and the flywheel 9 on th
... Read moree head cover are two gaskets one on top and one on the bottom head 10 insert intake piece and bolt the head cover back in place 11 reinstall the air line and unit cover and secure with three cover screws
Read less
Charles from GARRISON, TX
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
18 of 24 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
7 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Michel
February 8, 2026
What is the piston seal made of (rubber, plastic or teflon)? Thanks!
For model number Air compresseur craftman modèle 919-721960
Hello Michel, thank you for reaching out. The piston seal or the piston ring is made of Teflon. We hope this information helps!
2 people found this helpful.
Did this question help you?
Thank you for voting!
Dennis
October 17, 2022
Does it fit this model
For model number 921-166420
Hello Dennis, thank you for your question. The Piston Kit, part number PS16348857, will fit your model. If you need help placing an order, customer service is open 7 days a week. Thanks again for your great question.
Does this work for craftsman air compressor model number 919-16523? Thank you
For model number 919-16523
Hi Danny, thank you for reaching out. Yes, this will work with your model. We hope this helps.
Did this question help you?
Thank you for voting!
Dan
December 28, 2023
Pressure won't go above 60 pls and doesn't shut off. Can I get parts to fix whatever is leaking by????
For model number 919-165310
Hi Dan,
Thank you for your question. If the air compressor is not building pressure, we would recommend checking the piston cylinder kit, the ring, and the valve plate assembly. We hope this helps!
Did this question help you?
Thank you for voting!
David
March 20, 2023
My compressor after I turn it on starts but blows circut breaker 20 amp
For model number 919.165010
Hello David, Thank you for your inquiry. There are two reasons an air compressor can trip a breaker,
electrical and mechanical. Several factors can cause your compressor to pull too much power, so first make sure that that amp rating on the compressor does not exceed the amperage the outlet can handle. Check the safety valve, piston kit with o-rings, the fan and filter kit, and check valve for any visible damage. Good luck with your repair.
Did this question help you?
Thank you for voting!
James
November 20, 2023
Are there any parts (piston, ring, etc.) that are compatible with this model available?
For model number 919.165220
Hello James, thank you for your question. The original Piston kit is now discontinued. However, If your piston rod is okay and the piston ring is replaceable, use the K-0650 cylinder kit. You can also get the Ring individually as part DAC-308. We hope this helps.
Did this question help you?
Thank you for voting!
Mike
March 27, 2022
Will this connecting rod and sleeve fit my DeVilBiss 5hp 20 gallon air compressor
For model number IFRB5021
Hello Mike, thank you for writing. No, the part you had chosen is not compatible for your model. The correct part for your model number is K-0650. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you.
Did this question help you?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS12518127
Manufacturer Part Number: K-0650
