This is a replacement suspension spring retainer for your washer. The retainer holds the suspension spring in place while the washer is operating. If you notice movement, or an unusual noise or shaking of your washer when it is in use, it could mean that the suspension spring has been disconnected because of a broken or missing spring retainer. You will find the suspension spring retainer at the bottom of the tub assembly. To replace the retainer, use a pair of pliers to disconnect the suspension spring from the chassis mount to relieve the tension. Then, remove the spring from the retaining clip, and remove the retaining clip from the bottom of the washer. Attach the new retaining clip to the bottom of the washer, reattach the spring, and stretch it slightly so it can connect to the chassis. This part is sold individually.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part works with the following products:
Washer, Washer Dryer Combo.
This part works with the following products:
Whirlpool, Kenmore, KitchenAid, Roper.
Part# WPW10145155 replaces these:
AP6015776, 63806, 63806D, W10145155, W10145155D
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
2 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Allan
January 8, 2018
Can you explain what the retainer, suspension spring, part number wpw10145155 does and where it attaches? Also, how many should there be? I am replacing all the springs and a number of other components on our 15+-year-old washing machine to reduce noise and shaking. But i didn't find any springs that look like the retainer suspension spring. Thanks.
For model number LSR5232LQ0
Hi Allan,
Thank you for your question. The suspension spring retainer is located near the bottom of the tub assembly and there should be one of these spring retainers for each of the suspension springs.
I hope this helps. Thank you and have a great day!
4 people found this helpful.
Was this helpful?
Thank you for voting!
Guest
August 8, 2018
Washer still shakes vigorously after levelling feet and replacing all springs but saw that there are no suspension spring retainers on our Whirlpool wtw57esvw1. Are these needed? If so, do they attach directly to the frame or the outer spring bracket and is there a specific video for this? How precisely are these attached to the suspension spring?Thank you.
For model number wtw57esvw1
Hello, thank you for your question. Yes, your unit should have one suspension spring retainer for each suspension rod. The retainer holds the suspension spring in place while the washer is operating. If you notice movement, or an unusual noise or shaking of your washer when it is in use, it could mean that the suspension spring has been disconnected because of a broken or missing spring retainer. You will find the suspension spring retainer at the bottom of the tub assembly. To replace the retainer, use a pair of pliers to disconnect the suspension spring from the chassis mount to relieve the tension. Then, remove the spring from the retaining clip, and remove the retaining clip from the bottom of the washer. Attach the new retaining clip to the bottom of the washer, reattach the spring, and stretch it slightly so it can connect to the chassis.I hope this helps!
3 people found this helpful.
Was this helpful?
Thank you for voting!
< Prev
1
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Part Videos

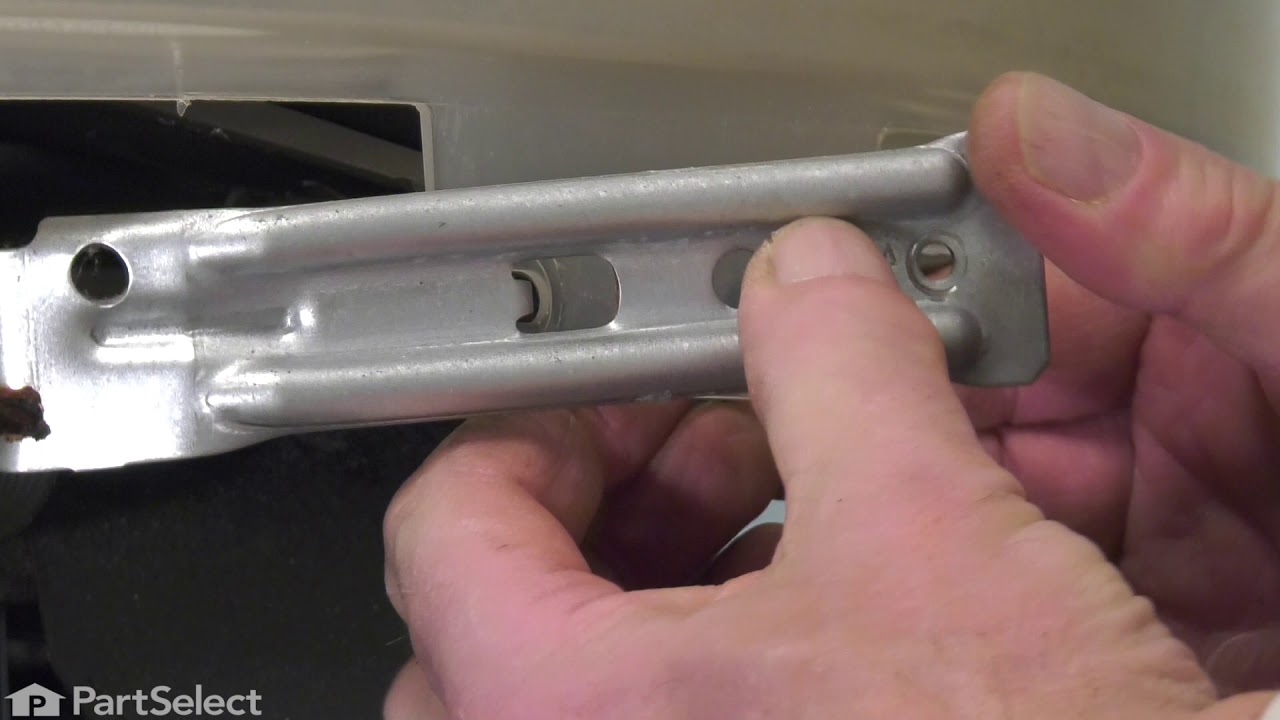

Replacing your Whirlpool Washer Suspension Spring Retainer
Customer Repair Stories
Average Repair Rating: 2.8 / 5.0, 1 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
machine was out of balance
Removed the washing machine from the wall and found a broken spring on the floor. Began disassembling the unit before accessing your sight. (Later I viewed your video of the more simple dis assembly).Used your parts breakdown to identify the 6 parts I needed (3 springs and 3 retainers),and ordered them. They arrived on time and as per the video, installed them with ease and reassembled the unit. My wife is very happy. Thank you, Rusty
