Dispenser Door Latch Grommet

★★★★★
★★★★★
2 Reviews
$ 27.31   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS11747610
Manufacturer Part Number WP99001553
Manufactured by Whirlpool
Product Description

Dispenser Door Latch Grommet Specifications

This grommet for your soap dispenser door is just under an inch long.

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Leaking | Will not dispense detergent
This part works with the following products:
Dishwasher.
This part works with the following products:
Maytag, Jenn-Air, Magic Chef, Amana.
Part# WP99001553 replaces these:
AP6014372, 913191, 99001553, Y913191
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

3 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Ron
    April 26, 2018
    Dishwasher is leaking. We've replaced the door gasket, now seems to be leaking worse. Seems like it is over filling?
    For model number DWU9202AAB
    Hi Ron, Thank you for the question. The water level should reach just below the heating element. if it is over filling, I suggest replacing or checking the float switch, PartSelect Number: PS11747680.Water that fills your dishwasher lifts this float. When it reaches a certain level, the float triggers the float switch to shut off, thereby shutting off the flow of water into the dishwasher. Hope this helps!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Joseph
    January 15, 2020
    Is this grommet held in place with a sealant ?
    For model number DWU7402AAB
    Hello and thank you for writing. No, you should not need any sealant to hold this part in place. We hope this helps. Please contact us anytime if you require further assistance.

    Was this helpful?
    Thank you for voting!
    Wayne
    March 13, 2018
    I've replaced both the inner door gasket and door gasket and the machine still leaks. The leaking seems to come towards the end of the cycle. Is there any objective way to determine where the leak is occurring? I'm thinking of adding another inner door gasket and also the soap dish grommet. What do you recommend? Thanks for your help.
    For model number PDB2600AWE
    Hi Wayne, Thank you for your question. Before adding another gasket, I would first find out what the problem is. If the leaking is occurring at the end of the cycle, it is likely the pump, but you may need to take the dishwasher apart to see which part is causing the issue. I hope this helps. Thank you and have a great day!

    Was this helpful?
    Thank you for voting!
      Part Videos

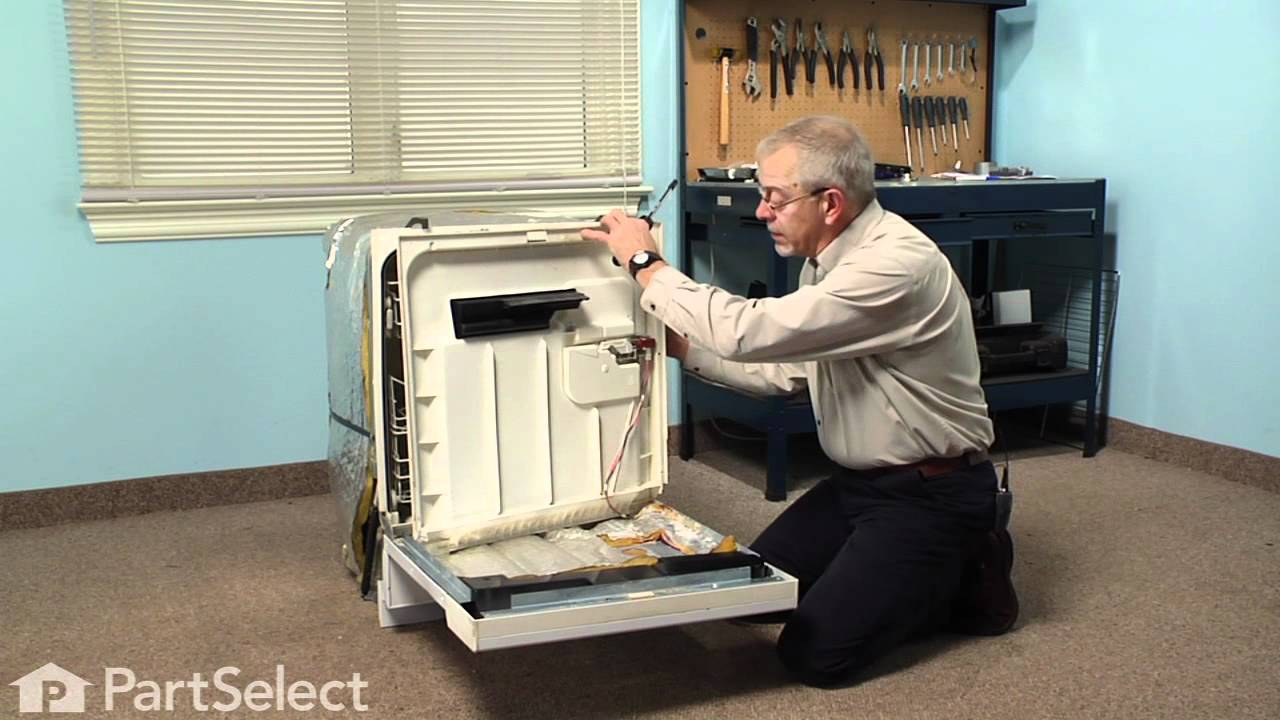

      Replacing your Maytag Dishwasher Dispenser Door Latch Grommet

      Customer Repair Stories
       Average Repair Rating: 3.8 / 5.0, 52 reviews. What's this?
      Sort by:
      Sorry, we couldn't find any existing installation instruction that matched.
      Water dripping from right corner of door
      Took out about 7 torx screws to remove the inner door liner. Discovered evidence of leak coming from the sop dispenser latch, and noticed the grommet had turned soft and was torn. The grommet is only about 1" square. Used nut driver to remove two screws to remove latch assembly. Slipped old grommet off and put new one on, and reattached the latch. The foam seal at the bottom of the door looked worn, so we replaced it with weatherstripping from home improvement store. The main door seal was brittle, so we replaced it too - just grab an end and pull the old one out. The new one was installed by starting at one end and we just pushed it in place. We used a nut-driver to push it in - we were afraid a screwdriver might damage it. The new door seal required us to latch the door to get it to stay closed the fist couple of days, but now it has loosened up a bit and works as expected. And NO MORE LEAKS. Cost is much less than a new unit!
      • Tim from Ringgold, GA
      • Difficulty Level:
        Easy
      • Total Repair Time:
        30 - 60 mins
      • Tools:
        Nutdriver
      • Parts Used:
        WP99001553, WP902894
      593 of 605 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Dishwasher leaking (small puddle)
      My dishwasher was leaking a small amount and it seemed to be happening during the last half of the cycle. The insulation at the bottom of the door was wet but not directly under the dishwasher by the motor etc. I tried the door gasket which was a simple 2 minute job but that didn't solve the issue. I took apart the door by removing the seven torx head screws on the inside (don't worry about the metal pieces on the sides with the phillips screws). I could see some white powdery build up and watermarks coming from the soap dispenser area. I thought maybe there was crack in the door. But after taking out the solonoid (it just snaps in and out) I could see light around the little latch that holds the soap dispenser door shut. I tried a bit of caulking but it just fell out after a day or so. Then I found the little grommet on PartsSelect.com. You have to take off a white plastic cover that covers the door latch mechanism - it snaps in and out on one point. A couple screws hold the plastic assembly in place. You can just remove the whole assembly, it doesn't need to be taken apart. Remove the old grey gasket around the latch and put the new one over the latch. It's more like a "boot" like around a shift lever in a car. Put the assembly back in with the latch going through the hole. Make sure the gasket covers the hole. Tighten the screws down, not so much as to tear the gasket but enough to be snug against it. Snap the white cover back on. Snap the solonoid back in place. Put the door back in place. Put the seven screws back in. You're all set - no leaks. The key to troubleshooting was that it started leaking during the rinse cycle after the soap dispenser latch had flipped up exposing the worn boot around the latch.
      194 of 266 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Water leaking below door
      I originally thought the door gasket was leaking so I went to partselect on line to order the gasket. After seeing the repair story results, I also decided to order the soap dispenser grommet also. I first relaced the door gasket as that takes about 5 minutes (take the easy way first right,) I was wrong as it still leaked. I then took the 7 torx head screws off from the door and the inside section just lifts off exposing the underside and the real problem. The soap latch had been leaking and was obvious from the dried soap/water trail. You have to remove two small screws and the whole unit comes out very simply. I took the extra time to clean off the build up of soap and hard water before replacing the seal and remounting the soap dispensing latch assembly. Ran another load and no more leaks! Thanks for the advise and the really simple but accurate way to order parts. I will use this site if I ever need any other parts. Very helpful and quick deliver as well as reasonably priced.
      • Jeff from Sandy, UT
      • Difficulty Level:
        Easy
      • Total Repair Time:
        30 - 60 mins
      • Tools:
        Nutdriver, Socket set
      • Parts Used:
        WP99001553, WP902894
      122 of 187 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Leaking on right fromt of the door.
      removed the door gasket by just pulling it out and pushing the new one in its place. very easy, took five minutes at most. Then removed the 7 screws holding the inside of the door in place, removed the dispenser assembly, held by two drive screws and replaced the dispenser door latch grommet. Finally, removed the insulation foam gasket. Had to scrape the old adhesive from the door as the old a\gasket had disintegrated. This took the most time. Then just pressed the new foam gasket in place. Reading the comments from others was a big help. Don't think I would have replaced the dispenser grommet had I not been warned about it. I'm sure it was part of the problem. All is well now, no leaks.
      • Gary from Longville, MN
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        30 - 60 mins
      • Tools:
        Nutdriver, Screw drivers
      33 of 35 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Leaking
      I first changed the dispenser door latch grommet, which was very eazy except for the left side nut screw which was a little awkwaed to get to with the nut driver. Not a big problem but difficult enough that i stripped the threads (plastic) and had to get a larger screw which is working fine so far. Since the grommet didn't stop the leaking although it was obvious it was leaking from the soap trail. I ordered the gasket and got it very promptly put it on and guess what. Still leaked some. I discovered when they installed the dishwasher the door appeared to be warped. To fix this there are two door tension springs under the bottom panel. By adjusting these with a log screw driver problem finally solved.
      It is good to have not only a great place to get parts but the idea's from others are terrific. Although this washer is 15 years old it looks new and now acts new. Thanks so much for good service and advise.
      • L W from Manning, SC
      • Difficulty Level:
        A Bit Difficult
      • Total Repair Time:
        1- 2 hours
      • Tools:
        Nutdriver, Screw drivers
      • Parts Used:
        WP902894, WP99001553
      10 of 11 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      leaking water, not cleaning dishes
      I removed the dishwasher to outside the house and examined it for signs of leakage. Found 2, one at the water injector and a second at the bottom right of the front door. In checking the water injector I found that a large roach had crawled in and died which was blocking the inlet into the dishwasher. I cleaned that out. I examined the door and seal but could not find any obvious source for the door leak. I purchased locally a door seal and installed it. I connected the dishwasher up to water and electricity using a grounded plug. I also hooked up a drain hose (be sure to put an elevated loop in it to keep the water from draining before being pumped out). I ran the dishwasher and found water still dripping from inside the front door during the wash cycle only. After unplugging the dishwasher, I removed the door's front decorative panel (2 screws, one on each outside lower edge) and began watching through one of the 1.5" holes punched in the door metal panel. I noted that during the wash cycle only, water was dripping from the area of the soap dispensor release mechanism. I the inner door plastic panel, by removing the seven screws. I also had to remove the dispensor release actuator since I could not pull the 2 wire connectors off without fearing I would break the mounting tabs off. I released the tabs that held in the actuator easily with my fingers freeing the actuator from the inner plastic panel. The only place that I could see an opening was the the release arm and its rubber seal. However the rubber seal was heavily caked with hardened detergent. Feeling that the seal rubber was probably hardened and cracked, I released it. I had to remove the release arm assembly held in with 2 screws. I reassembled the assembly with the new seal in and ran the dishwasher. No leaks. I did find that if I had just pulled the seal and rubbed it between my fingers the dried detergent would break off and the rubber itself was fine. Should have tried that first. I did replace the dispensor door because of crusted detergent on the door seal. I could not get the crusty stuff off without tearing the seal. I used a small thin punch to push the hinge pin (non spring side) from the plastic inner panel to the dispensor door side releasing the hinge and allowing the door to come out. Reinstalled the pins and spring into the new door. After putting the dispensor door in place, I pushed the hinge pin (non spring side) through the door hinge into the inner plastic panel.
      I also wanted to improve the cleaning level that had decreased over the years. I removed the uppper pump housing by removing the hand nut on the lower spray bar then the 6 T-20 torx screws. Inside the plastic filter screen. I found that the screen was partially plugged by either minerals or dried detergent. The old one was stuck slightly to the lower pump housing. I tried to poke out the debris out of each of the screen holes but was taking way too long. I did not try chemicals but since I was ordering parts made sense to have a new one shipped in. You have to snap the new screen together and align the edges before inserting it into the lower pump housing. Reassemble the upper pump housing. Be sure to clean the filter spinning arms of debris along with the lower (and upper) spray arms befrore reassembling them. Ran the dishwasher a couple of full cycles to check for leaks and found none.
      FYI, the dishwasher will not clean as well if you fill it with cold water and even with the heat element, the cycles take a very long time to run through to allow for heating the water. Once I reinstalled the dishwasher, I notice an improvement in cleaning.
      Good luck.
      • HR from Buda, TX
      • Difficulty Level:
        A Bit Difficult
      • Total Repair Time:
        More than 2 hours
      • Tools:
        Nutdriver, Pliers, Screw drivers, Wrench (Adjustable)
      9 of 10 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      water leak through door
      1- turn power off. 2- remove 7 screws to take door apart 3- remove 2 screws to take dispenser out. 4- i unhooked electic plug from it. 5- replace grommet and all back together. not bad to be 72 years old.
      • marvis from barbourville, KY
      • Difficulty Level:
        Easy
      • Total Repair Time:
        30 - 60 mins
      • Tools:
        Nutdriver, Screw drivers
      • Parts Used:
        WP99001553
      8 of 8 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Door leak and leak on inlet valve
      I replaced the door latch grommet just as everyone else has described on this site. It was pretty easy. I was amazed that such a little piece of rubber can let so much water get by. The inlet valve was not too bad either. Take the two bolts out that hold the bracket to the dishwasher. Remove the rubber hose on the back side and take loose the two electrical connections. My water line was long enough to pull it out in front of the dishwasher. Then I took the water line loose and removed the fitting. Installed the new one in reverse order of what I just described. These items took care of the bulk of the leaking problem. But I am in the process of ordering a new door seal which I hope resolves the rest of the issue. Also make sure you check the upper and lower control arms to make sure the spray holes are free of debris. This dishwasher was full of pieces of clear plastic that caused the spray arms to spray indirectly and towards the cracks of the doors.
      • April from Valdosta, GA
      • Difficulty Level:
        Easy
      • Total Repair Time:
        15 - 30 mins
      • Tools:
        Nutdriver, Wrench (Adjustable)
      • Parts Used:
        WP99001553, WP99001359
      5 of 5 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      leaking door- Dispenser Door Latch Grommet
      Myscanning other reviews i saw mention dishwahser developed a small leak on RHS of door. I assumed the door gasket and planned to order that. On of the dispenser gromet which is only a $5 part so ordered that as well. I first replaced the door gasket which is an easy 10 mins job and ran the dishwasher again, but it still leaked.

      I then removed the 7 torx screws on the door panel which came away easily. It was obvious that water was in there, so i removed the two screw on the dispenser with a nutdriver to replace the grommet. This process took 20-30 mins. After reassembly the leak was gone.

      Without the comments on the website i would never have thought of the disepenser as source of the problem.
      • Peter from San Jose, CA
      • Difficulty Level:
        Easy
      • Total Repair Time:
        30 - 60 mins
      • Tools:
        Nutdriver, Screw drivers
      • Parts Used:
        WP902894, WP99001553
      5 of 6 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      The soap dispenser door would not open
      I used a torx driver to remove the seven screws holding the inside door panel in place. Flipping it over exposed the dispenser mechanism. There were two hex nut screws holding the whole assembly in place and two wires attached to the wax motor. As an afterthought I had ordered the sealing grommet for the latch, and as it turned out, the main problem with the sticking latch was that the grommet had worn out and allowed the hard soapy water to leak into the slider assembly and build up a hard crusty residue that had helped to ware out the old wax motor. After completely disassembling all of the parts, I scrubbed the residue out of the housing, replaced the slider, latch, spring, and grommet. Next I snapped the new wax motor into place and connected the two wires. The whole thing went back in place and the two hex screws went back to hold it all together. Finally, the seven torx screws went back to put the door back together. The whole repair went without a hitch.
      5 of 6 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Customer Reviews
      Average Rating:
      ★★★★★
      ★★★★★
      2 Reviews
      5.0
      Filter By Rating:
      • 5 Stars
        2
      • 4 Stars
        0
      • 3 Stars
        0
      • 2 Stars
        0
      • 1 Star
        0
        Sort by:
        Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
          Model Cross Reference
          This part works with the following models:
          PartSelect Number: PS11747610
          Manufacturer Part Number: WP99001553
          Brand
          Model Number
          Description
          Amana
          ADW662EAB
          Dishwasher
          Amana
          ADW662EAB-PADW662EAB0
          Dishwasher - Amana Dishwasher Model ADW662EAB-PADW662EAB0 (ADW662EABPADW662EAB0, ADW662EAB PADW662EAB0) Parts
          Amana
          ADW662EAC
          Dishwasher
          Amana
          ADW662EAC-PADW662EAC0
          Dishwasher - Amana Dishwasher Model ADW662EAC-PADW662EAC0 (ADW662EACPADW662EAC0, ADW662EAC PADW662EAC0) Parts
          Amana
          ADW662EAS
          Dishwasher
          Amana
          ADW662EAW
          Dishwasher
          Amana
          ADW662EAW-PADW662EAW0
          Dishwasher - Amana Dishwasher Model ADW662EAW-PADW662EAW0 (ADW662EAWPADW662EAW0, ADW662EAW PADW662EAW0) Parts
          Amana
          ADW862EAB
          Dishwasher
          Amana
          ADW862EAC
          Dishwasher
          Amana
          ADW862EAS
          Dishwasher
          Amana
          ADW862EAW
          Dishwasher
          Magic Chef
          CDB3100AWE
          Dishwasher
          Magic Chef
          CDB3100AWT
          Dishwasher
          Magic Chef
          CDB3100AWX
          Dishwasher
          Magic Chef
          CDB6100AWE
          Dishwasher
          Magic Chef
          CDB6100AWN
          Dishwasher
          Magic Chef
          CDB6100AWX
          Dishwasher
          Crosley
          CDC400B
          Dishwasher
          Crosley
          CDC450B
          Dishwasher
          Crosley
          CDC5J
          Dishwasher
          Crosley
          CDC610B
          Dishwasher
          Crosley
          CDU20J
          Dishwasher
          Crosley
          CDU250B
          Dishwasher
          Crosley
          CDU250V
          Dishwasher
          Crosley
          CDU2J
          Dishwasher
          Crosley
          CDU2J3
          Dishwasher
          Crosley
          CDU400B
          Dishwasher - Undercounter
          Crosley
          CDU450B
          Dishwasher
          Crosley
          CDU450V
          Dishwasher
          Crosley
          CDU510B
          Dishwasher
