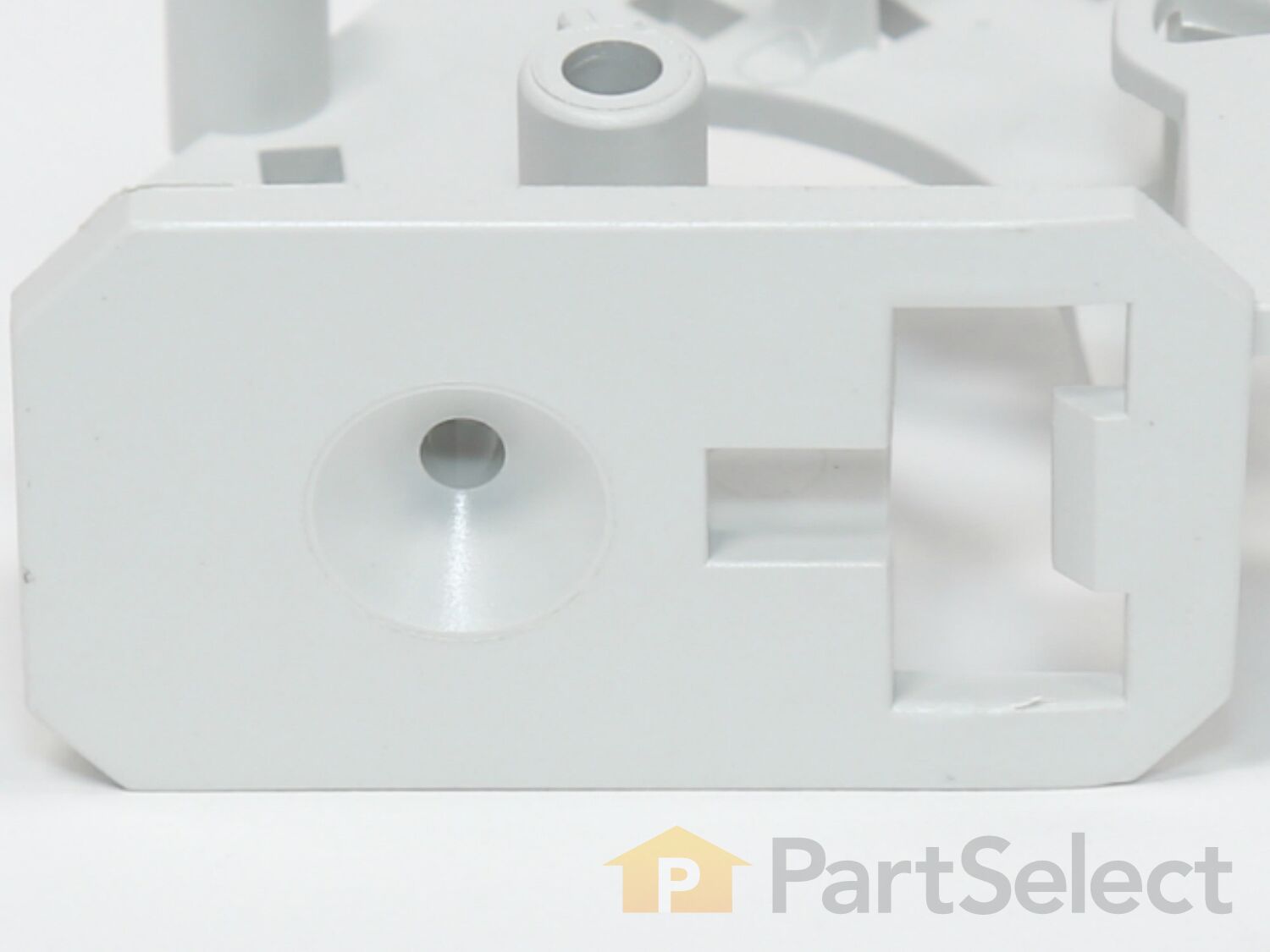

Top Interlock Support

Troubleshooting

This part fixes the following symptoms:

Door not closing properly, Won’t turn on.

This part works with the following products:

Microwave.

This part works with the following brands:

Whirlpool, Maytag, Amana, KitchenAid, Jenn-Air, Estate, Roper.

Part # WP8206419 replaces these:

8206419, WP8206419VP.
Questions and Answers
Ask our experts a question on this part and we'll respond as soon as we can.
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Customer Repair Stories
Average Repair Rating: 3.1 / 5.0, 3 reviews What's this?
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Mark from HOMER GLEN, IL
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Parts Used:
WPW10156813, WP8206419, W10727360, W10562613, W10269460, W10269458, W10156812
Door switch inconsistent operation for Open/Close sensing.
Ordered top & bottom micro-switches and mounting plate parts. Internet reviews could not find specifics if the issue was due to a top/bottom or combination of micro-switch or mounting plate failure. Pulled the plug. Removed the top vent assembly cover held in by 2 Phillips screws inside the vent. Removed the control panel held in by 1 Phillip screw at the top vent assembly area. Lifted control panel upward to release the catch and moved it off to the side - didn't disconnect any leads. Used a Torx bit to remove the door switch mounting plates at the front and pulled the plates through the opening from the control panel. Documented the wire color code connections, the top plate uses 2 micro's with one using both the closed & open contact. Installed the respective micros on the mounting plates and worked backwards with the wiring and removal steps. Once completed, the open/close sensing has worked every time.
50 of 57 people found this instruction helpful.
Was this instruction helpful to you?
William from SEAFORD, DE
Difficulty Level:
Very Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Parts Used:
WP8206419, W10727360
Microwave atempted to start the shut off
This site was correct in description of what was causing the problem.
I found broken white plastic parts in base of microwave, found they came from switch holder interlock support. Only reason it took me as long as it did is I did not make a diagram of the wires that I had removed.( would help to have easy access to wiring diagrams or have them on the internet ) But on the internet I found a Video by repairclinic.com the photo in the video pointed me in the right direction and allowed me to get my wiring in order the microwave then started up and runs correctly. As to the plastic parts found in the base of the unit, this unit was a floor model and probably had the door opened and slammed shut many times, breaking the Top interlock. Thanks to this site
4 of 4 people found this instruction helpful.
Was this instruction helpful to you?
William from Hudson, MI
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers
Parts Used:
WPW10156813, WP8206419
Top support for door switch broke.
Part of the support was missing. I had to remove the two switches and put them in the new bracket
Had the switches reversed and started blowing fuses. Reversed them and changed the fuse and it started working.
1 person found this instruction helpful.
Was this instruction helpful to you?
