Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

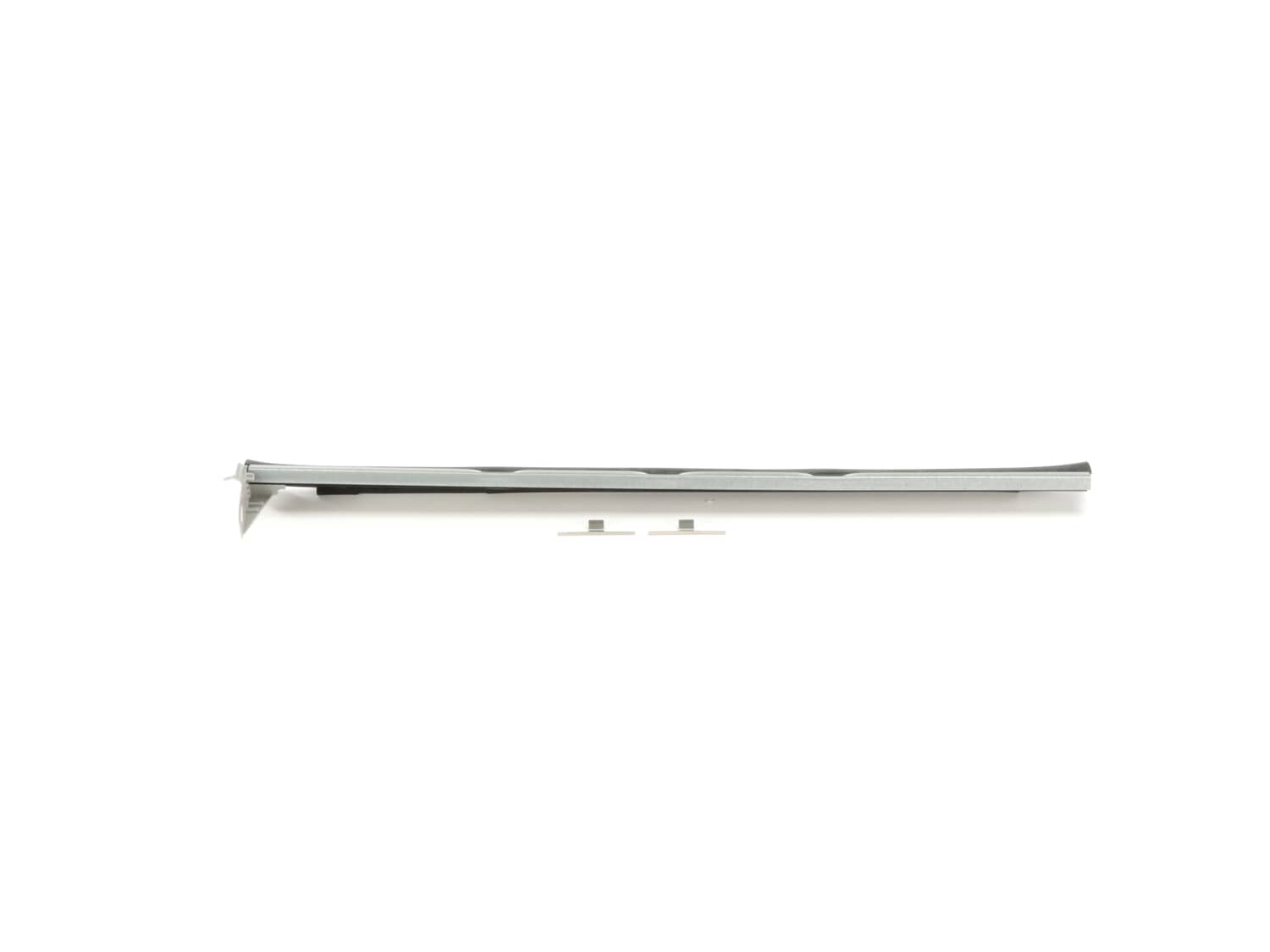

Discover the genuine OEM Bosch Door Seal tailored for specific Bosch, Thermador, and Gaggenau dishwasher models. This superior component effortlessly seals the gap between the door and the dishwasher tub, guaranteeing optimum performance and durability expected from Bosch. To experience the full power of this door seal, after installation, kindly keep your dishwasher door closed for several hours to allow the seal to properly seat. It's important to remember that though parts may look similar, differences in size and shape occur, and carefully verifying your model's compatibility with this door seal is recommended before purchase. Elevate your dishwasher's performance with the Bosch Door Seal. Remember, quality and reliability go hand-in-hand with Bosch.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Robert L - October 25, 2024
Verified Purchase
Fit well
Bosch dishwasher bottom door seal. Moderately difficult repair. Part fit well.
< Prev
1
Next >
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
3 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
JOHN
March 25, 2024
My dishwasher is 6.5 years old. The black rubber seal at the bottom of the door has cracked and is hanging down. There is no water leaking from it. Does it really need to replaced?
Thank you.
For model number SHXM78W52N
Hi John, thank you for your question! Yes, you will need to replace it. It seals the gap between the opening to the dishwasher tub and the outer edge of the door. We hope that helps!
7 people found this helpful.
Was this helpful?
Thank you for voting!
Brooke
March 18, 2023
Will the door assembly need to be removed to replace this lower seal
For model number SHE7PT55UC/07FD950900221
Hi Brooke, thank you for reaching out. To install the lower seal, you need to remove the door assembly. Here are some general instructions that will help you to install the door seal: First, unplug the power and disconnect the water line. Carefully, pull the dishwasher out of its cabinet by removing the screws. Pull the dishwasher halfway out, so you can have access to the hinges. Remove the hinges from both sides of the dishwasher. Open the complete door and remove screws from behind to remove the front panel. Remove the front panel by pushing it forward. Remove the remaining screws and remove the door. Pull out the old door seal and install the new one. We hope this information is useful!
4 people found this helpful.
Was this helpful?
Thank you for voting!
Robert
September 18, 2025
I want to order a lower door strip as ours has split. Strip I’m looking for appears to have a self adhesive way of attaching to lower door on back side that attaches to bottom of door and other end w no adhesive attach slips into a slit behind lower front side on machine.
For model number SHP878ZD5N
Hi Robert, thank you for reaching out. It seems you are looking for the lower door seal, part number PS8737007. We hope this information is useful!
Was this helpful?
Thank you for voting!
