Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

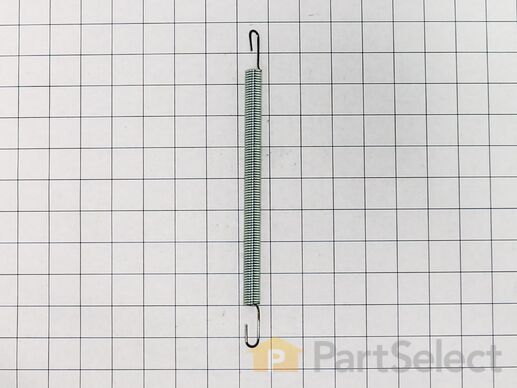

The door spring, used in dishwashers, adds tension to the door through the door hinge to keep it from opening too fast. If you have a door latch failure or your washer door drops too quickly when opened, it is best you replace this part to fix the problem. Refer to the manual provided by the manufacturer for installation instructions and further repair guidance. Unplug your dishwasher from the power source before you begin this repair project as a safety precaution.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Charles R - August 8, 2018
Verified Purchase
Easy install drip pan
The instructions were simple as was installation.
★★★★★
★★★★★
Robert S - 11 days ago
Verified Purchase
worked as promised
Everytbing fits everything works perfectly
★★★★★
★★★★★
Don D - June 2, 2020
Verified Purchase
eazy repsir
spring came fast and fixed the problem
★★★★★
★★★★★
ALAN P - May 2, 2024
Verified Purchase
e.g. Easy Repair, Great Part – worked as expected! Review title is required.
e.g. Easy Repair, Great Part – worked as expected!
Review title is required.
★★★★★
★★★★★
Thomas S - May 23, 2025
Verified Purchase
Part was explicitly what I needed and ezey to install.
N A
★★★★★
★★★★★
Aaron C - December 27, 2023
Verified Purchase
Exact part
Parts I received was spot on. Had it fixed in no time. Thank you
< Prev
1
Next >
Installation Instructions
Average Repair Rating: 3.6 / 5.0, 3 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Door was very heavy due to spring problem
Turn off the power at breaker box. Disconnect the power at dishwasher since I needed to pull the unit all the way out of the cabinet to get to screws on the back side for this model. Find and remove the screws to the cover. Remove cover. In my case, the rope on the connector assembly had snapped. I replaced spring and connector identicall
... Read morey to functioning side. Did need a pair of pliers to provide enough tension on spring to install. Reconnected cover and power and moved back into the cabinet. Easy repair and my wife wondered why I hadn't done it sooner.
Broken door spring allows the door to overextend to the floor if not propped.
Simple, removed screws securing machine in the cabinet, then pull the unit out of the cabinet space about 10 inches. Springs are accessible within this extension. You need strong hands to extend the springs and attach them. Once attached, push machine back in place and re-install the anchor screws. In my situation, only one spring was bro
... Read moreken, so the attached side revealed the correct slot to place the hook on the top position, the bottom position has a plastic lead for the spring, and that lead is attached to a rope to the door hinge. Note: Replace BOTH springs, even if only one is broken.
Read less
Gregory L from INDEPENDENCE, OH
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
34 of 41 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
2 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Bill
October 22, 2017
In order to pull out the dishwasher unit there is a door gasket (not the tub gasket) that is flush with the surrounding cabinet. It is an upside down "u" shape in three straight pieces, and i cant figure out how to remove it without damaging it. I am trying to replace the door springs as the door is currently falling all the way open. Is there a way to remove it and put it back without damaging it, or should i try to slide the unit out with the gasket in place? If there is a way to send a picture i can do that. Thank you, bill
For model number LDF7932ST
Hi Bill,
Thank you for your question. Actually you do not have to remove that gasket at all when pulling out your dishwasher. To remove the gasket, you actually have to remove your mounting brackets at the top of your dishwasher and then pull the machine out a little bit. You would then slide the left and right sides up from your dishwasher and then pull your gasket off. I hope that helps! Good luck with your repair.
5 people found this helpful.
Did this question help you?
Thank you for voting!
John
July 27, 2023
If you buy a replacement door spring do two springs come in the pack? It does have two springs on the door , one on each side : correct ?
For model number LDF7774BD door springs
Hello John, thank you for getting in touch. This spring is sold separately. You will need two springs for both sides of the door. We hope that helps!
4 people found this helpful.
Did this question help you?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS3524564
Manufacturer Part Number: 4970ED4004G
Item is in stock and is estimated to be delivered in 2-3 business days via Standard Shipping.
On Order
Item is not in stock and usually ships 3-5 business days from the time you place your order.
Special Order
Item is not in stock and usually ships 10-15 business days from the time you place your order.
NLA - No Longer Available
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
