Part Location Diagram of W10247710 Whirlpool Suspension Rod Kit
See part 10 in the diagram
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

1-866-319-8402 Monday to Saturday
8am - 8pm EST

customerservice@partselect.com

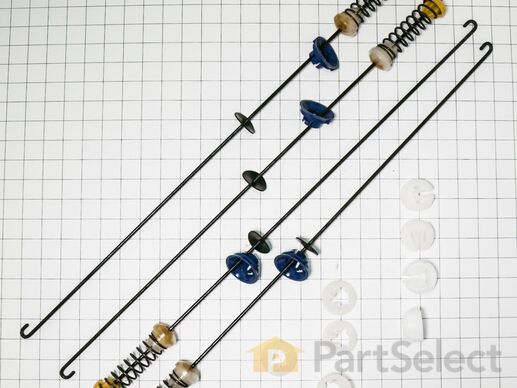

Suspension Rod Kit W10247710

★★★★★
★★★★★
1 Review

Easy

1- 2 hours

Rated by verified customers
$ Price Match
$ 124.60
  In Stock
Order now and your part arrives by Apr 27

Does this part fit my model?

PartSelect Number PS2355518
Manufacturer Part Number W10247710
Manufactured by Whirlpool for Whirlpool, Maytag, Kenmore
Product Description

Suspension Rod Kit Specifications

This suspension rod kit, also known as a suspension damper kit, is designed to fit with various models of washing machines. Each kit includes four suspension damper rods with springs and suspension ball cups which are made to secure the suspension rods in place. The kit allows the inner tub to move smoothly while minimizing excessive vibration and noise created when the washer is running. If the suspension rods become damaged, worn out, or loose, the washer will likely become unusually noisy and unstable as the tub bangs around inside the washer cabinet. Therefore, it is important to replace these components promptly to prevent damaging the washing machine.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Why buy the real thing?

OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.

  • OEM from PartSelect
  • Genuine brand name
  • Guaranteed to fit
  • Superior quality and durability
  • 1 year warranty
  • Generic
  • Unknown manufacturer
  • No fit guarantee
  • Inconsistent quality and lifespan
  • Limited warranty and support
You May Also Need ?
Troubleshooting
This part fixes the following symptoms:
  • Shaking and Moving
  • Spinning Issues
This part works with the following products:
  • Washer
Part# W10247710 replaces these:
AP4411122, W10237427, W10256514, W10277357
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
1 Review
5.0
Filter By Rating:
  • 5 Stars
    1
  • 4 Stars
    0
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    0
Sort by:
  • 1
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
  • 1
Installation Instructions
 Average Repair Rating: 3.1 / 5.0, 3 reviews. What's this?
Sort by:
  • 1
Sorry, we couldn't find any existing installation instruction that matched.
Load Balance on rinse/spin cycle
Notice Basket Hub replacement video and application was straight forward.
Suspension Rod Kit was a little more time consuming, video are ok, but
don't rely on video along. Removing top of appliance check and recheck
rear of appliance for attachments screw prior to trying to remove top.
Other Parts Used:
Basket Hub Kit Suspension Rod Kit
  • WILLIAM from ALTURAS, FL
  • Difficulty Level:
    Easy
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Pliers, Socket set
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Changed out suspension springs
Follow step by step YouTube channel for this.
  • John from NEWPORT BEACH, CA
  • Difficulty Level:
    Easy
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Nutdriver, Pliers, Screw drivers
3 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Suspension rod snapped, tub tilted severely and resting against metal cabinet, load unbalanced error
My problem stemmed from a previous leaky bleach dispenser hose (repaired over a year ago). It had leaked just above suspension rod assembly (only 1 of 4 was effected).Rod had rusted to point where it snapped just below the top mount. This actually made the replacement very easy as the rod simply slid out of the bottom tub channel and onto floor when washer tilted 45 degrees. Before tilting washer, unplug washer and disconnect supply lines and drain hos Use pry bar to separate cabinet top from cabinet lower section. Tilt top section to grant accesses to top suspension rod retainer mounts. Remove black rubber retainer washer from new suspension rod. As assistant holds tilted washer, a new suspension rod can be pushed thru bottom tub channel. Place black rubber washer back onto suspension rod. This will prevent the new rod from sliding full back out tub channel when released. The purchased suspension item has four rods and four top retainers. I could have reused the old retainer, but would have been more difficult to release the remaining rusted rod bit. So pulling up on rod and twisting suspension rod such that rod hook end pass thru top cabinet retainer cup and slides into position on new rod hook end retainer. Release retainer and rod, and move tub side to side allowing retain to assume natural position. (reference the other 3 retainers). Realign mating surfaces of cabinet top and cabinet lower if needed. Close cabinet top onto cabinet lower. Connect supply lines and drain hose, Plug unit in. Repair complete.
  • Jeffrey from Roanoke, VA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
7 of 9 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Model Cross Reference
This part works with the following models:
PartSelect Number: PS2355518
Manufacturer Part Number: W10247710
Brand
Model Number
Description
Kenmore
11028102310
Washer - AUTOMATIC WASHER
Maytag
7MMVWB850WL0
Washer - AUTOMATIC WASHER
Whirlpool
7MWTW7800XW0
Washer - Residential, Automatic
Maytag
MVWB300WQ0
Washer - AUTOMATIC WASHER
Maytag
MVWB300WQ1
Washer - AUTOMATIC WASHER
Maytag
MVWB300WQ2
Washer - AUTOMATIC WASHER
Maytag
MVWB450WQ0
Washer - AUTOMATIC WASHER
Maytag
MVWB450WQ1
Washer - AUTOMATIC WASHER
Maytag
MVWB450WQ2
Washer - AUTOMATIC WASHER
Maytag
MVWB455YQ0
Washer - AUTOMATIC WASHER
Maytag
MVWB700BW0
Washer - AUTOMATIC WASHER
Maytag
MVWB725BG0
Washer - AUTOMATIC WASHER
Maytag
MVWB725BW0
Washer - AUTOMATIC WASHER
Maytag
MVWB750WB0
Washer - AUTOMATIC WASHER
Maytag
MVWB750WB1
Washer - AUTOMATIC WASHER
Maytag
MVWB750WB2
Washer - AUTOMATIC WASHER
Maytag
MVWB750WL0
Washer - AUTOMATIC WASHER
Maytag
MVWB750WL1
Washer - AUTOMATIC WASHER
Maytag
MVWB750WL2
Washer - AUTOMATIC WASHER
Maytag
MVWB750WQ0
Washer - AUTOMATIC WASHER
Maytag
MVWB750WQ1
Washer - AUTOMATIC WASHER
Maytag
MVWB750WQ2
Washer - AUTOMATIC WASHER
Maytag
MVWB750WR0
Washer - AUTOMATIC WASHER
Maytag
MVWB750WR1
Washer - AUTOMATIC WASHER
Maytag
MVWB750WR2
Washer - AUTOMATIC WASHER
Maytag
MVWB755YL0
Washer - AUTOMATIC WASHER
Maytag
MVWB755YQ0
Washer - AUTOMATIC WASHER
Maytag
MVWB755YR0
Washer - AUTOMATIC WASHER
Maytag
MVWB850WB0
Washer - AUTOMATIC WASHER
Maytag
MVWB850WB1
Washer - AUTOMATIC WASHER
