Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

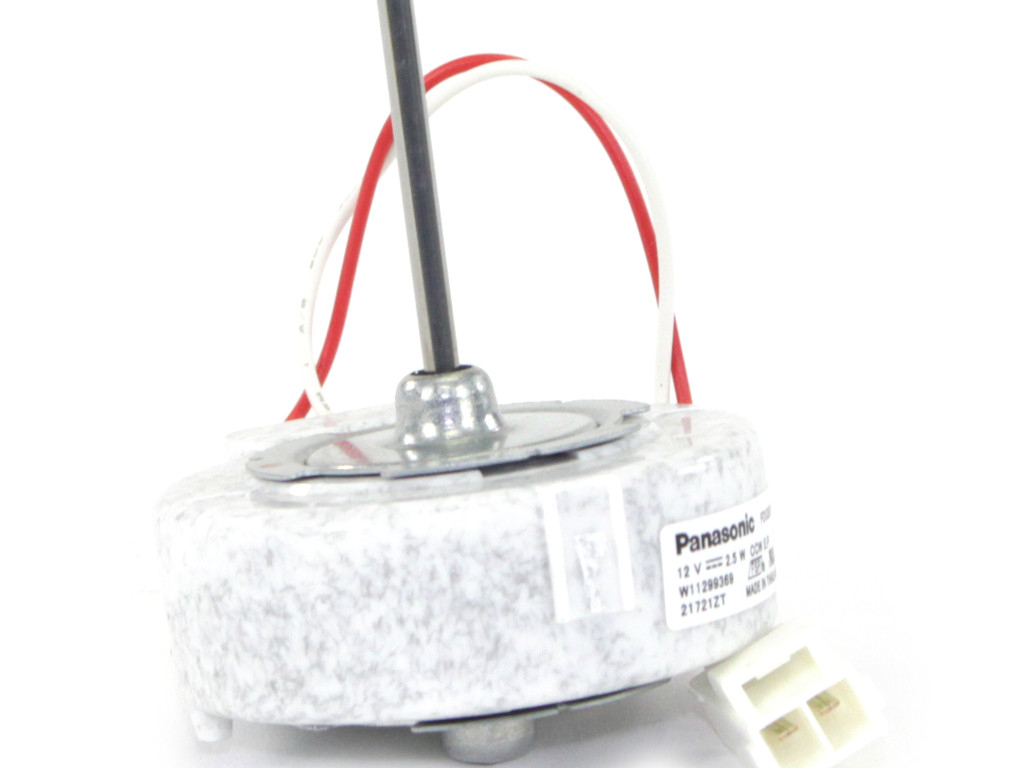

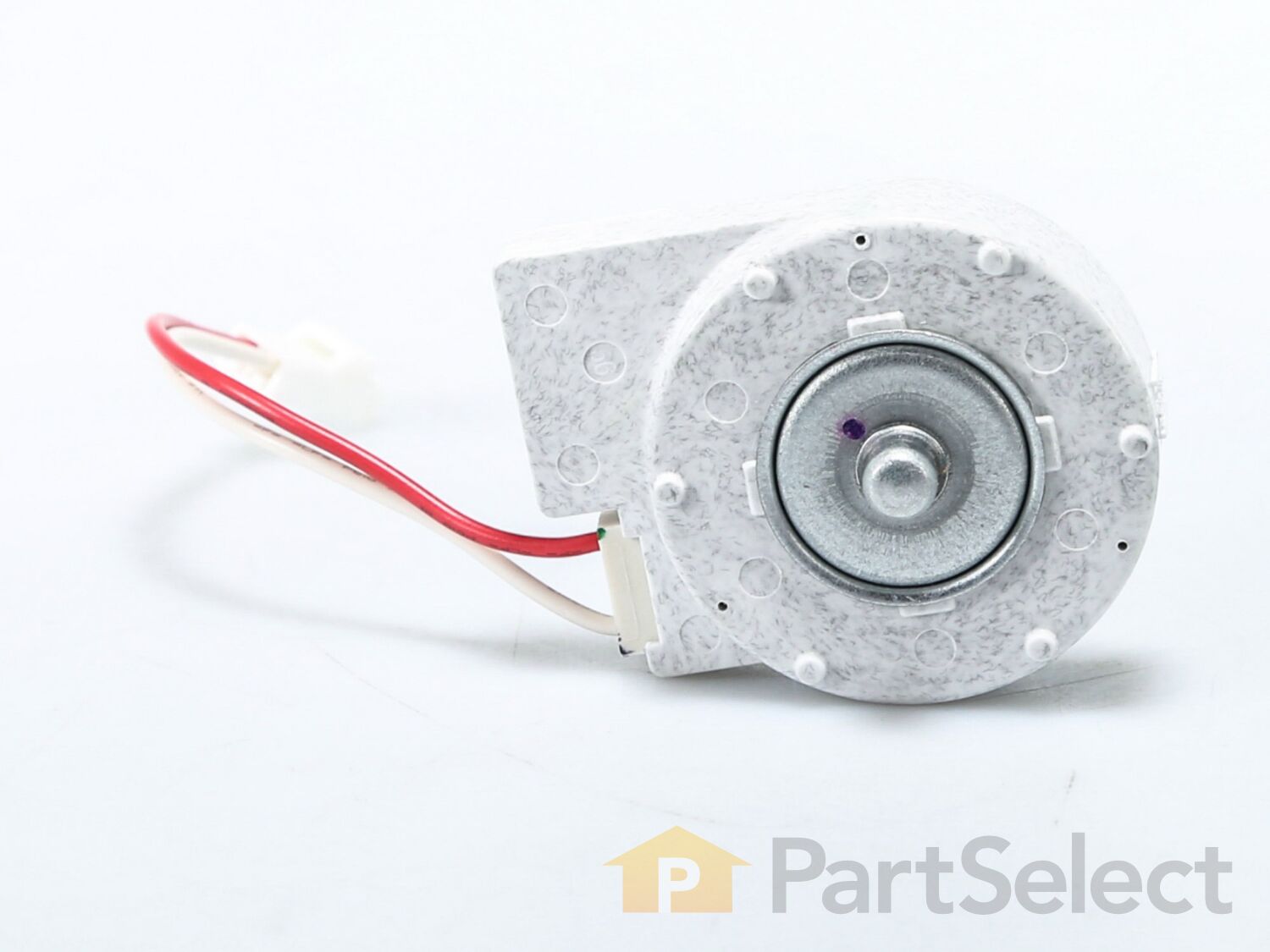

This evaporator motor circulates air across the evaporator coil to distribute cold air evenly throughout the appliance. Proper airflow helps maintain consistent temperatures and efficient cooling. Replacing a failing evaporator motor can resolve issues such as warm spots, frost buildup, or reduced airflow.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Ask our experts a question about this part and we'll get back to you as soon as possible!
5 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Billy
September 1, 2023
Will this part cause the Gfci to trip when the ice maker comes on?
For model number WRX735SDHZ01
Hello Billy, thank you for reaching out. We have found that the ice maker draws power upon startup, but normally not enough to cause a trip. However, if your water line to the fridge is disconnected, and the fridge attempts to start an ice cycle, the GFCI may trip. We would recommend checking the water lines of the refrigerator. If this is not an issue, you may need to check the defrost heater assembly, part number PS11738605. The defrost heater is a safety device that prevents the formation of ice inside the refrigerator. This heater removes heat from the air surrounding the refrigerator coils to keep moisture from settling on them and freezing. We hope this solves your problem!
Hello Joseph, thank you for asking. We would recommend replacing the evaporator fan motor, part number PS16555213, to fix the issue. We hope this helps!
Did this question help you?
Thank you for voting!
Joe
June 24, 2024
kitchenaid kfxs25ryms4 ice maker not getting cold. Brand new ice maker assembly. The bottom drawer freezer is below 10deg but the ice make that's top mounted in the fridge is not getting cold.
For model number KFXS25RYMS4
Hi Joe, thank you for your inquiry. We have concluded that the issue is with the temperature sensor, part number PS2580944. We would recommend checking it to solve the problem. We hope this helps!
Hello, when is the MOTOR-EVAP W11529245 supposed to be blowing?
What is the purpose of this fan?
For model number GZ25FSRXYY2
Hi Allen, thank you for reaching out. The evaporator fan motor is supposed to be blowing when the compressor is running. The purpose of this fan is to circulate air over the evaporator coils, which are responsible for absorbing heat from the refrigerator and freezer compartments. This circulation helps to maintain a consistent temperature throughout the refrigerator, ensuring that food is kept at the desired temperature. The fan also helps to prevent frost buildup on the evaporator coils by promoting even airflow. We hope this information helps!
Did this question help you?
Thank you for voting!
Tony
July 16, 2025
Refrig is not cooling below 55 degrees but freezer is very cold at 0-4 degrees. Noticed air occasionally coming from vent inside refrig, but not much. Pulled icemaker out and found damper frozen closed with ice keeping it from opening. Replaced inlet fan motor more than a year ago, it now tests OL with multi meter (will replace). Would fan not running case damper to ice up is there an associated defroster within he ice cabinet that maybe problematic? Thanks for any help, I'm running out of parts to replace!
For model number GI6SARXXF06
Hi Tony, thank you for reaching out. It is likely that the issue is related to the air flow and damper system in your refrigerator. The damper is supposed to open and close to regulate airflow between the fridge and freezer. If it's frozen shut, that could prevent cold air from entering the fridge compartment. If the defrost system is not working properly, it could contribute to the damper freezing shut. However, the defrost system is usually designed to defrost the evaporator coils, not the damper itself. You may need to replace the damper control assembly, part number PS11750106, to fix the issue. We hope this solves your problem!
