Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

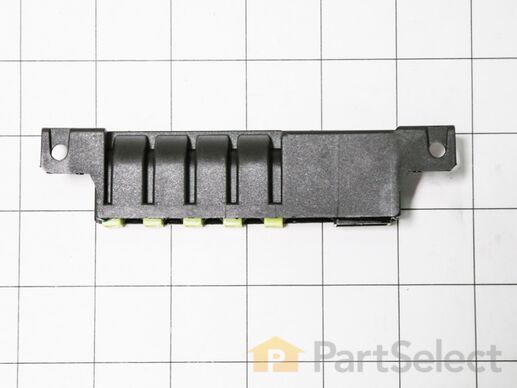

This spark module is designed to ignite the gas burners on a range or cooktop, delivering a precise electric spark for reliable ignition. It restores proper functionality when burners fail to start, light inconsistently, or produce insufficient heat. Engineered for durability, this component ensures safe and efficient operation. Installation requires disconnecting power, removing the old module, and securing the new one using existing connections. A dependable solution for maintaining optimal performance in your gas range.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
3 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Robert
September 9, 2023
My kitchen aid stove doesn’t stop clicking
For model number Ksgg700ess1
Hello Robert, thank you for your question! The clicking noise is the electrodes sparking to ignite the gas. If you ensured all the burners are in the off position and it is still clicking, then you have a short somewhere. If you had a spill or done some cleaning and moisture has gotten into the switches, it could cause this to happen. If you are sure no moisture has been able to get into the switches, then you will need to replace the spark switch harness, part number PS12728540. We hope that helps!
Stove is clicking when off gas lights burner but doesn’t stop clicking
For model number Esgg700ess1
Hello Robert, thank you for your question! The clicking noise comes when the electrodes spark continuously to ignite the gas. If you ensured all the burners are in the off position and it is still clicking, then you have a short circuit somewhere. Dry the switches if there is a moisture. If you are sure no moisture has been able to get into the switches, then you will need to replace the spark switch harness, part number PS12728540. We hope that helps!
Oven and broiler still turn on like normal but the stove top has stopped clicking. Gas still comes out of the burners but does not click when any of the knobs are turned to ignite.
For model number WFG540H0ES1
Hello Chris, thank you for getting in touch. We have researched and found that you may need to check the spark module, part number PS11755330, to fix the issue. We hope this solves your problem!
Did this question help you?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS11755330
Manufacturer Part Number: WPW10475149
