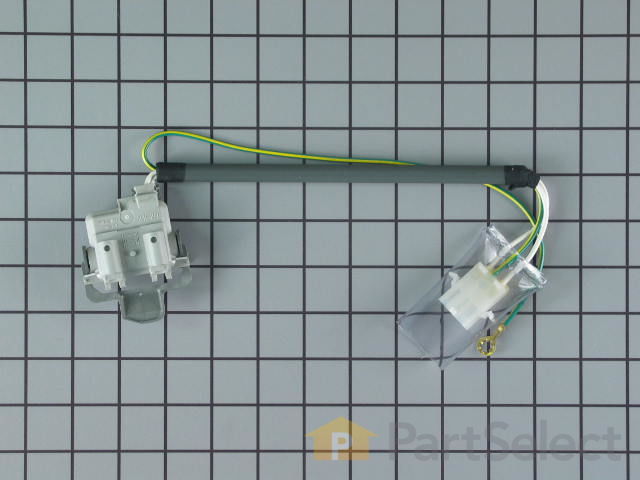

Washer Lid Switch Kit WP3355806

I called a repairman, who diagnosed the problem as a faulty leaf switch in the lid assembly -- the little rod on the lid that normally would depress the switch was working fine, but the switch was not closing. At my direction, he bridged the wires from the switch as a test, and it worked fine. So I ordered a new switch from you guys and ... Read more swapped the new one out with the old one. Two flat screws to remove the slanted top panel, and at the rear of the panel are two hex-top screws holding the lid assembly on. Undo the hex-top screws, lift off the lid assembly, unplug the interlock between the washing machine power and the lid, and find a clean place to lay the lid assembly. Replacing the switch is a snap -- the part you sold came with its own wiring, and all it takes is take the old part out and put the new part in. Easy peasy. Getting the lid assembly back takes a little work because the fasteners are a little tricky to position correctly -- they will fall off the lid assembly and repositioning them may involve a bit of trial and error -- but once it is properly positioned, it takes a total of six screws and you're done. Two for the switch (Philips), two hex heads to fasten the lid assembly to the washer chassis, two to button up the front access panel.. A caution -- make sure the machine is unplugged when you do the repair, or else the washing machine may cycle into a spin cycle when you plug the interface back in and surprise you.

I first replaced the timer, but that did not solve the problem (same lack of drain and spin). I then ordered a lid switch and a drain pump. Installing the timer had been pretty easy, but it was much more difficult to get to the lid switch and the pump. Once the lid switch and pump were installed, the washing machine worked perfectly ag ... Read more ain. I don't know for sure, but I think it was the lid switch that was the problem, because when we removed it, we found it to be cracked, so the pump was probably not needing to be replaced. Considering I purchased too many parts, this was not inexpensive, but if I'd called a repair service, they would have charged me for the diagnosis and then told me that it would cost too much to be worth repairing. I'm a happy customer!

REMOVE THE PANEL BETWEEN THE DRYER (above) and washer (below) two 3/8" metal screws. Remove the panel in able to remove the top panel of the washer. remove the top panel of the washer by releasing two screws in rear of washer, pull cover to front , unplug old lid switch. Put top panel on flat surface upside down. replace lid switch and r ... Read more eplace the panel and BOB'S YOUR UNCLE. It is a lot easier than it seems.

I replaced the Lid Switch and the unit works fine. I also cleaned up some other issues in the unit which took about half the time.
