Pump to Tub Inlet Drain Hose

1. Drained the wash tub by taking the drain hose from the back of the washing machine and dropping it below the tub - water flowed out of hose a lot easier than trying to suck water out of tub using a pump (tried this on the first time I tried to fix washer). (Washing machine on 2nd floor of house and didn't want water running on floor)
2. Removed the 2 bolts holding the Pump/Motor assembly to the machine.
3. Removed both hose clamps on the Pump/Motor assembly and removed Pump.
4. Attached the new drain inlet hose to the pump and then to the tub with the original hose clamps.
5. Attached the drain hose to the pump and then plugged in the 2 wires for the pump.
6. Plugged in the washing machine and everything worked.

NOTES:
1. Hardest part was working with hose clamps (spring type clamps) in the tight space under the machine.
2. Easier to fix since I pulled machine apart a few days before - removing the clog in the pump/motor assembly only to get everything back together to find out that the motor was dead. Still well worth the time and effort due to not having to go out and buy a new Machine...

First I disconnect the power and then I pull the front cover and replace the water pump, drain hose, and the inlet hose this was fixed and straight easy job.My second problem was the overfill problem witch I took the knobs cover and I replace the water level switch.This job was also easy but did not fix my problem.

My husband was unavailable and already overloaded, so I took a screw driver and removed the front cover of the washer. After I discovered where the leak was coming from, I used a screw driver to remove one end of the hose and pliers to remove the other end. I went online, found the part and ordered it. It came in surprisingly fast. My husband put it back in about 5 minutes.

First I removed the two clamps that hold the inlet drain hose onto the pump. **There may still be water in the hose** This was pretty easy, but a set of vice grips would have been nice. The space is not too cramped, but required a little bit of wiggling. Putting it on was a little bit harder, just because I did not want to tear the hose on the tub or pump inlet. Make sure both are fully seated or else it could still leak. The drain hose and the clip are pretty self explanatory. I tried to buy a generic drain hose at a big box lumber yard, but I could never make it fit right.

Hope this helps.

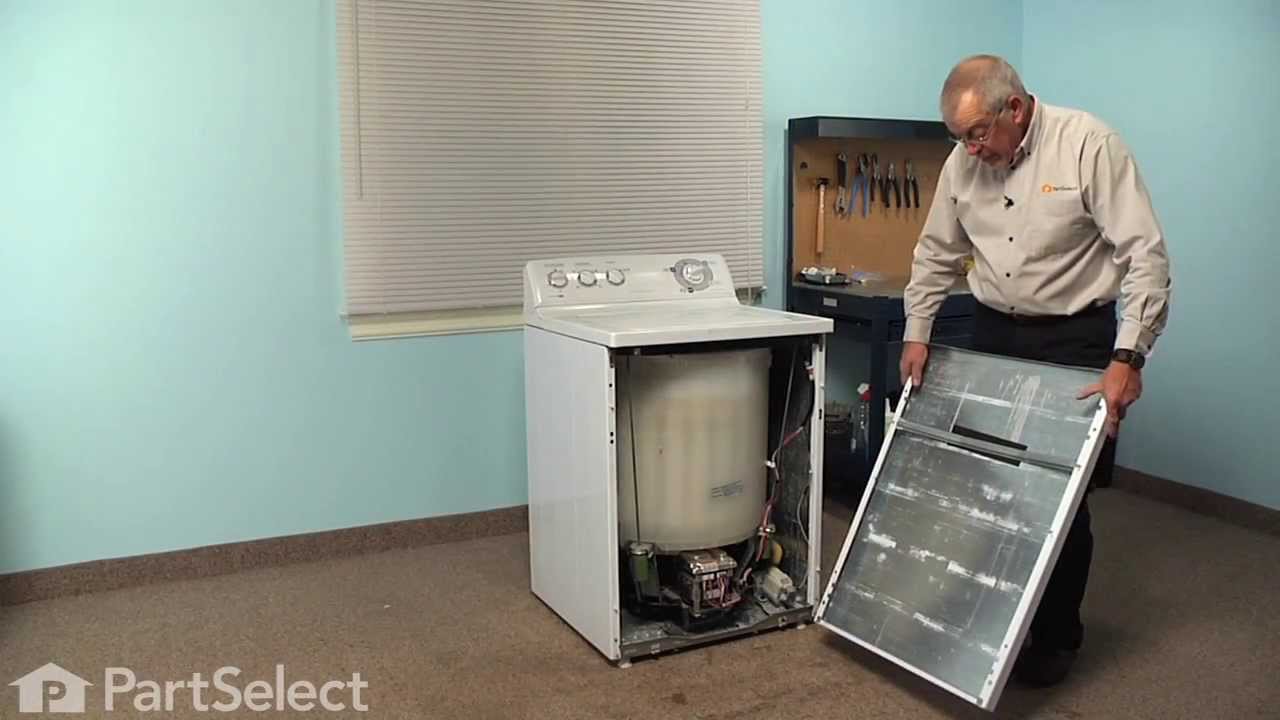

Unplug the washing machine. There are electrical components that can injure or kill you. Using a screw driver inserted just below the lid of the washer in the front, there are two (2) spring clips that you push on to release. Then the front of the washer tilts down and you remove it and set aside.
On the bottom right you will see the flexible, convoluted rubber hose connecting from the pump to the washer tub. Two (2) clamps hold the hose on. Remove the two clamps, install the new hose and re-install the clamps. Re-install the front panel and push into place, allowing clips to lock into the front panel.

First I located the trouble. I noticed that it was water leaking and figured it had to be a hose. I took the front panel off of the washer and after noticing that the drain hose had a slight hole in it, realized that I could fix it and save myself a repair call. I undid the two hose clamps and removed the hose. I went to a local repair shop that could not guarantee the right part. I went online and found Parts Select.com. I entered minimal information and the picture of the item that I was looking for, the Drain Inlet Hose, was staring at me! Within 3 business days and less than 20 dollars spent, I repaired my washing machine. The total time spent to repair after I received the hose took about 10 minutes. I will definitely use parts select .com and recommend to all my friends and family. Thank you.

I replaced the hose between the tub and the pump. The only difficulty came with the accessibility of the problem area. I just pulled off the front panel of the machine and used a screwdriver and pliers to loosen the attachments and put the new hose in place.

It tooke some time to figure out where the water was leaking. It was from a small hole at the lateral side of the upper third of the drain inlet tube. Removing the hose was easy. Attaching it to the tub with a hose clamp was easy, but attaching the lower end to the pump motor was quite difficult because the spring clamp that had come with the washer was difficult to manipulate. I had to replace it with a band hose clamp.

By the way, the hole in the hose had been caused by rubbing the hose against the drain pipe from the motor to the sink.

Pulled front panel of washing machine, removed hose, installed new hose, and wipped up water.Simple!!!

Removed front with putty knife to unlock hinge.removed and checked pump removed hose clamps with wrench and nut driver replaced hose reverse procedure
