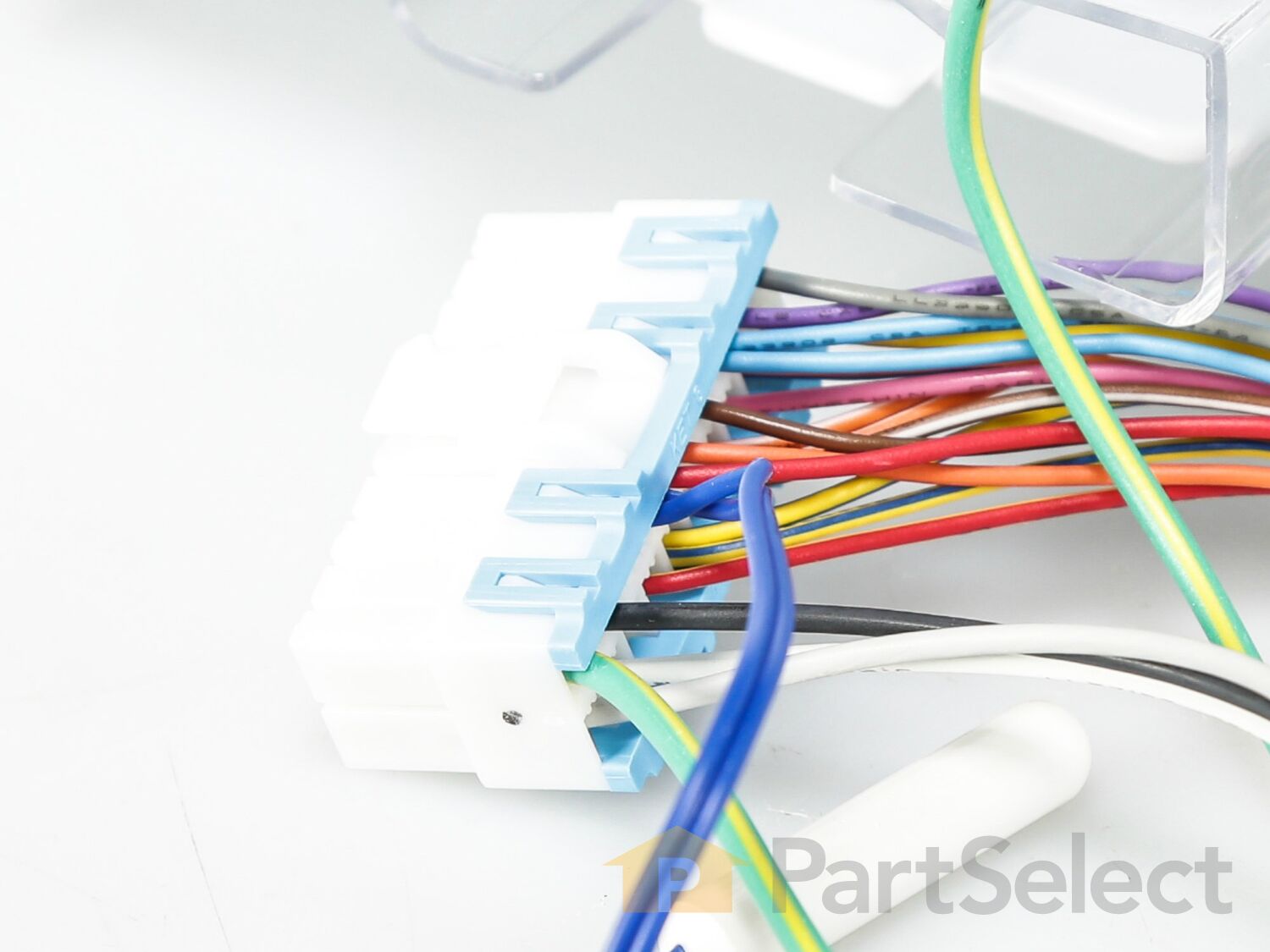

This wiring harness is 20 pin and 3 pin. Replacement ice maker for LG refrigerators. The ice maker assembly contains the mold to form ice and the ejection controls to fill the ice storage bin. Unplug the unit before performing installation of the assembly.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Poonam G - 8 days ago
Verified Purchase
Easy repair, worked as expected.
Part came fast and appliance is back in working order. We have ice again!
★★★★★
★★★★★
John E - September 8, 2024
Verified Purchase
Ice maker
It was an exact match to the old part. It was easy to install and works as expected.
The part arrived on time and in good condition.
I would use PartSelect for future parts.
★★★★★
★★★★★
Luann E - October 14, 2023
Verified Purchase
Exactly what I needed to replace LG ice maker
Easy to order, easy to install. Works great.
★★★★★
★★★★★
Tom L - November 13, 2022
Verified Purchase
Excellent customer service
Was sent wrong part the first time, talked to customer service and had the right part two days later.
★★★★★
★★★★★
Sharon P - May 31, 2022
Verified Purchase
It worked
The box was in rough condition, but the part worked great.
★★★★★
★★★★★
Chris S - January 21, 2022
Verified Purchase
Fairly easy to replace the part.
The part was correct and came in quickly as ordered. Watch a YouTube video before you start replacing the part, it doesn’t come out the way you would think. Really easy once you understand how to remove the old part.
★★★★★
★★★★★
Kalman M - May 12, 2021
Verified Purchase
yes, all good
part was perfect, unit works great
★★★★★
★★★★★
Mike P - May 4, 2021
Verified Purchase
Working!
Part came fast,your video showing how to install was good. Have ice again!
★★★★★
★★★★★
Jennifer M - March 26, 2021
Verified Purchase
easy fix, part came fast
My ice maker works better with the replacement part then when the original was in. The original would stick and not turn all the way to dump the ice. Then it started to dump the water right after it filled up causing my kitchen to have a small flood. The replacement part came the very next day. Now I have plenty of ice.
★★★★★
★★★★★
Lawrence J S - February 7, 2021
Verified Purchase
Very fair return
I actually ordered the wrong part, returned it easily, then ordered the correct part. Crazy twist...the icemaker started working again...at least for now. I'm keeping the part anyway, because I'm certain the existing part will malfunction. At least I'll have what I need...thanks again.
< Prev
1
2
3
Next >
Customer Repair Stories
Average Repair Rating: 4.0 / 5.0, 8 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Ice Maker Can’t Rotate/Discharge Ice
First, remove power to the refrigerator.
To replace the ice maker you first have to remove the back mounting assembly, which ice maker is attached to.
Only three Phillips head screws need to be removed: 2 on the bottom and 1 on the back of the ice maker mounting assembly. Do not remove the two diagonal Phillips head
... Read more screws holding the dispenser motor on the reverse side of the mounting assembly.
As you pull out the mounting assembly to the front you will see a connector on the top inside, which must be unplugged. A narrow standard screw driver will help the connector lock to release; slide the screwdriver tip under the connector lock clip and it will allow the connector to be unplugged.
Once the ice maker mounting assembly is removed and placed on a flat surface it will be self evident as to how to remove and replace the ice maker. The 1” tape might be needed during the cable re-routing process. However you can reuse the original tape required to be removed during the ice maker remove and replace process, if possible.
Reinstall the ice maker mounting assembly in the reverse order it was removed.
Apply power to the refrigerator.
Cycle the ice maker to Off and then back to On. It may take an hour or two before the ice maker produces ice because the temperature inside the ice maker must reach “0” degrees Fahrenheit before it will begin making ice.
Pull the ice maker
Read less
Paul from CLEARFIELD, UT
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
2 of 4 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The refrigerator ice maker needed replacing
The only tool required was a Phillips screwdriver. I disassembled the old icemaker and unplugged the electrical snap in device. I removed the ground wire. Then reversed the steps in replacing the refrigerator ice maker kit assembly. It took slightly over 30 minutes to remove and replace the ice maker.
Larry from GODDARD, KS
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
1 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
ice would stick in 5 of the 14 cubes spaces from mineral deposits, then ice couldn't drop and water would not fill
was easy watching youtube video of how to replace whole ice maker, was only 3 screws, remove from the door, a couple of screws hold it to the flat piece, route the wires around the unit, connect the plug as installing it in the door, position it, and tighten 3 screws, that easy
Scott from MORGAN, TX
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Ice tray was not rotating any longer
Took the old one out and put the new one in.
Angela from SAINT JOSEPH, MO
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
My ice maker wouldn't release the ice, nothing was frozen and the motor would just bind
I bought the ice assembly motor only, super easy to install, remove the three main screws, lift out assembly, detach the cable. Then remove the screws on the parts, lift the tape, redo everything in reverse and it works flawlessly!
Jodi from WINTER GARDEN, FL
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
2 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Ice maker was broken
I just followed the instruction on the part , and everything was very easy.
luis from DIAMOND BAR, CA
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
1 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Old ice tray cracked and wouldn't hold water
Repair was pretty easy but be ready to possibly switch out the wiring harness. The new ice maker had a smaller connector that would not fit the connector built into the door of the fridge. I had to pull the harness from my old ice maker and swap it onto the new maker. After that was done, everything mated up perfectly and worked fine.
Brandon from LIBERTY HILL, TX
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
2 of 6 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
ICE MAKER JAMED WOULD NOT ROTATE
REMOVED 3 SCREWS AND OUT IT CAME UNPLUG THE HARNES AT THE TOP YOUR NONE
JOHN from LUDINGTON, MI
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
12 of 22 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
13 questions answered by our experts.
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Deborah
May 9, 2019
My ice tray keeps hanging up and starts a loud knocking. I then have to give it a little nudge on the left side and it will then continue with its operation. It continues to do this over and over, so i have just turned the ice maker off. Do i need a complete new one.
For model number Kenmore 795.73055.410
Hello Deborah, thank you for inquiring. This Ice Maker Assembly Kit is the correct replacement for your model and will fix this problem.
12 people found this helpful.
Was this helpful?
Thank you for voting!
Tom
April 16, 2018
My icemaker work and function, make ice but not dispense the ice after the made the ice, it fail to flip to dispense the ice into the bucket. My question is because the sensor fail to sent it to continue making ice and dispense it in the last cycle? At issue it made ice but i have to push the button in the back to make it dispense into the bucket
For model number 79570332410
Hi Tom,
Thank you for your question. It seems like you might need to replace your ice maker. It could be your control board but I would suggest checking your ice maker first because it has its own mechanical control on the part that controls the stripper arm to remove the ice from the mold. I hope that helps. Good luck with your repair.
5 people found this helpful.
Was this helpful?
Thank you for voting!
TERRY
July 25, 2023
ICE MAKER STOPPED MAKING ICE , WATER DISPENSER IS WORKING
For model number LFX28968ST
Hello Terry, thank you for your inquiry. We would recommend checking the water inlet valve, part number PS3533117, to fix the issue. It supplies water to the refrigerator ice maker and water dispenser. We hope this helps, good luck with this repair!
Ice maker will not dump ice until test button is pushed. Installed new
LG AEQ73110210 still will not work. Is there control lmodusle?
For model number LG AEQ73110210
Hi Jessie, thank you for reaching out. If the icemaker will not cycle on its own but does cycle when you press and hold the test/reset button, then check the temperature around the icemaker with a thermostat. The only two things that would stop the icemaker from cycling on its own is a bad icemaker or a temperature above 10ºF. The ice maker will not cycle for safety reasons if it is above 10ºF. We recommend checking the temperature of the refrigerator since you have already replaced the ice maker. Please submit a new question if you have any follow-ups!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Rick
June 26, 2019
My ice maker disburses ice cubes but when finished ice cubes will latter fall out of dispenser
For model number Lfx25974
Hello Rick, thank you for writing. You will want to consider either the Ice Bin Assembly, the Auger Motor, or the Ice Maker itself. The model number you provided is partial with multiple variations using some different parts. We will need the rest of the model number to look into the correct replacements. We look forward to hearing back from you.
1 person found this helpful.
Was this helpful?
Thank you for voting!
D Wallen
October 24, 2019
Is there parts for this. Part i am interested in is the little clear plastic water shute that is on the upper right hand corner of the dispenser. Is this part available. I cracked the little leg that holds it in place.
For model number AEQ 73110210
Hello D. Wallen, thank you for writing. We will need the model number for your refrigerator to locate the replacement parts for it. We look forward to hearing back from you!
Was this helpful?
Thank you for voting!
Ellen
December 9, 2023
27.6 cu ft French Door the ice cube tray broke off at one of the ends.. What do i need to order
For model number lfx28968st
Hi Ellen,
Thank you for your question. If part of the ice bucket assembly broke off at one of the ends, it will need to be replaced. The part number for the ice bucket assembly is PS7789317. We hope this helps!
My water dispenser works but my ice maker won't fill with water. I have made sure the sensors were clean and free from ice/frost. Just changed the water filter and ran water thru the water dispenser. What else can I do? Could the sensors have went bad? Can I buy them and change myself?
For model number lfxs26973s
Hi Becky, thank you for the question. The issue is not with the sensors, we would suggest replacing the water inlet valve, part number PS7784018. It supplies water to the ice maker and water dispenser in the refrigerator. We hope this solves your problem!
How long do you think it will take to get this part?
For model number LMXS30776D
Hello Kathy, thank you for your question. The stock status for parts is always listed above the Add to Cart button on our site underneath the part information. If you are not sure what a stock status means, you can click on it and a separate window will appear with the explanation for what that status means. Or you may call in to speak with an agent as customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you.
Was this helpful?
Thank you for voting!
Bryant
March 10, 2023
S/N 811KRTA1X177 in case it helps. Last night out of the blue both the water dispenser and ice dispenser stopped working. No power surge or power loss event. I can hear the drive for ice try to turn but it does not. Removed the ice bin and the drive for the bin auger bin turns easily and the trap door at dispenser is opening. As I type this, I realize I should dump the bin and see if it makes ice. bin is full. I suspect it will not since I can't get water. Not sure if need entire ice maker unit or new drive and water solenoid.
For model number LMXS30776S /04
Hello Bryant, Thank you for your inquiry. If both the ice and water dispenser are not working, the first part to check is the water inlet valves. PS3618979 is at the back of the refrigerator and PS11712338 is near the water filter. Check the water tubes as well for any clogs or leaks. Good luck with your repair.
