Bottom Panel

★★★★★
★★★★★
24 Reviews
$102.80   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS977589
Manufacturer Part Number 316400601
Manufactured by Frigidaire
Product Description

Bottom Panel Specifications

This is used as the "floor" of the oven cabinet. Note: Does not come with rivets or screws. Must be purchased locally.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part works with the following products:
Range.
This part works with the following products:
Frigidaire, Kenmore, Crosley, Kelvinator.
Part# 316400601 replaces these:
AP3731407, 1056057
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

12 questions answered by our experts.
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Dan
October 7, 2017
This "bottom pan" has two screws in the back of the pan. It seems that i should be able to remove those screws and install the new pan. Is that correct? Thanks
For model number 79096212400
Hello Dan, thank you for contacting us. Yes, it should just be those 2 screws then it will pull out. Good luck with the repair!

15 people found this helpful.

Was this helpful?
Thank you for voting!
Doris
October 28, 2017
If we want to change the bottom of the range, is this changed from the rear of the stove
For model number cre3875pba
Hi Doris, Thank you for your inquiry. Before you begin any repair please unplug the appliance from the electrical outlet or turn the circuit breaker off. First, remove the two screws at the back of the panel. If the range has a convection fans with cover over them, then this cover will also need to be removed. There should be a screw on the top and the bottom of the fan cover that needs to be removed and then you can pull the convection fan cover out. Lift up on the back of the bottom oven panel and carefully pull back on the panel until you release the front lip of the panel from under the front of the oven cavity. This is a tight fit. It may take some patience to remove the bottom panel. It may take several tries to get the front lip released if you have a convection fan on the back wall of the oven cavity. Once you release the front lip of the bottom panel, you can pull it out of the range and work the new one in. Start working the new one in at the same angle as you pulled the old one out. Back of the panel tilted evenly up. Work the front lip into the front of the frame and then wriggle the new panel into place. Replace the screws in the back of the panel. I hope this helps. Thank you and have a great day!

10 people found this helpful.

Was this helpful?
Thank you for voting!
Tpm
April 23, 2018
I put aluminum foil on the oven bottom panel, is there any way to get this off now that it is baked on there?
For model number 790.94334700
Hello Tpm, thank you for your question. Unfortunately, now that that is baked on there, it will be next to impossible to remove. You're best bet is to replace the oven bottom, which is Bottom Panel Part Number: 316400601 . I hope this helps!

10 people found this helpful.

Was this helpful?
Thank you for voting!
Janet
December 3, 2019
Aluminum foil is baked on the bottom of the oven. Is there something that will remove it? If the entire bottom needs to be replaced, what is the part number? I would want to get the correct replacement.
For model number 7909415
Hi Janet, Thank you for your question. If aluminum foil melted on the bottom oven panel inside of your oven, there are some things that you can do to try and remove it. Try mixing baking soda and vinegar together in a large bowl. Make sure you add enough vinegar to allow a thin paste to form. Using a dry cloth, spread the paste over the area where the aluminum foil melted and let it set overnight. Use a wet-dry vacuum the next morning to remove any dried baking soda and any loose aluminum foil. Another option to try is to remove the foil by soaking an old towel in water and letting it set overnight. Remove the towel from the oven the next morning and throw it away. Then clean up any bits of foil from the oven. For any foil that is proving too difficult to remove, use a putty knife and try and remove it. If cleaning the bottom panel does not help, the part number listed for it is PS977589. I hope this helps. Thank you and have a great day!

7 people found this helpful.

Was this helpful?
Thank you for voting!
Marlie
December 22, 2019
Can you advise if you have a bottom sheet for this model and the cost. We stupidly put aluminium foil on the bottom. We are trying to remove but may have to replace it. Thank you.
For model number CFEH3054USA
Hello Marlie, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is PartSelect Number PS977589. Hope this helps!

3 people found this helpful.

Was this helpful?
Thank you for voting!
George
May 22, 2019
I ordered wrong part and need to replace it with below part Manufacturer part number 316400601 What do i need to do?George
For model number LFEF3054TFA
Hello George, thank you for contacting us. If you have an order with our company and need to speak about that, you will have to contact our contact customer service by phone or by email at customerservice@partselect.com. Thank you.

2 people found this helpful.

Was this helpful?
Thank you for voting!
Fran
February 27, 2020
1. Will i need to buy screws to install the tray. 2. Will i need anything else for to install the tray. 3. Also can i use the screws that exist on the tray to be replaced thank you for your help.
For model number LFEF3018LWA
Hello, Thank you for your question. You would not need anything else to replace that. Your screws would be- Part #: PS436031, you would need 4 of those. You are able to reuse the screws you have if they are not worn or stripped. We hope this helps.

2 people found this helpful.

Was this helpful?
Thank you for voting!
Ben
August 21, 2019
Correct previuos question.It was model above .I need bottom panel costs $97 in your website your site part # ps977589 would work for the model above?
For model number CGEF3035RWA
Hello Ben, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is PartSelect Number: PS1991808. Hope this helps!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Ben
August 21, 2019
I am looking for bottom panel for the above model frigdidaire owen. Part : 316400601 your part# ps977589 will work for modelcgef3035rwa?
For model number CGEF4035RWA
Good Day Ben. Thank you for your question in regards to your unit (Model Number CGEF4035RWA). The model number you provided is not recognized. Please verify the number you provided us. If it is correct, we recommend contacting the manufacturer and seeing if they could provide you with a part number, and then you are always welcome to check back to see if we carry the part!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Gord
January 26, 2020
Does this oven bottom measure 22x19?
For model number 316400601
Hello Gord, Thank you for your question. The dimensions for the bottom panel is 22.5" x 19". We hope this helps.

1 person found this helpful.

Was this helpful?
Thank you for voting!
Part Videos

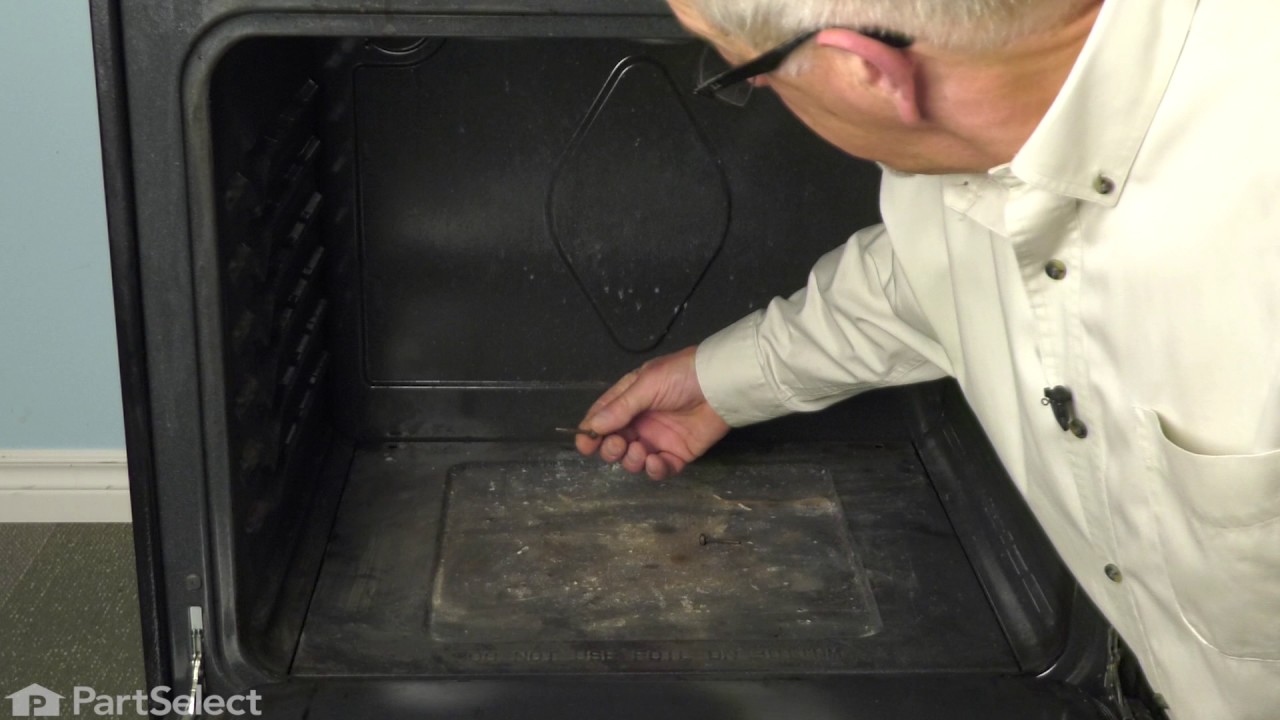

Replacing your Frigidaire Range Bottom Panel

Replacing your Frigidaire Range Bottom Panel play video
Customer Repair Stories
 Average Repair Rating: 5.0 / 5.0, 5 reviews. What's this?
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    Aluminum foil accidentally put on bottom panel ....burnt up, left non removable residue.
    After 15 minutes of frustration and back breaking I removed the oven door and had much better access to the panel, from there on it was all down hill.
    • lewis from COLDWATER, MI
    • Difficulty Level:
      Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Screw drivers
    • Parts Used:
      316400601
    9 of 9 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    Had aluminum foil stuck on bottom
    Removed 2 screws, pulled out the panel, replaced the new panel and replaced the two screws. Less than 5 minutes.
    • George from JACKSON, MI
    • Difficulty Level:
      Very Easy
    • Total Repair Time:
      Less than 15 mins
    • Tools:
      Screw drivers
    • Parts Used:
      316400601
    2 of 2 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    Oven bottom panel rusted away
    Removed two screws removed and replaced panel.
    • Ron from CINCINNATI, OH
    • Difficulty Level:
      Really Easy
    • Total Repair Time:
      Less than 15 mins
    • Tools:
      Screw drivers
    • Parts Used:
      316400601
    1 person found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    Bottom panel burned through
    Remove two back knurled screws, lift out old bottom, screw in new bottom panel. Removal of oven door (two flip out handles at hinge( makes this a little easier. Our oven did not need any other dis-assembly.
    • Barry from MENDON, NY
    • Difficulty Level:
      Really Easy
    • Total Repair Time:
      Less than 15 mins
    • Tools:
      Screw drivers
    • Parts Used:
      316400601
    1 of 2 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    Bottom oven pan was warped and discolored
    Unscrew the 2 screws at the back of the oven bottom pan in the range. Place new oven pan in and rescrew the 2 screws. I could not get the two screws screwed back in. Since the bottom pan cannot move from its position, I felt like the two screws were not necessary.
    • Kathryn from LAKELAND, FL
    • Difficulty Level:
      Very Easy
    • Total Repair Time:
      Less than 15 mins
    • Tools:
      Screw drivers
    • Parts Used:
      316400601
    1 of 2 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
