Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

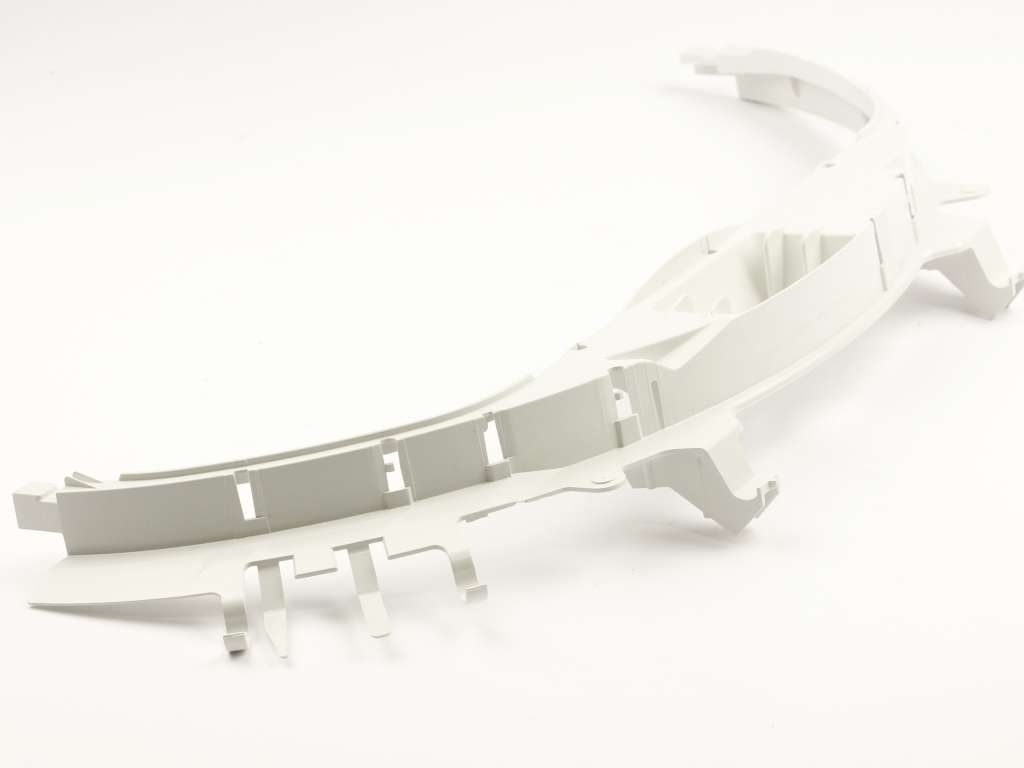

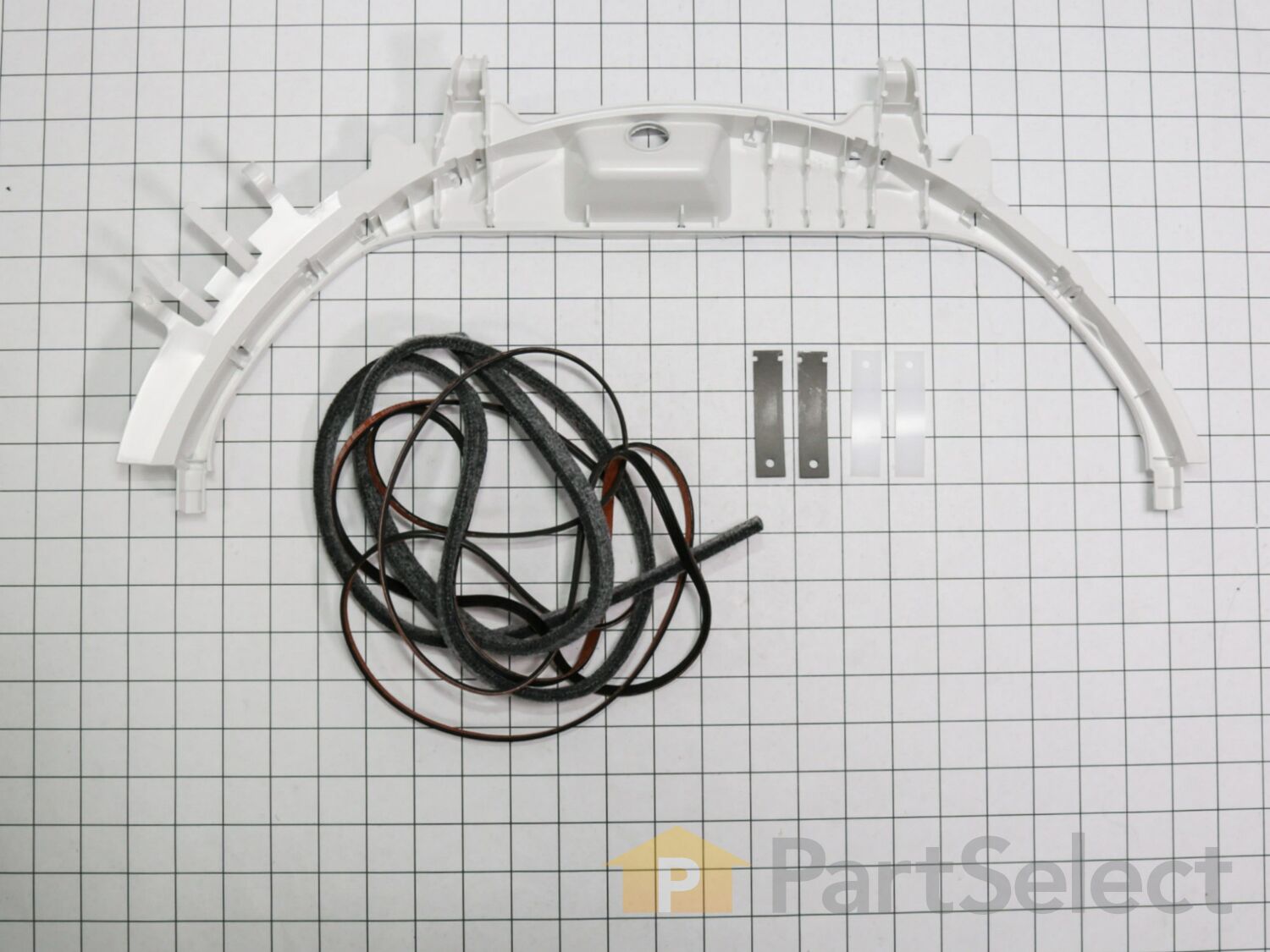

This dryer bearing kit is an authentic OEM kit sourced directly from the originla manufacturer for use in dryers. The kit includes the drive belt, drive felt, top bearing, two white drum slides and two green drum slides. The bearing kit is responsible for supporting the dryer drum and allowing it to rotate smoothly during use. Over time, the bearing may wear down or become damaged. If your dryer is making a loud squeaking noise, then the dryer bearing kit likely needs to be replaced.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
14 questions answered by our experts.
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Pat
November 29, 2018
Is this kit we49x20697 compatible with drier dbxr463gd3ww? Thanks
For model number DBXR463GD3WW
Hello Pat, thank you for your question. Unfortunately, that is not the right bearing kit. The bearing kit for your unit is part number PartSelect Number: PS267529. I hope this helps!
Hello Sally, thank you for inquiring. Our system does not show that this will work on your model. For your model the pieces in this kit are sold separately. The Front Drum Bearing is part PS960316, the Drum Bearing Slide - White is part PS755842 (sold individually, two are required), the Drum Bearing Slide - Green is part PS6447706 (sold individually, two are required), the Duct Felt Seal is part PS9861764, and the Drive Belt is part PS1766009.
1 person found this helpful.
Did this question help you?
Thank you for voting!
Donald Purney
June 20, 2019
Is part number we49x20697 compatible with this model dryer?
For model number DBSR453GB1WW
Hello Donald, thank you for your question. This part is not shown as compatible to your model. The replacement for your model is part PS267529.
Did this question help you?
Thank you for voting!
Debi
February 26, 2020
Is this the right kit to change top front support drum bearing please? Thanks
For model number DBSR453EB0WW
Hello Debi,
Thank you for your question. The front drum bearing for your model is under part PS960316. We hope this helps.
I want to buy the front drum bearing kit, do you have that for this model. Not just the single part, the kit.
For model number DBSR453EB0WW
Hello and thank you for writing.
Depending on the year your dryer was made this kit might work as the manufacturer states this kit is *FOR ALL DRYERS MADE FRM 2002-2013 EXCEPT MOD W/MATCH WASHER 09/14KC. If this is not the case for your unit you would have to buy the parts individually such as front drum bearing PS960316.Additional to the model number we also need the serial number to establish the year of your unit. Looking forward to your reply, please always include the model number. We hope this helps. Please contact us anytime if you require further assistance.
Serial # td729397a looking for front drum bearing kit. Also do you have video showing how to replace the kit? Belt video?
For model number DBSR453EBOWW
Hello Debi, thank you for your question. The front drum bearing is PartSelect Number: PS960316 for this unit. The drum slides should also be replaced when replacing the drum bearing. The slides are PartSelect Number: PS755842 and PartSelect Number: PS6447706. There are two of each of the slides on the unit. We have an installation video on the front drum bearing, and the belt which you can find by clicking on the related parts below. I hope this helps.
Will kit WE49x20697 fit on my dryer DBSR463EG1WW. Can you explain what the difference is. If not the correct one.
For model number DBSR463EG1WW
Hello John, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is PartSelect Number PS267529. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Do you have a Front Bearing repair kit for my Dryer
For model number GTD42GASJ2WW
Hello Shelly, thank you for writing. There is not a kit, but we do have the individual parts. The Front (Top) bearing is PS11763060. The the grey glide is PS16762550 the white glide is PS4704230. The Belt is part PS16542496. We look forward to hearing from you.
Hi Mark,
Thank you for your question. This kit is not listed for your dryer. The parts are sold individually. The part numbers for the drum glides are PS6447706 and PS755842. You will need 2 each. The part number for the front drum bearing is PS960316 and the part numbers for the seals are PS12722961 and PS2577674. We hope this helps!
Does WE49X20697 fit my GE Dryer model DBXR463GG8WW?
For model number DBXR463GG8WW
Hello Tom, thank you for the question. The bearing kit you mentioned does not fit your model. For your model, the pieces in this kit are sold separately. The front drum bearing is part number PS960316. The white drum bearing slide is part number PS755842. It is sold individually and two are required. The green drum bearing slide is part number PS6447706. It is also sold individually and two are required. The drum felt seal is part number PS12722961, and the drive belt is part number PS16542496. We hope this helps!
