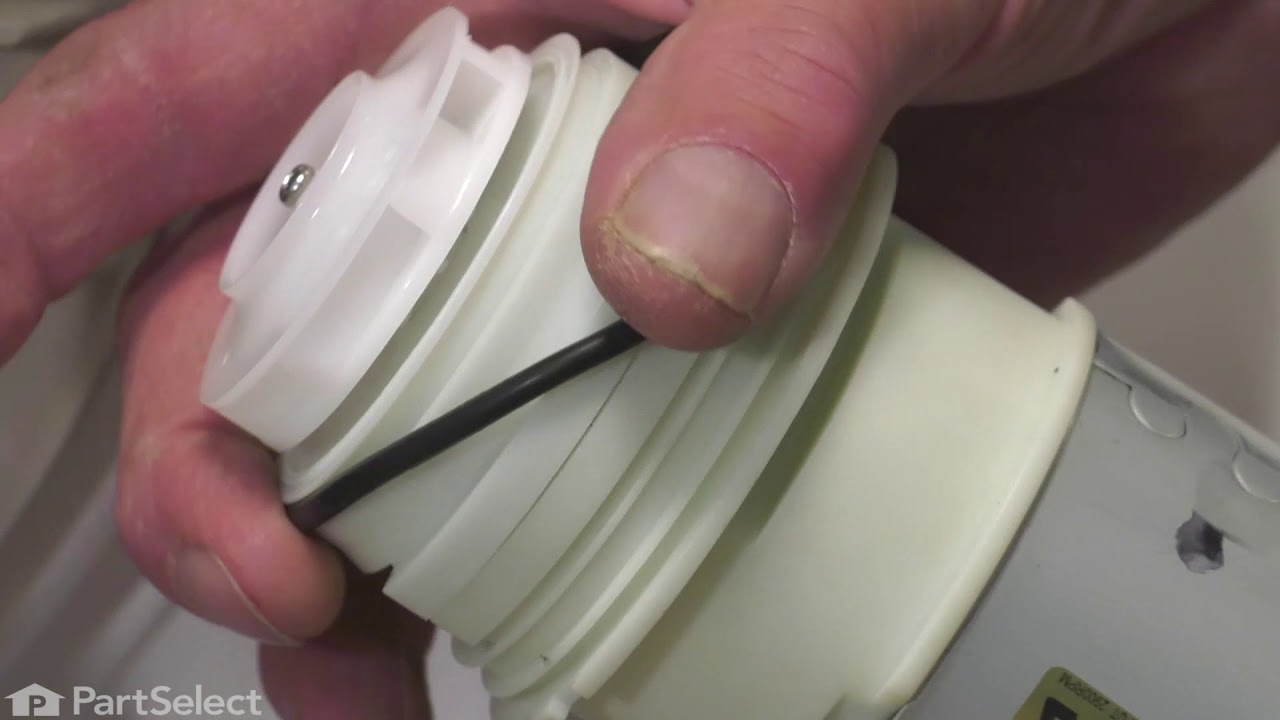

Dishwasher Circulation Motor & Pump Kit with Harness

★★★★★
★★★★★
1 Review
$ 185.24   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS3501031
Manufacturer Part Number 154859101
Manufactured by Frigidaire
Product Description

Dishwasher Circulation Motor & Pump Kit with Harness Specifications

This part has been redesigned by the manufacturer and may appear different, but will function the same. This kit helps propel the water through the spray arms.

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Not cleaning dishes properly | Leaking | Noisy
This part works with the following products:
Dishwasher.
This part works with the following products:
Frigidaire, Kenmore, Gibson, Uni.
Part# 154859101 replaces these:
AP5272389, 1940277, 154859101, 154369501, 154395402, 154395403, 154405501, 154418301, 154418302, 154520501, 154523501, 154536101, 154539901, 154574701, 154588402, 154588801
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

2 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Benjie
    September 16, 2017
    Can the motor to pump be replaced or does motor and pump come as one unit , if so how much is motor and can you send instruction on how to take old motor off and new one on.
    For model number FDB510LCS3
    Hi Benjie, Thank you for your inquiry. This is the circulation pump and motor and you there is information on our website listed under the part on how to install it. I hope this helps. Thank you and have a great day!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Gordon
    June 6, 2019
    I tested the motor with no load and it will run 4 to 5 seconds then shut down and show pf on the control panel. Does this mean that the start winding switch is sticking? If so, does that mean i need to replace the motor?
    For model number GLD2445RFCO
    Hello Gordon, thank you for inquiring. The PF code stands for power failure and will appear when the power has been interrupted to the unit. To clear this, press the START/CANCEL button. If this does not clear the code and resolve the issue, then you will need to replace the Electronic Control Board part PS2345161 for your model. We hope this helps.

    Was this helpful?
    Thank you for voting!
      Customer Repair Stories
       Average Repair Rating: 3.6 / 5.0, 10 reviews. What's this?
        Sort by:
        Sorry, we couldn't find any existing installation instruction that matched.
        The dishwasher would not spray to middle or top rack and detergent would not dissolve.
        I pulled off the cover inside the sump area. Then pulled the washer out from the counter and turned it on it's side. I took the old pump out and crimped a new wire harness on. It was a simple repair for a DIYer.

        Before pushing the dishwasher back, I tested the dishwasher with it pulled out from the counter. It was easy to see water was flowing forcefully through the upper tubing now. Success.

        Troubleshooting this faulty pump was harder because it was functioning, but it did not have enough force to push the water up to the top rack. I convinced myself that the pump was the problem by plugging the lower rack with a cork. The spray was still too weak to rotate the upper spray arm. I also ruled out the timer with a stop watch. This unit alternates upper and lower racks by pausing either 0.6 seconds or 3 seconds. This controlls a ball that diverts water to the upper or lower rack.
        • Kurt from Corrales, NM
        • Difficulty Level:
          Easy
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Screw drivers
        • Parts Used:
          154859101
        47 of 52 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Frigidaire dishwasher main pump failed
        10 year old stainless steel faced Frigidaire dishwasher. The motor assembly part fixed my problem. This was the second part required to fix the dishwasher. A week prior I replaced the inlet water solenoid switch to correct the "no water filling issue". I think that the main motor assembly pump ran dry and caused it to fail, so it is critical NEVER to run this part dry. The repair was relatively easy, I will say it would be great to have some instructions with the parts, however the kit came with everything. you essentially slide the dishwasher out disconnecting power and water ( i left the discharge connected since the service loop was long). you disconnect all the main pump electrical and water connections, labeling made it easy. you take the motor assembly out thru the inside tub. Once the internal sump assembly is out you can clean the sump and remove the old pump. Pull it out straight and dont wiggle it. The kit comes with new O rings that i put a light smear of vaseline on for a good seal. You reinstall the sump and make connections. Since my dishwasher is old, the original Molex power connector to the motor is different on the new motor. The kit comes with a new style connector, what you have to do is snip off your old connector and the kit comes with a new connector with crimps on the ends, you slide the provided heat shrink over each wire and then crimp your dishwashers wires to the new connector. I then used a butane lighter to shrink the heat shrink. The heat shrink is not absolutely necessary since the crimps are insulated, but since the kit came with two perfectly cut pieces of heat shrink I felt obligated to use it. This sounds all complicated but it really wasn't and much cheaper than a new dishwasher! Interestingly and this only maybe in my case but the dishwasher seems to clean better than it ever did.. for now we are not pre-rinsing!
        • jeff from Orlando, FL
        • Difficulty Level:
          A Bit Difficult
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Nutdriver, Screw drivers, Wrench (Adjustable), Wrench set
        • Parts Used:
          154859101
        23 of 26 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        No Water Circulating in Wash or Rinse Cycle
        Removed the dishwasher from under the counter, and ran to diagnose the problem. Drain pump ran, but circulating motor did not. Ordered the replacement circ pump / motor assy, and slid the washer back in its hole.
        When the new motor arrived, I slid it back out, disconnected everything, and drained the water from the bottom. Then I tipped the washer on its side, removed the old motor and installed the new one following included instructions. I did have to use the new wiring harness, and found the new one had only two leads where the original had three. I connected the blue and white leads, and left the original green loose.
        All in all, it was an easy repair that could be done by anyone with a basic set of skills.
        • Rod from Bandon, OR
        • Difficulty Level:
          Easy
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Pliers, Screw drivers, Wrench (Adjustable)
        • Parts Used:
          154859101
        13 of 14 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Water leak underside of dishwasher/Noisy pump
        Removed bottom front dress plate and ran dishwasher. Noted there was a major leak from pump. Went to website parts list located part and ordered online. Once part arrived removed dishwasher from counter after removeing 2 screws which held it in. Shut off power and water to unit. Unplugged pump wires,removed pump. New pump came with new o-ring seals which I placed on new unit and put Vegitable oil on them for lubrication. Reinstalled unit along with wires. Reinstalled under counter, turned on water/power WORKS GREAT!
        • Mark J. from Schwenksville, PA
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
          Screw drivers
        • Parts Used:
          154859101, 154577303
        11 of 13 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Upper rack not being cleaned
        This was pretty easy. It was a guess as to the problem, but there much debate , if the water isn't moving it had to be the pump, right?. So i replaced the circulation pump. 2 screws on the top and two trim screws on the bottom, and it slides right out. Then UNPLUG IT.. Take the screen out of the bottom on the inside and make sure you get all the water out or it will end up on the floor when you tip it on it's side. The directions were ok, i looked over them briefly but didn't use them. tools were, phillips srewdriver, torx driver (pump bracket srews) wire stripper/crimper (for the plug adaptor) and a heat gun, (for the heat shrink tube for the crimp connection). Overall it was pretty easy. the pump was made to be easy to replace. 45 min and back in action.
        • steven from Walnut Creek, CA
        • Difficulty Level:
          Easy
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Pliers, Screw drivers
        • Parts Used:
          154859101, 807145201
        10 of 13 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Water coming out of motor/motor really loud noise
        Took the dishwasher out removed the two screws and the part holding the motor in and removed the motor. Received the parts, places o'rings on the motor, which came with the kit, even though I ordered the two o'rings. Replaced the motor, installed the part that holds the motor and tightened the screws. Cut the old connector off the dishwasher and replaced it with a new connector that came with the kit. Reinstalled the dishwasher, works great. Thanks for your Site.
        • David from Cragford, AL
        • Difficulty Level:
          Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
          Pliers, Screw drivers
        • Parts Used:
          154859101
        8 of 8 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        pump leaking water
        slide out dishwasher. remove 2 screws holding motor/pump assembly in. slide out motor/pump bracket. disconnect electrical connection from motor. pull motor/pump assembly out. install new 'O' rings on new motor/pump assembly. (lube with liquid soap). install assembly. slide in motor clamp and install 2 screws. reinstall dishwasher. run test cycle. Fixed!!
        • Vincent from vestal, NY
        • Difficulty Level:
          Easy
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Screw drivers, Wrench (Adjustable)
        • Parts Used:
          154859101
        6 of 7 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        Motor was making a loud noise and leaking water
        Pulled the dishwasher out from under the ounter, laid it flat on the front side, unplugged the motor, removed two screws and the retaining clip, pulled the motor straight out, oiled and put the new o-rings on the new motor, slid it in, replaced the clip and two screws, reinstalled the dishwasher, and done.
        • Angela from Heathsville, VA
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          Less than 15 mins
        • Tools:
          Screw drivers
        • Parts Used:
          154859101
        6 of 10 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        leaking motor in mexico and no parts!!
        got the part in the usa-flew to home in baja mexico and had the dishwasher fixed in no time!!! Just get Ramon and his toolbox!! thanks!!
        • elizabeth from tucson, AZ
        • Difficulty Level:
          Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
        • Parts Used:
          154859101
        6 of 13 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        major water leak from underneath unit
        two screws, and pull unit out from under counter, turn on it's side. Two allen-head screws to remove motor retaining clip, unplug wires, and remove motor. Reassemble, using silicone grease on O-rings that seal motor. That's it.
        • Greg from Hemet, CA
        • Difficulty Level:
          Easy
        • Total Repair Time:
          15 - 30 mins
        • Tools:
          Screw drivers
        • Parts Used:
          154859101
        5 of 6 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
          Customer Reviews
          Average Rating:
          ★★★★★
          ★★★★★
          1 Review
          4.0
          Filter By Rating:
          • 5 Stars
            0
          • 4 Stars
            1
          • 3 Stars
            0
          • 2 Stars
            0
          • 1 Star
            0
            Sort by:
            Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
              Model Cross Reference
              This part works with the following models:
              PartSelect Number: PS3501031
              Manufacturer Part Number: 154859101
              Brand
              Model Number
              Description
              Kenmore
              58714000100
              Dishwasher
              Kenmore
              58714000101
              Dishwasher
              Kenmore
              58714000102
              Dishwasher
              Kenmore
              58714001991
              Dishwasher
              Kenmore
              58714001992
              Dishwasher
              Kenmore
              58714001993
              Dishwasher
              Kenmore
              58714002991
              Dishwasher
              Kenmore
              58714002992
              Dishwasher
              Kenmore
              58714002993
              Dishwasher
              Kenmore
              58714003100
              Dishwasher
              Kenmore
              58714008001
              Dishwasher
              Kenmore
              58714008002
              Dishwasher
              Kenmore
              58714008003
              Dishwasher
              Kenmore
              58714009100
              Dishwasher
              Kenmore
              58714009101
              Dishwasher
              Kenmore
              58714009102
              Dishwasher
              Kenmore
              58714112401
              Dishwasher
              Kenmore
              58714113401
              Dishwasher
              Kenmore
              58714114401
              Dishwasher
              Kenmore
              58714119401
              Dishwasher
              Kenmore
              58714131101
              Dishwasher
              Kenmore
              58714131102
              Dishwasher
              Kenmore
              58714132101
              Dishwasher
              Kenmore
              58714132102
              Dishwasher
              Kenmore
              58714134101
              Dishwasher
              Kenmore
              58714134102
              Dishwasher
              Kenmore
              58714139101
              Dishwasher
              Kenmore
              58714139102
              Dishwasher
              Kenmore
              58714153400
              Dishwasher
              Kenmore
              58714153401
              Dishwasher
