Timer Knob – Part Number: WE1M654
Timer Knob – Part Number: WE1M654 Timer Knob – Part Number: WE1M654 Timer Knob – Part Number: WE1M654 https://partselectcom.azureedge.net/Schematics/GE/00107031i01.gif

Timer Knob

PartSelect Number PS1482197

Manufacturer Part Number WE1M654

Manufactured by GE

Product Description Troubleshooting Questions and Answers Part Videos Customer Repair StoriesCustomer Reviews Model Cross Reference
Product Description

Timer Knob Specifications

  • This part is used to set the dryer cycle by advancing the timer

  • White

  • Roughly 3 inches in diameter

  • Plastic

  • Timer Knob Assembly, Dryer Timer Knob

  • Includes 1 control timer knob

  • Sold Individually

  • This timer knob mounts onto the timer shaft

How Buying OEM Parts Can Save You Time and Money

Troubleshooting

This part fixes the following symptoms:

Timer will not advance | Will Not Start | Shuts off too soon | Will not shut off

This part works with the following products:

Dryer.

This part works with the following brands:

General Electric, Hotpoint.

Part # WE1M654 replaces these:

1264290, AP3995088, WE01M0443, WE1M443, WE1M502, WE1M654, WE1M668.

What does this part do:

This part is used to set the dryer cycle by advancing the timer.

Why does this part break:

The plastic can become brittle with age and crack where it attaches to the timer shaft.

What happens when this part breaks:

You will need to replace this part if it slips off the shaft and cannot advance the timer. If it constantly falls off, it may be cracked or broken and need to be replaced.

Attaches to:

This timer knob mounts onto the timer shaft.

Replace part if:

If this part will not stay on the shaft by itself, it will need to be replaced.
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
15 questions answered by our experts.
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Marge
July 20, 2017
When the cycle finishes my dryer will not automatically turn off anymore. Is there a problem with my timer knob or something? Never had this happen before!
Hello Marge, if the timer motor has power and the timer is still not turning off, you may need to replace the timer on your dryer WE4M353. This can be tested using a multi-meter tool. Please let us know if you have any further questions.

10 people found this helpful.

Was this helpful?
Jeff
December 30, 2017
Hi. Is this a one directional (eg only to be turned clockwise) or a multi directional knob?
For model number Dbsr453eb2ww
Hello Jeff, Thank you for your inquiry. It is designed to turn with the timer switch, which is recommended only to turn clockwise. Hope this helps!

6 people found this helpful.

Was this helpful?
Raymond
July 20, 2017
How do I know if I should replace the knob or the whole timer assembly. My wife said last time she used the dryer when she turned the timer it felt “weird” and now the machine is not starting. I read that usually it is bc of a faulty timer or timer knob but who can I determine which it is?
Hi Raymond, this problem could be caused by the knob or the timer on your dryer. I would start with the knob. Pull it off the shaft and check it for visible damage. If the knob is not the problem then you will need to inspect your dryer timer. I hope this helps.

5 people found this helpful.

Was this helpful?
Priya
July 20, 2017
I need this timer knob by the looks of it but it does not match the color of my unit. Does it come in other colors?
Hello Priya, this knob is also available in bisque. If that is the color you are looking for you can find it here WE1M483. Best of luck with this repair!

5 people found this helpful.

Was this helpful?
Brian
January 16, 2018
Is this the right part no. Ps1482197
For model number DBSR463GG7WW
Hi Brian, Thank you for the question.Yes, This timer knob Part Number: PS1482197 is the correct timer knob for the model number provided. Hope this helps!

1 person found this helpful.

Was this helpful?
Greg
March 1, 2018
The timer knob has no tension in it. I cannot make a timing selection as the dial spins freely, therefore the dryer will not work.
For model number HTDX100GM8WW
Hi Greg, Thank you for the question. If you can remove the knob and turn the shaft the knob fits onto and have it operate normally, you will need to replace the knob. If the shaft turns freely as well then the timer switch needs to be replaced, Part Number: PS9491767. Hope this helps!

1 person found this helpful.

Was this helpful?
Kevin Gordon
April 29, 2018
Hello, we are looking for timer knob that broke. Part number on back of knob itself is ki2227. Dryer model is dpsr473ewoww. I found part ps1482197 referenced on your site, but there is no reference to ki2227. Can you confirm if this is the correct part? Thank you.
For model number DPSR473EV0WW
Hi Kevin, Thank you for your question. The part number listed under your model number for the timer knob is PS266954. I hope this helps. Thank you and have a great day!

Was this helpful?
Ian
May 2, 2018
The dryer knob does not pull out to activate
Hello Ian, thank you for contacting us, In order for us to locate the correct parts and repair information we will require the model number of the appliance. Once you have located the model number please feel free to resubmit the question and we will be happy to help you. Look forward to hearing from you!

Was this helpful?
Lisa
August 5, 2018
I want to know if this timer knob is compatible with the model gtdp180ed0ww and the timer 60 hz partselect #: Ps8690648 / manufacturer #: We4m533 / manufactured by: GE
Hi Lisa, Thank you for your question. The timer knob you have referenced in your question to us is not the correct knob listed for your dryer. The part number listed under your model number for the timer knob is PS8769912. I hope this helps. Thank you and have a great day!

Was this helpful?
April
December 18, 2018
I need to replace the timer knob and woul like to know if there this would work.Thanks
For model number DBSR463EG6WW
Hello April, thank you for your question. Yes, the timer knob PartSelect Number: PS1482197 will work for your unit. I hope this helps!

Was this helpful?
Part Videos
Difficulty: Easy | Tools Required: Screw drivers,Pliers
Repair Tip: To install this part, grab your old knob with a firm grip and pull. Make sure the inside of the part has come off as well. Align your new knob onto the D-shaped shaft and snap it into place.

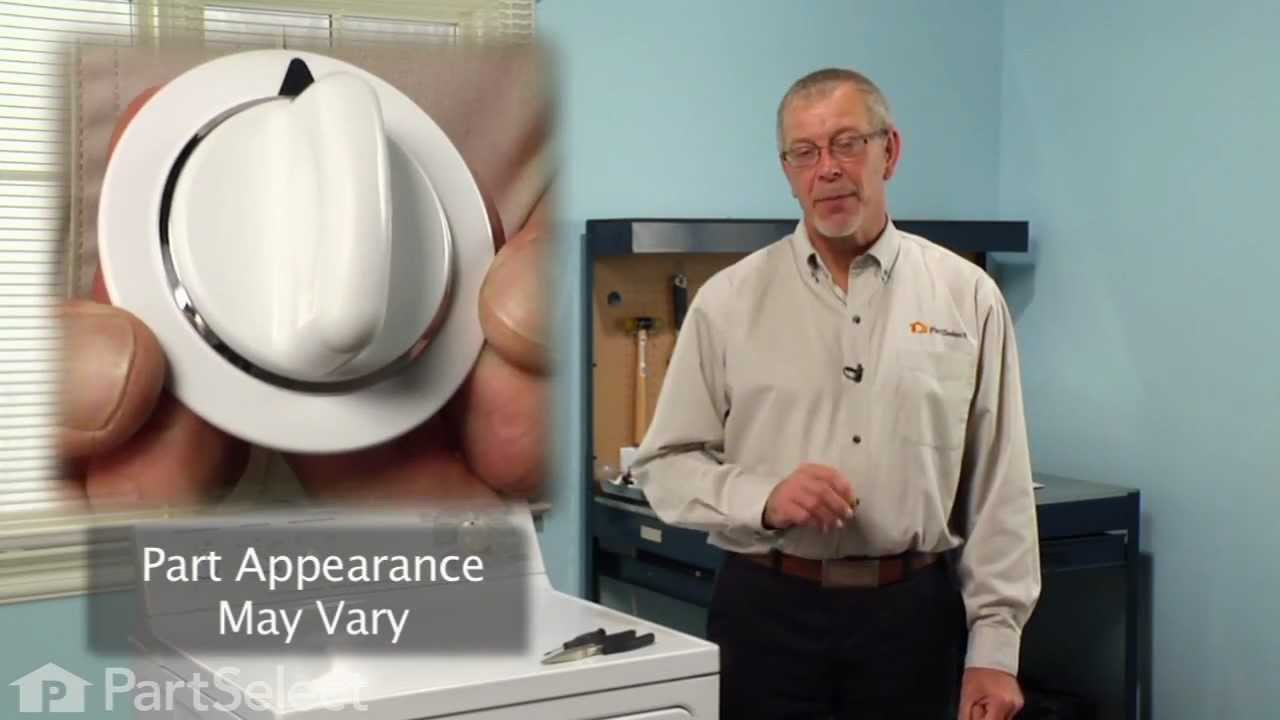

Replacing your General Electric Dryer Timer Knob

Customer Repair Stories
Average Repair Rating: 4.5 / 5.0, 56 reviews What's this?
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Jeffery from Waterford, MI
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
WE04X20415, WE1M654, WE1X980
Timer knob cracked twice. Found out the timer switch was bad.
Removed the 3 knobs. They just pull off. Removed 6 screws on the back side of the control panel. The front (plastic panel then just separates from the back). Then look at how the switch is mounted on the plastic panel. There should be 2 small pieces of plastic that holds it in. Carefully twist the switch in the appropriate direction so it comes free. Before you remove any wires from the old switch remember what colors go where ! I used needle nose pliers to remove the connections from the switch. Make the new connections, mount the switch, put the screws back in the panel. BEFORE YOU DO ANYTHING. UNPLUG THE ELECTRICAL CORD !!!
713 of 758 people found this instruction helpful.
Was this instruction helpful to you?
Daniel from Chantilly, VA
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Parts Used:
WE01X20378, WE1M654
Knob broke
Pulled off old knob and aligned new knob and pushed on. Videos sent with order was very clear and great customer service tool.
495 of 528 people found this instruction helpful.
Was this instruction helpful to you?
Whitney from Vancouver, WA
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
WE4M533, WE1M654, WE1X980
START knob and plastic underneath broken
It was so incredibly simple! The site made it foolproof to find the right parts - and the actual replacement job itself was easier than we ever could have imagined. Background: I love to do laundry - I mean A LOT! So - I use the washer and dryer every night to wash the familie's clothing and blankets and towels. After heavy use - the outer knob stripped out. We threw it away and were using pliers to turn the small plastic knob underneath. After a few months - that plastic wore down and we could not turn it on at all!
339 of 457 people found this instruction helpful.
Was this instruction helpful to you?
Kathleen from Greenwood, IN
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Parts Used:
WE1M654
Timer knob cracked and would not turn on the dryer
Very easy. I just snapped the new timer knob on and I was ready to go.
163 of 240 people found this instruction helpful.
Was this instruction helpful to you?
tom from Ridgefield, CT
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Parts Used:
WE04X20089, WE1M654
replace timer and knob
removed back panel, exchanged wires on old timer to new. Do this one at a time as there is no color chart to follow. Timer clips back in. Used a little screw to lock it in. Not sure if this was on the original but there was a place for it. Re-attached back panel and placed knob on shaft.
Overall saved a bundle as a service visit is $175.
145 of 220 people found this instruction helpful.
Was this instruction helpful to you?
Konrad from Elgin, IL
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Parts Used:
WE04X20415, WE1M654
Timer knob and shaft broke
Timer knob broke (again) so we just used pair of pliers to set time for drying. This caused timer's plastic knob shaft to broke very quickly, so whole timer had to be replaced. I didn't have ANY experience with this but it was very simple. I disconnected power cable from the outlet. Using screwdriver removed back panel, then using pliers disconnected all wires from the old timer and connected them back to the new one. And that's it, dryer working like new.
130 of 198 people found this instruction helpful.
Was this instruction helpful to you?
Douglas from Santa Barbara, CA
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Parts Used:
WE4M519, WE1M654, WE1X980
All the control knobs broke
I took apart the top of the dryer and removed the switch and replaced it with the new one. I also removed the knobs and replaced them. Easy
113 of 197 people found this instruction helpful.
Was this instruction helpful to you?
ROBERT from MEDFORD LAKES, NJ
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Parts Used:
WE01X20378, WE1M654
Timer Knob Felt Stripped, No Cycle
Replaced timer switch, stem was stripped. Also found all 4 knobs cracked, which surprised me. . Unit only 2 years old, replaced them also. All repair done from top, removed top then control panel, popped knobs off, replced them. Working good now.
91 of 151 people found this instruction helpful.
Was this instruction helpful to you?
wendell from hephzibah, GA
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
WE4M533, WE1M654
The timer switch was so hard to turn it broke the knob.
I pulled the dryer three feet from the wall. UN-PLUGGED THE UNIT!! Removed 3 screws from the very top of the dryer,and pulled 1 wire at a time from the old switch and put it on the new one. Super easy.
54 of 63 people found this instruction helpful.
Was this instruction helpful to you?
Chastity from Fort Lee,, VA
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
WE4M533, WE1M654
Plastic knob attached to motor snapped off.
Ordered part from the make and model number on the inside of dryer. Unplugged and Took screws off the back panel. Unplugged all color of wires while remembering where they went. Put in new motor and put wire plugs back in place, then screwed back plate cover back in place. NOTE: It's like changing a fuse in your car. It was really easy!
23 of 25 people found this instruction helpful.
Was this instruction helpful to you?
Customer Reviews
Average Rating:
82 Reviews
4.8
out of 5
Filter By Rating:
  • 5 Stars
    75
  • 4 Stars
    4
  • 3 Stars
    1
  • 2 Stars
    0
  • 1 Stars
    2
Sort by:
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
5
-
Verified Purchase
All good

Dryer is fixed and my wife is off my back!!

5
-
Verified Purchase
Satisfied

Part was in excellent condition. My appliance is working again. Highly recommend.

5
-
Verified Purchase
The right part

Part arrived on time, easy install, works perfectly. What more could you ask?

5
-
Verified Purchase
Easy repair.

This part was an easy fix. Fit perfect. Thank you.

5
-
Verified Purchase
Worked perfectly.

Happy to find this website. The part was exactly what I needed.

5
-
Verified Purchase
timer knob

The knob went on easy. I was thrilled to use the dryer again.

5
-
Verified Purchase
Exactly what was expecting

The part was the exact replica of the part I needed to replace and very easy to install. I will definitely order from PartSelect again

5
-
Verified Purchase
easy repair

I was ready to order a new dryer since it was not drying my cloths properly. I realized that the timer knob was not working properly. Glad I decided to try to find a replacement timer knob and Part Select carried the timer. Problem solved and money saved.

5
-
Verified Purchase
very easy repair.

i used the video and all went very well and part was just as advertised.

5
-
Verified Purchase
Fast, fits, easy

Got the part pretty quickly. Easy install and good fit. Working great.

Model Cross Reference

This part works with the following models:

PartSelect Number: PS1482197
Manufacturer Part Number: WE1M654
Brand
Model Number
Description
General Electric
DBB3300EA0WW
Dryer - Electric
General Electric
DBB3300EA1WW
Dryer - Electric
General Electric
DBB3300GA0WW
Dryer - Gas
General Electric
DBB3300GA1WW
Dryer - Gas
General Electric
DBB3300GA2WW
Dryer - Gas
General Electric
DBLR333EE0WW
Dryer - Electric
General Electric
DBLR333EE1WW
Dryer - Electric
General Electric
DBLR333EE2WW
Dryer - Electric
General Electric
DBLR333EG0WW
Dryer - Electric
General Electric
DBLR333EG1WW
Dryer - Electric
General Electric
DBLR333EG2WW
Dryer - Electric
General Electric
DBLR333EG3WW
Dryer
General Electric
DBLR333EG4WW
Dryer
General Electric
DBLR333EG5WW
Dryer
General Electric
DBLR333EG6WW
Dryer
General Electric
DBLR333EG7WW
Dryer
General Electric
DBLR333GE0WW
Dryer - Gas
General Electric
DBLR333GE1WW
Dryer - Gas
General Electric
DBLR333GE2WW
Dryer - Gas
General Electric
DBLR333GG0WW
Dryer - Gas
General Electric
DBLR333GG1WW
Dryer - Gas
General Electric
DBLR333GG2WW
Dryer - Gas
General Electric
DBLR333GG3WW
Dryer
General Electric
DBLR333GG4WW
Dryer
General Electric
DBLR333GG5WW
Dryer
General Electric
DBLR333GG6WW
Dryer
General Electric
DBLR333GG7WW
Dryer
General Electric
DBLR333GG8WW
Dryer
General Electric
DBSR453EB0WW
Dryer - Electric
General Electric
DBSR453EB1WW
Dryer - Electric
