Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

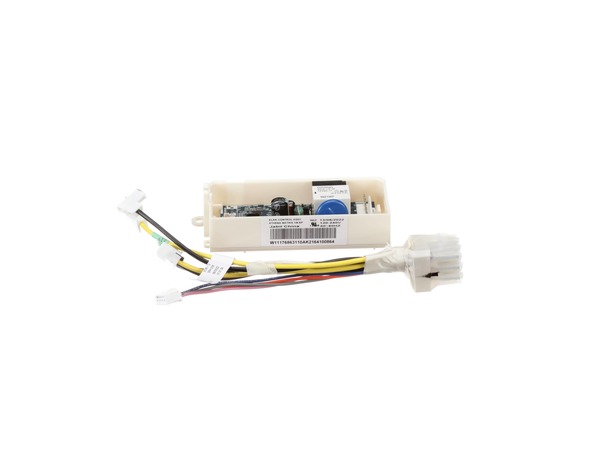

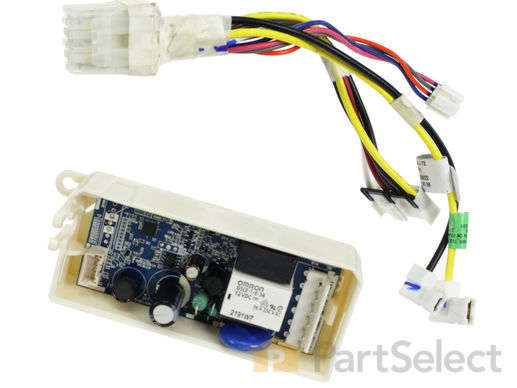

Introducing the Whirlpool CNTRL-ELEC Electronic Control & Harness, Athena Matrix WP, designed meticulously for optimal performance with several fridge models. This genuine OEM part is a seamless fit for select Whirlpool, KitchenAid, Maytag, Jenn-Air, Amana, Inglis, and Magic Chef fridges, maintaining high precision and quality. It expertly manages essential refrigerator functions like cooling and defrost times, ensuring consistent vital performance. Prioritize your safety by storing any perishable food elsewhere and unplugging your refrigerator during this part's installation. Remember to don work gloves for added safety. Authenticity and compatibility are assured, but for a hassle-free experience, confirm your model's compatibility with this part before placing your order.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Ask our experts a question about this part and we'll get back to you as soon as possible!
3 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Michel
March 10, 2023
Fridge & freezer don't cool, Cooling fan is running below, I've changed the thermistor & now the capacitor. What change I try next? Or should I just scrap this 4 or 5 yr old fridge.
For model number ART318FFDW03
Hi Michel,
Thank you for your question. If fresh food and freezer sections of your refrigerator are too warm and you have replaced the thermistor and the capacitor, there are some parts that you will need to check to see which one is causing the issue. We recommend checking the condenser fan motor, the evaporator fan motor, the electronic control and harness and the defrost heater. We have included a link from our website that you may reference on how to check these parts. Once you have determined the part you need, please call customer service. We look forward to hearing from you!
refrigerator does not shut off & it freezes food in the refrigerator compartment. Thermistor checks out ok. What else should we check? Thank you
For model number ART318FFDW03
Hi Bruce, thank you for reaching out. Based on the description, we would recommend checking the door gasket if it damaged. If that is not the case, then you may need to replace the control board, part number PS12745754, to fix the issue. The control board manages the functions of the refrigerator, such as cooling and defrost times. Good luck with your repair!
Did this question help you?
Thank you for voting!
Scott
September 1, 2021
Will this replace w10643378
For model number WRT318FZDB01
Hello Scott, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is PartSelect Number PS12745754. The w10643378 has been replaced with WPW10643378 and they are not listed as compatible parts for the model number provided. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!
Did this question help you?
Thank you for voting!
