See part 14 in the diagram

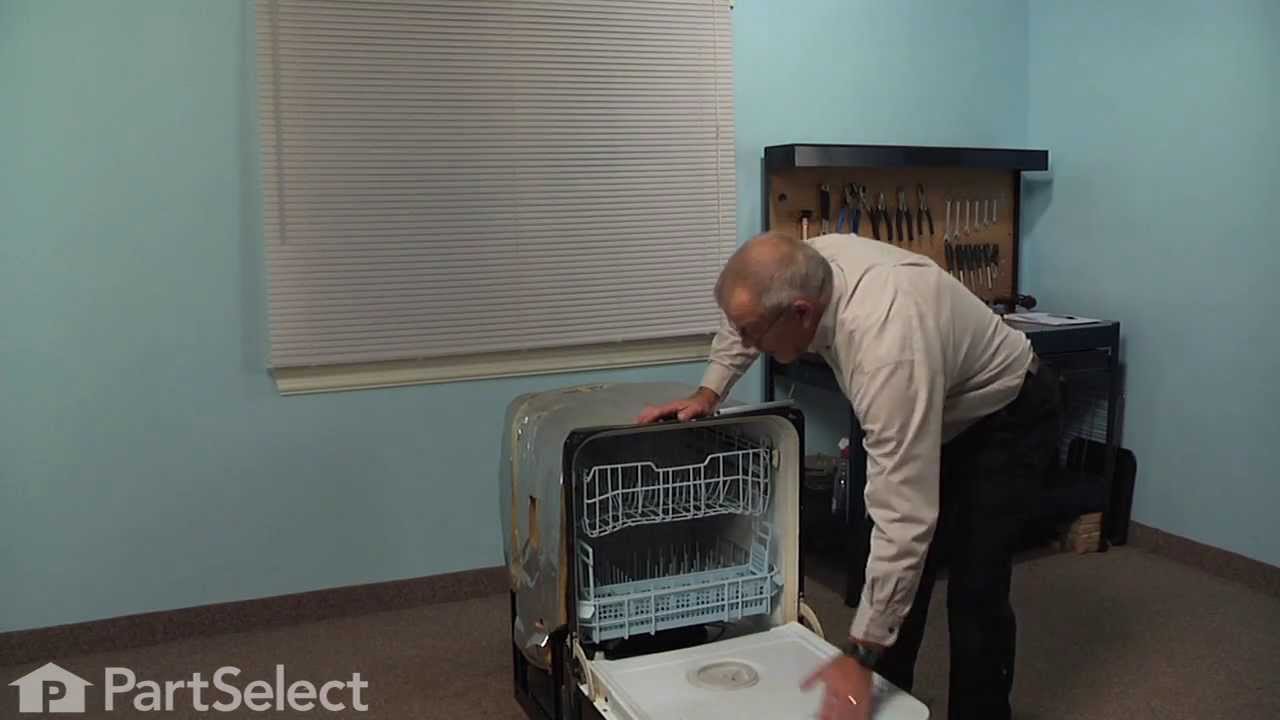

Replacing your KitchenAid Dishwasher Rubber Water Delivery Tube play video
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 10PM EST

customerservice@partselect.com

Rubber Water Delivery Tube

★★★★★
★★★★★
19 Reviews
$48.05   On Order

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS11742322
Manufacturer Part Number WP4171544
Manufactured by Whirlpool
Product Description

Rubber Water Delivery Tube Specifications

This rubber tube carries water from the upper spray arm manifold to the receiver of a dishwasher. This thin walled tube can become brittle over time and crack. If it does, it will lead to poor cleaning quality of the dishes on the upper rack, and you will need to replace it.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Not cleaning dishes properly | Leaking
This part works with the following products:
Dishwasher.
This part works with the following products:
KitchenAid, Insinkerator, Kenmore, Whirlpool.
Part# WP4171544 replaces these:
AP6009176, 4161617, 4171544
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

3 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Jan
    February 20, 2018
    The video does not mention the tiny hole on the tube or if it should be on the top or the bottom when installed. I need to know if the whole should be on the top or the bottom. I know how to install it otherwise.
    Hi Jan, Thank you for the question. The hole goes on the bottom facing down. Hope this helps!

    9 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Jan
    February 20, 2018
    There there is a tiny hole on one side of the tube. Does it matter if it's on the top or the bottom when installed.
    Hi Jan, Thank you for your question. There is a video listed with the part on our website on how to install it that you may reference for information. I hope this helps. Thank you and have a great day!

    3 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Diane
    February 7, 2020
    The rubber tube has a small pinhole..does that face up, or down? thank you.
    Good Day Diane. Thank you for your question in regards to the Rubber Water Delivery Tube. The tube is installed into your unit with the pinhole facing down. You can order this part either online at our website www.PartSelect.ca or by calling us by phone at 877-910-4613. Best Regards.

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Related Parts:
      Part Videos

      Replacing your KitchenAid Dishwasher Rubber Water Delivery Tube

      Replacing your KitchenAid Dishwasher Rubber Water Delivery Tube play video
      Customer Repair Stories
       Average Repair Rating: 4.8 / 5.0, 99 reviews. What's this?
      Sort by:
      Sorry, we couldn't find any existing installation instruction that matched.
      Rubber water tube had dissentagrated with age.
      Since the old part had fallen off of the appliance, all I needed to do was reattach the new parts, by sliding the hose onto where the water comes through and then attach the hanger to the top rack of the dishwasher. It was very easy to do and required no tools and took about a minute to finish.
      • leeann from laceyville, PA
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        WP4171544
      46 of 48 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Cracked rubber water tube
      The first step was to read the other repair stories. The tips on using the hairdryer to "warm" up the part to make it more pliable worked like a charm. A little bit of dish washing soap on either end and just like that the repair was done. (I had to run the rinse cycle twice to get rid of the bubbles)
      I pulled off the old tube, which actually had fallen off by itself, and slipped on the new one.
      I probably saved $75 on a service call. Isn't the internet a wonderful thing!
      • MICHELE from northbrook, IL
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        WP4171544
      22 of 24 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      22 yr's + tube split underside
      First I removed the pins to take out the dish rack. One pin on each side. Then I removed the old tube that slid off I then rubed a small dabe of lubercant on the new tube and connected it to each end opening. They slid on with litte force and no problem Thank for helping me to locate the correct replacement and for the fast delivery.
      • Marion from Penn Hills, PA
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        WP4171544
      15 of 15 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      rubber water tube rotted
      Put some soap on the inside of the tube and slid it on. Couldn't be easier.
      • Wayne from North Woodmere, NY
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        4171566, WP4171544
      13 of 13 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Original tube had started splitting --dishes not clean
      I read the repair stories. Did not remove anything but the old tube. Used hairdryer to heat one end, pushed it onto front opening; heated other end, pushed it onto back opening. Took 5 minutes. Saved estimated $196 service call, parts,labor. (NOTE--I caution against using petroleum-based products like vasoline -- cause rubber to deteriorate. Hairdryer is the best solution.)
      Grannie in Houston TX
      • Ricka from Houston, TX
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        WP4171544
      11 of 11 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Dishwasher would only partially fill with water.
      First turn off the power and water. Water valve is under the sink. I removed the two lower panels with 5/16 nut driver. I disconnected the valve from the cross member, again with a 5/16 socket. I removed that cross member with the same nut driver. I disconnected the rubber hose using pliers. I unplugged the electrical connector from the valve body. I held the water inlet pipe with a wrench and twisted the valve off with the adjustable pliers. I applied teflon tape to the water inlet pipe and reassembled. Works like new.

      For the rubber water tube I pulled off the old tube, put some dish soap on the new tube and it slid right on.
      • DAVID from MAPLE GROVE, MN
      • Difficulty Level:
        Easy
      • Total Repair Time:
        15 - 30 mins
      • Tools:
        Nutdriver, Pliers, Screw drivers, Wrench (Adjustable)
      • Parts Used:
        9741906, WP9741251, WP4171544
      11 of 14 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      water tube was cracked
      I heated the ends of the tube in hot water and slipped it on the round end first. I was then able to slip the other end on. The secret to doing this repair is working fast while the rubber is still pliable.
      • Sheldon from Dunwoody, GA
      • Difficulty Level:
        Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        WP4171544
      10 of 10 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Replaced water feed arm to top dispenser
      The parts were to ship on Monday, which they did and they arrived on Wednesday. The job took less than five minutes and it was done by hand. The parts were as described and were exactly what needed to be replaced. It was simple matter of putting the water tube on the spray arm receiver and then attaching them to the upper spray arm. It required only a little working of the parts back and forth, by hand, and then fitting them into place. It was a very simple and inexpensive repair.
      • Joyce from Kennesaw, GA
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        4171566, WP4171544
      9 of 10 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Dishes were not getting clean
      I removed the clip holding the old tube in place, pulled it off where it was attached to the upper rack hub and removed the cone shaped coupler from the back end of it. Attached the coupler to the new tube, pushed the tube onto the hub and re-attached the clip. Started up the dishwasher after putting in a few glasses into the top rack and they came out clean! Amazing how functional parts make a difference. BTW, the new rubber tube arrived 2 days after I placed my order... very quick service. Thank you very much.
      • Warren from Anacortes, WA
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        WP4171544
      7 of 7 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      water tube had holes and was cracking and the rubber was not soft anymore
      First I tried duct tape until I could figure out how to get the part. I went online and found that part that I thought it was, but I wasn't sure since the tube I had was very stiff and looked like it had a particular shape on each end..the one on the site was just a straight tube. I removed the old part which was easy, it pretty much fell off and then pushed the new one on and it conformed to the ends needed since the rubber was soft. It was so easy and the machine works really well again!
      • Julie from Northville, MI
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Parts Used:
        WP4171544
      6 of 7 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Customer Reviews
      Average Rating:
      ★★★★★
      ★★★★★
      19 Reviews
      4.9
      Filter By Rating:
      • 5 Stars
        17
      • 4 Stars
        2
      • 3 Stars
        0
      • 2 Stars
        0
      • 1 Star
        0
      Sort by:
      Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
      Model Cross Reference
      This part works with the following models:
      PartSelect Number: PS11742322
      Manufacturer Part Number: WP4171544
      Brand
      Model Number
      Description
      KitchenAid
      4KPDI620T0
      Dishwasher
      KitchenAid
      4KPDI620T1
      Dishwasher
      KitchenAid
      4KPDI620T2
      Dishwasher
      KitchenAid
      4KPDI620T3
      Dishwasher
      KitchenAid
      4KUDA220T0
      Dishwasher
      KitchenAid
      4KUDA220T1
      Dishwasher
      KitchenAid
      4KUDA220T2
      Dishwasher
      KitchenAid
      4KUDA220T3
      Dishwasher
      KitchenAid
      4KUDA220T5
      Dishwasher
      KitchenAid
      4KUDA220TW0
      Dishwasher
      KitchenAid
      4KUDA220TW1
      Dishwasher
      KitchenAid
      4KUDA220TW2
      Dishwasher
      KitchenAid
      4KUDA220TW3
      Dishwasher
      KitchenAid
      4KUDA22ST0
      Dishwasher
      KitchenAid
      4KUDA22ST1
      Dishwasher
      KitchenAid
      4KUDA22ST2
      Dishwasher
      KitchenAid
      4KUDC220T0
      Dishwasher
      KitchenAid
      4KUDC220T1
      Dishwasher
      KitchenAid
      4KUDC220T2
      Dishwasher
      KitchenAid
      4KUDC220T3
      Dishwasher
      KitchenAid
      4KUDC220T5
      Dishwasher
      KitchenAid
      4KUDI220T0
      Dishwasher
      KitchenAid
      4KUDI220T1
      Dishwasher
      KitchenAid
      4KUDI220T2
      Dishwasher
      KitchenAid
      4KUDI220T3
      Dishwasher
      KitchenAid
      4KUDI220WW0
      Dishwasher
      KitchenAid
      4KUDP220T0
      Dishwasher
      KitchenAid
      4KUDP220T1
      Dishwasher
      KitchenAid
      4KUDP220T2
      Dishwasher
      KitchenAid
      4KUDP220T3
      Dishwasher
