This is known as a hinge with roller and it is for the oven door of your range. The hinge with roller allows you to easily open and close your oven door without much effort. Take note that your appliance requires two hinges, one located on each side of the door. We recommend changing both at the same time. This model is made for the left side of your unit, if you are looking to purchase one for the right side see the related parts section below.
How Buying OEM Parts Can Save You Time and Money
Part Videos

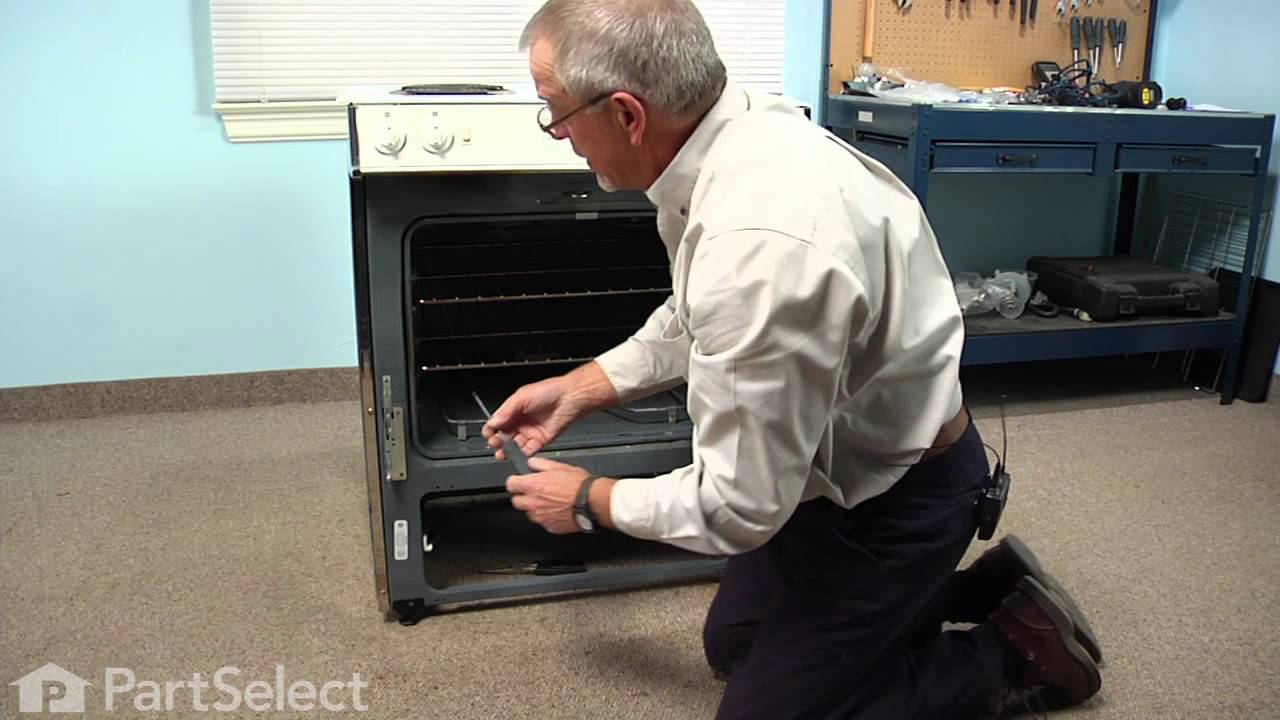

Replacing your Kenmore Range Hinge with Roller - Left Side
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Jerald S - February 6, 2021
Verified Purchase
Easy repair
The remarkable issue of this purchase is the item arrived 21 hours after I placed it.
★★★★★
★★★★★
R.E. C - February 18, 2019
Verified Purchase
Stove door Hinge replacement.
Blizzards slowed the delivery, but the part was the perfect replacement and was super simple to install. For people that maybe don't know, when ordering a part like a hinge......it's from YOUR perspective. Standing facing the stove, I needed the hinge on MY left...so order a left hinge. I wish they (PartSelect) would make this a little more clear.
★★★★★
★★★★★
Malcolm E - January 28, 2019
Verified Purchase
Parts overpriced for what they are easy fix .
I had the wrong part sent twice wanted left hand got right hand .bag said left hand but had right hand in them . Sales staff very helpful with the problem .
★★★★★
★★★★★
ALAN D - June 23, 2018
Verified Purchase
Fits perfect, easy to install
These parts fit perfectly and were very easy to install. Thank you for saving us a big repair bill!
< Prev
1
Next >
Customer Repair Stories
Average Repair Rating: 4.3 / 5.0, 22 reviews.
What's this?
< Prev
1
2
3
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Oven door would not stay open.
Called in and talked to someone and he look yup what he thought was correct but after i got them theywere wrong so i sent them back for a full refund minus 9.90 freight. I still need to figure out what i need for my 27 inch wall oven. Please help. Thanks
REMOVED DOOR TO OVEN REMOVED HINGE [3 SCREWS] REMOVED BOTTOM DRAW UNHOOKED SPRING FROM LEFT SIDE ATTACHED TO HINGE PULL OUT DEFECTIVE HINGE REPLACE WITH NEW HINGE AND SCREWS REHOOK SPRING TO HINGE & REPLACE DOOR COMPLETE
FOLLOW VIDEO PROVIDED BY PARTS SELECT
Angelo from STATEN ISLAND, NY
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Broken roller on left hinge of oven door.
Followed the excellent removal and installation video by PartSelect. Also the diagram was excellent allowing me to purchase the correct hinge the first time. Fast shipping.
Phillip from Caledonia, MI
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Hinge design is weak: Hinge roller wheel splits; it's been replaced twice in last two years
1. Slide oven door off hinge arms and set aside 2. Slide out oven bottom drawer and set aside 3. Detach springs from perforations in stove rails then hinges and set aside 4. Loosen three screws in each hinge, remove and set aside. 5. Remove hinges, threading them out through openings 6. Thread new hinges into stove openings. Align hinge arms with hinge wheels. 7. Align and tighten three hinge screws in each hinge. 8. Re-attach springs to perforations in hinge, then stove rails 9. Slide oven drawer into stove and door into hinge arms
Hinge broke on range. Oven door was very hard to open.
Followed the instructions from the video. The repair was really easy and quick.
Ricky from LAWRENCEBURG, KY
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The right side hinge roller broke making the door balky
Lifted the door off the hinges, unhooked the spring from each hinge, unscrewed 3 Phillips head screws from the face plate of each hinge and removed the hinge assemblies . Hinges went in the way they came out; easy shmeasy. Took less than 15 minutes and the door is like new.
The handle on the door was the hardes part of the fix. Took 20 minutes,Pull the door up & off,remove 3 screws from the top & 3 from the bottom. take the back panel off & remove 2 nutdrive screws fom the handle & replace with new handle. SIMPLE. With door off & broiler door open unscrew hinge & reach in broiler right side and remove spring by lefting straigh up on spring. Very easy too do. Replace with new hinge 3 screws. Put spring back on & fill with hand for holes. There are 3 holes in spring plate. It'S easy,10 minutes & your done
It was extremely simple! I removed the oven door and the storage drawer, unhooked the spring, and unscrewed the hinges. Removed the broken hinges and screwed in the new hinges, hooked the springs back on, slid the oven door back on and replaced the storage drawer! Presto! The repair is complete
Easy Repair. Remove the storage draw under the oven. It lifts out. Lift oven door off of hinges. Remove 3 screws & unhook the spring. Reverse the procedure with the new hinge. Good as new.
Martin from Fords, NJ
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
1 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Oven door hinge rollers had broken.
The repair went surprisingly well! My only problem was the bottom screws needed WD40 to loosen, but otherwise the parts went in easily.
Ask our experts a question about this part and we'll get back to you as soon as possible!
3 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
David
April 30, 2019
Is the spring attached to hinge in bottom drawer available? Part number for hinge is PS231611.
For model number JSP28GP28G
Hello David, thank you for inquiring. For your model the replacement Oven Door Spring is part PS257058.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Brandt
December 17, 2022
I found the hinge that I want but it’s for the left side. I need the right side hinge. The instruction says to see the related parts section below but I can’t find that. How do I order for the right side hinge?
For model number JSP38G0S3BG
Hello Brandt, Thank you for your inquiry. Researching the model number that you have provided we show the right side hinge as part# PS231612. Good luck with your repair.
Are the right and left hand door hinges the same, for part # wb14x103?
Hello Doug, Thank you for the question. The left and right hinges are different. The Right Side that matches this left hinge is PartSelect Number PS231612. Thank you for your inquiry, good luck with this repair!
