Part Location Diagram of DC93-00634A Samsung Idler Pulley Assembly
See part 16 in the diagram
Replacing your Samsung Dryer Idler Pulley Assembly
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

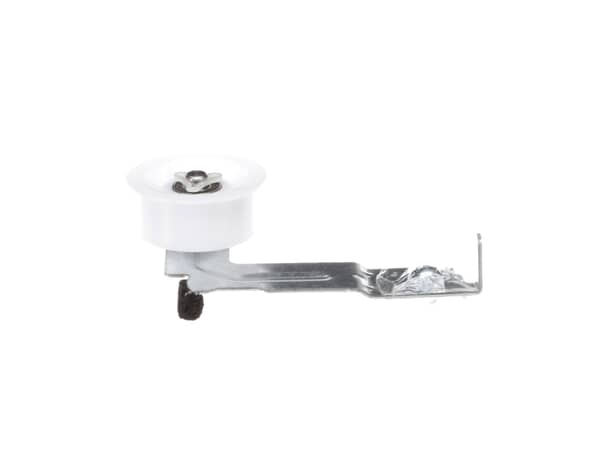

Idler Pulley Assembly DC93-00634A

★★★★★
★★★★★
24 Reviews

Rated by 7 customers

Easy

1- 2 hours

Ratings submitted by customers like you who bought this part.

$ 62.67
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS11771601
Manufacturer Part Number DC93-00634A
Manufactured by Samsung
Product Description

Idler Pulley Assembly Specifications

This idler pulley assembly is sourced from the original manufacturer for use in dryers. The assembly includes the pulley wheel and bracket. It is found near the motor where it provides tension to the dryer belt, allowing it to rotate the drum during the drying cycle. Over time, the pulley wheel and its bearings can wear out leading to squeaking and grinding noises when the drum rotates. The bracket or pulley wheel can also fall out of alignment which can damage the belt and cause it to slip off. Eventually, a faulty idler pulley assembly will prevent the drum from rotating altogether. Depending on your dryer model, you may need to disassemble the dryer to access the pulley assembly. Remove the dryer belt from the idler pulley wheel and detach the assembly from the dryer frame. Position the new assembly in its place and secure it in position. Thread the belt over the pulley and around the dryer drum, ensuring that the grooved side lays flat against the drum. Manually spin the drum to check that the belt is properly tensioned and reassemble your appliance.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Part Videos

Replacing your Samsung Dryer Idler Pulley Assembly

Replacing your Samsung Dryer Idler Pulley Assembly
Troubleshooting
This part fixes the following symptoms:
Noisy
This part works with the following products:
Dryer.
This part works with the following products:
Samsung, Amana, Maytag, Kenmore.
Part# DC93-00634A replaces these:
AP6038887, 12002777, 35001083, 35001098, 35001276, DC61-01215A, DC61-01230B, DC96-00882B, DC96-00882C, DC97-07509B
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
24 Reviews
4.7
Filter By Rating:
  • 5 Stars
    22
  • 4 Stars
    0
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    2
Sort by:
  • 1
  • 2
  • 3
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
  • 1
  • 2
  • 3
Customer Repair Stories
 Average Repair Rating: 2.8 / 5.0, 7 reviews. What's this?
Sort by:
  • 1
Sorry, we couldn't find any existing installation instruction that matched.
Dryer would not spin
The design of my dryer is a bit different from the video on PartSelect - but it is very close. And if you watch the really good video on PartSelect plus a few others on Youtube you can figure out how Samsung in general designs the different components. You can fix this yourself definitely.

Cost of part to fix - about $50. ... Read more />Repairman - didn't even ask. Would probably be $300-400.
Cost of replacement $1,000.

I rated the repair "A bit difficult" only because this is the first time I have ever repaired an appliance. If I were to repair this one again, I'd rate it as Easy.

I'm really thankful for the PartSelect video. This makes DIY repairs possible.

Thanks.
  • John from EARLYSVILLE, VA
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    More than 2 hours
  • Tools:
    Screw drivers
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The (front-load) dryer was noisy and eventually slowed down but was still heating.
I removed the dryer top and saw that the belt was intact. (I had suspected the belt or something stuck in the exhaust fan or somewhere.) I watched a few youtube videos and took off the rest of the top plates and front door and inner structure that held the barrel. After i inspected and cleaned out the fan blades and exhaust areas, I looked at the pulley rollers (motor and idler rollers). The idler roller looked a little melted and chewed up. I replaced it with the new assembly. Also replaced the belt. Putting the barrel and new belt back on was harder for me than the videos indicated because the spring was very tight and the area to put my hands was small and didn't give me enough leverage. I eventually got someone to give me the third hand pulling the idling roller a little further over and the belt was back on. It didn't take me long to put the whole dryer back together. It is running fine now.

These are not instructions as much as warning that although it is a one-person job, the idler pulley assembly is not as easily manipulated with the barrel there. Doing the fix was straightforward: one screw holds it in place. The men in the videos seemed to have no problem with easily replacing the belt, but I needed help with the tight spring. Perhaps now that I've done it once, I could figure out how to reach around the barrel and yank the roller enough to replace the belt, but with the extra hand it took seconds and was super easy.
  • Pamela from TILLSON, NY
  • Difficulty Level:
    Easy
  • Total Repair Time:
    More than 2 hours
  • Tools:
    Screw drivers
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dryer did not function
I removed the dryer vent and cover to take a look at the inside of unit. Then I saw that wheel on the pulley was damaged and belt was tangled up. I simply replaced the pulley and placed the belt back. Samsung advised that I replace the unit, but myself $800+ on a new unit.
Other Parts Used:
Idler Pulley Assembly Retainer Clip
  • Jonathan from PEMBROKE PNES, FL
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver, Screw drivers, Socket set
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Broken drum belt
After viewing many instructions on how to replace a broken drum drive belt on UTUBE and the video you sent me the project was completed with no problems and with ease.

However, I did discover large amounts of lint caked to the bottom of the lint screen housing just beyond the filter screen. There was minimal lint on the lint exhaust fan blades and no lint in the exhaust ducts.

I didn't recall seeing any video instructions drawing attention to potential lint issues, it just made good sense to clean the entire system while it was apart . At first I saw no major lint problem.

However, after removing the lint screen and placing a vacuum cleaner wand to the bottom of the lint screen housing (the bottom is not easy to see) my vacuum cleaner hose became clogged three times. I realized there was a major lint issue isolated to this area.

Many of the on line complaints focused on parts not properly fitting their dryer. they had to modify the parts in some way to fit or operate or they had to return them for other parts. Just think of the time wasted and the lack of use of their dryer.

I called and talked to a tech. Gave them my model number and the tech located the correct OEM parts for my dryer. I paid the extra money for OEM parts because I wanted my dryer fixed and restored to service in the least amount of time.

Outside the discovery of the not so obvious lint issue, the repair project was easy and the dryer was restored to full service with minimal down time.

Thanks for all your help and fast delivery service.
Other Parts Used:
Idler Pulley Assembly Drive Belt
  • John from OCEANSIDE, CA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers
2 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Hooking up belt and pully
Followed video and YouTube most was easy.... put the hooking up the belt took time
Other Parts Used:
Idler Pulley Assembly Drive Belt
  • Corrado from YONKERS, NY
  • Difficulty Level:
    Difficult
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Pliers, Screw drivers
1 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Tension/Dead Man Wheel Broke/Shattered
Dryer would not start but electronics were working.

Pulled top of dryer off; noticed the belt was loose but not broken.
Went in through the back (1 screw and removed the exhaust pipe/plate); noticed the wheel was broken and thus the belt had fallen off.

Ordered replacement wheel/arm.
One screw to remove old one, one screw to install new one...tentioned the belt. Dryer was good as new.
  • Noah from OXFORD, KS
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Screw drivers
11 of 20 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Belt fell off because of belt roller on the tensioner melted, ciezed and fell off
Watched a video on utube, how to repair my 16 month old steam dryer. The hardest part was laying on my belly holding the spring loaded tensioner and slipping the belt on around the blower housing. Only cost me $23. Winning!
Other Parts Used:
Idler Pulley Assembly Retainer Clip
  • Vicky from BLOOMSBURY, NJ
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers
11 of 16 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

15 questions answered by our experts.
Sort by:
  • 1
  • 2
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Joseph
August 7, 2018
Is this idler the new model with ball bearings or the old brass bearing?
For model number DV42H5000EW
PartSelect logo
Hello Joseph, thank you for your question. Yes, the part number DC93-00634A is the most recently updated idler pulley. It is the one that is recommended for your specific model number. I hope this helps!

7 people found this helpful.

Was this helpful?
Thank you for voting!
David
December 13, 2017
Do you have the drive belt pulley for this model thanks
For model number DV40J3000EW
PartSelect logo
Hi David, Thank you for your question. Yes, this is the part that you are looking for and that works with your model. Good luck with your repair.

4 people found this helpful.

Was this helpful?
Thank you for voting!
Paul Coleman
March 12, 2018
How do I take the idler pulley off a Samsung dryer modle dv210aew/xaa
For model number Dv210aew/xaa
PartSelect logo
Hi Paul, Thank you for your question. There is a video on our website that you can reference on how to install the idler pulley. The dryer in the video may not show exactly like the one you have, but it will give you a general idea on how to install the part. You will find the video under part number WP691366. I hope this helps. Thank you and have a great day!

3 people found this helpful.

Was this helpful?
Thank you for voting!
Angie Lopez
July 3, 2019
Need pulley and belt for my Samsung dryer. Can you tell me a. Part number. And cost?
For model number DV337AELIXAA
PartSelect logo
Hello Angie, thank you for inquiring. This Idler Pulley Assembly part PS11771601 is the correct replacement for your model. The Drive Belt is part PS4133825. The cost of both are listed to the left of the 'Add to Cart' button in the part descriptions. We hope this helps.

2 people found this helpful.

Was this helpful?
Thank you for voting!
Pat
September 10, 2019
I'm not sure how to check which part i need makes humming noise, tub hard to turn and wont come on.
For model number 40289032010
PartSelect logo
Hi Pat, thank you for your question. There are a couple of parts that you should check for an issue like this. You should take a look at your belt, your pulley, and your rollers. If those parts are fine though, it might be your motor that is the issue. I hope that helps. Good luck with your repair.

2 people found this helpful.

Was this helpful?
Thank you for voting!
Scott
January 18, 2018
Is 1.8 days mean sunday?
For model number DC96-00882C
PartSelect logo
Hi Scott, Thank you for your question. If there is a warehouse in your area that has part you are ordering in stock, then you have a chance to receive the order in 1.8 days. If not, the order will ship out to you in the time frame you have chosen. Our parts are shipped out Mondays to Fridays. Our warehouses are closed on the weekend so if any orders are placed on the weekend, they would not be shipped out until Monday of the next week. I hope this helps. Thank you and have a great day!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Craig
January 10, 2019
The white pulley on a metal spring loading pivot broke on my machine, it tensions the drum belt. Dies this kit have both the pulley and metal piece?
PartSelect logo
Hello Craig, thank you for contacting us, In order for us to locate the correct parts and repair information we will require the model number of the unit. Once you have located the model number please feel free to resubmit the question and we will be happy to help you. Look forward to hearing from you!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Fran
May 1, 2023
Dryer recently started a low pitch vibrating/humming sound. Noticeable throughout the house. Otherwise dryer works fine. Do think the belt tensioner is going bad or fan cage out of balance or dirty. Thanks for your help.
For model number dv42h5600ep Samsung dryer
PartSelect logo
Hi Fran, thank you for reaching out. According to our research, it is normal for the dryer to hum due to the high velocity of air moving through the dryer drum and exhaust system. But, you need to inspect the blower housing, and the idler pulley, which might be balance out. We hope this solves your problem!

Was this helpful?
Thank you for voting!
Oralia
August 1, 2023
The dryer stopped working. So I took the top panel off to see if the belt had broke and the belt is still in tact. I just give it a little tug and it starts working. What is it that could be the problem. I was thinking maybe the pulley but wasn’t sure. Help pls ??
For model number DV45K6200EZ/A3
PartSelect logo
Hello Oralia, thank you for the question. Yes, the issue seems to be with the idler pulley, part number PS11771601. We hope this information is useful!

Was this helpful?
Thank you for voting!
Scott
October 29, 2023
My idler puller assembly has a notch/cut out about the width of the belt, or 1/2 the circumference of the white round pulley. Is this the correct part for my machine?
For model number DV45K6200GW/A3
PartSelect logo
Hi Scott, thank you for reaching out. Based on our research, the idler pulley you have mentioned is compatible with your model. We hope this information helps!

Was this helpful?
Thank you for voting!
  • 1
  • 2
You May Also Need ?
Model Cross Reference
This part works with the following models:
PartSelect Number: PS11771601
Manufacturer Part Number: DC93-00634A
Brand
Model Number
Description
Kenmore
40289032010
Dryer - DRYER
Kenmore
40289032011
Dryer - DRYER
Kenmore
40289032012
Dryer - DRYER
Kenmore
40299032010
Dryer - DRYER
Kenmore
40299032011
Dryer - DRYER
Kenmore
40299032012
Dryer - DRYER
Samsung
59289622
Dryer - Dryer
Samsung
59289653
Dryer - Dryer
Samsung
59289679
Dryer - Dryer
Samsung
59289683
Dryer - Dryer
Samsung
59299622
Dryer - Dryer
Samsung
59299653
Dryer - Dryer
Samsung
DV203AES
Dryer - Samsung Dryer Model DV203AES Parts
Samsung
DV203AEW
Dryer - DRYER
Samsung
DV203AEW/XAA-0000
Dryer
Samsung
DV203AEWXAA
Dryer - Samsung Dryer Model DV203AEWXAA Parts
Samsung
DV203AGS
Dryer - DRYER
Samsung
DV203AGS/XAA-0000
Dryer
Samsung
DV203AGSXAA
Dryer - Samsung Dryer Model DV203AGSXAA Parts
Samsung
DV203AGW
Dryer - DRYER
Samsung
DV203AGW/XAA-0000
Dryer
Samsung
DV203AGWXAA
Dryer - Samsung Dryer Model DV203AGWXAA Parts
Samsung
DV206AES
Dryer - DRYER
Samsung
DV206AES/XAA-0000
Dryer
Samsung
DV206AESXAA
Dryer - Samsung Dryer Model DV206AESXAA Parts
Samsung
DV206AGS
Dryer - DRYER
Samsung
DV206AGS/XAA-0000
Dryer
Samsung
DV206AGSXAA
Dryer - Samsung Dryer Model DV206AGSXAA Parts
Samsung
DV206LEW
Dryer - Samsung Dryer Model DV206LEW Parts
Samsung
DV206LEWXAC
Dryer - Samsung Dryer Model DV206LEWXAC Parts
