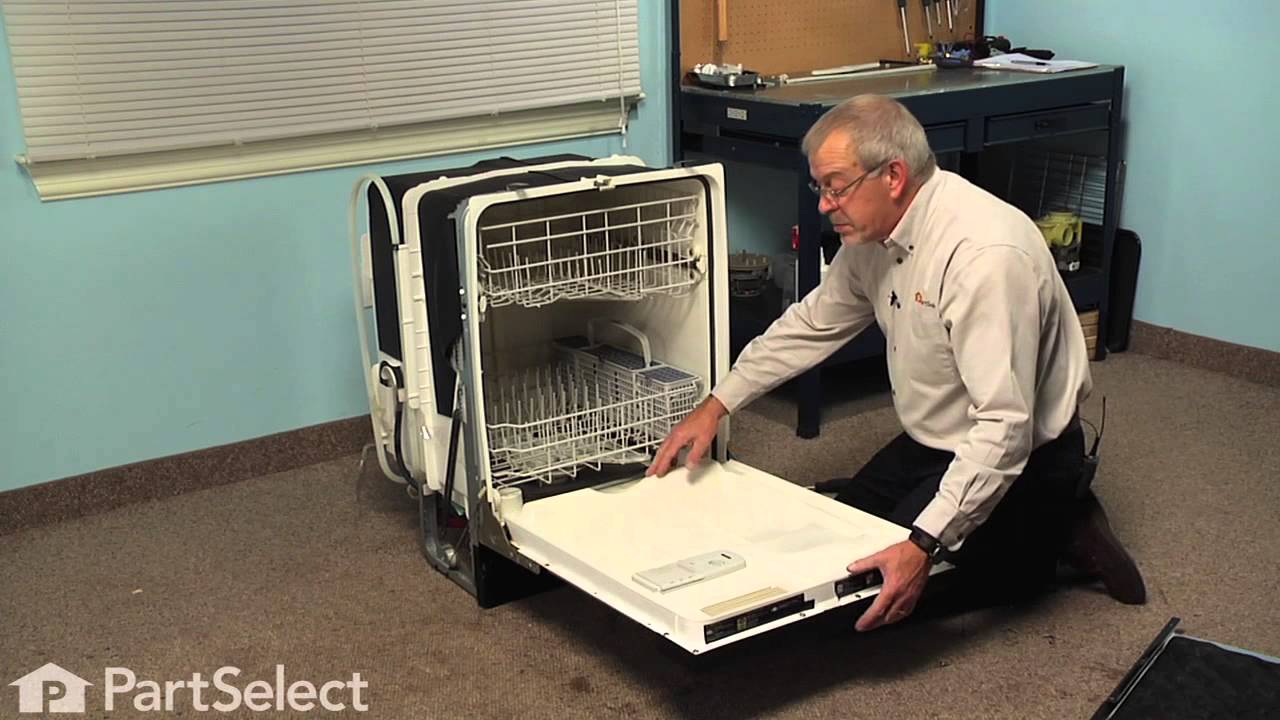

Replacing your General Electric Dishwasher Short Bottom Door Seal
Troubleshooting
This part fixes the following symptoms:
Leaking
This part works with the following products:
Dishwasher.
Part# WD08X10075 replaces these:
AP4355888, 1461002, WD08X10019, WD8X10019
Customer Reviews
Average Rating:
★★★★★
★★★★★
11 Reviews
4.6
Filter By Rating:
5 Stars
8
4 Stars
2
3 Stars
1
2 Stars
0
1 Star
0
Sort by:
< Prev
1
2
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Raja A - January 29, 2024
Verified Purchase
Great part
Part was 100 fit
★★★★★
★★★★★
Ray K - January 10, 2024
Verified Purchase
Worked as advertised.
The part was delivered as promised and I installed it easily. I would recommend Part Select for appliance repair parts.
★★★★★
★★★★★
Anthony D - January 6, 2023
Verified Purchase
Great Part, Not So Easy Repair
The door on my GE Profile dish washer is constructed differently from the door in the repair video. I had to take the inner door panel completely off the door frame to replace the bottom door seal. The new seal was an exact replacement for the original. The new seal fixed the leak.
★★★★★
★★★★★
James J - June 23, 2021
Verified Purchase
The video was spot on.
Well so far so good. Not leaking any more.
★★★★★
★★★★★
Tim M - September 17, 2020
Verified Purchase
EZ Repair!
Thank you, part fit perfectly!
★★★★★
★★★★★
John S - June 12, 2019
Verified Purchase
Great service, great value.
The part came faster than had been anticipated and once installed. it worked like a charm,
★★★★★
★★★★★
Jeffrey S - April 21, 2019
Verified Purchase
Installation can be a challenge. Suggest lying down by open dishwasher door when removing and installing seal. can be very difficult it you are trying to install from above.
Part came in simple package and was in excellent condition.
★★★★★
★★★★★
William E - February 8, 2019
Verified Purchase
Part was an exact match. Repair is of moderate difficulty.
The lower door seal part was a perfect match and came quickly. I also ordered the tub gasket which was also an exact match and easy to install. The tub gasket fixed my leak but since I had ordered both seals I went ahead and replaced the lower door seal. I watched several of the videos but my dishwasher door was slightly different than the videos. I removed all of the screws on the inside of the door and removed the outer SS door panel. Word of caution there are also two screws at the bottom of the door that must be removed before the front panel will come off. These screws require a stubby Phillips head screw driver to remove. I then removed 4 screws holding the inner plastic door panel. The inner door panel appeared to be press fit in the main door frame and would not easily loosen. I used a long flat screw driver to gently pry the inner door panel up enough to slide the lower seal over the hinge. New seal easily slid back once it was lined up in the proper grove. The repair took about 30 minutes.
★★★★★
★★★★★
Kristian F - October 2, 2018
Verified Purchase
Fixed the problem
The installation was fairly easy. The replacement part did what it should - the dishwasher no longer leaks!
★★★★★
★★★★★
Joshua M - September 12, 2018
Verified Purchase
Works well!
The part works well and fixed the problem of leaking I was having. Only went with 4 stars because it was no where near as easy as the guy in the video made it seem. But it worked out better then calling a repair man.
< Prev
1
2
Next >
Customer Repair Stories
Average Repair Rating: 3.3 / 5.0, 10 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Water and soap leaking out the bottom of the door while operating.
I Googled bottom door gasket replacement on GE model and found several videos walking me through the process. I followed one of them and successfully replaced the gasket without pulling the appliance out.
Larry from NAPLES, FL
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The problem is I received the wrong part!
No way to repair since the wrong part was sent. I have sent numerous emails with order numbers, part numbers, model numbers BUT I have no return label to send this back and get a refund. Maybe this will get someone's attention. Pretty disgusted!
Do not overlook the two screws on the bottom of the outer door panel.
ROY G from GAINESVILLE, VA
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Had a slight leak lower center front Solved
Great
Dominic from NORTH READING, MA
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Leak at bottom of door.
I watched the parts select video and followed their instructions. Only “ issue” was there were no screws on the door behind the exterior skin as in the video, so lifting the inside door liner to put the new lower door seal in was concerning. I was able to pull the liner up enough and slid the seal in with no problem. The video was the key
... Read more to a smooth repair.
The gaskets arrived in a few days after my order. The tub seal was easy to change and tool only a few minutes with no tools. After I watched a video on the GE website I pulled out the old gasket, wiped out the slot, centered the new gasket at the top, pushed it in the slot to each corner.Then I pulled the end to the end of the track and
... Read morepushed it in the full side from the bottom up. repeated on the other side.The lower gasket was harder and took about 40 minutes. I took eh door apart but did not need to it could be done with a mirror. Pull the old one out from one side. Don't be afraid of tearing it but get it all out. The new one will snap into the slot if you use a mirror to look in the door and see.
1. Replacing the TUB GASKET is very easy and does not require tools. Pull out the old gasket and wipe out the channel. The gasket is marked with a small paint mark at the center and that indicates where to start at the top. The larger part of the gasket goes towards the outside. Firmly press the gasket all the way into the channel. T
... Read morehe gasket should just reach the bottom of the tub. Do not use tools or you may damage the gasket. The gasket must be nearly all the way into the channel or the door will not close. Expect the door to close quite firmly for the first few uses.
2. Replacing the DOOR BOTTOM SHORT SEAL. This repair is not technically difficult, but is physically difficult. Without complete removal of the door, nothing needs to be or can be taken apart to do this replacement. I recommend removal of the lower basket, the upper basket and the wash arm before beginning. A drop light inside the tub is helpful. Using pliers or vise-grips grab the old seal and bend up and down then back and forth until it will slide all the way to one side. Once to one side use pliers to bent towards the back until its snap seal (observe new seal) realeases and you can carefully continue by hand to remove the seal the rest of the way across the bottom of the door. Observe how the old seal came out and which side was UP. With the new seal in hand, gently work the snap seal open slightly (this will help to get it back in place). With a flashlight and inspection mirror, check where the new seal will attach to (and clean if necessary). Center the new seal with the correct side up and work from one end. You may need pliers to push in the new seal, but be very careful not to damage the new bottom seal soft part. When it snaps in place you are done.
Gasket it self was simple. Just pull out the old rubber gasket and "stuff" in the new one. Note the new gasket was 1-2" short, so I used a piece of the old gasket to fill in the missing length.
The "short seal" was a bit of a mystery on how to actually remove the old one. Taking off the door panel, and almost all the screws
... Read moreon the door did nothing to get access to the short seal. Finally, I simply pryed up the plastic door liner just enough to slide out the old seal. it has a "slot" that engages a plastic bar within the door. Putting in the new was a bit trickier, but after some three handed effort I was able to slide and then snap in the new seal.
So, in the end I really needed to remove NO screws to do the job.
After 10 washes, all seems good with NO leaks.
Bottomline, for a 4 year old dishwasher needing these parts is a bit silly. Older dishwashers I owned lasted 10-15 years with ZERO problems.
So much for GE buying all their appliances in China.......
The seal slides out to the side, but the diswasher had to be pulled out from the counter and the entire door had to be taken apart to do this because the hinge was in the way. In taking apart the door, we opened the front panel by taking out the screws along the sides and disconnected the computer connections. After loosening the hinge,
... Read more we were able to slide the old seal out and the new seal in. When putting the door back together, it was difficult to reconnect the computer connections while holding up the door front, as these ribbon wires were quite short. We did get it back together and working except that the connection to the display light now doesn't work because it probably became disconnected as we put together the door. Also, the door now is not completely level when open making the bottom tray slide in. This is probably because we got the springs too tight. These things can be fixed, but will wait for another day.
Read less
Connie from Turlock, CA
Difficulty Level:
Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
17 of 25 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
10 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Gary
November 14, 2019
To replace the bottom door gasket do i have to remove the door?Also there is mention of factory holes and/or notches in the gasket ???
For model number g5d6600g00bb
Hello Gary, thank you for your question. No you do not have to remove the whole door. The outer door panel does have to be removed. There is an installation video on our site for this part when you search the part number. Good luck with your repair!
6 people found this helpful.
Was this helpful?
Thank you for voting!
Bob Tabian
May 2, 2019
I need a bottom door seal.
For model number GDF540HGD1WW
Hello Bob, thank you for inquiring. For your model the bottom Door Gasket is part PS8746192.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Barry
August 1, 2019
I need a door bottom seal. What is the correct part number?
For model number PDWT580R10SS
Hi Barry, thank you for your question. That part is only sold with the inner door assembly. You cannot get it by itself. I have linked the part below for you. Good luck with your repair.
Door leaks in center. Assuming it's the gasket. Will this gasket work with my current model?
For model number GDF520PGJ2WW
Hello Dillon, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is PartSelect Number PS11700870 for the bottom door gasket. Hope this helps!
Does the wd08x10075 bottom door seal work with this model dishwasher? Thank you.
For model number GDWT100R00WW
Hello jack, Thank you for the question. The Bottom Door Seal for this model is only sold as part of the Inner Door Panel, PartSelect Number PS959500. We hope this helps!
Will this door seal work for the GDT225SSL0SS model?
For model number GDT225SSL0SS
Hello James, thank your your question. No, this bottom seal is not compatible. For your model, there is a Tub Gasket PS12582682 that goes up one side, across the top, and down the other. There is not a bottom gasket. Good luck with your repair.
Hello Veronica, thank you for reaching out. The part you mentioned is not compatible with your model. The correct door bottom for your model is part number PS11700870. We hope this information helps!
Which bottom edge door gasket (seal) can I use. The dishwasher was
leaking and we stopped using it eight years ago.
For model number Gpf400sgf1ww
Hello Mary, thank you for contacting us. The bottom door gasket is not sold separately for your model. It comes as part of the inner door assembly, part number PS11721788. We hope this helps!
Was this helpful?
Thank you for voting!
Randy
January 7, 2022
How do I replace the bottom door gasket ps11700870 for this model dishwasher
For model number Gdt530psd0ss
Hello Randy, Thank you for your inquiry. We have included a link to our repair video for a similar bottom door gasket to give you a general idea of the repair. We hope this helps.
Was this helpful?
Thank you for voting!
Jules
November 25, 2019
Will this work on a gdt650smj2es, or do i really need to ordre the full inner door assembly, (part 208)
For model number GDT650SMJ2ES
Hello Jules, thank you for your question. Unfortunately, this is not compatible with your unit. The bottom door seal for your model is only available by ordering the inner door panel. I hope this helps.
