George
February 5, 2023
what is the part that the locker assembly grabs onto the part has number 4026dd3001dc2 sk 4 I need this part
For model number ldf7774st
Hello George, thank you for your question. The part that the Locker grabs onto is the Control Panel PS10066436. We have a video that will be of some help to your repair. We are pleased to have been able to help.
Dishwasher will turn on but we can not start a cycle. If we slam the door a couple of times it will finally let us select the cycle. Could this be caused by a faulty door latch?
For model number LDS5040ST
Hi Jaron, thank you for your inquiry. Our research has found that yes it would be the Lock Assembly. We have included a video to assist with your repair. We hope this helps.
1 person found this helpful.
Was this helpful?
Thank you for voting!
< Prev
1
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Part Videos

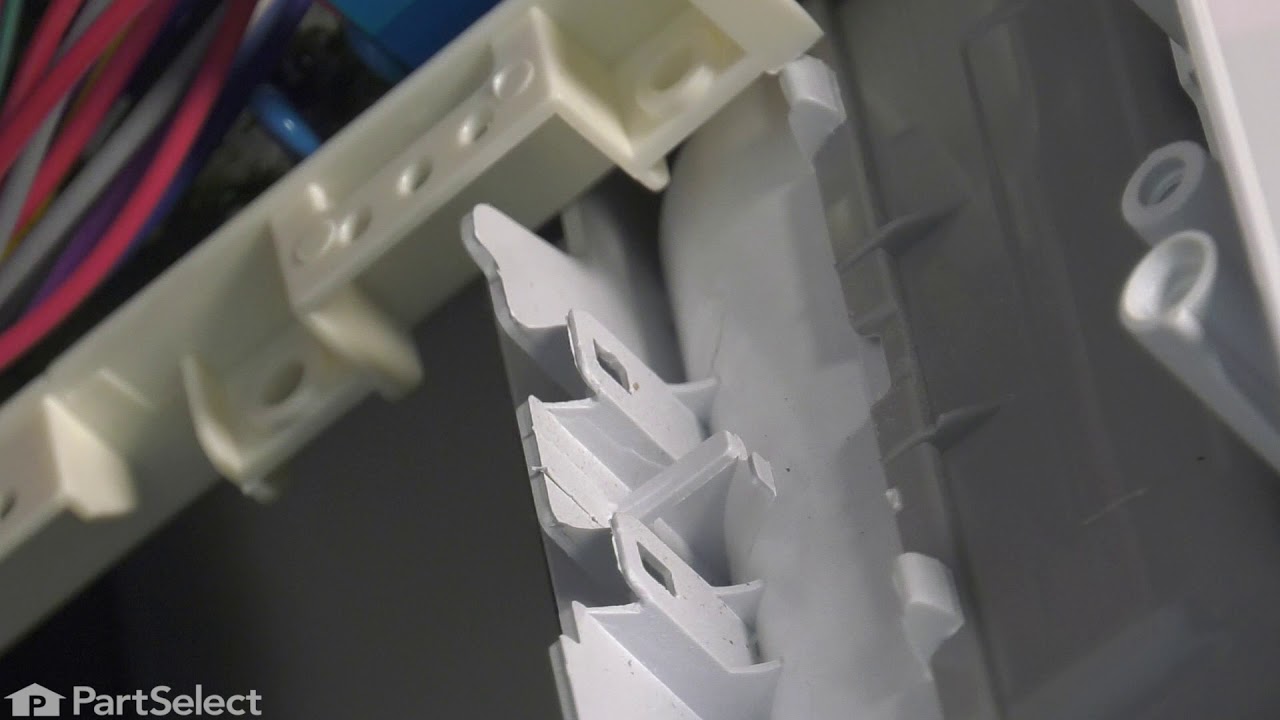

Replacing your LG Dishwasher LOCKER ASSEMBLY
Customer Repair Stories
Average Repair Rating: 5.0 / 5.0, 3 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
door latch broken
same as in the video , but the double red wire is on the wrong terminal you have to break the plastic housing on the dishwasher and put it on the first one next to the white wire .if you hook it up the way it is the dishwasher wont work and when you open the door the dishwasher turns on . watch the video real close when it gets to the wire connections you see the double red wire goes over one pin to the one next to the white wire . works fine after that.
Glynn from LIVINGSTON, TX
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Door latch
Followed the video provided by your company, done like 1,2,3
Michael from RUTHERFORD, NJ
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The door would not stay latched closed (due to moving the dishwasher)
Unscrew all screws on the inside of the dishwasher door. Carefully separate the front panel from the inside panel. Lift out the latch assembly, remove connectors from both sides using needle nose pliers. Reconnect to new assembly and situate back into place. Close front and inside panel, replace all screws, making sure the short and long screws go back to where they came from. Quick easy project to eliminate 2 trips from a repairman, 1 for the diagnosis and 1 to do the work!
Kim from SEATTLE, WA
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
4 of 5 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Customer Reviews
Average Rating:
★★★★★
★★★★★
5 Reviews
5.0
Filter By Rating:
5 Stars
5
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
DAVID F - July 1, 2021
Verified Purchase
OK
What else can I say, an exact match works as expected.
★★★★★
★★★★★
Roger S - April 20, 2021
Verified Purchase
Fast delivery, good part
Easy repair. New part seems to be working better than original.
★★★★★
★★★★★
Nicholas M - November 26, 2018
Verified Purchase
Easy repair, part was perfect!
Works perfectly!
★★★★★
★★★★★
Gregory H - September 12, 2018
Verified Purchase
Easy repair and install
This part did the job and was easy to install.
★★★★★
★★★★★
Nyl P - May 16, 2018
Verified Purchase
Worked as expected
Part was what i needed. Done washing dishes by hand!!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
PartSelect Number: PS5574492
Manufacturer Part Number: 4027ED3002J
