https://www.partselect.com/Schematics/Whirlpool/9BZDX2OM.gif
See part 3 in the diagram
https://www.partselect.com/Schematics/Whirlpool/9BZDX2OM.gif

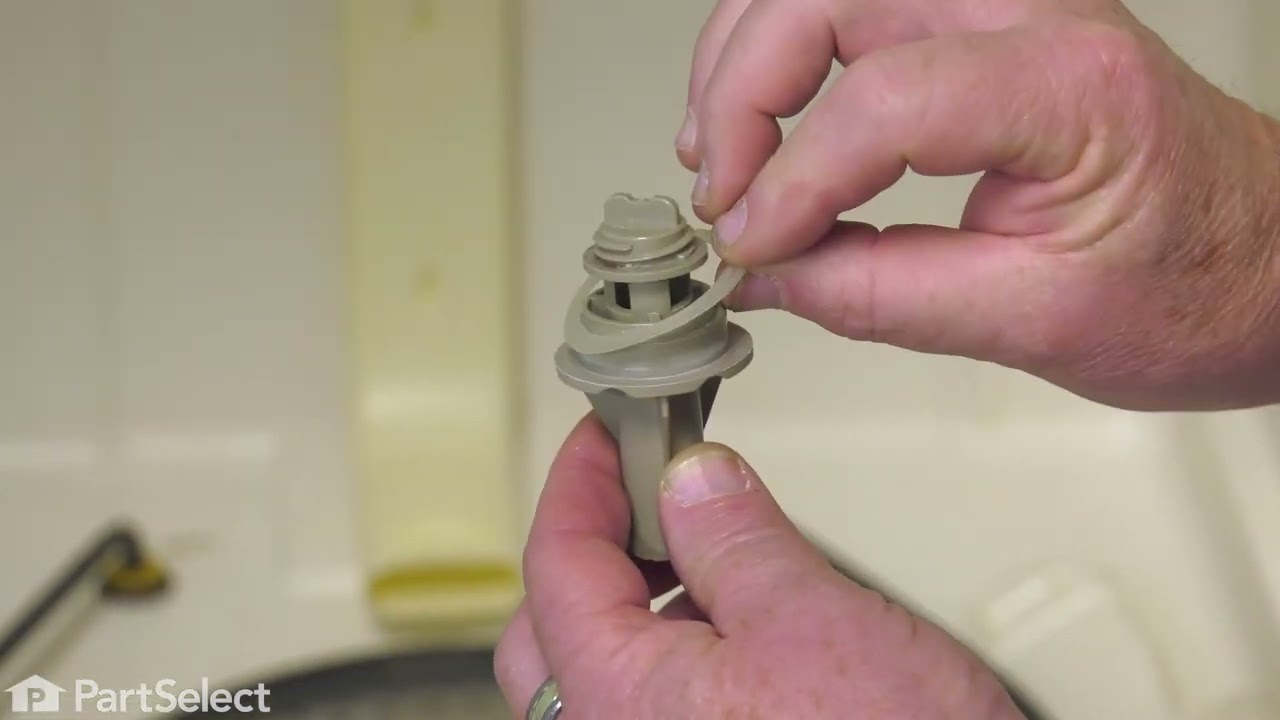

Spray Arm Seal

Your Price

$3.42
Order within the next 6 hrs and your part ships today!
Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS11745436
Manufacturer Part Number WP8268340
Manufactured by Whirlpool

Also known as a wash arm seal.

This part works with the following brands: KitchenAid, Kenmore, Whirlpool, Estate, Inglis, Roper, Crosley.

This part works with the following products: Dishwasher.

This part fixes the following symptoms:

  • Not cleaning dishes properly.
  • Noisy.
  • Leaking.

Questions & Answers

Ask our experts a question on this part and we'll respond as soon as we can.

Most Recent

Question:

How do you remove the spray arm to get to the filter to replace it.

Stephen for model number KUDI01TJBL1
Answer:

Hi Stephen, Thank you for your question. There is a tab in the middle of the arm. It is a nut that keeps it in place. You are to unscrew that and then you should be able to remove the part. Good luck with your repair.

Installation Instructions Provided by PartSelect customers like you.

Average Repair Rating: 3.1 / 5.0, 6 reviews What's this?
1-6 of 6


13 of 24 people found this instruction helpful

Parts Used:
Level of Difficulty: Easy
Time to do repair: 30 - 60 mins
Tools: Nutdriver, Screw drivers
Customer: Fred from Grafton, OH

Lower spray arm seal replacement

Remove upper tray and spray arm. Remove two screws retaining pipe for upper spray arm and overhead. Unscrew retainer on top of lower spray arm and remove. Gently rotate the upper feed pipe clockwise until pipe can be removed from lower pipe. You may then remove the lower pipe and bearing housing where the seal is. Reverse order for reassembly. I also replaced upper spray arm bushing. Very simple, remove one screw and the arm will come out.

Help other customers find the most helpful instructions.

Were these instructions helpful?

6 of 11 people found this instruction helpful

Parts Used:
Level of Difficulty: Really Easy
Time to do repair: Less than 15 mins
Tools: Screw drivers
Customer: Richard from Lutherville, MD

Broken mount for spin arm

I removed broken mount by gently bending tabs, pressed new mount into upper dish rack, attached the spin arm and secured the mount with the screw.

A snap---it took less than 2 minutes after only a two day turnaround from ordering the part to receiving it at home..

Fantastic service. Thanks!!!!

Help other customers find the most helpful instructions.

Were these instructions helpful?

2 of 3 people found this instruction helpful

Parts Used:
Level of Difficulty: Easy
Time to do repair: 30 - 60 mins
Tools: Nutdriver, Screw drivers
Customer: Diann from VIAN, OK

Upper rack not cleaning-whole dishwasher not cleaning

Used bowls in upright position in upper shelf determining no water to upper shelf after running in rinse cycle. Added a cup of Vinegar in rinse cycle. Performed bowl test in upper rack & still no water in bowls. Dismantled inside of unit by removing both spray arms & found lower seal deteriorated & upper seal in need of replacing. Replaced seals & redid bowl test & found no water getting to top rack still. Found utube vid showing removing garbage disposal portion of unit. Requires removing screen in bottom of dishwasher. One screw attaches garbage disposal cover. Found non food items & food by broken garbage disposal. Repaired disposal, removed debri & reinstalled all components. Redid bowl test in upper shelf & bowls were overflowing!!????Dishwasher works GREAT now & can hear garbage disposal operating along with massive water being sprayed!!!

Help other customers find the most helpful instructions.

Were these instructions helpful?

1 of 2 people found this instruction helpful

Parts Used:
Level of Difficulty: Easy
Time to do repair: 1- 2 hours
Tools: Pliers, Screw drivers, Wrench (Adjustable)
Customer: Loren from WILMINGTON, NC

Loud sound

Just start to look at all the different videos on the problems that can be making that loud sound and just have the feeling for the circulation pump but then it seems that changing the circulation pump and motor assembly was easier and more logic for a 13 year old appliance. Just start and went that way ordering the part and following all the video instructions that came to be easier than I thought. Thank you

Help other customers find the most helpful instructions.

Were these instructions helpful?

2 of 7 people found this instruction helpful

Parts Used:
Level of Difficulty: A Bit Difficult
Time to do repair: 1- 2 hours
Tools: Nutdriver, Screw drivers, Wrench set
Customer: Daniel from River Falls, WI

Primary problem door dropped open

I first replaced the door balance kit. I had to unhook the water supply to pull the unit out. I replaced the door balance kit first. The pieces were slightly different than my old parts, but fairly easy to figure out. Also, the spring was off on one side so had to confirm where to reconnect it. That took about 30 minutes. I then took out the racks and installed the chopper. The old one came out easily, but it took about 20 minutes to seat the new chopper properly and then reassemble the lower arm. This part of the repair was about another 30 minutes total. Lastly, I replaced the upper rack adjusters, which had broken a while ago and I had pulled together with nylon straps. The new adjusters have metal screws which should be more durable than the plastic clips used in the original equipment. This part of the job took about another 20 minutes, but was easy to complete. The dishwasher door works like new and the top rack is easier to load with the adjusters working properly again.

Help other customers find the most helpful instructions.

Were these instructions helpful?

29 of 180 people found this instruction helpful

Parts Used:
Level of Difficulty: A Bit Difficult
Time to do repair: 30 - 60 mins
Tools: Socket set
Customer: Frank from Davenport, IA

Water not spraying right.

removed parts and the ordered the parts. It was very easy to order parts from Partselect. I unscrewed a few screws and the disassembly was a breeze. I then revresed my steps and the new parts were instlalled no problem. Now on the the motor replacement. Thanks Partselect.com

Help other customers find the most helpful instructions.

Were these instructions helpful?

1-6 of 6

Model Cross Reference

This part works with the following models:

PartSelect Number: PS11745436
Manufacturer Part Number: WP8268340
Brand Model Number Description
Kenmore665110739120Dishwasher
Kenmore665110739130Dishwasher
Kenmore665110739140Dishwasher
Kenmore665110739190Dishwasher
Kenmore66513102K900Dishwasher
Kenmore66513102K901Dishwasher
Kenmore66513102K902Dishwasher
Kenmore66513103K900Dishwasher
Kenmore66513103K901Dishwasher
Kenmore66513103K902Dishwasher
Kenmore66513104K900Dishwasher
Kenmore66513104K901Dishwasher
Kenmore66513104K902Dishwasher
Kenmore66513109K900Dishwasher
Kenmore66513109K901Dishwasher
Kenmore66513109K902Dishwasher
Kenmore66513112K700Dishwasher
Kenmore66513112K701Dishwasher
Kenmore66513112K702Dishwasher
Kenmore66513113K700Dishwasher
Kenmore66513113K701Dishwasher
Kenmore66513113K702Dishwasher
Kenmore66513114K700Dishwasher
Kenmore66513114K701Dishwasher
Kenmore66513114K702Dishwasher
Kenmore66513119K700Dishwasher
Kenmore66513119K701Dishwasher
Kenmore66513119K702Dishwasher
Kenmore66513212K901Dishwasher
Kenmore66513212K902Dishwasher
