Rear Drum Support Roller Kit
Get this part fast. Average delivery time via standard shipping: 1.8 days.
Rear Drum Support Roller Kit Specifications
How Buying OEM Parts Can Save You Time and Money
Be the first to ask our experts a question about this part!
Replacing your Norge Dryer Rear Drum Support Roller Kit
I took the locking ring off and removed the wheel and support. I put the new support in, attached it, and then the wheel, washer and lock ring. I used pliers to push the lock ring onto the support.
Then I put the drum back in making sure it was in all the way (it fits snugly between the wheel and the back of the dryer). The belt is a little tricky to get back on. I put it around the drum and then reached underneath and behind again. The pulley is on a spring, so you have to pull it up and put the belt on all one-handed and blind. Once that was on, I gave it a few turns to make sure everything was working again.
It is quiet as can be now!
Michelle from Kirkwood, MO
Difficulty Level:Really Easy
Total Repair Time:15 - 30 mins
Tools:Pliers, Screw drivers, Socket set
Since I had this done by a repairman last time 6 years ago for $180 I decided to try it myself this time. First, this job isn't hard, just very inconvenient to do.

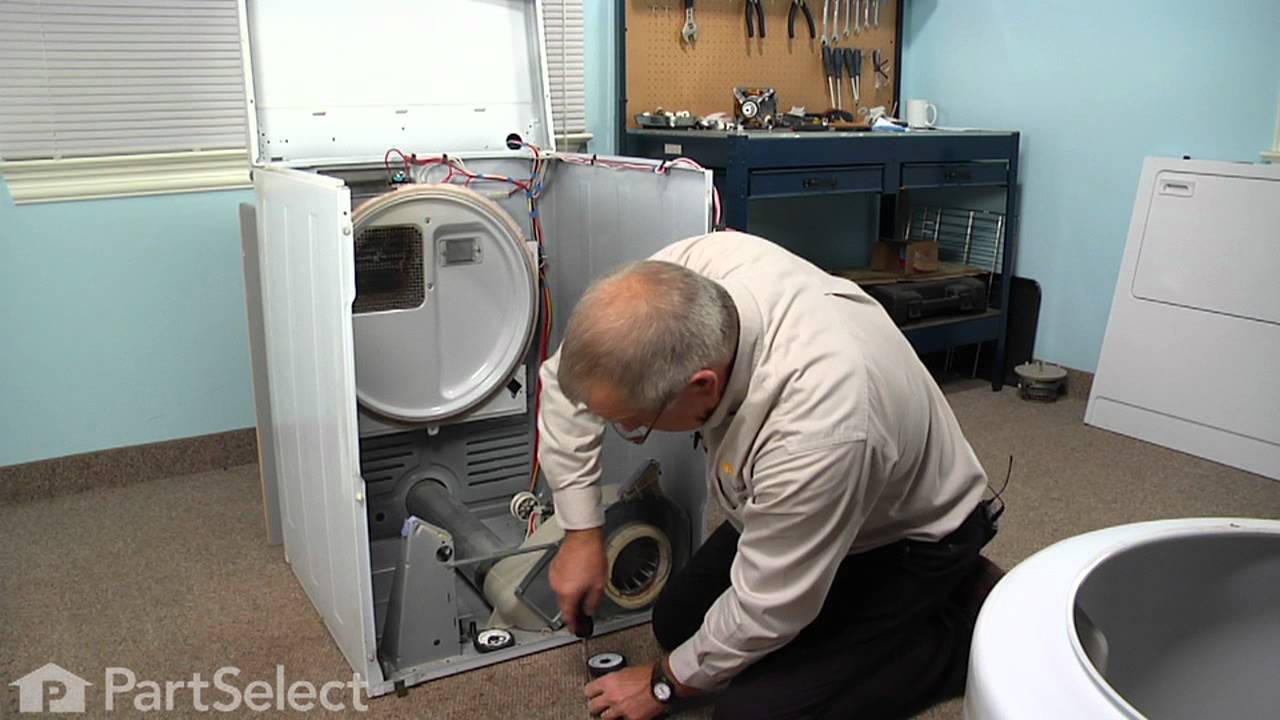

You have to remove the drum by taking off the front panel of the dryer. Then lift up slightly on the drum and remove. Then you unscrew the existing drum support wheels in the back and replace. The instructions for installing the new drum wheels are in the package with the wheels. Replace both even if one looks ok. The trick to getting the retaining clips on is to get them placed on the groove in the front of the wheel shaft and use plyers to clamp down on the clip and shaft - then they just snap into place.
The other thing I replaced was the felt gasket at the rear of the drum. Getting the old worn one off was easy. Scrape off as much of the old adhesive as you can, clean with some Goo Gone or similar adhesive remover and dry. I used the hi-temp adhesive from this website to attach the new felt gasket - this stuff is runny! If it gets on your hands or other surfaces, miner spirits or goo gone will get it off. I found it easier to apply a bit to the felt then hold it on the while the stuff started curing (a few minutes). Once you have glued the felt all the way around the drum, let it sit for an hour or so before trying to put the drum back on. Before you reinstall the drum, gently fold over the felt toward the back of the machine so it forms a "U" shape. Then carfully put the drum back on, making sure you have it sitting on the new wheels. Since the felt is new, you will have to work the drum a bit to get it seated evenly on the wheels and the new gasket.
Since there were no instruction on the tube of hi-temp adhesive about cure time, I waited a full day before running the dryer. It's been a week and 4 loads of laundry later and everything is running fine. I saved about $120.
Removed clips & washers from rear roller shafts, removed 2 screws (each) attaching rear roller shafts to rear of unit. Replaced rear roller shafts, thrust washers, rollers & clips. Removed clip from belt tensioner idler arm, replaced idler pulley wheel & clip.
pulled tensioner toward motor side and locked in place with broomstick. Placed new belt over drum & installed drum/belt into unit, engaging rear drum lip over new rear drum support rollers. Guided belt
over motor shaft and slowly released broomstick to
tension belt. Turned drum by hand to ckeck belt tracking. Reinstalled front panel & door switch, installed 2 screws holding front panel to case. Closed lid. Plugged unit in & tested for proper operation-OK.
Manufacturer Part Number: LA-1008
