Michael
July 20, 2017
Does the price include one or two door gaskets? As this refrigerator has two separate doors. Second question, if this is the price for only one gasket, which door does this gasket fit? (left or right). Thanks
For model number KBFO42FTX03

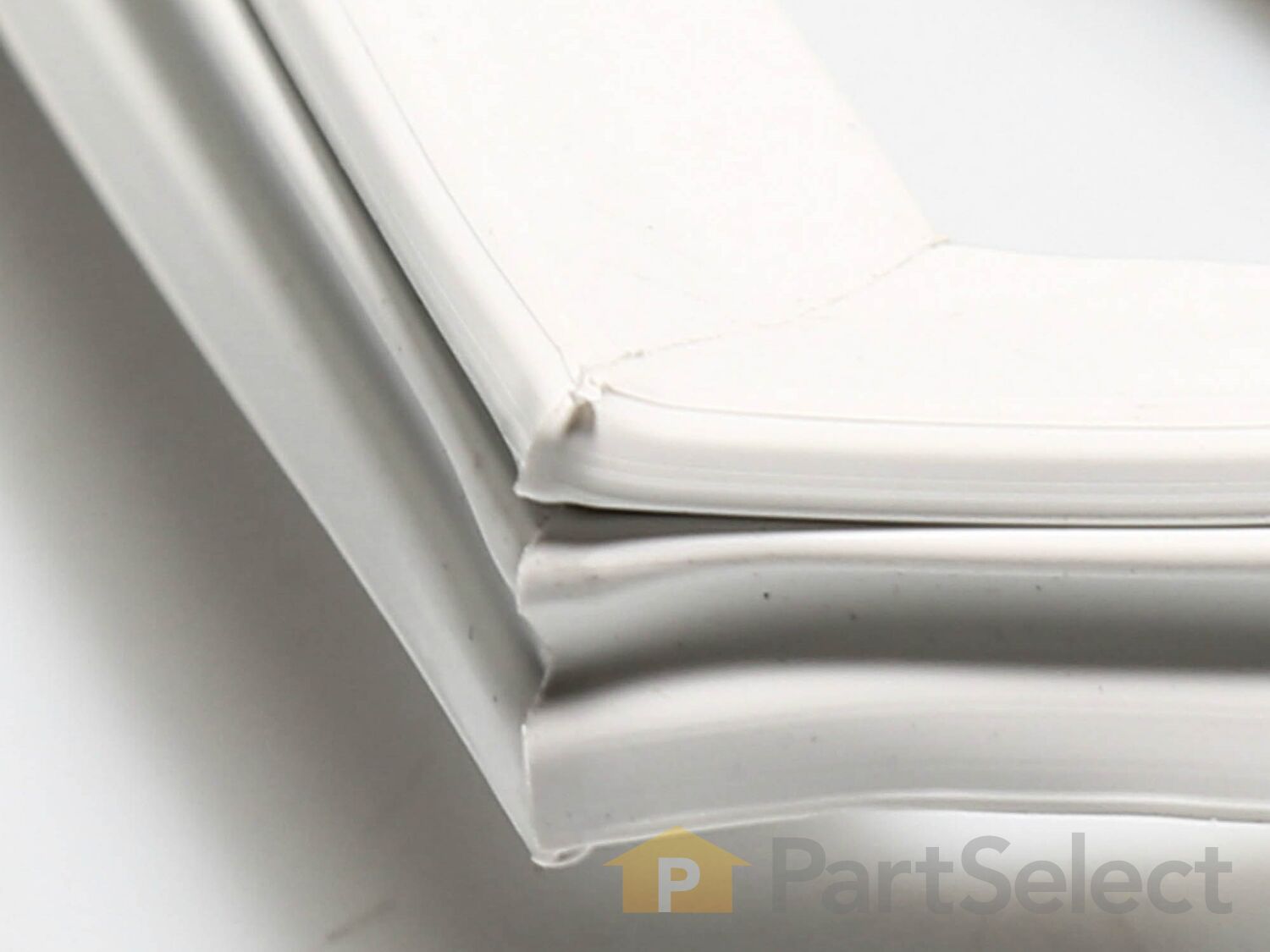

Hi Micheal, this gasket is the inner door seal, and it can be installed on the right side or left side. This gasket is sold individually. I hope this helps, good luck with your repair!
10 people found this helpful.
Was this helpful?
Thank you for voting!
Michael
February 12, 2020
To install replacement gaskets do the refrigerator doors and freezer doors need to come off or does it just slide on?
For model number KBFC42FTS00
Hello Michael, thank you for your question. This gasket is installed into a groove that goes around the frame of your door. To remove the part you just pull it out of the groove and to install the part you push it back into the groove. Good luck with your repair.
6 people found this helpful.
Was this helpful?
Thank you for voting!
Robert
August 15, 2017
Are there instructions for replacing the door gaskets - can i get a copy before i order the parts?
For model number KBFC42FTS04
Hi Robert,
Thank you for your inquiry. This gasket is installed into a groove that goes around the frame of your door. To remove the part you just pull it out of the groove and to install the part you push it back into the groove. Good luck with your repair.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Maryse
December 4, 2017
Need door gasket replacement for refrigerator and bottom freezer is whirpool ok for my refrigerator
For model number KBFC42FTS00
Hello Maryse, Thank you for your inquiry. Whirlpool owns KitchenAid and makes the parts. The part number for the freezer gasket is 2309216 and the part number for the fridge gasket is 8201809. Hope this helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Kate
June 6, 2019
This refrigerator has french doors, do i need to purchase 2 gaskets? One for the left door and one for the right door? I think the seal is bad on both sides. Thank you.
For model number Kitchen aid kbfc42fts02
Hello Kate, thank you for inquiring. This Fresh Food Door Gasket is the correct replacement for your model, but you would need to purchase one for each side as they are sold individually.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Richard
November 8, 2023
The image of part number 8201809 shows screws but none of the answers to questions referred to the use of the screws. My refrigerator does not have any holding the gasket in place. What are the screws for?
For model number KBFO42FTX05
Hello Richard, thank you for getting in touch. The door gasket you mentioned comes with the screws, but the screws are not for holding the gasket in place. These are for the refrigerator door. In order to hold the gasket with the door, there is a groove present you just need to place the gasket around the door liner and press it underneath the door liner. Glad to be of help!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Jonathan Braun
December 25, 2017
How do i install the door inner gasket, ps1518643
For model number KBFC42FTS04
Hello Jonathan, Thank you for your inquiry. There is a groove that goes around the frame of the door, and you would just need to insert the gasket into the groove. It is usually helpful to warm the gasket up first by immersing it in hot water or throwing it into a clothes dryer for a minute to make it more flexible. Hope this helps!
Was this helpful?
Thank you for voting!
Mary
November 7, 2017
Does this gasket work for my model? Is it easy to install? Do you have a how-to video available?
For model number KBFC42FTS07
Hi Mary, Thank you for the question. The PS1518643 is the correct gasket in white for the model number provided. We do not have a video for this gasket as of yet, but the old gasket should just pull off and the new gasket just pushes into the channel around the outer edge of the door. Some previous customers have used a spoon to push the gasket into the channel. Hope this helps!
Was this helpful?
Thank you for voting!
Simon
July 15, 2021
Hi,
I wish to replace my old gasket-fip/sealer on a Jenn-Air (model jf42nxfxdw01). I'm told that it's the #8201809... on your website you're refering to partselect number ps1518643.... am i purchasing the exact same part or a replacement part that will fit but won't be exactly the same. just wondering since i've got 2 doors but i only plan to replace one gasket.
please confirm cost for one and two.
thanks
For model number 8201809
Hi Simon,
Thank you for your question. Part number 8201809 is Whirlpool's part number for the gasket and part number PS1518643 is the part number we have listed for the gasket on our website. Both part numbers are for the same door gasket. Where this part is listed under your model number, it is guaranteed to be the correct part. If you would like to place an order for it, you may order it either online or by calling our customer service line and anyone will be happy to assist you. We hope this helps! If you have any questions, please let us know.
Was this helpful?
Thank you for voting!
Teresa
July 28, 2021
Hi, i'm looking for the freezer gasket for the kitchen aid refrigerator model kbfc42fts04, would this fit?
For model number KBFC42FTS04
Hi Teresa,
Thank you for your question. This would not be the correct door gasket for the refrigerator door. The part number listed under your model number for the refrigerator door gasket is PS1518643. If you would like to place an order for it, you may order it either online or by calling our customer service line and anyone will be happy to assist you. We hope this helps! If you have any questions, please let us know.
Was this helpful?
Thank you for voting!
