See part 2 in the diagram
Replacing your Whirlpool Dryer Door Hinge play video
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

Door Hinge

★★★★★
★★★★★
14 Reviews
$ 126.87   In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS11752542
Manufacturer Part Number WPW10310366
Manufactured by Whirlpool
Product Description

Door Hinge Specifications

This door hinge is used to hold your door on your dryer in place. Most dryers require two and they are sold individually.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Door won’t close
This part works with the following products:
Dryer.
This part works with the following products:
Whirlpool, Kenmore, Maytag, Amana.
Part# WPW10310366 replaces these:
AP6019236, 8577250, W10139920, W10310366
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

1 question answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Donna
    August 15, 2019
    The bottom pin fell out of door hinge. Can i get just the pin without buying the entire hinge?
    For model number Wed9500tw3
    Hi Donna, thank you for your question. Unfortunately no. You would have to get the whole hinge. Good luck with your repair.

    8 people found this helpful.

    Was this helpful?
    Thank you for voting!
      Part Videos

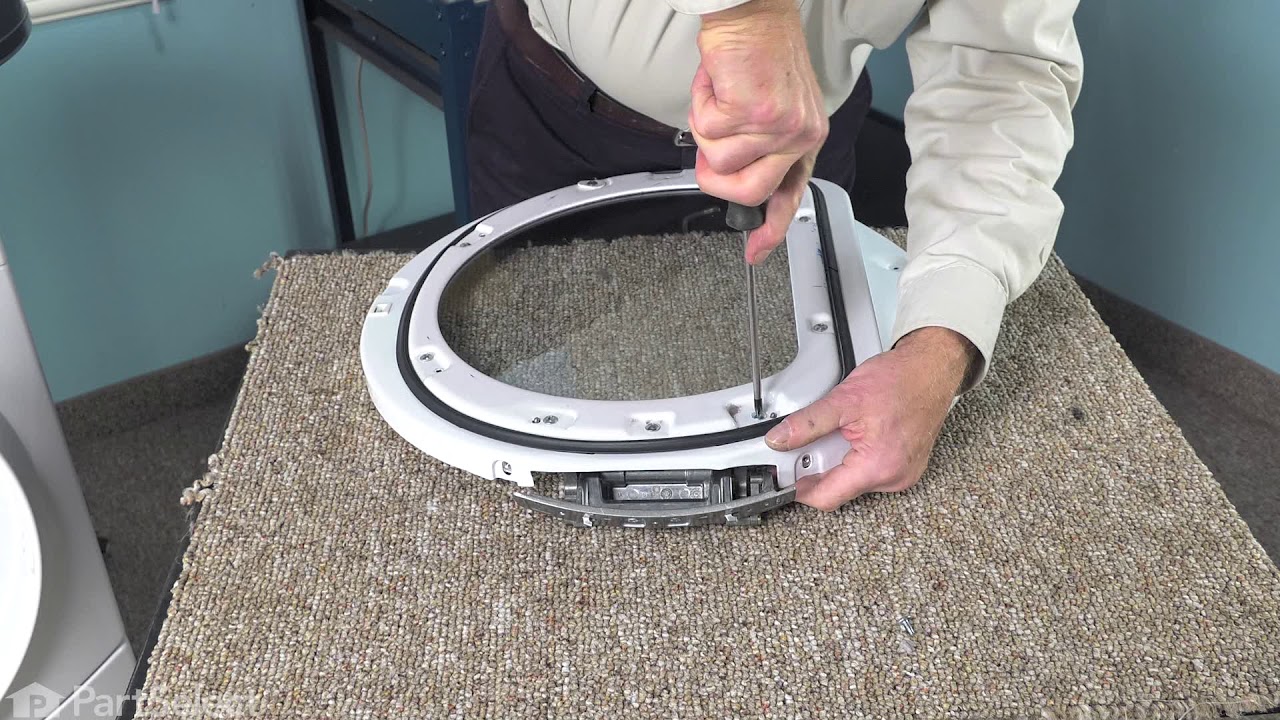

      Replacing your Whirlpool Dryer Door Hinge

      Replacing your Whirlpool Dryer Door Hinge play video
      Customer Repair Stories
       Average Repair Rating: 4.5 / 5.0, 2 reviews. What's this?
        Sort by:
        Sorry, we couldn't find any existing installation instruction that matched.
        Door would not stay shut
        Simply took door off, four screws. Laid on table top and removed several other screws to get to the inside. Removed latch and replaced. Replaced srews and put door back on. I'm sure I saved us a bunch on a service call. Oh did I mention I'm a mom with a 2 and a 4 year old running around while I did this repair. Back in business now.
        • Jennifer from Davenport, IA
        • Difficulty Level:
          Easy
        • Total Repair Time:
          Less than 15 mins
        • Tools:
          Screw drivers
        44 of 55 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        part of door hinge was worn and allowed door to sag
        removed door by undoing screws holding it on dryer.
        Removed all screws on door EXCEPT the ones with star heads.
        Separated two parts of door and undid screws holding hinge in place.
        Removed hinge and replaced with new hinge.
        Put two faces of door back together and installed door back on dryer.

        To be honest and explain, I had previously taken apart the door and removed the star screws which allowed the other pieces of the door holding the window to fall apart.
        After some difficulty, I was able to put the seal back on and re-install the metal window holders which is why I said it only took 15 minutes after the part arrived and why I accented NOT removing the star screws.
        There were a couple of other screws which probably didn't need removing but they didn't cause any problem with the installation.
        After putting the door back on, I had to manually twist the door a small amount because it didn't want to keep the button depressed which kept the motor running which turns the basket and heats the clothes.
        The door had been causing some trouble for a couple years and we had obviously closed the door with a little extra force when it ''caught'' on the door frame causing it to bend a small amount.
        It only took one adjustment and worked fine after that.
        • Barry from ALLEN, MI
        • Difficulty Level:
          Easy
        • Total Repair Time:
          Less than 15 mins
        • Tools:
          Screw drivers
        3 of 3 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
          Customer Reviews
          Average Rating:
          ★★★★★
          ★★★★★
          14 Reviews
          4.9
          Filter By Rating:
          • 5 Stars
            12
          • 4 Stars
            2
          • 3 Stars
            0
          • 2 Stars
            0
          • 1 Star
            0
          Sort by:
          Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
          Model Cross Reference
          This part works with the following models:
          PartSelect Number: PS11752542
          Manufacturer Part Number: WPW10310366
          Brand
          Model Number
          Description
          Kenmore
          11086742700
          Dryer
          Kenmore
          11086742701
          Dryer
          Kenmore
          11086742702
          Dryer
          Kenmore
          11086747700
          Dryer
          Kenmore
          11086747701
          Dryer
          Kenmore
          11086747702
          Dryer
          Kenmore
          11086757701
          Dryer
          Kenmore
          11086762700
          Dryer
          Kenmore
          11086762701
          Dryer
          Kenmore
          11087081601
          Dryer
          Kenmore
          11087081602
          Dryer
          Kenmore
          11087086601
          Dryer
          Kenmore
          11087086602
          Dryer
          Kenmore
          11087087601
          Dryer
          Kenmore
          11087087602
          Dryer
          Kenmore
          11087088601
          Dryer
          Kenmore
          11087088602
          Dryer
          Kenmore
          11087089601
          Dryer
          Kenmore
          11087089602
          Dryer
          Kenmore
          11087091601
          Dryer
          Kenmore
          11087701700
          Dryer
          Kenmore
          11087701701
          Dryer
          Kenmore
          11087709700
          Dryer
          Kenmore
          11087709701
          Dryer
          Kenmore
          11087721700
          Dryer
          Kenmore
          11087721701
          Dryer
          Kenmore
          11087721702
          Dryer
          Kenmore
          11087727701
          Dryer
          Kenmore
          11087727702
          Dryer
          Kenmore
          11087728701
          Dryer
