( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

PROBE

★★★★★

20 Reviews

Rated by 5 customers

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

$ 33.80

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS11731754

Manufacturer Part Number 316233903

Manufactured by Frigidaire

Product Description
Troubleshooting
Questions and Answers
Part Videos
Customer Repair Stories
Customer Reviews

Product Description
Troubleshooting
Questions and Answers
Part Videos
Customer Repair Stories
Customer Reviews

Product Description

PROBE Specifications

Note: Connector could be different than original. If so cut & splice wires together with porcelain wire nuts.

How Buying OEM Parts Can Save You Time and Money

Troubleshooting

This part fixes the following symptoms:

Little to no heat when baking | Will Not Start | Element will not heat | Oven not heating evenly

This part works with the following products:

Range, Wall Oven.

This part works with the following products:

Frigidaire, Kenmore, Tappan, Crosley.

Part# 316233903 replaces these:

AP5998652, 316217008, 316233900, 316233902

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

17 questions answered by our experts.

< Prev
1
2
Next >

Sort by:

Cory

September 24, 2017

How to test probe

For model number 79095042503

Hi Cory,Thank you for the great question. Testing the temperature sensor probe on your oven is easy. With the sensor at room temperature, measure the resistance between the two prongs at the end of the sensor connector. The resistance of the sensor should read approximately 1080 – 1090 ohms at room temperature. Hope this helps!

7 people found this helpful.

Was this helpful?

Thank you for voting!

Kay

October 18, 2017

Oven keeps heating. Gives error f-10. Would this be a bad probe?

For model number FFEF3011LWA

Hi Kay, Thank you for the question. Yes the F-10 Error code indicates there is an issue with the temperature onside the oven.I suggest replacing the Probe or testing it. With the sensor at room temperature, measure the resistance between the two prongs at the end of the sensor connector. The resistance of the sensor should read approximately 1080 – 1090 ohms at room temperature. Hope this helps!

4 people found this helpful.

Was this helpful?

Thank you for voting!

Taleathia

April 19, 2018

Stove timer kept beeping gave error code f10 replaced probe in 2015 local electric company said i can use range top by igniting with a lighter. Do i need probe and ps1528268

For model number CRG3150LWE

Hello Taleathia, thank you for your question. A bad temperature sensor probe is one of the causes for an F10 error code. The temperature probe is supposed to detect the exact temperature in the range cavity and relay it to the oven's main control so it knows when to shut off the heating elements. I would suggest replacing the PROBE part number 316233903. I hope this helps!

2 people found this helpful.

Was this helpful?

Thank you for voting!

Mike

November 20, 2018

My gas oven comes on (igniter should be good) usually comes up to temp correctly but lately, it looses heat and won't come back up to temp. I pulled the temp sensor out of the back of the stove and checked resistance. At room temperature, my meter showed .775 amps of resistance. Probably a bad temperature sensor, would you agree that this is the first part i should replace? Its two days before thanksgiving and if my wife cant bake...well you know what house i am going to be in...the dog house.

Hi Mike, thank you for your question. Your oven temperature sensor should be reading between 1000 - 1100 ohms. So it does sound like it is your sensor that is the issue. I hope that helps. Good luck with your repair.

1 person found this helpful.

Was this helpful?

Thank you for voting!

Mike

February 13, 2019

Oven will not heat. Elements check good got a code f30?

For model number fef326fsb

Hello mike, Thank you for the question,. I first suggest testing the Sensor Probe, Testing the temperature sensor probe on your oven is easy. With the sensor at room temperature, measure the resistance between the two prongs at the end of the sensor connector. The resistance of the sensor should read approximately 1080 – 1090 ohms at room temperature. If the probe is good you may have a defective control board, Part Number: PS1528267. Hope this help!

1 person found this helpful.

Was this helpful?

Thank you for voting!

Related Parts:

CLOCK

$155.16

Midge

April 8, 2019

Code f1 comes up. When i turn on oven it overheats and burns everything

For model number GLEF378AQC

Hi Midge, thank you for your question. There are a few parts that could cause this issue in your appliance. First I would say test your elements with a multi meter to see if they are working correctly or not. They should be reading between 0 - 50 ohms to be working correctly. The other part you should check would be your oven temperature sensor. That can also be tested with a multi meter and should be reading between 1000 - 1100 ohms. If those three parts are fine however, then the issue may be in your control board. I hope that helps. Good luck with your repair.

1 person found this helpful.

Was this helpful?

Thank you for voting!

Related Parts:

Electronic Clock Control

$396.55

Renee

August 7, 2019

My oven doesn’t come on right away. But after a while, if left on it eventually turns on and gets real hot. I’m assuming it’s my temp sensor. Could it be anything else?

For model number CRG4150LWE

Hello Renee, thank you for inquiring. It could be this Probe part number PS11731754 for your model causing the issue. You may also want to consider the Electronic Oven Clock/Timer part number PS1528268 for your model. I hope this helps and good luck with your repair!

1 person found this helpful.

Was this helpful?

Thank you for voting!

Eusebio Garcia

October 26, 2017

My oven turns on and then after a while turns off

For model number FGFS36FWD

Hi Eusebio, Thank you for your inquiry. There are some parts that you will need to check to see which one is causing the issue. You will need to check the electronic oven clock/timer, the probe, the spark module, the clock overlay, the oven igniter, the oven light socket, the knobs and the safety valve. I hope this helps. Thank you and have a great day!

Was this helpful?

Thank you for voting!

Mario

February 6, 2018

Replaced the ignitor switch, control panel works, stove top works but oven won't come on.

For model number LFGF3014LBC

Hi Mario, Thank you for the question. When you turn the knob for the oven can you smell gas?If not you may need to check the Safety Valve, PartSelect Number PS446204. Hope this helps!

Was this helpful?

Thank you for voting!

Nancy

February 26, 2018

My oven was on and i heard a pop and then it quit working. The electric burners on top of the stove work, the lights and clock work, but the oven and broiler do not.

For model number FEF365ASK

Hello Nancy, thank you for your question. The popping sound was probably a resistor, or capacitor on the Electronic Clock/Timer part number 316207510. You will want to replace this part. Please enter the part number into the site for current price and availability. Good luck with your repair!

Was this helpful?

Thank you for voting!

< Prev
1
2
Next >

Part Videos

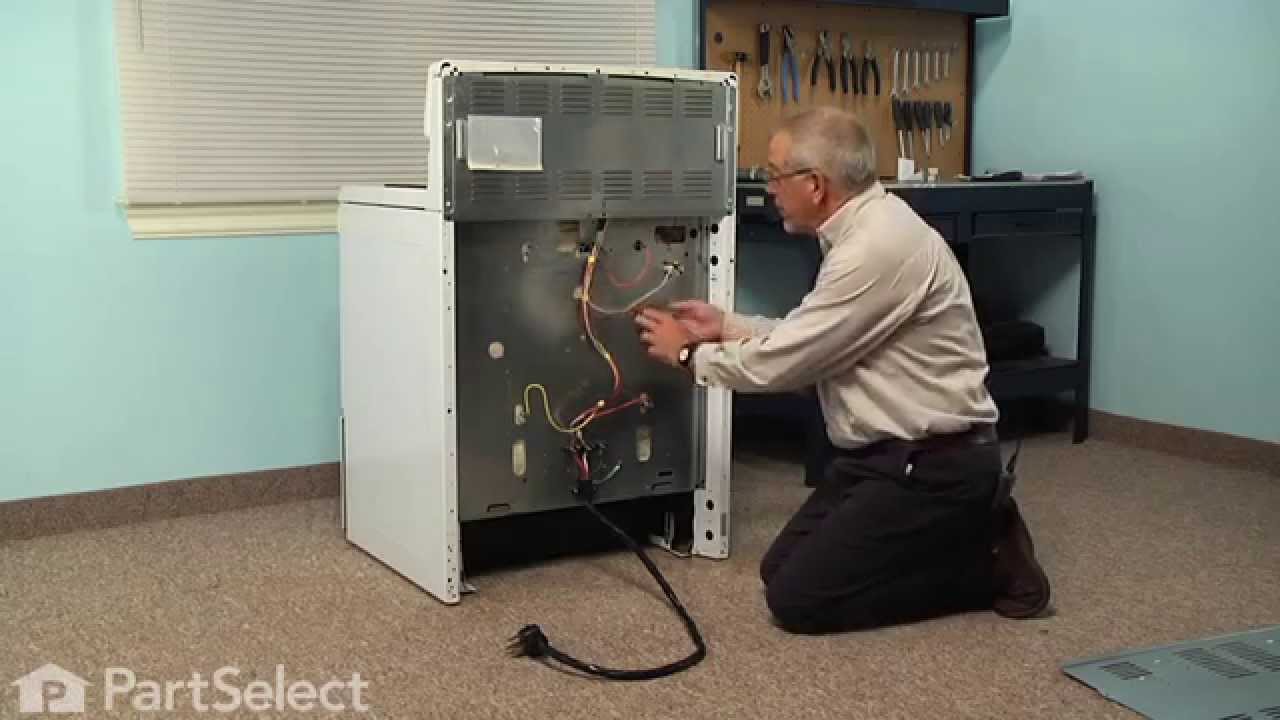

Replacing your Frigidaire Range PROBE

Customer Repair Stories

Average Repair Rating: 4.1 / 5.0, 5 reviews. What's this?

< Prev
1
Next >

Sort by:

Range would not come on

Turned off power, took back off stove removed old probe.
I had to splice wires since new probe ends did not match up.
the instructions were to splice the wires. I had the breaker off for about 3 hours. this is not in the instructions, but being a widow, I had to ask a few people why it would not come on after I connected the wires.
After waiting, I turned the breaker on and my range came back on.

MaryLou from Monroe, NC
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
