Models > WED9200SQ0

WED9200SQ0 Whirlpool Dryer - Overview

Sections of the WED9200SQ0

[Viewing 4 of 4]

BULKHEAD PARTS

CABINET PARTS

DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

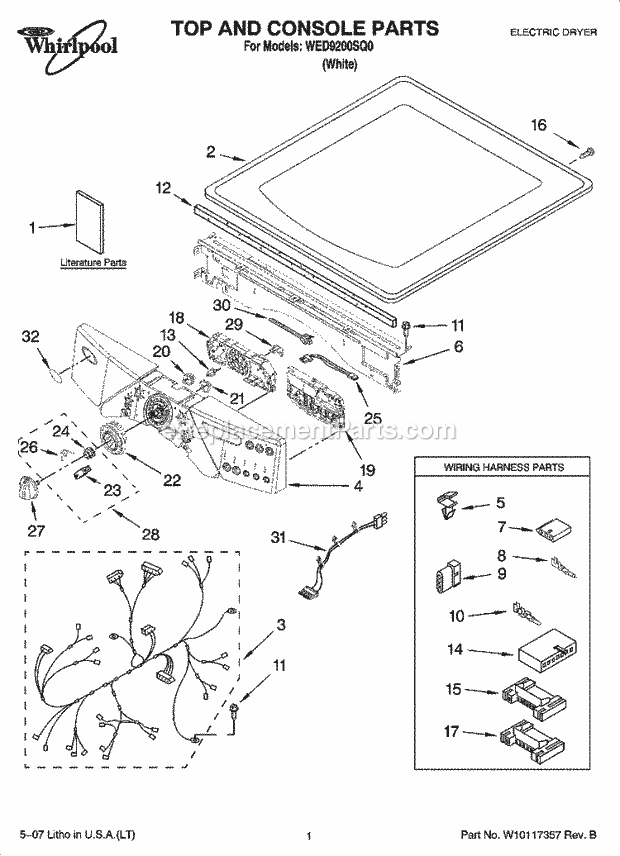

TOP AND CONSOLE PARTS

Manuals & Care Guides for WED9200SQ0

Click to download

Parts for the WED9200SQ0

[Viewing 12 of 171]

Door Catch Kit

★★★★★

(117)

PartSelect #: PS334230

Manufacturer #: 279570

This part replaces your appliances latch (Door Latch Kit, Door Catch, Dryer Door Latch Kit). On your appliance you will find both a strike and a catch. The strike is mounted on the body of the dryer, ...

$2.60

Order within the next 5 hrs and your part ships today!

Lint Filter

★★★★★

(98)

PartSelect #: PS1491676

Manufacturer #: W10120998

The filter collects lint during the drying cycle. This filter is 12 1/2 inches wide and 10 1/2 inches deep. Replacing the lint filter is an easy repair which requires no tools. When replacing the lint...

$59.37

Order within the next 5 hrs and your part ships today!

Idler Pulley

★★★★★

(109)

PartSelect #: PS334244

Manufacturer #: 279640

This Idler Pulley includes the tri-ring and gasket and everything included here is manufacturer-certified. This part maintains correct tension on the drive belt in order to spin the drum properly. If ...

$26.03

Order within the next 5 hrs and your part ships today!

Dryer Drum Support Roller

★★★★★

(36)

PartSelect #: PS11752609

Manufacturer #: WPW10314173

This is a drum support roller for a dryer. It is a genuine replacement part. The part includes the drum roller only and does not include the tri-rings. This part is sold separately. Most dryers requir...

$21.92

Order within the next 5 hrs and your part ships today!

Dryer Repair Kit

★★★★★

(179)

PartSelect #: PS373088

Manufacturer #: 4392067

This dryer repair kit contains a multi rib dryer belt (part #661570V), 4 drum support rollers, 1 idler assembly, 9 tri rings, and 1 washer. In order to install this kit, you will need a 1/4 inch nut d...

$51.76

Order within the next 5 hrs and your part ships today!

Drive Belt

★★★★★

(45)

PartSelect #: PS11722115

Manufacturer #: 661570V

The Drive Belt is a 93 1/2" belt which wraps around the dryer drum to allow tension and movement. If broken the dryer will not turn properly, or there may be loud noises. The part is rated as "medium"...

$21.20

Order within the next 5 hrs and your part ships today!

Thrust Washer

★★★★★

(2)

PartSelect #: PS11740482

Manufacturer #: WP233520

This genuine OEM washer has a 3/4 inch outside diameter. This thrust washer can be used on most makes and models of dryers. A complete list of compatible dryers is available below. The washer is found...

$7.68

Order within the next 5 hrs and your part ships today!

Thermostat, Internal-Bias

★★★★★

(28)

PartSelect #: PS11746740

Manufacturer #: WP8577274

The internal-bias thermistor (Thermistor, Dryer Thermister, Dryer Thermistor) prevents the dryer from overheating by monitoring and controlling the temperature of the inside of the dryer drum. It is l...

$46.12

Order within the next 5 hrs and your part ships today!

Roller Support Tri-Ring

★★★★★

(5)

PartSelect #: PS11755850

Manufacturer #: WPW10512946

If you notice that your dryer is noisy or will not tumble, you may need to replace the tri ring. This part is triangular, and is less than an inch in size. Tri rings can be found both on the idler pul...

$12.96

Order within the next 5 hrs and your part ships today!

Leveling Foot

★★★★★

(12)

PartSelect #: PS1609293

Manufacturer #: 49621

If your washer shakes or vibrates loudly when it reaches its max speed, check that the leveling legs are even. To ensure that the washer is firmly on the ground using all four legs, adjust the legs so...

$7.36

Order within the next 5 hrs and your part ships today!

Heating Element Connection Wire Kit

★★★★★

(3)

PartSelect #: PS334206

Manufacturer #: 279457

This kit is used for electric clothes dryers, and it comes with a yellow wire nut.

$10.68

Order within the next 5 hrs and your part ships today!

Dryer Heater Element

★★★★★

(42)

PartSelect #: PS11746337

Manufacturer #: WP8544771

$127.04

Order within the next 5 hrs and your part ships today!

Questions And Answers for WED9200SQ0

Ask our experts a question about this model and we'll get back to you as soon as possible!

11 questions answered by our experts.

< Prev
1
2
Next >

Sort by:

Merry

February 5, 2020

Dryer won’t start f 01 is displayed on screen what is problem

For model number WED9200SQ0

Hello and thank you for writing. We suggest to try a hard reset: Go to your breaker box and shut the breakers for your unit off, wait 5 minutes and then turn the breaker to on again. That should hopefully clear this problem. If it does not then the F01 error code means the primary control unit PS11748333 in the dryer has failed and will have to be replaced. We hope this helps. Please contact us anytime if you require further assistance.

8 people found this helpful.

Was this helpful?

Thank you for voting!

Related Parts:

Dryer Control Board

$371.04

Timothy

February 21, 2020

The dryer will not start running. All of the lights come on and i push start....nothing for a few seconds and you here a click and nothing happens

For model number WED9200SQ0

Hello Timothy, thank you for your inquiry. If your dryer won't start, the most likely causes are a lack of power, a defective door switch, a blown thermal fuse or a bad start switch. For your model WED9200SQ0, the most common problem is the door latch. This can be located under part number 279570. We hope this information helps!

4 people found this helpful.

Was this helpful?

Thank you for voting!

Geo

July 21, 2021

First question: Is the model number YWED9200SQ0(Canada) the same as wed9200sq0 for parts replacements? Second question: Well, we heard a whining noise when our Whirlpool dryer was running, but it still functioned okay with the noise, so we said "we really should get it repaired", but kept on using it. then it stopped with a bang! (lights on but stopped) so the second question is "are we stupid" and the answer is yes. Third question: which parts do you think we might need besides a new cable?

For model number WED9200SQ0

Hello Geo, Thank you for the question. The YWED9200SQ and the WED9200SQ0 are similar models but one if US and the other is Canadian. We suggest using YWED9200SQ0 for parts in Canada. We suggest checking the Drum Support Rollers, Belt and the Idler Pulley. We hope this helps!

1 person found this helpful.

Was this helpful?

Thank you for voting!

Related Parts:

Idler Pulley

$26.03

Drive Belt

$21.20

Dryer Drum Support Roller

$21.92

Frances

June 28, 2022

This Whirlpool Duet Dryer has ONLY been working on the Timer or air settings for some time now. The other settings all show 3 dashes ---. Today, I did a diagnostic test and the F28 code appeared - Moisture Sensor Strip is open. Although the Timer setting works, now the dryer no longer heats up. There is enough power and all lint is cleaned out. Would new Moisture Sensors fix the heat problem? Is the control knob a control board electrical problem? I have read what can cause a heating problem.

For model number WED9200SQ0

Hello Frances, thank you for your question. Your problem could be either of these two, the Moisture Sensor is PS11741408 or the moisture sensor Wiring Harness is part PS11741707. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you.

1 person found this helpful.

Was this helpful?

Thank you for voting!

Related Parts:

Moisture Sensor Wire Harness

$74.45

Moisture Sensor

$10.36

Harold

November 27, 2019

I am trying to find a heater element for my dryer but i cannot seethe part number which is 2406024-elsy

For model number WED9200SQ0

Hello Harold, thank you for your question. The heating element is PartSelect Number: PS11746337. Please enter the part number into the site for current price and availability. Good luck with your repair!

Was this helpful?

Thank you for voting!

< Prev
1
2
Next >

Common Symptoms of the WED9200SQ0

[Viewing 16 of 16]

Noisy

Fixed by
these parts

Show All

No heat or not enough heat

Fixed by
these parts

Show All

Door won’t close

Fixed by
these parts

Takes too long to dry

Marks left on clothes

Lid or door won’t close

Pumps but will not spin

Fixed by
these parts

Show All

Touchpad does not respond

Videos related to models starting with WED9200SQ0

[Viewing 8 of 25]

Replacing the Dryer Repair Kit

Replacing the Dryer Drum Support Roller

Replacing the Door Catch Kit

Replacing the Idler Pulley

Replacing the Drive Belt

Replacing the Idler Pulley with Bracket

Replacing the Roller Support Tri-Ring

Replacing the Thermostat, Internal-Bias

Installation Instructions of parts on the WED9200SQ0

[Viewing 3 of 326]

Door Catch part had fallen out,/ was missing

Received your parts, Popped them both right into place, Even though only one side needed to be replaced, I wanted them to match up. It was amazing how easy this was. My husband was quite impressed I had ordered these rather then look for either a new or used dryer from some other source.

Parts Used:

Door Catch Kit

Terri from Saint Augustine, FL
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins

667 of 717 people found this instruction helpful.

Was this instruction helpful to you?

Thank you for voting!

felt strip came off lint screen

ordered new lint screen, removed old screen, inserted new screen.

Parts Used:

Lint Filter

JEFFREY from FALL RIVER, MA
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins

216 of 263 people found this instruction helpful.

Was this instruction helpful to you?

Thank you for voting!

Door wouldn't latch.

I can't believe I waited so long to find this part and do this. I got the package very fast, opened it, took the piece to my dryer and popped it into place with my fingers. It worked perfectly! this took all of two minutes and saved me from having to hold the dryer door closed with a stick. Thank you, thank you!!!

Parts Used:

Door Catch Kit

Melody from North Las Vegas, NV
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins

197 of 277 people found this instruction helpful.

Was this instruction helpful to you?

Thank you for voting!
