MAH2400AWW Maytag Washer - Overview

Sections of the MAH2400AWW

[Viewing 5 of 5]

Manuals & Care Guides for MAH2400AWW

Click to download
Keep searches simple, eg. "belt" or "pump".
Hose Clamp – Part Number: WP596669
Hose Clamp
★★★★★
★★★★★
(1)
PartSelect #: PS11743008
Manufacturer #: WP596669
This hose clamp is used in a wide variety of household appliances. Most often it is found in washers, dishwashers, refrigerators, freezers, dehumidifiers, garbage disposals, or air conditioners. This ...
$7.54
  In Stock
Fastener Screw – Part Number: 8169475
Fastener Screw
PartSelect #: PS389896
Manufacturer #: 8169475
Sold individually.
$5.96
  In Stock
Screw – Part Number: WP489478
Screw
★★★★★
★★★★★
(1)
PartSelect #: PS11742754
Manufacturer #: WP489478
Sold individually.
$7.54
  In Stock

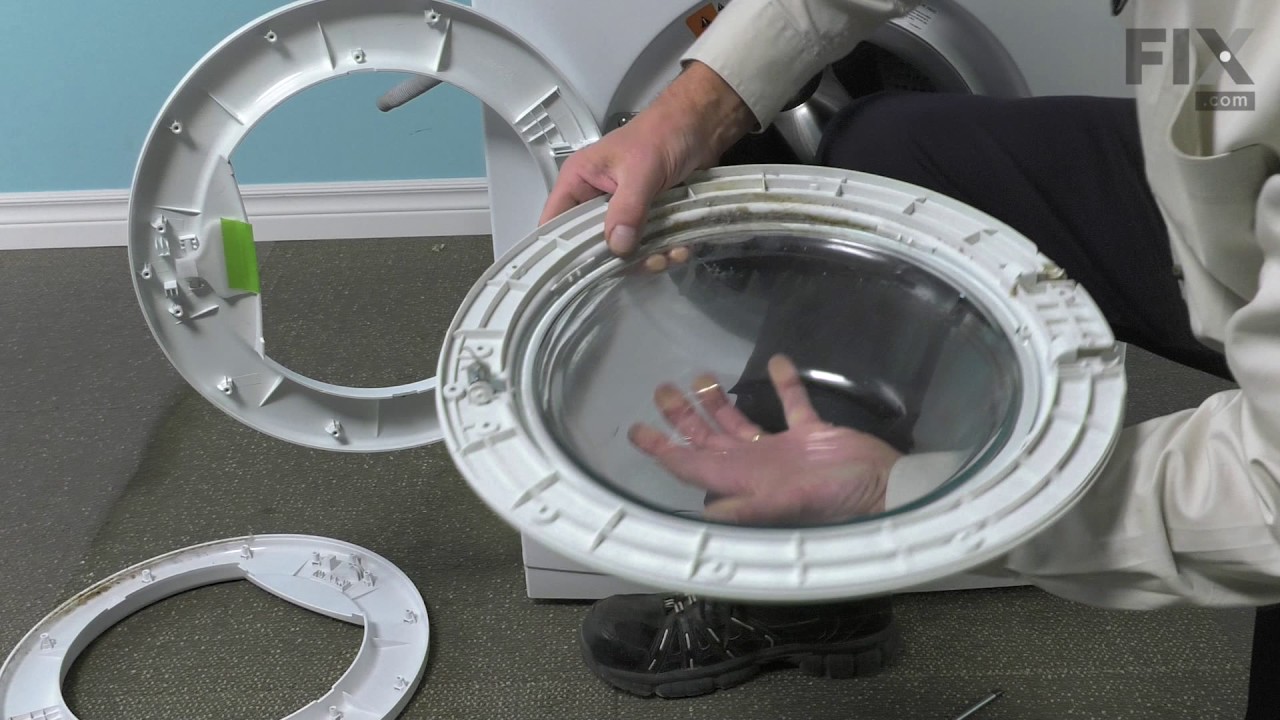

Door Cover - White – Part Number: WP34001178
Door Cover - White
★★★★★
★★★★★
(7)
PartSelect #: PS11741540
Manufacturer #: WP34001178
This is the front piece of the door to the appliance.
$206.64
  In Stock

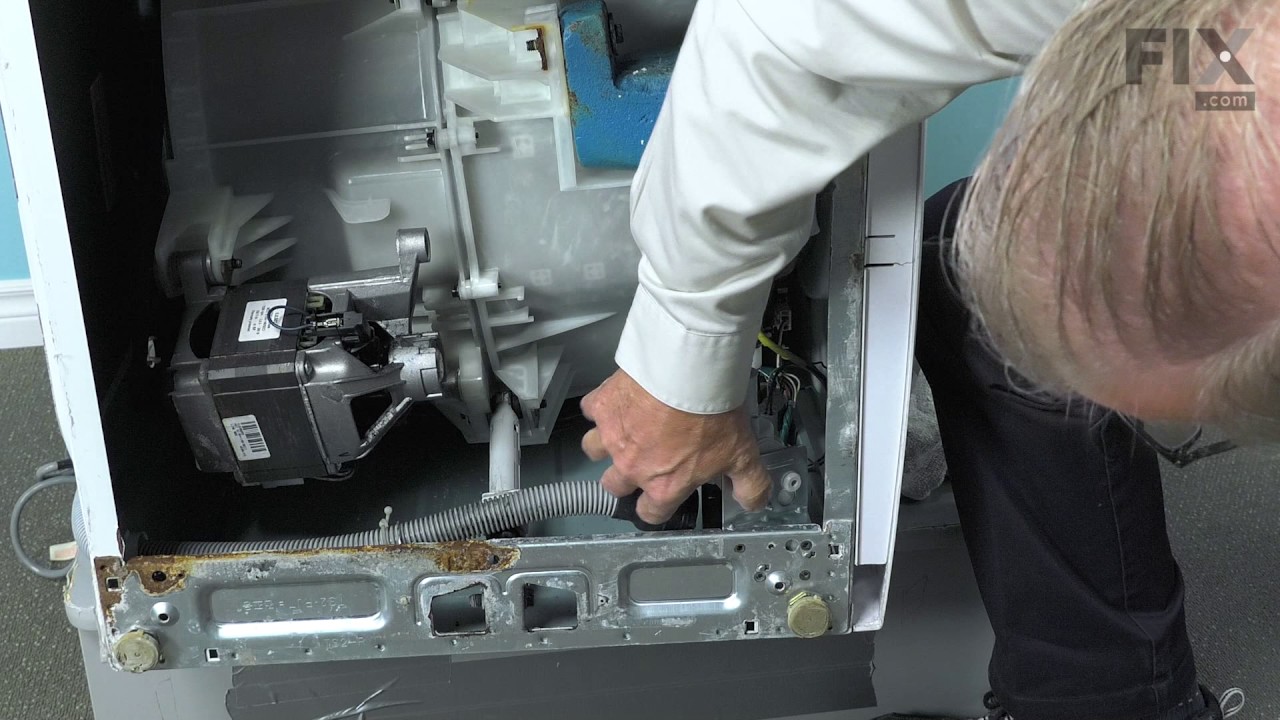

Drain Pump – Part Number: WP34001098
Drain Pump
★★★★★
★★★★★
(1)
PartSelect #: PS11741533
Manufacturer #: WP34001098
This pump helps expel water from the washing machine and is activated after the spin speed is maintained for a specific period of time.
$145.92
  In Stock
Hinge Guide – Part Number: WP34001192
Hinge Guide
★★★★★
★★★★★
(1)
PartSelect #: PS11741542
Manufacturer #: WP34001192
Sold individually.
$10.76
  In Stock
Hot Water Valve – Part Number: WP34001131
Hot Water Valve
PartSelect #: PS11741538
Manufacturer #: WP34001131
This part is the replacement hot water valve for your washer. It is approximately 2-1/2 inches by 3-1/2 inches, and the valve head is approximately 1 inch in diameter. The hot water inlet valve in yo...
$102.74
  In Stock

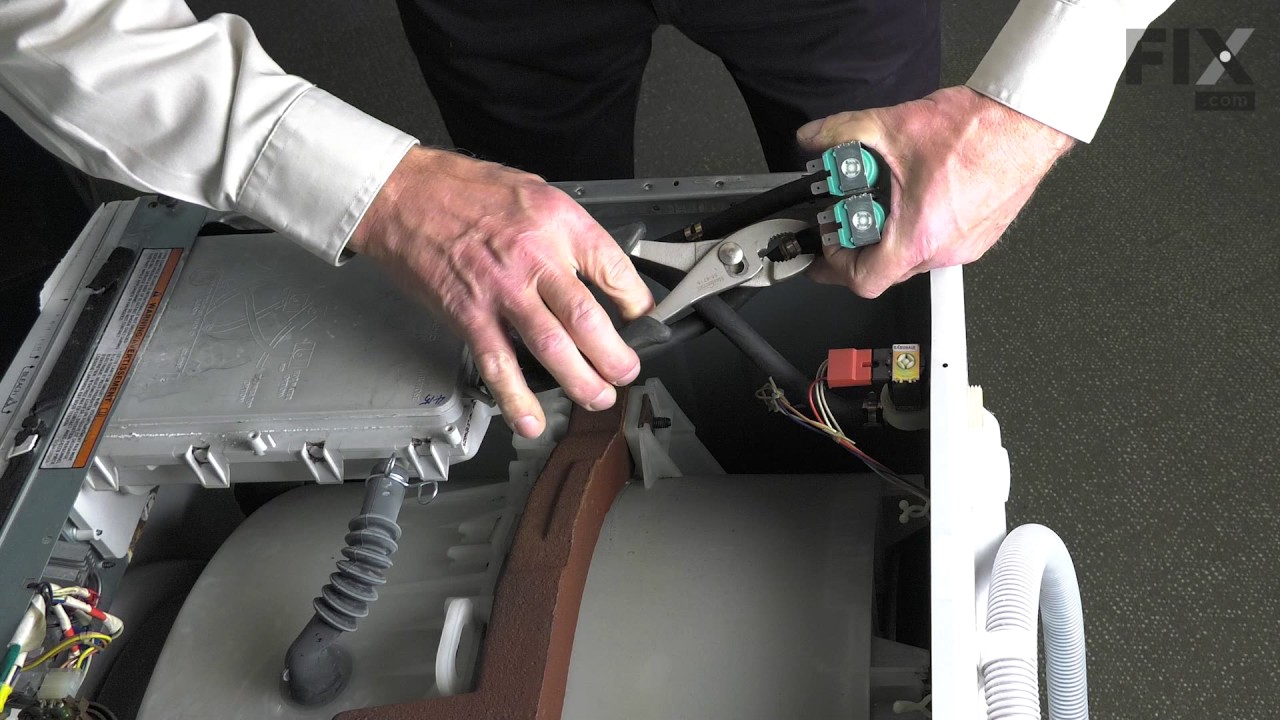

Cold Water Valve – Part Number: WP34001151
Cold Water Valve
★★★★★
★★★★★
(2)
PartSelect #: PS11741539
Manufacturer #: WP34001151
This water inlet valve assembly is for washers. Water inlet valve assembly controls the water flow into the washer. The assembly may include multiple parts; refer to your parts diagram for a comple...
$126.50
  In Stock
Door Glass Holder – Part Number: WP34001179
Door Glass Holder
★★★★★
★★★★★
(1)
PartSelect #: PS11741541
Manufacturer #: WP34001179
$97.33
  In Stock
Drain Hose – Part Number: 34001095
Drain Hose
PartSelect #: PS2037074
Manufacturer #: 34001095
  No Longer Available

Questions And Answers for MAH2400AWW

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

7 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Cali
    February 26, 2020
    Why does the washer make a really loud "crunching" sound when spinning in reverse? And how do i fix it?
    For model number MAH2400AWW
    Hello and thank you for writing. There are several parts that could cause this and need to be checked for damage. Drive belt PS2037087: Check to see if the belt is worn out, cracked, loose or bent. The noise could be a worn-out drain pump PS11741533, which makes a loud noise during the spin cycle or just as the cycle completes. We hope this information helps. Please contact us anytime if you require further assistance.

    4 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Related Parts:
    Paul
    March 12, 2020
    Continually goes into suds code - tried several cleaning/extra water/vinegar quick fix type suggestions - no help. Use only he soap and reduced amounts. Takes hours to clear and finally finish cycle is there a sensor or other part that maybe causing problem.
    For model number MAH2400AWW
    Hi Paul, Thank you for your question. If you have followed all of the steps to reduce the the amount of suds in your washer, there is a video listed on the Whirlpool website that may provide you with more information on how to resolve this issue. Here is a link to the webpage where you may find the video, https://producthelp.whirlpool.com/Laundry/Washers/Product_Info/Washer_Product_Assistance/What_does_the_%22SUD%22_or_%22SD%22_Error_Code_mean. Here is a link from our website where you may also view your owner's manual, https://partselectcom.azureedge.net/assets/manuals/A3E524D17AF58F2965E78540AE636D417FC5A344.pdf. If you require more information, you will need to contact Whirlpool. Their telephone number is 1-866-698-2538. We hope this helps. Thank you and have a great day.

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Bill
    December 1, 2019
    Washer does not spin
    For model number MAH2400AWW
    Hello Bill and thanks for writing. If the washer won't spin or agitate the motor coupling might have failed. The motor coupling connects the motor to the washer transmission. ... If the washer won't spin or agitate, check the drive belt. If the belt is broken or if it isn't tight on the pulleys the washer won't spin or agitate properly. We hope this helps. Please contact us anytime.

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    Bob
    January 28, 2020
    Which control panel do I need for my model
    For model number MAH2400AWW
    Hello Bob, Thank you for the question. I looked up the part and it is listed as No Longer Available/Discontinued sorry. There are no part substitutions listed. Our suggestion here would be to call the manufacturer and see if they can provide you with a substitution for these part numbers. We hope this helps.

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    RD
    February 8, 2020
    When you power it on it goes into drain mode and the #1 shows up on screen and does not come on at all.. any suggestion???
    For model number MAH2400AWW
    Hi RD. This sounds like it may be a faulty door latch or control board. Thank you for your question and good luck with your repair.

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!

      Common Symptoms of the MAH2400AWW

      [Viewing 7 of 7]
      Leaking
      Fixed by
      these parts
      Show All
      Will not drain
      Fixed by
      these parts
      Show All
      Will not stop filling with water
      Fixed by
      these parts
      Show All
      Lid or door won’t close
      Fixed by
      these parts
      Show All
      Will not fill with water
      Fixed by
      these parts
      Show All
      Lid or door will not open
      Fixed by
      these parts
      Show All
      Noisy
      Fixed by
      these parts
      Show All
      Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
      Washer wouldn't spin / drain
      First I looked up the error codes in the washing machine technical information pamphlet I got when buying the machine to determine what the problem was. It indicated that the machine wouldn't spin. After doing a few more tests I couldn't find the error code that was displaying, but the machine wouldn't run at all and just did a terrible growling sound. I tilted the machine back to get access to the bottom. Undid the flimsy corregated covering held in by 4 screws. In the right front corner I found the pump. There were 2 tubs connected to the pump; I undid each (a simple squeeze off holder) and found nothing blocking either passage. The type of pump is build as one part, so I was unable to open it up.
      I decided to order a new pump assuming that was the problem and in fact it was. Replacing the pump was a piece of case. I undid the two tubes, disconnected the electrical connector then removed it from the washer casing with 4 screws. The new pump was easy to install -- screwed it in place with the 4 screws, reconnect the electrical part (just a simple female / male connection), reconnect the 2 tubs, put the bottom covering back on, and that was it. It's working just fine now.
      Parts Used:
      Drain Pump
      • Sarah from Kirkland, WA
      • Difficulty Level:
        Really Easy
      • Total Repair Time:
        Less than 15 mins
      • Tools:
        Screw drivers
      52 of 59 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      Coin ruined drain pum impeller blade / SUDS error
      Unplug machine, turn on its side (have bucket to drain water from hose), unscrew drain hose bracket on back (so you can fully empty water still inside machine) unscrew bottom plastic cover, locate pump on left, pull out electrical connector, unscrew hose clamps, twist off hoses, unscrew pump and replace, and follow the above steps in reverse. I also made a coin trap from a sawed off plastic drain or downspout cover/protector and installed this inside the hose at the entry point to the pump, enlarging the holes enough to make sure they wouldn't easily clog with lint.
      Parts Used:
      Drain Pump
      • Dan from Arlington, VA
      • Difficulty Level:
        Easy
      • Total Repair Time:
        30 - 60 mins
      • Tools:
        Screw drivers, Socket set
      29 of 32 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
      I leaned on the door while open and it broke off!!
      Removed hinge and all screws holding two halves together with glass between them put glass in new parts and replaced all screws hinge fits in there also
      installed back on washer and away we went....
      Parts Used:
      Door Glass Holder Door Cover - White
      • Raymond from Fort Myers, FL
      • Difficulty Level:
        Easy
      • Total Repair Time:
        15 - 30 mins
      • Tools:
        Screw drivers
      35 of 64 people found this instruction helpful.
      Was this instruction helpful to you?
      Thank you for voting!
