26 of 34 people found this instruction helpful
Parts Used
Level of DifficultyReally easy
Time to do repair:15 - 30 mins
ToolsScrew drivers
Customercarl from vacaville CA
Ice and water would not dispense at door
first I snapped out control face plate on outside of door. removed the screws for each part,and unplugged the wires at the connectors, replaced new parts and plugged in connectors to new circuit board.I decided to replace the board,switch and solenoid all at the same time, not knowing which part was bad.I have to say it was well worth it! it works better than when it was new!!!! It was a lot easier than I thought it was going to be.
|
14 of 18 people found this instruction helpful
Parts Used
Level of DifficultyEasy
Time to do repair:30 - 60 mins
ToolsScrew drivers
CustomerJames from Malabar FL
Ice chute flapper not closing causing water dripping to floor and ice chute freezing up solid

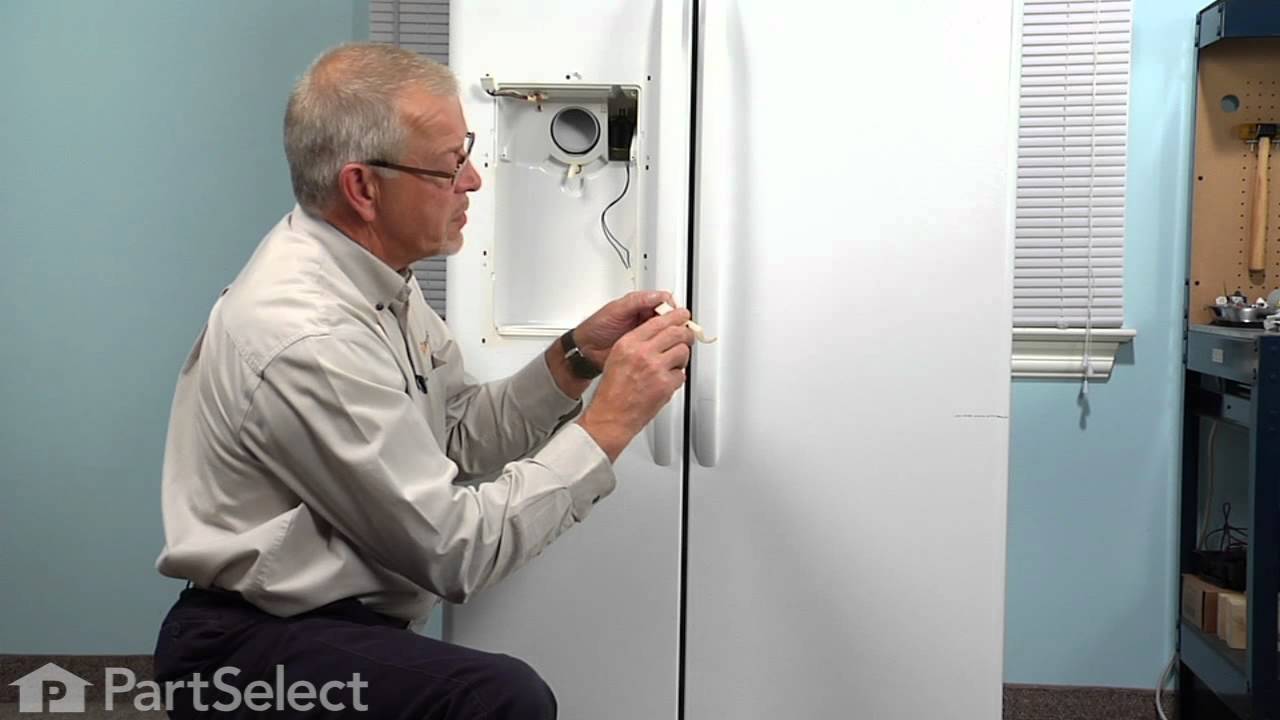

I followed the video instructions for replacing the Flapper Valve and solenoid that Part Select suggested. It was one of the best DIY Reapair Sites I've used. Thank you
|
15 of 24 people found this instruction helpful
Parts Used
Level of DifficultyA Bit Difficult
Time to do repair:1- 2 hours
ToolsNutdriver, Screw drivers
CustomerERIC from MADISON AL
Ice door would not open far enough, ice would get stuck in chute
First remove about 30 screws w/nutdriver that are hidden under door seal then inside of freezer door will come off. Second remove about 10 screws that hold dispenser assy to the inside of door, then support the unit with tape so you don't damage the wires that connect it. Third, pop touchpad loose, then remove three sets of wires plugged into the circuit board. Fourth, remove four screws that hold the ice chute and light assy. Fifth, now remove the 3 screws that hold solenoid. These three screws that hold the solenoid will be very rusty, you may want to replace these also. I went ahead and replaced all the related parts because they are so hard to get to. Also took the opportunity to clean in here with bleach to remove all the black mold and rust.
NOTE: when reassembling the inside of the freezer door to the outside of the door you must loosely attach the door on both sides in the middle first, then the top and bottom. Add some more screws on each side and tighten them all. Now you must check to be sure that the door is not racked. If the door is not sealed at the top or bottom, loosen the screws and twist the door a little and tighten screws and check door again for proper seal. Spent more time adjusting door to seal right than doing the actual repair.
|
11 of 14 people found this instruction helpful
Parts Used
Level of DifficultyEasy
Time to do repair:15 - 30 mins
ToolsScrew drivers
CustomerWallace from Oxford ME
Ice dispenser door sticking open.
Unplugged power cord. Used a small screw driver to release the bottom of the control panel. Pulled it out and unplugged wires, then set it aside. Removed 4 screws from the housing shield and pulled it out. Now the solenoid assembly and related parts are accessable. I removed the solenoid assembly by loosening the top screw and removing the 2 bottom screws. This was the main problem, but I also replaced related parts that were worn or corroded. I also cleaned and disinfected everything in there while I had it apart because it was pretty nasty! Now it works like new.
|
8 of 10 people found this instruction helpful
Parts Used
Level of DifficultyReally easy
Time to do repair:15 - 30 mins
ToolsScrew drivers
CustomerTurcotte's Housing Service, In from Newmarket NH
Recessed door on ice dispenser would stay open causing the freezer to frost up
I inserted the tip of a very small screwdriver from a eye glass repair kit into the three small holes under the panel near where the ice is dispensed. I never would have known about this simple procedure if it wasn't for the feedback you post from your parts cumtomers. Once I did this the front panel with the buttons on it poped off and it was just a matter of removing a few screws at that point. The wires from the new solenoid easily plugged into the board on the front panel. I would recommend changing the screws at the same time. The old one's worked but they were rusty. I feel the solenoid was my only problem but I changed all the parts in between the dispenser door and the solenoid just to be sure.
|
6 of 9 people found this instruction helpful
Parts Used
Level of DifficultyEasy
Time to do repair:15 - 30 mins
ToolsScrew drivers
CustomerJohn from Oxford IA
Frost in ice chut, flapper hanging partially open.
Removed control panel, snapped out pretty easy. Removed flapper assembly (4 small screws). My spring was broke but it ended up being the solenoid assembly after I replaced the spring, door crank, micro switch and flapper it was obvious the solenoid was hanging up. I had to go back an order it but it was at my door 2nd day (quickly). I took the time to clean the area with Tylex (some mold), and everything went in easily. I didn't really need the new flapper, crank, and micro switch but they were fairly cheap and then all is new. We use our ice dispenser a great deal so I didn't want to have to go back in and fix a part I "should have" replaced. I used Part Select for my washer motor as well. Doing both repairs myself probably saved 3 or 4 hundred dollars easily.
|
5 of 6 people found this instruction helpful
Parts Used
Level of DifficultyReally easy
Time to do repair:30 - 60 mins
ToolsNutdriver, Screw drivers
Customerdanny from west potsmouth OH
Ice auger was broke and ice was freezing in the recess door
all parts worked and were easy to install. probably saved me from having to buy a new fridge. ice maker is working fine and recess door flap is closing correctly. very satisfied.
|
5 of 6 people found this instruction helpful
Parts Used
Level of DifficultyReally easy
Time to do repair:15 - 30 mins
ToolsScrew drivers
CustomerVictor from Houston TX
The compartment behind control panel with snow
I have unlock the black panel. With a screw driver I have removed 2 screws and removed 3 conectors from circuit board. So, I had access to solenoid set. From this point on was intuitive. Very easy.
I recomend these parts be replaced once time for each two years.
|
5 of 7 people found this instruction helpful
Parts Used
Level of DifficultyEasy
Time to do repair:15 - 30 mins
ToolsScrew drivers
CustomerLarry from Republican City NE
Ice maker door failed to close letting ice melt
Removed the front panel on the door that has the ice maker controls. Removed the screws and parts. Reassembled the parts and it works better than new. Ice door closes firmly and holds tight.
|
5 of 8 people found this instruction helpful
Parts Used
Level of DifficultyEasy
Time to do repair:More than 2 hours
ToolsNutdriver, Screw drivers
Customercalvin from annapolis MD
When dispensing ice the flap door would not open properly and was open most of the time causing the door to ice up...cause solenoid was rusted badly
I removed the screws for the inner door and removed inner lining. Then took out the ice dispenser in the door. Took off control panel on the front of the ice panel. Removed the rusted parts and put in new parts. Put all parts back the way it came apart. In retrospect.... I could have possibly replaced the parts from the front panel but by taking apart the door...I had to thaw out the inner panel and insulation with in the door.
|
3 of 5 people found this instruction helpful
Parts Used
Level of DifficultyEasy
Time to do repair:30 - 60 mins
ToolsScrew drivers
CustomerMichael from Virginia Beach VA
Ice maker not delivering ice, shoot freezing up with condensation.
Your video shows how to make the necessary repairs. Solenoid was the main issue, other parts were replaced to bring assembly to "like new" condition. Over kill but thats how I fix things. All and all a very easy fix. Thanks for the info and parts.
|
3 of 5 people found this instruction helpful
Parts Used
Level of DifficultyReally easy
Time to do repair:15 - 30 mins
ToolsScrew drivers
CustomerWalt from Alabaster AL
Ice buildup in the door of freezer
Pulled the ice/water control panel off using the three holes under the lip. Pops off pretty easy. Next came 4 screws holding the chute for the ice. Two bottom screws were very rusty, top two look brand new. Watch the wires. Replace the solenoid assembly by unplugging wires leading to the board, then removed the plunger over the top of the hook on the far right. Went ahead and replaced the dispenser door assembly or flapper. Plugged refridge back in and pressed the ice dispenser handle and listened for the solenoid to cycle. Perfect. There is a little delay before you hear the flapper fall into place. Saving rest of parts just in case they are needed next time.Thanks to everyone who wrote in to show how easy it would be. No telling how much a repairman would have charged me.
|
2 of 3 people found this instruction helpful
Parts Used
Level of DifficultyEasy
Time to do repair:Less than 15 mins
ToolsScrew drivers
Customerjoe from raleigh NC
Ice despenser door would stick open and frost up to the point of of ice not coming out
after finding the video describing the same problem, i gave it a shot. Major problem was figuring out how to take outside trim off of the ice/water dispenser. Everything i tried did not work like the videos i had seen. Looking thru some of the posted blogs i found another way to get behind the control panel without even taking off the trim piece. i pressed a 1/8th allen wrench into the two outer holes on the bottom of the control panel which released the panel to pull out from the bottom. after that it was simple to release the three plugs from the circuit board and remove the control panel. 4 phi lips screws later the ice chute comes straight out revealing the flapper door which is held in by 2 more screws. once that assembly is out the solenoid is held by three more screws. there was nothing difficult at all about this repair once the secret was out about the first step about the three holes (use only the outer two) in the bottom of the control panel
|
2 of 3 people found this instruction helpful
Parts Used
Level of DifficultyEasy
Time to do repair:30 - 60 mins
ToolsScrew drivers
CustomerJames from Milford NH
Flapper movement both directions
Replacing was easy. Cleaning took the longest. Order screws with parts, I could not find them at the hardware store. I suggest a coat of oil (3 in one) on the solenoid/piston surfaces. I probably did not have to replace them. The rust was inhibiting the piston movement. Some steel wool and oil would have probably fixed it. If the flap closing starts sounding softer, I'm going to take it apart and clean it first.
|
2 of 3 people found this instruction helpful
Parts Used
Level of DifficultyEasy
Time to do repair:30 - 60 mins
ToolsScrew drivers
CustomerJoe from Kennesaw GA
Ice maker door leaking air causing inside to ice up.
THE ALLAN WRENCH PUSHES INTO THE HOLES NDER THE FRONT CONTROL PLATE AND IT POPS OFF. UNPLUG THE WIRES AND SET ASIDE. FOUR SCREWS REMOVES THE NEXT PIECE AND THE "FLAPER" DOOR IS VISABLE.
|
