PartSelect Number PS418132
This motor has a double shaft.
This part works with the following brands: Frigidaire, Gibson, Kelvinator, Kenmore, Tappan & White-Westinghouse.
This part fixes the following symptoms:
The motor bearings had stiffened up – classic planned obsolescence. I could tell the motor was bad, because when I tried to spin the drum by hand, it wouldn't turn in any direction. (Normally it can turn fairly easily.)(Helpful hint: As you remove screws / parts, place them in a plastic baggie, and write on the baggie from whence they came. This is especially helpful if you have to order parts and then wait a few days for them to arrive.)You can replace the starter motor without removing the drum, but it is easier if you do remove the drum. Plus, I decided to also replace the drum belt, since it was 9 years old and is a wear part. UNPLUG THE DRYER BEFORE YOU BEGIN.1. Pop off the top cover; it has two spring clips at the front, then it hinges up. Disconnect the green grounding wire at the back, then slip the cover off the hinges and set it aside.2. Remove the front panel: a. Looking down into the dryer, disconnect the electrical harnesses that go between the front controls and the body. You may have to cut a nylon cable tie to access one or more. (Note that they have shapes that won't allow you to mix them up later). Also, there are two wires that attach to connectors in the top middle of the dryer, which are difficult to get at; you may need a needle nose pliers to pull them. Remember their color-coding for reinstallation. b. Remove the two phillips screws located about 8 inches from the top, on either side, inside the body, that hold the front panel in place. c. The front panel is now held in place by spring clips. Pry it gently to pop it loose. It will hinge out, then you can pull it up. Notice how the front piece has felt pads that serve to hold the front of the drum; you'll line it up the same way when it goes back together. Set the front panel aside.3. Remove the rear motor vent plate. a. It is at the back, lower right of the dryer (which is lower left once you're behind it). 2 phillips screws hold it in place. b. Now look inside to see the motor and belt. Memorize how the belt feeds around the motor pulley and the larger, white plastic tensioner pulley. Notice how the rear motor bearing sits in a half-round metal plate, held down by a spring clip. (Make a drawing if you like.) c. Move the spring- loaded tensioner arm to take tension off the belt, then slip the belt off the motor pulley. d. Notice that the tensioner pulley, arm and spring are all held in place by the spring. Note that the tensioner pulley can slip off its shaft. Note these things for when you put it all back together later. e. Now undo the tensioner arm spring and remove the arm, pulley and spring. Set them aside.4. Remove the drum: a. There is a yellowish plastic block at the top front of the open dryer body that holds the drum. Take it out with a phillips screwdriver. b. Slip the now un-tensioned belt off the drum, to the back, so it hangs over the heater element body. You can leave it there for now, so you don't forget to install it before you put everything back together. If you're going to replace the belt, now is a good time to do so. (Check the length of the new belt against the old one, to make sure they're the same.) c. Now you can remove the drum. It uses a center ball in a socket joint at the back to hold it in place. Use a screwdriver to lever upward on the back of the drum. This will pop the ball up, and then you can pull the drum out from the front.5. Clean it up. Now is a very good time to vacuum out any lint in the fan area, inside the dryer body, etc. Also consider removing the lint trap assembly from the dryer front ( 2 phillips screws) and vacuuming it out as well.6. Remove the motor. a. First, remove the fan that's attached to the front of the motor. Use a socket (7/8", I think) to unscrew the fan from the front of the motor shaft. IMPORTANT: The fan has a plastic hex nut sh
Help other customers find the most helpful instructions.
Were these instructions helpful?
took off back vent panel, removed belt from idler pulley. tried motor again to see if it would work under no load. motor was not seized just would not run. concluded it was the motor. I removed the 2 mounting screws from the back of motor area. from there removed top of dryer and bolts for the front door panel. propped open the door panel to get to the fan housing and 2 front motor mount screws. disconnect the fan wires. pull out fan and motor assembly from front of dryer. I used a medium sized locking wrench behind the pulley and then mounted the wrench (attached behind the pulley in a vise) from there I was able to use a socket to take off the plastic nut at the end of the fan. Notice that it is a reverse thread so don't strip it. dismount motor from bracket and reasmble with new motor. all the steps in reverse. Since the motor was out it just made sense to replaced the belt at this time. took about 45 minutes to disassemble and just over an hour to get it all back together. Make sure you clean out the lint box from inside the dryer.. over the years it will accumulate a lot of nasty dust bunnies. check that all the surfaces are clear of dust and the back of the vent pipe to..
had to remove the belt and drum and then remove the motor and replace it...put the belt on and then the hard part was to get the drum in place without the belt coming off. New Motor works quieter than the old one did, so I assume the dryer came with a defective motor to begin with and then the shaft finally broke. It runs very quiet now, but never did before. Even a service man came when it was new but said that was normal. Now we know it was not....there was a problem from the start.
my motor was making noise i tried to replace the motor but could not get the blower wheel off the motor so i had to buy a blower and housing assy. also... now it works great...
Waited only 2 days for part. That was with REGULAR delivery. It usually takes weeks to get out to REMOTE northern Minnesota. Unstacked the dryer took off the top. 2 screws to open front. Pulled 3 drum mounting screws. Pulled the drum. Removed the pivot. Cleaned (blowed and vacuumed everywhere). Cleaned the pivot receptacle. Relubed the pivot with high temp lube. Removed 2 motor assy mounting screws. Screwed off the squirrel cage. Swapped the motor. Remounted new motor assy. Looped belt over drum. Remounted the drum. Closed the front. Closed the top. Opened the belt access plate on the rear. Looped new belt over the tensioner. Closed the access plate. Restacked dryer. Turned it on. Sounds like brand new. Less than 2 hours. Saved more than $800. More than I generally make an hour! Actually I saved a lot more than $800 because I probably would have had to buy both the washer and dryer stack so it could have been around $2500. Everything I ordered arrived in 1 box and all parts are right! Now in my spare time I need to replace the bearings on the old motor and I'll be ready for the next time, in another 10 years!

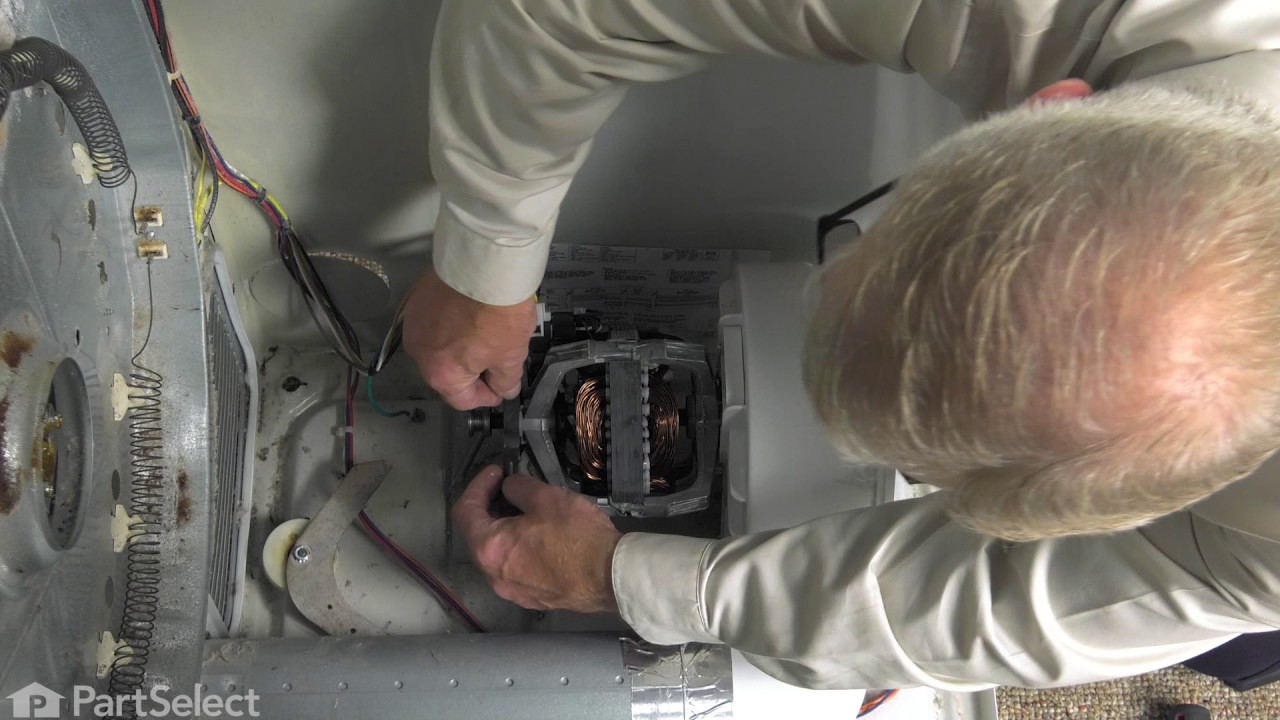

Motor replacement requires removing/releasing the top and front of the dryer, then removing the drum through the front of the dryer. The top is hinged at the rear and the front can be pried up. The front is held by two sheet metal screws that are accessible once the top is lifted up. Three screws hold the drum to the bearing at the rear of the drum. A small access door on the rear panel allows removal of the idler arm and its spring. You will need a socket drive with a short extension to remove the fan assembly from the motor at the front of the dryer, and it has a LEFT-HAND thread. The most difficult part of the replacement, once you figure out how to access everything, is getting the drum re-attached to the bearing at the rear of the drum. It can be hard to align the three screws, and once you have that done they need to be carefully tightened a few times after rotating the drum a few cycles, to get all the play out. Once the motor was replaced the dryer works like new.
first turn off breaker and unplug dryer !!! popped open top of cabinet pushing in on 2 clips with butter knife then removed the front panel,2 phillips screws then pull out on top until 2 spring clips pop out, remove 2 wires from door switch move to side. remove motor access panel lower rear 2 phillips screws. unplug wire clip from motor, push belt tensioner to right,undo belt from motor pulley and tensioner , then undo 1 snap clip from cradle holding motor go to front of dryer remove 2 phillips screws from blower houseing to base. unscrew senser from front of houseing then carefully lift slightly on front of drum and pull blower houseing and motor out as one. hold motor shaft still and unscrew blower wheel from motor shaft, install new motor do not overtighten blower fan you will break it slide belt off drum put new belt on makeing sure grooves are against the drum. slide motor assembly back in put motor back in cradle in rear and reinstall clip, screw down blower assembly in front, reinstall belt on motor pully and tensioner and clip wires back on motor. put front panel back on making sure not to damage felt on front of drum, rotate drum by hand several full turns clockwise to make sure belt tracks properly, reinstall wires on door switch and all screws and rear cover plug in turn breaker back on and test
