PartSelect Number PS11741912
These brackets support each side of the tub. Order quantity needed.
This part works with the following brands: Whirlpool, Admiral, Estate, Inglis, Kenmore, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood.
This part fixes the following symptoms:
1) Removed lower panel2) Removed door3) Removed Front Panel - removed connectors from switch and marked connections4) Removed Front Bulkhead5) Glides and Felt pads were missing, and brackets were nearly worn through6) Removed and Replaced old brackets7) Attached self-adhesive felt pads8) Attached Drum Glides9) Removed old felt seal10) Glued new felt seal in place with 5-min epoxy11) Allowed Epoxy to set and stop stinking12) Re-attached front bulkhead13) Re-attached remaining partsDryer works great, is quiet again, and no longer eats clothes!!!!!!
Help other customers find the most helpful instructions.
Were these instructions helpful?
First, leaned dryer back and removed 2 screws at bottom front panel.Then removed 2 screws at bottom of door assembly. Pulled bottom door assembly forward and down.Disconnected "can't go wrong" wiring connectors.Then removed old cylinder glide rivets at bottom of cylinder using drill motor with 1/4" drill.I installed new felt pads on new cylinder glides. Then installed glides with rivet gun.Reconnected wire harness.Installed door assembly and lower panel assembly.BACK IN BUSINESS! THANK YOU!!!!!!!!!!
First had to remove the front panel after lifting the top up on its hinges and supporting it. Diconnected wires to the front panel after marking them where they go. Saw where drum was rubbing above the impeller housing for the fan. Removed the drum slides and replaced them with new slides and brackets. Removed the belt and replaced it. It is a little tricky with the belt on the tensioner so pay close attention on how you remove it, it will make putting the new one on easier.Replaced the felt gasket with high temp glue. Cleaned inside and outside of cabinet. Put the panel back on,hooked up the wires and it looks and runs like new again.
After removing the front of the dryer, I took out the front assembly where the seal and glide brackets attatch. I replaced the bad cylinder glide by drilling the old rivets out and re-riveting the new glide in place from the back side. I then replaced the felt pads and glides on the glide brackets and glued a new cylinder seal around the front assembly. I reccomend having 4 hands for placing the cylinder seal around the assembly with fresh glue.
1. I removed the lower front panel.2. Carful remove the front door making not of which wires whent were of the switch3. Removed the front bulkhead.4. Drilled out the rivits that held the bracket in place.5 Use a pop rivit gun and 1/8 in pop rivit and washer.6 Installed the felt pad and the drum guide. 7 Put the whole thing back together.I love your web site the exploded diagrams make fixing my dryer quite easy. I do it. so for under $50 my dryer is almost like new.
My son n law took the fron off the dryer, whilw I looked on the inertnet to locate whatever part we would find to be in need of. He pulled the front panel off and the drum out to dicover it was the bracket and glide. They were easily replaced by popping the bracket out and snapping th new one in then placing the guide on it proper spot.
I started at the bottom and removed the two nut screws that support the bottom section of the front of the dryer. Then I removed the two nut screws that supports the next section and disconnected the two wires ( making note of wich terminals each wire went to). Then I removed the lint trap housing( three phillips head screws hold it in place from the inside). Next ,I removed the face plate( held in place by 4 nut screws and two metal tabs at the bottom). Then I took the old tub brackets and felt seal off of the face plate . Next ,spray adheisive arond the ring of the face plate and install the new felt seal, then the new brackets and dryer glides and felt pads. Last, re-install all components.
First of all I think this was an assembly issue, cause it was a bit noisy since we bought it, but I dismissed it as a break in noise & it would go away over time, but of course it just got worst ontil it failed.... Anyway 1st thing I did was, stick a standard screwdriver between the top & front, to pop the top off, then used a socket wrench set to remove the 2 screws for the front panel assembly, ( **taking note were what color wire connectors went were 3 for switch "y,g,b" & 2 for light "yb & g"), then used socket wrench set to remove 4 screws for the front bulkhead, ( upon removal I now understood what the noise was all about, the lip of the drum was rubbing against the bulkhead & both cylinder glide brackets, wearing the drum lip & cylinder glide brackets, down to shards of metal, rasor sharp, Both brackets were wore in half & bulkhead damaged ), then I removed the shards from the drum & used the hamer to dull & round a smaller drum lip, then I removed lint trap holder from bulkhead, ( since I had it apart I took it outside & cleaned it with my power jet hose attachment ), then I removed missalined & Damaged cylinder seal, srcapped bulkhead clean with standard screwdriver, applide goop glue to bulkhead & new cylinder seal, then applide new seal & let dry overnite, in the mean time I removed both damaged (the other half), cylinder glide brackets, used the old gliders & pads, ( they were not damaged, " LIKE NEW"???), attached them to the new bracket, then attached the 2 cylinder bracket assemblies to the bulkhead, then I used metal tape (several layers on both sides of bulkhead) to fix the damage caused by the old missalined seal & drum lip.... Then I re-assmembled lint trap holder to bulkhead, & re-assembled bulkhead to dryer, then attached the front, ( see above**), then popped the top into place... Now we have a GOOD QUIET dryer
The repair would have went much better if the pads came with the two new brackets I bought. I had to use the old one after having the whole dryer apart. You should be more specific that they were not included.

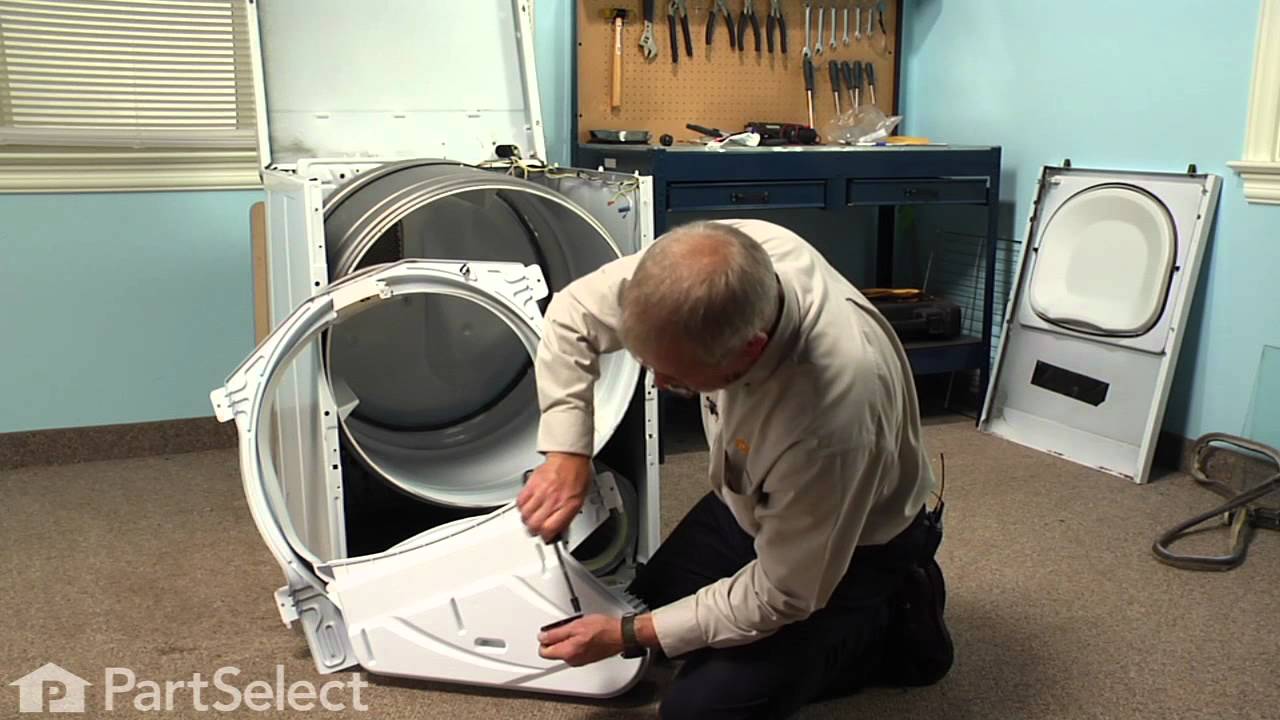

The on-line video showed the dryer top being loosened from the front as the first step. On our dryer, the bottom panel in the front needed to be removed first - two screws, then the front panel(with door)- two more screws and two wires for the switch. Next was the front guide panel - four screws. The glide brackets bolted to this panel and the felt seal was glued to it. Reverse the process to put it all together, and my wife was happy again.
lift top of dryer up.took 2 bolts to take front of dryer off. 4 more bolts replace the parts put back together and your done .Easy as pie 30 mins tops...
Very easy repair. I took off the bottom fromt panel with a nut driver. Then I took off the face/door panel. Take note of the wires that need to come off by marking them with a sharpie or tape. The top of the dryer can be stood up to allow access to the ductwork that has the felt pad on it. The felt pad was worn through in spots, the drum glide was completely gone and both cylinder glide brackets were almost completely worn through. I just replaced the brackets and the pads. The old felt came off fairly easily. I scraped the old glue for the felt off with a knife and cleaned and dried the surface before applying the hi temp adhesive. I waited 1 minute while the glue became tacky (be careful, the glue starts out thin and tends to run) and the felt pad was easily put back in place with my wife's help. Everything was very simple and it cost $87.00 for parts and shipping. I felt that this should be a good investment since I have had no other problems with this dryer and this is normal wear and tear. Better than paying $600+ for a new dryer. The video for changing the felt pad was very detailed and easy to follow as well.
Thanks to this website we were able to not only find the parts, but a video that told us how to take the dryer apart. Unfortunately, between the time we diagnosed the problem, ordered the parts, and they arrived, the drum had worn into the front bulkhead. We were able to file the sharp parts dull and install the brackets, felt pads, and drum glides along with the felt seal, but ended up breaking the dryer door switch. Once that came in, it has been working. I'm not sure how long the repair will last, but it was much better than buying a new one.
disassembled found bunch of worn out parts . I went to website wich was very helpful found all . my worn out parts online. dryer is very quiet now I wish i would have done it sooner.P.S. going to fix my dads dryer next. thank you
