Sample Model Number Tags
Model numbers can be made up of numbers (1005400, for example) or a combination of letters and numbers (LAT1000AAE). The model number will most likely appear on either a paper sticker or a metal plate. Your appliance's model number tag may look similar to the sample model number tags shown here (model number highlighted in yellow):

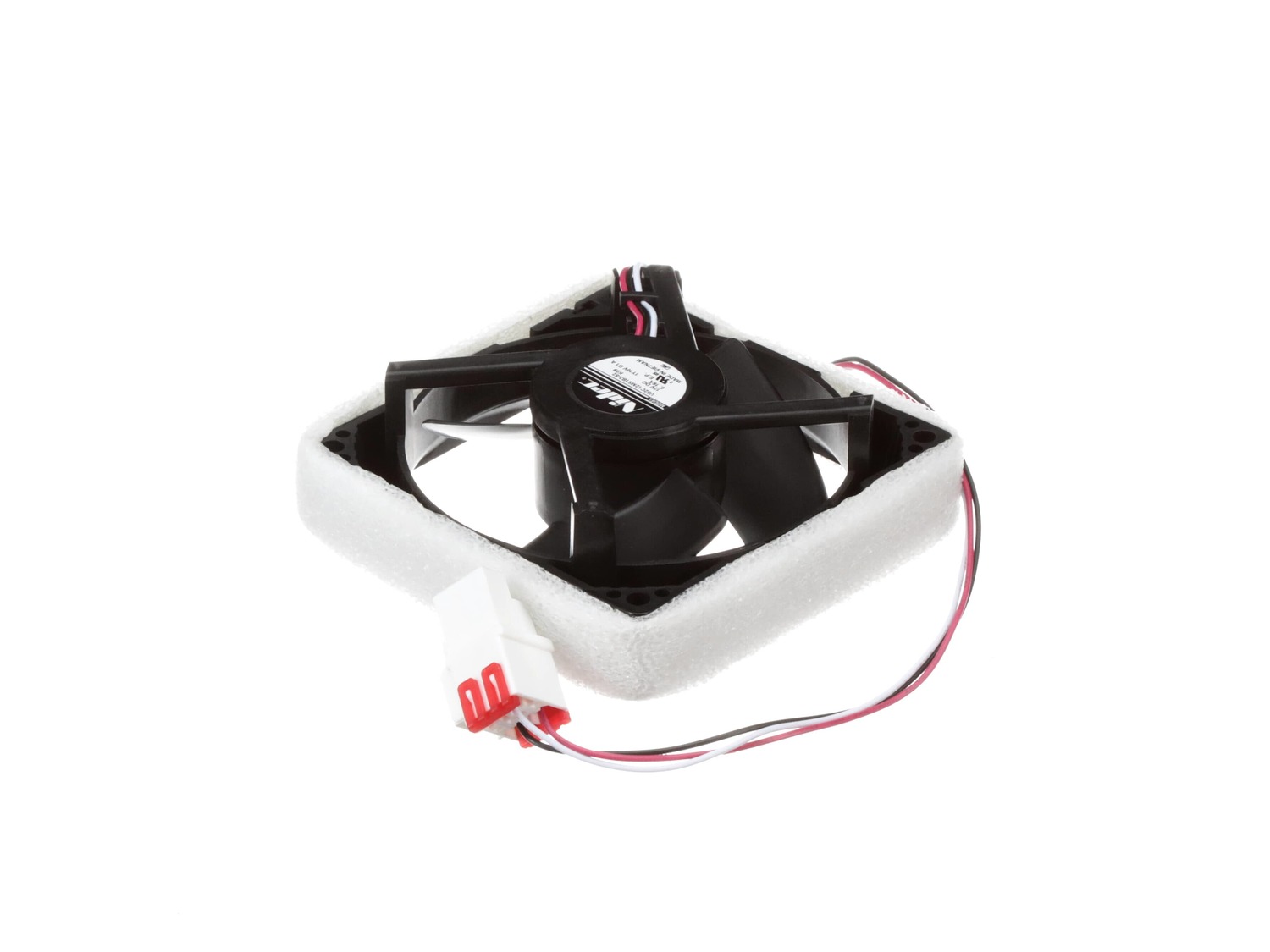

This is an evaporator fan motor for a wide range of Samsung refrigerators. Evaporator fans pull warm air through evaporator coils to cool and maintain the internal temperature of the refrigerator. If the evaporator fan motor in your refrigerator is not working properly, your fridge will not cool properly and may even prevent the ice maker and water dispenser from working, and it will ultimately need to be replaced. This OEM evaporator fan motor measures approximately 4 inches long by 4 inches wide and will need a screwdriver and needle nose pliers to be removed and installed.
How Buying OEM Parts Can Save You Time and Money
Why buy the real thing?
OEM stands for Original Equipment Manufacturer. Simply put, this means that the company who made your appliance is also supplying the replacement part for it.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
DANIEL P - July 31, 2018
Verified Purchase
Not difficult to replace, once you have it out....that is!
The main challenge with replacing this fan is less the replacement of the part than the fact that if you are experiencing the fridge temperature malfunction usually associated with this part, it means there will be ice all over the coil and fan. Before you can actually reach the it, the ice needs to be melted using a hot air blower.
★★★★★
★★★★★
Christine O - July 31, 2018
Verified Purchase
Fast delivery
When initially shopping for this part, this site was more expensive than others, so I ordered the (in stock) part overnight from there; who wouldn't want to save $50? Well, I waited 4 days, still hadn't received it and called. They assured me it'd be there within two days. That didn't happen, so I called again. This nonsense carried on for 3 WEEKS before I ordered from here. Three weeks without a refrigerator, living out of a cooler, and replacing ice regularly, is a LONG time. I got the part overnight, less than 24 hours from ordering from PartSelect, and promptly cancelled my order from the other site.
They sent the part a week after I cancelled my order, with overnight shipping, and now consider the order fulfilled. They're still making it extremely difficult to get a refund. I would order from here again in a heartbeat; it may be more expensive, but I spent more than what I saved on ice while waiting for the discounted part from the other site.
★★★★★
★★★★★
Teresa S - September 9, 2021
Verified Purchase
Easy repair
I ordered the evaporator fan for my Samsung fridge...it arrived earlier than expected, was easy to install and is running w/o any issues after the install. After reading mixed reviews on other companies and then consistent positive reviews on parts select- made the decision to go with parts select easy! I'm very pleased with the purchase.
★★★★★
★★★★★
Rosie P - April 16, 2019
Verified Purchase
By far the easiest purchase!
I'm not a tech or gadget person. I was scared of ordering the wrong part for my broken fridge. This website help guide me to ordering the correct part! Our refrigerator is working like a charm! Would have spent $400 with Samsung repairman. I ordered the part and paid a local handyman $60 to install it! Best money I ever spent!
★★★★★
★★★★★
Doris B - April 15, 2021
Verified Purchase
Easy repair the part was an exact fit.
Received the part quickly and without shipping damage
★★★★★
★★★★★
Julie E - April 21, 2021
Verified Purchase
Great service
Part arrived quickly and was correct highly recommend!
< Prev
1
Next >
Customer Repair Stories
Average Repair Rating: 3.3 / 5.0, 1 reviews.
What's this?
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Main refrigerator was not cooling down adequately.
I looked up a YouTube video and it gave pretty well laid out instructions on how to replace the Twin fan assembly in the main compartment. There was also a suspicion that the sensor wasn't working properly and the fan had ice on it. Once I removed the main housing at the back of the inside of refrigerator it was relatively easy
... Read moreto replace the fan motor, and sensor. You have to follow the disassemble procedure closely in getting the main housing out. You have to remove the clear plate covering the water filter. Then remove the bottom shelf, which then gives you access to the large white back panel. After that its easy to replace the motor and sensor.
Ask our experts a question about this part and we'll get back to you as soon as possible!
7 questions answered by our experts.
Sort by:
< Prev
1
Next >
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Matt Mcgrath
May 4, 2018
Can you please tell me how to access the a/s assembly motor fan ;rf h9 on a Samsung refrigerator mod #rf30hdedtsr. Thank you matt. Cell #516 578 8167
For model number RF30HDEDTSR
Hello Matt, thank you for your question. To get at this motor, the back panel of the fridge will have to be removed. There might be a couple of panels (top and bottom perhaps) that have to be removed. They may be held in place with some screws, then tabs that connect it into the other panel. The motor is going to be mounted into the back panel cover, so when you remove the panel, be sure to be careful of any wires that connect into the motor. You don't want to pull too hard and break the wires. I hope this helps!
6 people found this helpful.
Was this helpful?
Thank you for voting!
Bill
June 28, 2022
I THINK I need an evaporator fan as it is the unit that shuts of when the refrigerator section is opened. Most of what I have mentions a location in the freezer section however this definitely sounds like it is located above the freezer in the main refrigerator section. Does this part come with basic directions?
For model number RF28JBEDBSG/AA 02
Hello Bill, thank you for your question. The Refrigerator Evaporator Fan is PS4138377. We do not currently have a video for this fan motor but we have one for a similar motor. Please see the link below. Hope this helps! https://www.youtube.com/watch?v=d5EzKao5QCU&t=569s. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Debbie
September 9, 2021
I have a Samsung refrigerator model RF28HMEDBBC/AA. Your website shows 2 different options for a evaporator fan motor. Can you tell me which one I need?
For model number RF28HMEDBBC
Hello Debbie, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is Part #: PS4138377 for the Evaporator Fan Motor in the Freezer Section and PartSelect Number PS9603956 for the Evaporator Fan Motor in the Fresh Food Section. We hope this helps!
My refrigerator is making a loud noise coming from the back upper corner. Sounds like a fan blade I’d hitting on something. Shuts off as soon as you open either refrigerator door. Is this the refrigerator evaporator motor?
For model number RF28HMEDBSR
Hello Mark, thank you for writing. It is most likely your circulation fan in the freezer. Normally the fan stops when you open the door. It is a normal operation. Check to make sure that the fan is not blocked by frozen items or that the fan doesn't have an ice build up. The Refrigerator Evaporator Fan Motor is PartSelect Number PS9603956. Good luck and have a great day.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Beverly
April 6, 2023
There is a noise (sounds like a fan running) that stops when I open the freezer door. It continues when I open the refrigerator doors.
What part do I need to replace and how do I access it?
For model number RF25HMEDBSG/AA
Hello Beverly, Thank you for your inquiry. The freezer evaporator fan behind the rear panel is actually designed to stop when you open the freezer door to prevent the cold air from blowing out of the freezer. As long as it starts back up when you close the freezer door or press the door switch, then it is working properly. We hope this helps.
My refrigerator has not been cooling properly. Temperatures go up to 56° and down to 40° and back. Similar in freezer from 3° to 12°. Both are set to 36° and -2°. I have replaced the evap fan and the temp sensor in the fridge compartment and nothing has changed. What do I do now? This unit is approximately 6 years old.
For model number RF18HFENBSR
Hi Jared, thank you for contacting us. Based on our understanding, the issue you are facing is because of the control board, part number PS11700790. It manages the functions of the refrigerator such as cooling and defrost times. We would recommend replacing the control board to fix the issue. We hope this helps, good luck with this repair!
noise coming from bottom freezer section, sounds like from the back of fridge. already checked condenser motor in fridge pulled rear inside panel not making any noise. could it be the freezer fan motor or fan in back of fridge. already cleaned coils from bottom back panel. any info would help ty
For model number rf263beaeww/aa 07
Hello Robert, thank you for getting in touch. Based on our research, the possible solution to this issue is to replace the evaporator fan motor, part number PS9603956. If that does not help, we would recommend replacing the compressor, part number PS4251222. If you require assistance to place an order, please contact customer service. We hope that helps!
