GE/GE_Thumb/00008689i04.gif
See part 201 in the diagram
Replacing your General Electric Dryer Blower Wheel play video
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 10PM EST

customerservice@partselect.com

Blower Wheel

★★★★★
★★★★★
1 Review
$46.98   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS960003
Manufacturer Part Number WE16M15
Manufactured by GE
Product Description

Blower Wheel Specifications

This wheel attaches to the motor.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Noisy
This part works with the following products:
Dryer.
This part works with the following products:
General Electric, Hotpoint, Kenmore, RCA.
Part# WE16M15 replaces these:
AP3794635, 1089096, WE16X0017, WE16X0027, WE16X0030, WE16X17, WE16X27, WE16X30, WE1X306
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

3 questions answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Rick
    November 13, 2018
    My dryer is making a noise when the drum is rotated, it sounded like gear teeth rubbing on something. I removed the front of the dryer and found the plastic blower impeller was rubbing against the front of the blower housing. I pushed it backward and thought it might be fixed. Reassembled the dryer, but the 3rd time running it, the sound returned. What do i need to do to keep the blower wheel/impeller far enough back in the housing so that it does not rub the front of the dryer?
    Hello Rick, Thank you for the question. It sounds like you are missing the Clamp and screw that holds the blower wheel in place, PartSelect Number PS267026. Hope this helps, good luck with this repair!

    2 people found this helpful.

    Was this helpful?
    Thank you for voting!
    Related Parts:
    David
    July 30, 2018
    I just purchased a home that was 12 years old. The dryer drum and heater ran , but no exhaust air flow. The clothes got wet from heat and condensation. Could a broken/damaged or worn out impeller be the problem? I have not disassembled yet?
    For model number DPSF495EWOWW
    Hi David, Thank you for your question. Normally the moisture in a dryer is filtered out through the exhaust system. If your clothes are not drying and there is moisture in your dryer after a load of laundry has gone through, then there may be an obstruction in the dryer preventing the clothes from drying properly. You will need to check the exhaust system for lint build-up or any other type of obstruction to see what is causing the issue. I hope this helps. Thank you and have a great day!

    1 person found this helpful.

    Was this helpful?
    Thank you for voting!
    John
    November 9, 2019
    Does partselect number ps960003 cause a squeaking noise about once per second when it needs to be replaced. Other than this regular squeak the dryer works fine, so I don’t think the motor is bad.
    For model number DBXR453GV0WW
    Hello John, Thank you for the question. If the center hole for the shaft is worn it can cause a squeaking noise. I suggest checking for wear or damage. Hope this helps!

    Was this helpful?
    Thank you for voting!
      Part Videos

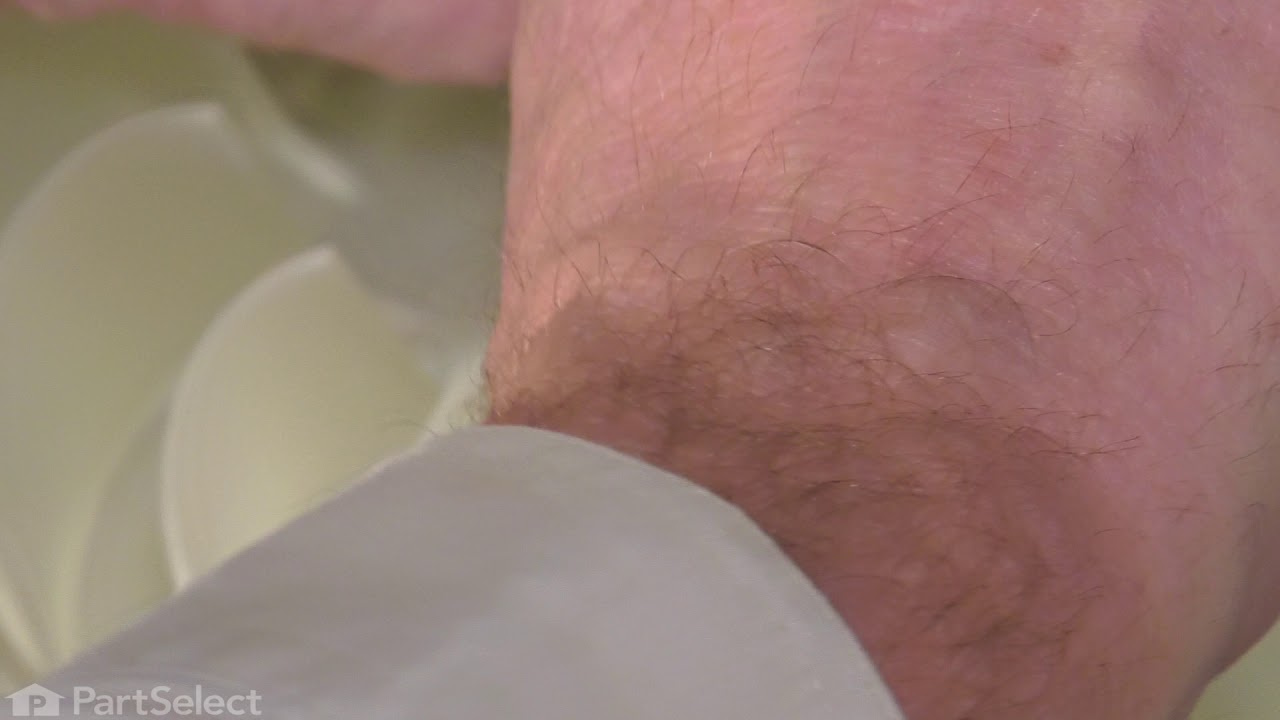

      Replacing your General Electric Dryer Blower Wheel

      Replacing your General Electric Dryer Blower Wheel play video
      Customer Repair Stories
       Average Repair Rating: 2.5 / 5.0, 2 reviews. What's this?
        Sort by:
        Sorry, we couldn't find any existing installation instruction that matched.
        Blower wheel shaft hole was rounded out, lamp was out
        Removed two screws on dryer top and removed top, removed two screws holding front of cabinet and removed cabinet front to the side, disconnected wires to door switch, removed two bolts from motor mount bracket, pulled motor back to access blower wheel, removed old wheel and installed new one, reversed steps, unscrewed old light bulb and screwed in new one.

        Had pure hell getting to drum belt and putting it back onto motor pulley and idler, cussed a little, didn't really help . replaced front of cabinet and top, did test run all worked ok.

        This job was a little difficult, espicially accessing the belt and idler pulley...
        • Edwin from Eagar, AZ
        • Difficulty Level:
          Difficult
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Nutdriver, Pliers, Screw drivers, Socket set
        • Parts Used:
          WE4M305, WE16M15
        28 of 56 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
        drive belt broke
        I unplugged the machine, then unscrewed two screws that hold the top and front together, and lifted off the front door. When I pulled the drum out through the front, the belt came out broken. It was the original, so this is not a surprise. I ALWAYS take this dryer apart once a year to vacuum it out, clean all the ducts and fan, and check everything. This dryer is fifteen years old, and has survived three teenage daughters with their laundry. This time I noticed that the sliders on the front door were worn, blower wheel was loose, and rear bearing was loose,so I ordered everything. The parts came in three days. By then, you could no longer see the basement floor with piles of laundry and Friday night dates looming. I had everything replaced and working in under an hour, after which there was a conflict over who gets to use it first. Hey, I only fixed it, then I walked away. So, for 140 bucks, I have now replaced virtually every critical part, and with no rust, this thing will last as long as these guys have parts. I'm happy, my daughters are happy, and that means the wife is happy. And we all know what that means...
        • Brian from Yarmouth, MA
        • Difficulty Level:
          A Bit Difficult
        • Total Repair Time:
          30 - 60 mins
        • Tools:
          Nutdriver, Screw drivers, Wrench (Adjustable)
        26 of 47 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
          Customer Reviews
          Average Rating:
          ★★★★★
          ★★★★★
          1 Review
          4.0
          Filter By Rating:
          • 5 Stars
            0
          • 4 Stars
            1
          • 3 Stars
            0
          • 2 Stars
            0
          • 1 Star
            0
            Sort by:
            Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
              Model Cross Reference
              This part works with the following models:
              PartSelect Number: PS960003
              Manufacturer Part Number: WE16M15
              Brand
              Model Number
              Description
              Kenmore
              363DDE8109VML
              Dryer
              Kenmore
              363DDE8200GAL
              Dryer
              Kenmore
              363DDE8509RCMA
              Dryer - Kenmore Dryer Model 363.DDE8509RCMA (363DDE8509RCMA, 363 DDE8509RCMA) Parts
              Kenmore
              363DDE8509RCMAA
              Dryer
              Kenmore
              363DDE8509RCMW
              Dryer - Kenmore Dryer Model 363.DDE8509RCMW (363DDE8509RCMW, 363 DDE8509RCMW) Parts
              Kenmore
              363DDE8509RCMWW
              Dryer
              Kenmore
              363DDE9200GAL
              Dryer
              Kenmore
              363DDE9600RCMA
              Dryer - Kenmore Dryer Model 363.DDE9600RCMA (363DDE9600RCMA, 363 DDE9600RCMA) Parts
              Kenmore
              363DDE9600RCMAA
              Dryer
              General Electric
              61140418
              Dryer
              General Electric
              61140419
              Dryer
              General Electric
              61148418
              Dryer
              General Electric
              61148419
              Dryer
              General Electric
              62140418
              Dryer
              General Electric
              62140419
              Dryer
              General Electric
              62148418
              Dryer
              General Electric
              62148419
              Dryer
              General Electric
              62160T3WB
              Dryer
              General Electric
              62160T5WB
              Dryer
              General Electric
              62180419
              Dryer
              General Electric
              62188419
              Dryer
              General Electric
              62190419
              Dryer
              General Electric
              62190429
              Dryer
              General Electric
              62190439
              Dryer
              General Electric
              62190449
              Dryer
              General Electric
              62190459
              Dryer
              General Electric
              62190479
              Dryer
              General Electric
              62198419
              Dryer
              General Electric
              62198429
              Dryer
              General Electric
              62198439
              Dryer
