Part Location Diagram of WE12X10009 GE Drum Belt
See part 1325 in the diagram
Replacing your General Electric Dryer Drum Belt
( Grid squares measure 1x1 inch )
Customer Service Representative

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

Drum Belt WE12X10009

★★★★★
★★★★★
3 Reviews

Rated by 7 customers

Easy

1- 2 hours

Ratings submitted by customers like you who bought this part.

$ 81.40
  In Stock

Get this part fast! Average delivery time for in-stock parts via standard shipping: 1.8 days.

PartSelect Number PS959964
Manufacturer Part Number WE12X10009
Manufactured by GE
Product Description

Drum Belt Specifications

Used to turn the drum.
How Buying OEM Parts Can Save You Time and Money

How Buying OEM Parts Can Save You Time and Money

Part Videos

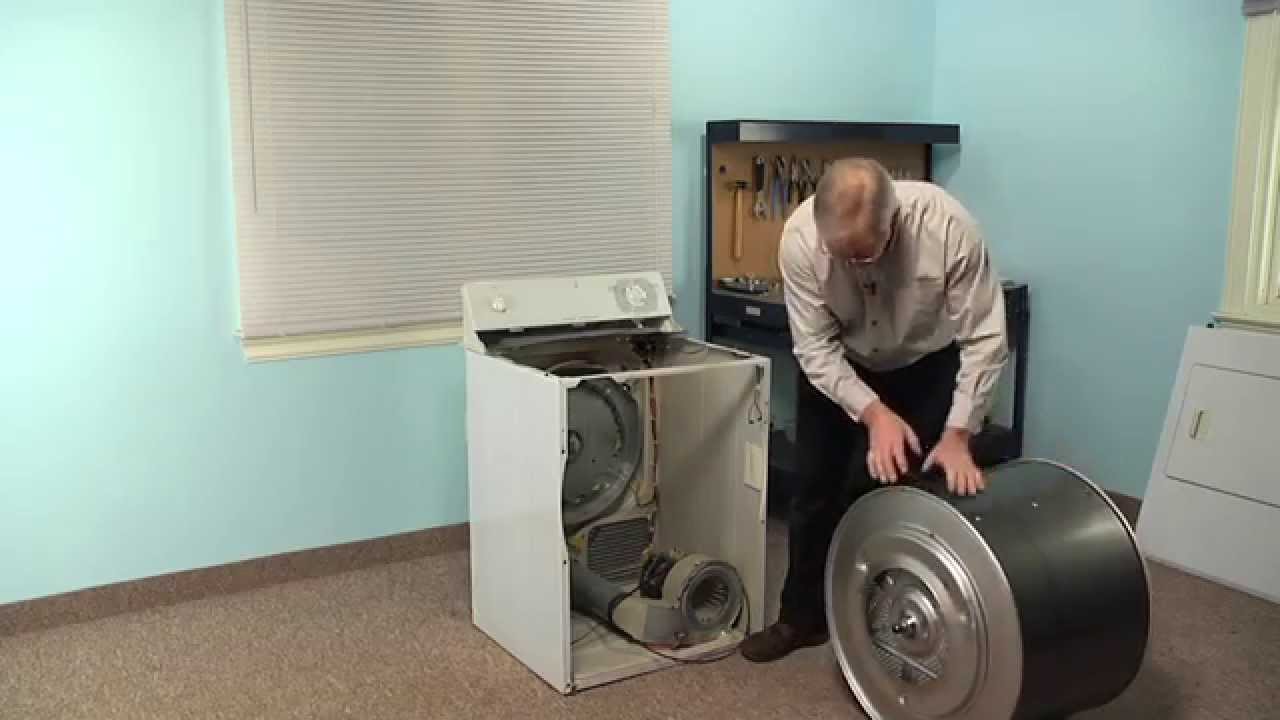

Replacing your General Electric Dryer Drum Belt

Replacing your General Electric Dryer Drum Belt
Troubleshooting
This part fixes the following symptoms:
Noisy
This part works with the following products:
Dryer, Washer Dryer Combo.
This part works with the following products:
General Electric, Hotpoint.
Part# WE12X10009 replaces these:
AP3204994, 1052895, WE12X0090, WE12X10001, WE12X10010, WE12X90
Back to Top
Customer Reviews
Average Rating:
★★★★★
★★★★★
3 Reviews
5.0
Filter By Rating:
  • 5 Stars
    3
  • 4 Stars
    0
  • 3 Stars
    0
  • 2 Stars
    0
  • 1 Star
    0
Sort by:
  • 1
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
  • 1
Customer Repair Stories
 Average Repair Rating: 2.8 / 5.0, 7 reviews. What's this?
Sort by:
  • 1
Sorry, we couldn't find any existing installation instruction that matched.
Rear bearing was broke
I like to fix , i have time and i just give me the chance to try , and i did it , i wish to pay less for the parts , but was a good feeling when the problem fixed
Other Parts Used:
Drum Belt Rear Bearing Shaft Support
  • Alonso from MONTGOMRY VLG, MD
  • Difficulty Level:
    Easy
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Screw drivers
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Two tips after you watch the videos (and video link)
Watch the videos for replacing the belt. The one by Kenmore is the most accurate even though it isn't GE -- the mechanisms are the same. Here is the link to the one I found most helpful: https://www.youtube.com/watch?v=G2wTmfurT5o

First: You don't need to pull the washer/dryer out at all. Leave it in place. You can put the belt around the drive shaft and get the tension pully in place by feel and inspect your work with a flasklight,

Second: There is absolutely no reason to spend $70 on a rubber belt. Other places sell it as cheaply as 10 dollars. Shop around -- the actual part is not at all impressive and should not be priced this high.
  • David from WASHINGTON, DC
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Screw drivers
4 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dryer was not working.
Removed front and top panals to dryer. Installed belt over the drum. opened back air vent panal and installed belt to pully. Reinstalled back top and front panals. Done.
  • Frank from Rochester, NY
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Screw drivers
9 of 13 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Dryer sounded like a stuck pig
I ordered the rear bearing kit from the local supplier here in Marsh Harbour, Abaco the Bahamas. Delivery for the kit was 3 to 4 weeks from my local supplier.NOT PARTSELECT.
While waiting I found this site and after reading the VERY helpful instructions from your customers, I realised that I would probably need additional parts, top and bottom front felt seals, maybe a new drive belt.
I ordered these online and had the parts deliverd to a friends address in West Palm Beach Florida. The parts arrived in about 2 days. My wife was already there and brought the parts back.

Installation was very straight forward. Read the other installation reports and you will not have a problem.
The only thing I can add is, DO NOT LOOSE THE SMALL BALL BEARING. I did and it took me about an hour to find it.
My suggestion is to do a dry run installation of the bracket WITH OUT the small ball bearing. Tape the backing plate?that keeps the ball breaing inplace to the outside of the back panel with duct tape so that the screw hole will line up. Once this is done put some grease (Supplied with the kit) in the hole on the nylon bracket and attach with the two screws, do not over tighten. Grease up the area where the rear bearing shaft support will sit.

Installation of the rear bearing shaft support was straight forward. This is on the dryer drum. Extra hands are must for this.

I was very pleased with Partselct.
Dryer works like new.
Other Parts Used:
Drum Belt Lower Felt Seal Top Drum Glide Kit
  • Christopher from Palm Beach Gardens, FL
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers
3 of 10 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Loud rhythmic squeaking
About a year ago I had to replace the front sliders. I had thought at the time that I should replace the belt and check the rear bearing, but I was in a hurry, and the wash was backing up, so I didn't do it. Oops. Within 6 months dryer started squeaking. Did I get around to pulling it out, and greasing rear bearing. Nope. Dbl oops.
Other Parts Used:
Drum Belt Rear Bearing
  • Mark from San Diego, CA
  • Difficulty Level:
    Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver, Screw drivers, Wrench (Adjustable)
44 of 53 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Loud noise & clothes hanging in drum.
1. Remove power cord from wall outlet. Unlatched the top lid of the dryer by pushing a flat screwdriver under the R & L sides where a metal clip on each side holds the top down.
2. Removed the yellow clip screwed onto the top frame.
3. Removed the front frame of the dryer by unscrewing the two screws holding the front frame on – one on either side.
4. Mark w/ an (x) on same side of alignment for the 2 wiring connectors before separating them.
5. Removed the front panel by tilting it forward & lifted to unlatch it from the 2 clips at the bottom of dryer.
6. Unwound the belt encircling the drum by releasing the tension between the tensioner roller & drive pulley. (Its better to remove back access panel at this time & do this at the back since I found it necessary to do this anyway when re-installing the new belt).
7. W/ lifting motion, pulled the drum out from the plastic holder attached to the back of the dryer frame. Guided & completely removed the drum out of the dryer.
8. Unscrewed the 3 screws holding the old big bearing to the back of the drum.
8. Unscrewed the 2 screws & removed the plastic that had held the bearing at back of the frame.
8. Installed the new bearing by screwing it to the back of the drum with 3 screws. Be careful not to strip screws. Used help to hold new bearing in place & aligned w/ screws.
9. From the front, installed the plastic holder to the back of the frame by 2 screws and put the ball bearing in-between holder & the metal strip retainer coming from the back of dryer.
10. Used the grease that came with the kit on the plastic holder & the big bearing at the back of the drum.
11. Replaced w/ new belt then re-inserted the drum back into the body of the dryer frame, w/ lifting motion, re-inserted the bearing into the plastic holder.
12. Putting the belt into the drive & tension pulleys through the back access panel was easy but could be very hard to do if coming from the front.
13. Had to replace the front panel's top felt w/ glides that holds the drum at the front w/ a new one. Really important to pay attention to where the plastic glides excess portion is facing (towards front panel), otherwise the front panel might not fit when you snap it back to place.
14. Removed old felt remnants w/ blade scraper & sandpaper. Used adhesive that came w/ kit. Once tacky, put the new felt w/ glides on & used clamps to hold it in place.
15. Waited for 2 hrs. (watched a movie) then re-installed front panel. Make sure that the drum (front) lid rides on top of the plastic glides.
16. Latched bottom of front panel to the metal clips. Replace the 2 screws back into place holding the front panel.
17. Snapped the wiring connectors in place where the (x) marks align.
18. Lowered the top panel & snapped it back into place
Note: All parts came w/ fast delivery & OEM fit - very satisfied! Took my time & on every chance I cleaned & vacuumed all areas of lint & dirt since the dryer hasn't been serviced for more than 10 years...
Other Parts Used:
Drum Belt Rear Bearing Kit Top Drum Glide Kit
  • Raul from Fountain, CO
  • Difficulty Level:
    Easy
  • Total Repair Time:
    More than 2 hours
  • Tools:
    Nutdriver, Screw drivers, Socket set
79 of 84 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
squeeling when on
Most time was spent on web looking for disassembly diagrams! But once I got it apart it was good. And I saved about $27.00 buying from this site! Putting together was easy, clamping down felt with glue on it so it would dry right and then putting front on with drum riding on the glid was the hardest. I also put synthetic grease on rear bearing. Fired it up after repair and my wife is back dring clothes again! Products were at my door 3 days after ordering at 11:30 pm at night!
Other Parts Used:
Drum Belt Rear Bearing Grounding Ball Top Drum Glide Kit
  • BRENT from ST.AUGUSTA, MN
  • Difficulty Level:
    Easy
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Nutdriver, Screw drivers
15 of 24 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

3 questions answered by our experts.
Sort by:
  • 1
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jared
December 3, 2017
My drier when it gets hot there is a sound kind of like the drum is scraping, I can give the back of the drier a hit and it goes away. Second, there is a loud squeal for the other sound. I do not know if the sounds are related in any form or if they are two different issues what do you think
For model number NVL333GY0WW
PartSelect logo
Hi Jared, Thank you for the question. There are a few parts you can check. You can see if the Top Drum Glide Kit, Part Number: PS264864 and the Lower Felt Seal, Part Number: PS268338 on the front of the drum are wore out and need to be replaced. Most cases this is the source of the squealing. The rubbing metal sounds would be coming from the Rear Bearing,PartSelect Number PS267556. Hope this helps!

3 people found this helpful.

Was this helpful?
Thank you for voting!
Afsar
May 1, 2018
My drier makes a clicking sound and then quits. Does it need a new belt? Is there a way to tell if the motor has failed? Thanks.
For model number DSXH43GV0WW
PartSelect logo
Hi Afsar, Thank you for your question. If the dryer is not working correctly, there are some parts that you will need to check to see which ones are causing the issue. You will need to check the belt, the timer and the start switch. I hope this helps. Thank you and have a great day!

Was this helpful?
Thank you for voting!
Oscar
August 23, 2022
Dryer belt keeps falling off, had it put back on twice, not sure if I need a new belt or something else?
For model number WSM2700DAWWW
PartSelect logo
Hello Oscar, thank you for your question. We have researched your model number and found that dryer belts slip if they are worn and stretched or if they are the wrong size. We recommend replacing it with compatible belt part number PS959964. Customer service is available 7 days a week if you require assistance placing an order. Glad to be of help!

Was this helpful?
Thank you for voting!
  • 1
You May Also Need ?
Model Cross Reference
This part works with the following models:
PartSelect Number: PS959964
Manufacturer Part Number: WE12X10009
Brand
Model Number
Description
General Electric
DBL333EA0AA
Dryer - Electric
General Electric
DBL333EA0CC
Dryer - Electric
General Electric
DBL333EA0WW
Dryer - Electric
General Electric
DBL333EA1CC
Dryer - Electric
General Electric
DBL333EA1WW
Dryer - Electric
General Electric
DBL333EB0CC
Dryer - Electric
General Electric
DBL333EB0WW
Dryer - Electric
General Electric
DBL333EB1CC
Dryer - Electric
General Electric
DBL333EB1WW
Dryer - Electric
General Electric
DBL333EB3CC
Dryer - Electric
General Electric
DBL333EB3WW
Dryer - Electric
General Electric
DBL333EB4CC
Dryer - Electric
General Electric
DBL333EB4WW
Dryer - Electric
General Electric
DBL333EB6CC
Dryer - Electric
General Electric
DBL333EB6WW
Dryer - Electric
General Electric
DBL333EBC
Dryer - GE Dryer Model DBL333EBC Parts
General Electric
DBL333EBW
Dryer - GE Dryer Model DBL333EBW Parts
General Electric
DBL333EY0AA
Dryer - Electric
General Electric
DBL333EY0WW
Dryer - Electric
General Electric
DBL333GA0AA
Dryer - Gas
General Electric
DBL333GA0CC
Dryer - Gas
General Electric
DBL333GA0WW
Dryer - Gas
General Electric
DBL333GA1CC
Dryer - Gas
General Electric
DBL333GA1WW
Dryer - Gas
General Electric
DBL333GB0CC
Dryer - Gas
General Electric
DBL333GB0WW
Dryer - Gas
General Electric
DBL333GB1CC
Dryer - Gas
General Electric
DBL333GB1WW
Dryer - Gas
General Electric
DBL333GB4CC
Dryer - Gas
General Electric
DBL333GB4WW
Dryer - Gas
