The drain hose is black in color and made of flexible material. This is a part for your top-load washer. The hose measures 57 inches long. This part moves the water out of the washer and into the drain. If this parts cracks or becomes damaged it will leak during the drain cycle of your wash and you may find water on the floor. To access the hose, you will need to move the washer away from the wall to get to the back of the appliance. There will be two screws holding it in place that will need to be removed.
Ask our experts a question about this part and we'll get back to you as soon as possible!
13 questions answered by our experts.
< Prev
1
2
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Tresa
April 29, 2018
Will a 10ft hose #98539 worth. What holds this hose in no place for clamp
For model number Wpre8150k2wt
Hello Tresa, thank you for your question. The Drain Hose Clip Part Number: PS270508 holds the drain hose into place at the back of the unit towards the bottom. The drain hose then comes up and goes into the drain port in your home to allow the water to drain our of the unit, up through the hose and into the drain in your home. Anti-Siphon Clip Part Number: PS271098 is used to hold the top of the drain hose into place at the drain port. I hope this helps!
14 people found this helpful.
Was this helpful?
Thank you for voting!
Brenda
February 27, 2019
I purchased a hose for GE washer on back it says to cut hose to make it fit. It's from plumb pak 6' corrugated discharge hose
For model number GLWN2800D1WS
Hello Brenda, Thank you for contacting us. Very sorry but Ia m not clean on the question. I can tell you the drain hose we list for this model number is PartSelect Number: PS890597 and is 57 inches in length. Please submit a new question if you have any follow ups.
3 people found this helpful.
Was this helpful?
Thank you for voting!
Michael
February 15, 2020
Hello, i need a longer hose. The hose that came with my GE washer isn't long enough to reach the drain. Please guide me if possible
Hello and thank you for writing.
Your model number is needed.
Regretfully, but we cannot find parts, confirm compatibility or do research on questions without your model number.
Here is our link to help you find your full model number:
https://www.partselect.com/Find-Your-Appliance-Model-Number.aspx
We are looking forward to your response.
2 people found this helpful.
Was this helpful?
Thank you for voting!
Carole
October 16, 2019
Washer will not drain
Hello Carole, thank you for writing. This is most likely due to a faulty Drain Pump, or faulty or clogged Drain Hose. We will need the model number for your washer to locate the correct replacement parts for it. We look forward to hearing back from you!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Lora
May 2, 2022
the tub wont drain. trying to figure out how to check for a clog somewhere?
For model number HSWP1000M4WW
Hi Lora,
Thank you for your question. If your washer is not draining, there are some parts that you will need to check to see which one is causing the issue. You will need to check the drain pump, the drain hose, the belt, the lid switch and the timer. We have included a link that you may reference on how to check these parts. Once you have determined the part you need, please feel free to call customer service. We are open 7 days a week and anyone will be happy to assist you. We look forward to hearing from you!
Hello Betty, thank you for contacting us, In order for us to locate the correct parts and repair information we will require the model number of the unit. Once you have located the model number please feel free to resubmit the question and we will be happy to help you. Look forward to hearing from you!
Was this helpful?
Thank you for voting!
John
April 18, 2019
I’m looking for the part that’s in the washer , not the drainage hose but the part the drainage hose connects to , ( hose with rubber grommets )
For model number Gtwp2000m0ww
Hello John, thank you for your question. I believe you're looking for PartSelect Number PS272192. Please enter the part number into the site for current price and availability. Good luck with your repair!
Was this helpful?
Thank you for voting!
Bob
July 16, 2021
Is there a longer hose available?
For model number GTW465ASNWW
Hello Bob, Thank you for contacting us. We have researched the model you have provided and have found GE does not list a longer hose. Our suggestion here would be to call the manufacturer and see if they can provide you with a substitution for these part numbers and contact us back with he updated substitution number. We hope this helps!
Was this helpful?
Thank you for voting!
Bill
October 1, 2021
Will this work on my laundry center washer
For model number Wsm2700dawww
Hello Bill, Thank you for your inquiry. We have researched the model you have provided and have found that this part is not listed as compatible to your model. The compatible drain hose for your model is part# FIX756357. We hope this helps.
Hello Bob, Thank you for the question. In most cases the appliance would come with a required drain hose, however we do not sell appliances, just parts so this would be a quest better answered by General Electric. We hope this helps!
Was this helpful?
Thank you for voting!
< Prev
1
2
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Part Videos

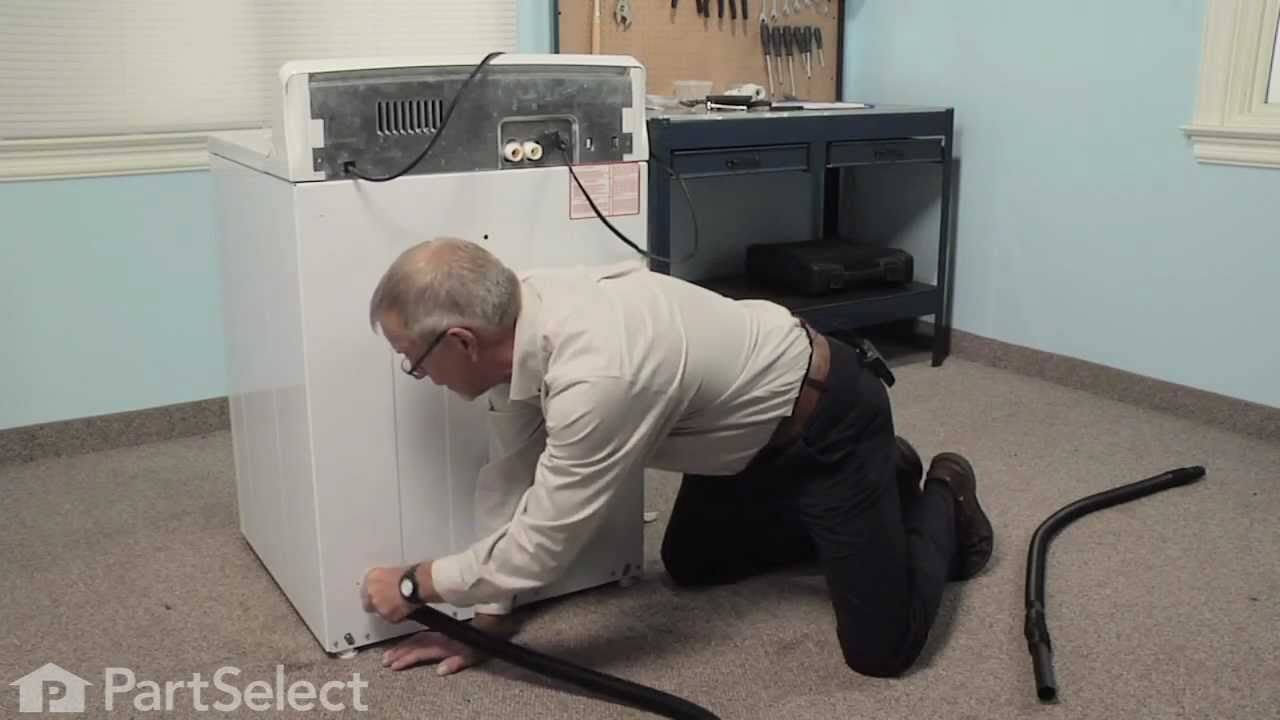

Replacing your General Electric Washer Drain Hose
Customer Repair Stories
Average Repair Rating: 4.3 / 5.0, 45 reviews.
What's this?
< Prev
1
2
3
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
REMOVED THE OLD HOSE, CLEANED THE FEMALE WASHER OPENING AND PUSHED THE NEW HOSE IN AND SECURED THE DRAIN CLIP WITH TWO SHEET METAL SCREWS. THE VIDEO SUPPLIED BT PARTS SELECT MADE THIS A NO BRAINER.
Pull hose out from wall and drain water into bucket. Remove two screws from back of washer holding on the clip. Pull hose out from washer its in there about 3 inches or so . If you order a new clip will make this even easier it's only $3.87 and I didn't realize I needed it. So, I just cut the old hose with a small saw near the clip so I could remove it and reuse it. Just slide the clip onto the end of the new hose - it fits into one of the grooves-I just made a note of where that was before removing from old hose. Then replace the two screws on the clip going to the back of washer. Put other end of hose into pipe in wall.
Kerry from EVERETT, WA
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Replaced the rib belt.
I watch a YouTube video. Showing how to put the new belt on with a zip tie. 100 percent. Success. Thank you for the correct part.replacing the drain was very ease. Use a socket set.
R&R Leaking/Damaged Hose and replaced it with the new one. One thing to be aware of is that after removing screws from the discharge hose upon removing the damaged one there was some water that did not expel from the unit so there was about a cup of water that came out. After removing the leaking hose you will need to remove the retaining plastic piece so that it can be placed on the replacement hose. Or if you ordered one put it on the hose so that it can retain the end of the hose in the washer. The anti-siphon clip is located about half way up the back of the washer it simply clips in place.
After going to the store where I purchased the washer which did not have my part, got online to this site and received the exact part I needed promptly. This is not the first time this site get me out of a bind! All I needed was a nut driver and five minutes of time.
Remove two bracket screws. Removed hose. Put new hose in place using same bracket and screws. inserted end of hose into washer drain. Secured hose to cold water hose with two zip ties.
Belinda from FLORENCE, KY
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
2
3
Next >
Customer Reviews
Average Rating:
★★★★★
★★★★★
53 Reviews
4.9
Filter By Rating:
5 Stars
48
4 Stars
4
3 Stars
1
2 Stars
0
1 Star
0
< Prev
1
2
3
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Joe D - May 7, 2023
Verified Purchase
Great job partselect .
Received the correct part a perfect fit.
★★★★★
★★★★★
Peter K - February 5, 2023
Verified Purchase
easy repair
part received in good condition
★★★★★
★★★★★
Carolyn R W - January 11, 2023
Verified Purchase
Parts cirrect
Parts came quick and were accurate. Thank you.
★★★★★
★★★★★
Mike N - September 15, 2022
Verified Purchase
Washer drain hose
Perfect fit easy to find on the web site and just as easy to order
★★★★★
★★★★★
Ted W - September 7, 2022
Verified Purchase
Washing machine drain pipe
Installed the part and the washing machine is working just fine.
★★★★★
★★★★★
DENNIS M - August 25, 2022
Verified Purchase
fit like the old one
fit like old one
★★★★★
★★★★★
David S - August 25, 2022
Verified Purchase
Worked great
Fit well,watched video showing additional part need so I purchased it and repair took 2 minutes.
★★★★★
★★★★★
Msrion B - June 1, 2022
Verified Purchase
Easy Repair
Exactly what I expected. My washer is back in order. Fast delivery
★★★★★
★★★★★
Kathleen M N - February 17, 2022
Verified Purchase
Replace drain hose for wash machine
New hose works fine. You need to advise the next customer that the bracket that attaches the hose to the wash machine is also a required part and should be ordered at the same time.
