Door Latch - Black

1. Disconnect power at the breaker, 2. remove two wood screws fastening the dishwasher to the cabinet and slide the unit out approximately 2 inches. 3. Remove old latch strike and replace with redesigned strike. 4. Slide unit in and reattached to cabinet. 5. Remove 11 screws holding inner panel of door assembly and one screw holding user interface unit to door. 6. Disconnect snap cable to latch assembly and replace the latch unit. 7. Reassemble.

New latch assembly improved door closure. However, door latch did not solve problem. There appears to be another problem.

Prepared by watching the video. Great instructions. Great.

Disassembled easily as per video. Removed the old latch and installed the new.

Began the reassembly and learned that after ten or more years the small plastic parts used to keep the dishwasher steady had slowly deteriorated to the point that I was breaking these necessary items faster than I was putting the appliance back together.

What was a half hour task became over two hours and the end result was for me to put my tools away and buy a new dishwasher the next day. I learned that if your appliance is over ten years old BUY A NEW ONE!

Great job by the people who make and sell the latch parts for you who own a dishwasher that is only a few years old.

Thank you Part Select.

Watched a video and read through written directions.
Did not need to pull out the dishwasher from the cabinet.

Followed the u tube video. No problems. Will use them again.

Best recommendation I can give.

I followed the Partselect video for the new installation. Very easy to follow which made new part installation extremely easy. Works perfect now!!!

cut power to dishwasher. removed screws all around door panel to get front panel off, leaving top two screws for last. unplugged latch set, removed it. set new one in. screwed top 2 screws in. fit door panel back on. pulled out latch hook from stationary top piece and clicked new on in place.

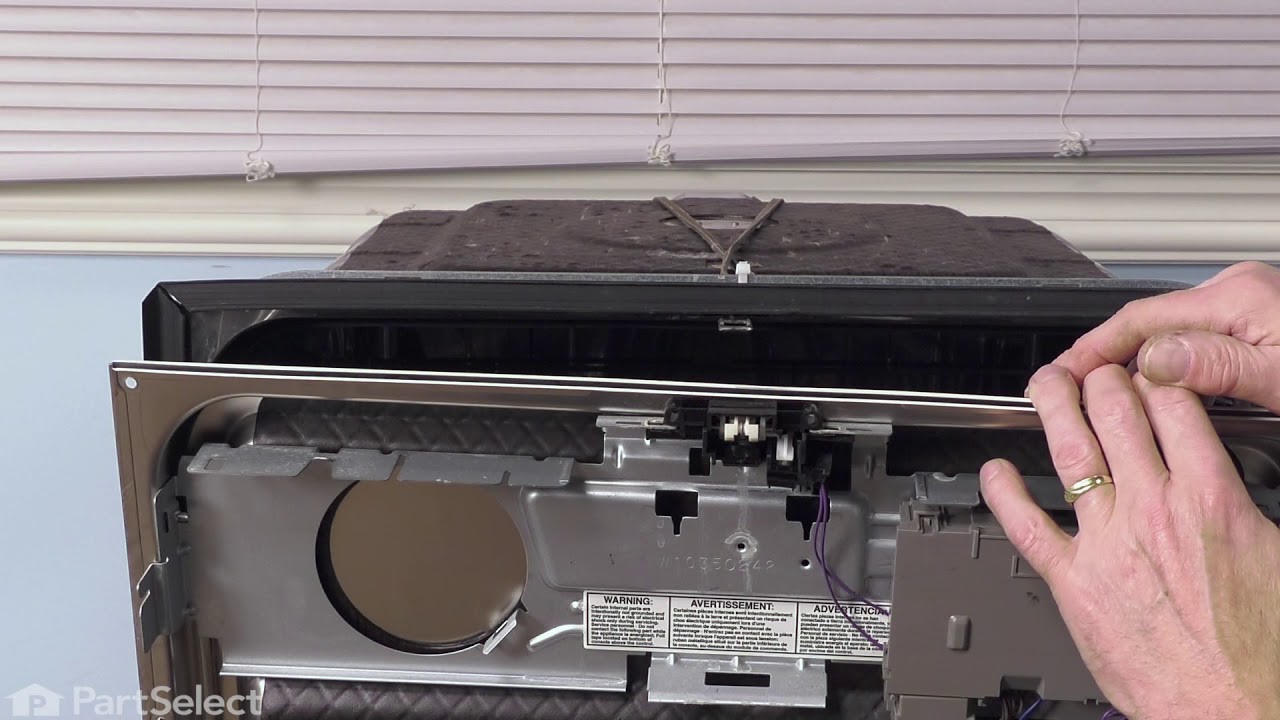

I first verified that there was 120 volt line voltage getting to the unit. I removed the outer door panel by removing the 10 torx screws located around the panel on the tub side of the door. Two of the screws are longer so note there location for reassembly. The door handle can now be removed. Pull the outer door panel away from the inner panel and remove the connector to the control board. Set the outer door aside. Remove the connector to the door latch.The latch is snapped in position at the top side. Pry using a screw driver to release. Snap new latch in position. Snap on connector, Reassemble door by first reconnecting the control panel connector. install plastic door handle. Mate door to inner panel. Note interlock tabs between outer door and inner panel near the bottom area. Install the 10 screws. The two longer screws are at the top holding the latch and handle.

Removing the door was straightforward. However, when the door panel was removed, I grabbed the door and my finger touched and pressed on something on the right side. This is an optical collector which focuses 3 lights (red, blue, green) into a visible slot. After I reinstalled the door, the lights were not visible. I had to disassemble the door a few times and bend this optical collector into the right position. Basically, I bent the collector into the door, so I needed to bend the collector away from the door. And now, everything is fine.
