This valve is used in washers and it is known as the washer inlet valve. This specific valve is used to control the flow of cold water into your washing machine. If your washer is leaking, if it will not fill, if it is taking a long time to fill, or if it will only operate with hot water the dual inlet valve made be restricted or damaged. If you find this valve is damaged or restricted it will need to be replaced. Before you replace this part, or any other part on your washer, make sure the water supply has been shutoff and ensure the appliance is unplugged.
How Buying OEM Parts Can Save You Time and Money
Troubleshooting
This part fixes the following symptoms:
Leaking
This part works with the following products:
Washer.
This part works with the following products:
Bosch.
Part# 00422244 replaces these:
AP3758492, 422244
Questions and Answers
Ask our experts a question about this part and we'll get back to you as soon as possible!
6 questions answered by our experts.
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Christine Hong
September 10, 2019
My Bosch front load washing machine has hot water in but no cold water, please let me know if it is the cold water inlet value problem, and which parts I need to fix the problem? Thanks.
For model number WFMC3301UC/04
Hi Christine,
Thank you for your question. If you are not getting cold water, the issue is likely the cold water inlet valve, part number PS8713229, and it will need to be replaced. I hope this helps. Thank you and have a great day!
2 people found this helpful.
Was this helpful?
Thank you for voting!
Steve
January 6, 2020
Is the part number for cold water inlet valve ap3758492 or ap3853434 thanks
For model number WFMC5440UC/15
Hello Steve and thank you for writing.
Coldwater inlet valve part number: PS8713229 is in the list of compatible items for your model. We hope this helps. Please contact us anytime.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Shellie
July 20, 2017
I'm looking for the wire harness that clips into the valve magnet. If you don't have it , do you know what the part number is for that part?
For model number WFMC3200UC
Hi Shellie, thank you for reaching out. I looked through our inventory and I believe the wire harness you are looking for is part #: PS8713033. I hope this helps you with your repair.
1 person found this helpful.
Was this helpful?
Thank you for voting!
Randy
January 31, 2018
Found water leak in family room. Washer is directly above. Discover that the cold water continues to enter the tub after the wash is complete. From what I have read on your site it sounds like my cold water inlet valve needs to be replaced. My question is: How to remove the top of the washer. It is a front load-washer? Thanks Randy
For model number WFMC4301UC
Hi Randy, Thank you for the question. You will need to remove the screws from the back of the appliance to remove the top. Hope this helps!
Was this helpful?
Thank you for voting!
Andrea
April 30, 2018
Hi there, is this cold water inlet valve compatible with model numbers wfmc8400uc/ wfmc8401uc
For model number WFMC8400UC
Hi Andrea,
Thank you for your question. Yes, this water inlet valve will work with both models. I hope this helps. Thank you and have a great day!
Was this helpful?
Thank you for voting!
Michael
November 29, 2021
Washer leaking from bottom. How can I troubleshoot if leak is from door gasket or water inlet? Thanks, Mike
For model number WFNC640SUC/01
Hello Michael, thank you for the question. We suggest inspecting the Bellow Seal around the door for damage. You can also tip the appliance back to check the underside for evidence of where the leak is coming from. Check all the hoses for damage and to make sure they are securely installed. We hope this helps!
Was this helpful?
Thank you for voting!
< Prev
1
Next >
✖
Ask a Question
Ask our experts a question on this part and we'll respond as soon as we can.
Something went wrong. Please try again later.
Your Question Has Been Submitted!
Our experts will send you an email as soon as your question has been answered.
Part Videos

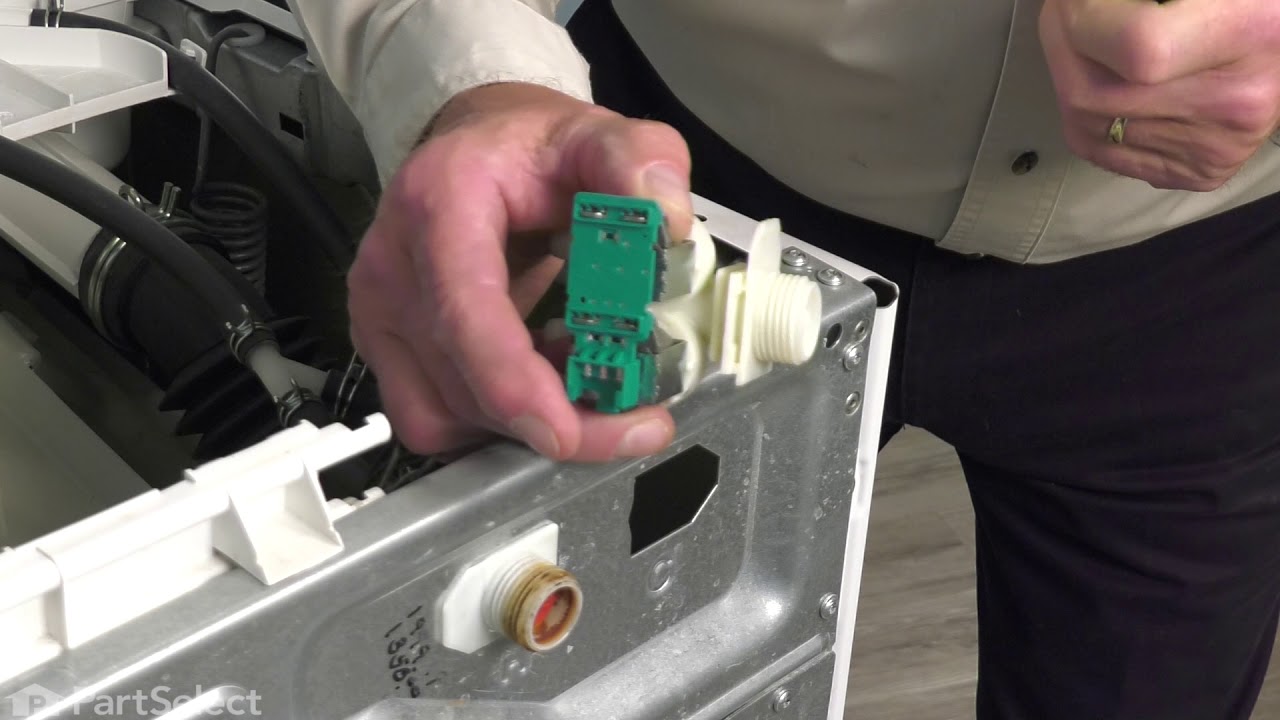

Replacing your Bosch Washer Cold Water Inlet Valve
Customer Repair Stories
Average Repair Rating: 4.7 / 5.0, 5 reviews.
What's this?
< Prev
1
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
The inlet valve on my washer was leaking
Turned off the water to the washer. Took the top off of the washer. Used pliers to loosen the rings holding the hoses to the valve. After the hoses were removed from the valve I popped out the old inlet valve. I put the new inlet valve in place and put the hoses and rings back on. Secured the top of washer back on the washer turned the water back on. No leak present.
Donna from HUNTERSVILLE, NC
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
5 of 5 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
E:12 error code displayed, frequently had to reset washer during cycle
Shut off water supply to washer, unplugged from power. Removed two Torx screws holding the top panel of the washer on (screws are on the back). Slid top back, then lifted up and off. Located cold water inlet valve. Squeezed hose clams with needle nose pliers and slid the two hoses off valve. Disconnected wire harness (look for push tab) from valve. With a little work figured out how to pop valve out of its opening. Installed new valve in its place and re-connected all hookups. Reattached top to washer, plugged and in reconnected water. Ran a test load, then another - no more errors!
Ian from HUDSON, NY
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
3 of 3 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The solenoid had sprung a leak
Removed screws from top cover. Slid the cover backs 1/4 inch, and lifted it off. Removed the wire harness by depressing the tab, and pulling it off. Depressed the tab in the back of the water inlet valve, slid it slightly forward and pulled it out. Installed the new part in reverse order.
Chris from ATHENS, PA
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
2 of 2 peoplefound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
The old Cold water inlet valve was leaking
I followed the video and it was an easy repair. I took my time and it was an incredibly simple repair. The new part fit perfectly.
Gary from WOODLAND PARK, CO
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Simple
Once you find a T-20 screw driver, it is easy. Remove top by unscrewing two screws from rear and sliding top back about an inch. Slide electronic plug out from old unit. Use pliers to remove two hose clamps. Remove hoses. Use flat head screwdriver to push old unit to the left when facing back of machine. Put in new unit. Slide in plug. Reconnect hoses slide clamps back over hoses. The hardest part was placing the top back on by aligning two tabs and sliding the top back in. Replace tow screws.
Andrew from WILLISTON PK, NY
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
1 personfound this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
< Prev
1
Next >
Customer Reviews
Average Rating:
★★★★★
★★★★★
15 Reviews
4.9
Filter By Rating:
5 Stars
14
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
< Prev
1
2
Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Wayne K - April 1, 2023
Verified Purchase
Cold water inlet valve
Just grateful that you have this part.
★★★★★
★★★★★
Kyle O - February 16, 2021
Verified Purchase
Works great, no issues installing
Seemed to be 100% compatible with the OEM part. Nothing difficult or tricky about the install. Very straight forward. Solved the issue we had with the washer slowly filling with water when not running.
★★★★★
★★★★★
Cheryl H - April 7, 2020
Verified Purchase
Great part. Easy fix
The part was in great condition. Machine is back working again. Delivery was quick.
★★★★★
★★★★★
Susan H - December 12, 2019
Verified Purchase
Fast delivery of the correct part
After trying various solutions that didn’t work this part solved the problem. Easily installed and it worked??????
★★★★★
★★★★★
Alice B - March 4, 2019
Verified Purchase
Easy repair great part
Part was in great condition and the repair went well
★★★★★
★★★★★
EDWARD B - February 9, 2019
Verified Purchase
IT WAS THE CORRECT PART , IT IS WORKING GREAT.
THE PART WAS IN GREAT CONDITION , IT WAS SHIPPED PROMPTLY.
THANK YOU
DUSTY ED
★★★★★
★★★★★
Carolyn V - February 5, 2019
Verified Purchase
Great "how to" videos
Even an old lady could remove and install the new OEM valves! When we need a part you will be the source.
★★★★★
★★★★★
Kevin P C - November 4, 2018
Verified Purchase
Surprisingly Easy Fix
This was the exact part I needed and the video on the website made it so easy to replace. Took less than 10 minutes to have my washing machine back up and running.
★★★★★
★★★★★
Bill G - August 28, 2018
Verified Purchase
Correct part fixed the problem. Liked the installation video. Completed the project in about 20 minutes.
The part arrived in 2 days and we are back to washing clothes.
