Union Connector - 5/16 Inch to 5/16 Inch WR02X11330

The internal water line was leaking. I could not find any repair parts for my refrigerator but the GE 5/16 water line was the same size. I purchased 6' of tubing and two unions. Make sure the clean and square. If possible, make the cuts in a spot where you can use the pliers and wrench to tighten the union. I cut approximately 2' out of the existing line and replaced it with the same length of new line using the 2 unions, one on each end. Took about 5 minutes.

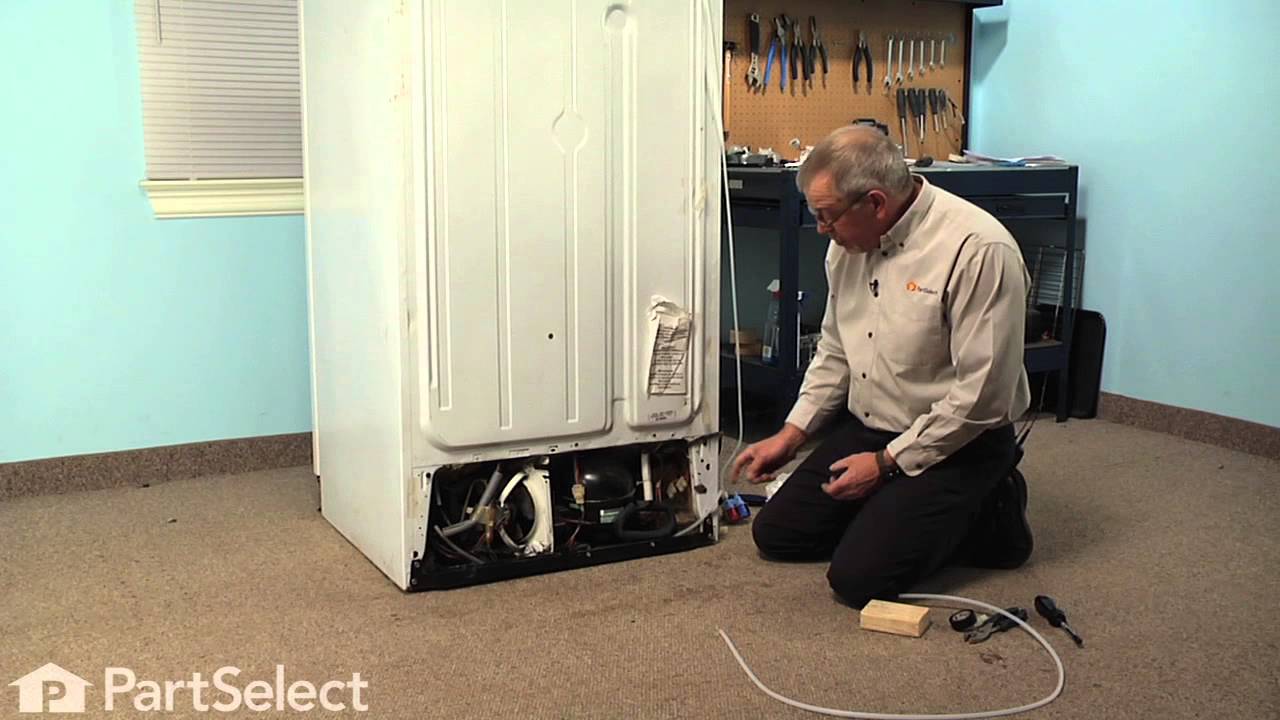

I watched the instructional video on this website and did everything that it said. There is no more leak when I use the in door water. Was as easy as it looks in the video and I am very happy!

reconnect the water tube with the union connector.take out the old water filter and put the new one in.it is very easy.

Pulled new tubing to the tank and put a union about 8 inches down from tank to new tubing. Great repair. Parts not readily available locally.

Cut the line inside the regiferator behind the bin and used the tube union to attach new 5/16" tubing to run to the solenoid valve assy in the back of the refigerator. Location of the valve assy makes connecting very difficult. But was able to complete repairs.

Unplugged unit. Removed back cover plate. Used 5/16 water line. Cut old broken line. Used water tube union and attached new line. Removed electrical contacts. Note very easy removeand replace the red and white hookups. Next remove water line at the old vale with1/2 wrench. Hook up water line to new valve. Icemaker line was not damaged so I removed from old valve and trimmed the end. Really installed line to valve. Plugged in fridge and turned water supply back on. Check for leaks. Had trouble locatingthe 5/16 water line but found bulk. PARTS SELECT had the guest connector and the replacement valve. I received the correct parts and saved me $$$$. Plus my wife happy right before the holidays! !!,

Had previously replace the plastic Water Tank, but when installing it I didn't realize how the quick connects worked. Instead of simply pushing inward in the direction of the blue part of the disconnect, I had pulled out the white ring on the outside of the disconnects. This ruined the inside connections and caused them to leak thus requiring these repairs. Had I known that I wouldnt have bought these parts too. Just Always REMEMBER to push in outside white ring on the quick disconnect and as you push it in pull out the hose when you remove it. To put the hose back in, just push it back in without pushing on ring this time at all and it will lock in place, and shouldn't be leaking. I had to run water into a glass to test if it was leaking, otherwise the line had no water pressure.

There is no access to the inside of the door to replace the water line. I was able to insert a 1/4" drip line barbed connector into the old line at the base of the door and then connect that to a piece of the plastic tubing which I then connected back to the original water supply tubing with the 5/16" union. It took three attempts to get the tubing through the bottom hinge without a crimp in it. It's best to have a second person to hold the door while you "fish" the tubing through the hinge.

I never would have attempted the repair as all my research indicated that I would have to take the stainless steel door off to replace the ice maker solenoid that shuts the ice chute door. But on your site someone (bless them)wrote that you could get at the solenoid by popping off the electronic selector panel. They are on the underside of the dispenser and not at all visible. And your video helped too. Thanks.

This part (plastic tubing) does not show up under my model of refrig...so I had to look thru the various water lines and pick the one that "looked" right. Luckily, this is the exact replacement part and works perfectly. I removed the lower back panel from the fridge, removed the bracket holding the water line connectors and pressed the outer ring of the coupler up until it released the old water line. I pushed in the new line, made sure it was snug with a gentle pull and ran the line under the fridge up to the existing coupler. I removed the old line from the existing coupler under the front left of the freezer door, and pushed in the new line. I did not need to use the new coupler. If my old line would not have been so brittle and cracked in several places, I could have just cut out the leaking portion and popped the new couple in to mend the line back together. Easy job and we can stop buying bottled water at the store now!
