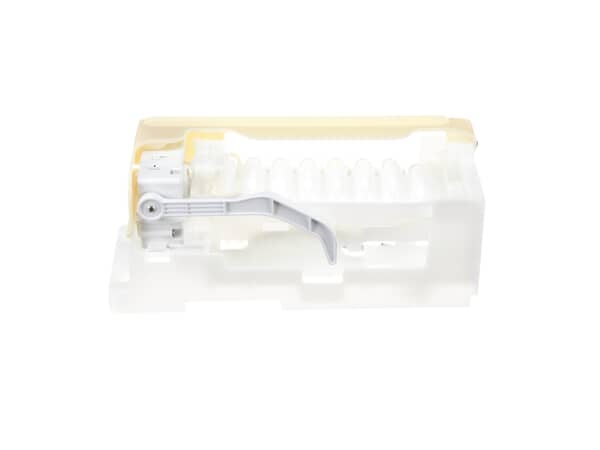

Ice Maker Assembly DA97-07603B

Hi Richard, Thank you for your question. Yes, this part would be the complete ice maker assembly. I hope this helps. Thank you and have a great day!

Hi John, I would get DA97-05037D which is the full and complete assembly. Thank you for your question and good luck with your repair!

Hello Janene, Thank you for your inquiry. We have found the following repair instructions for you. To replace the ice maker assembly, start by unplugging the refrigerator. Open up the freezer and take the drawer out by pushing the rails back towards the handle on each side and life up the drawer and pull it out. Reach under and pull the cover off the ice maker by snapping it down and flexing it. Use a Phillips head screw driver to remove the screws that hold the ice maker to the top of the freezer, then pull it towards the front of the freezer and pull it down to free it. Disconnect the wire harness that holds it on by pressing the locking tab and pull the ice maker out. Connect the new ice maker to the wiring harness. Carefully rotate the ice maker around and make sure the fill tube assembly goes into the opening. Line up the rear mounting points and push the ice maker back so it locks in. Once it is back in place, use the Phillips screwdriver to reattach it to the freezer. On a new ice maker the cover comes with it, so once the screws are tightened, you can put the drawer back in, making sure the slides are in the original position they were when they were taken off. Carefully set the drawer in and make sure the slides go onto the glides and push the drawer back in. Finally you can close the freezer drawer and plug the refrigerator back in. Good luck with your repair.

Hello Amy, thank you for writing. The model number you provided is partial with multiple variations using some different parts. We will need the rest of the model number to look into this. This is about half of the required model number.

Hello Graham, Thank you for contacting us. We have researched the model you have provided and have found the part you are looking for is PartSelect Number PS5575313. Good luck with the repair!

Hi Terry, thank you for getting in touch. The complete ice maker assembly for your model is part number PS12115595. The part you mentioned is the ice maker support bracket, part number PS5575313. It may need to be purchased separately if you need the complete ice maker assembly. If you require assistance to place an order, please contact customer service!

Hello Jon, thank you for reaching out. According to our research, we would recommend checking the electronic control board, part number PS4168057, to fix the issue. We hope this helps!

Hello George, thank you for reaching out. The issue is most likely with the ice maker assembly. This could be due to a malfunctioning ice maker motor or control module that fails to advance the cycle after filling. In this model, the recommended replacement part is part number PS5575313, which includes the ice mold and control components. Before replacing the part, it’s also a good idea to check that the water inlet valve isn't stuck open and that the fill tube is properly aligned. Replacing the ice maker assembly should resolve the issue. We hope this helps.

Hello Michael, thank you for the question. According to our research, we would recommend checking the ice maker assembly, part number PS5575313, to fix the issue. We hope this helps!

Hello David, thank you for getting in touch. According to our research, the issue is most probably due to the ice maker assembly. You may need to replace it to fix the issue. The compatible Ice maker assembly for your model is part number PS12115595. We hope this helps!
