Replacing your Whirlpool Dishwasher Dishwasher Door Gasket with Strike - Black play video
( Grid squares measure 1x1 inch )

Get in touch, we're here to help!

Open until 12am EST

customerservice@partselect.com

Dishwasher Door Gasket with Strike - Black

★★★★★
★★★★★
51 Reviews
$73.03   In Stock

Get this part fast. Average delivery time via standard shipping: 1.8 days.

PartSelect Number PS5136129
Manufacturer Part Number W10542314
Manufactured by Whirlpool
Product Description

Dishwasher Door Gasket with Strike - Black Specifications

This one-piece door gasket provides a water tight seal between the tub and the door, to keep water from leaking out of your dishwasher. If your dishwasher is leaking, tears, or there are gaps in your gasket, you may need to replace the door gasket. This black door gasket is made of rubber, includes a new latch strike plate for the door latch, and is a genuine OEM part.
How Buying OEM Parts Can Save You Time and Money play video

How Buying OEM Parts Can Save You Time and Money

Troubleshooting
This part fixes the following symptoms:
Leaking | Not cleaning dishes properly | Door latch failure
This part works with the following products:
Dishwasher.
This part works with the following products:
Whirlpool, Kenmore, Maytag, Amana.
Part# W10542314 replaces these:
AP5650274, 2409202, W10542314, 8268888, W10284090, W10300589, W10350162, W10542314VP
Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

29 questions answered by our experts.
Sort by:
Sorry, we couldn't find any existing answers that matched.Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Mary
September 11, 2017
Our dishwasher is just starting to leak (about 2-3 tablespoons). At first it was at the bottom of the left edge, and now it is in the center - just wanted to make sure i am getting the correct part. Thank you.
For model number GU2455XTSS3
Hi Mary, Thank you for your inquiry. If the dishwasher is leaking around the door then this is the correct part that you will need to fix the issue. I hope this helps. Thank you and have a great day!

28 people found this helpful.

Was this helpful?
Thank you for voting!
Jenna
January 23, 2018
Would this be the part that would help with our dishwasher leaking water on the lower left side?
For model number DU1300XTVB1
Hi Jenna, Thank you for your question. Yes, if your dishwasher is leaking this part fixes the issue the majority of the time. I hope this helps. Thank you and have a great day!

7 people found this helpful.

Was this helpful?
Thank you for voting!
Colonel
February 4, 2018
Greetings. I am trying to replace the door gasket on my Whirlpool dw. I recently ordered what I thought to be the correct part, however it was too long. I was told there were 2 lengths for this model. Could you advise me as to if/and where I might order a replacement. Respectfully
For model number DU1145XTPQA
Hello Colonel, Thank you for contacting us. I have researched the model you have provided and have found the part you’re looking for is PartSelect Number PS5136129.This is the only gasket listed for the model number provided. Hope this helps!

6 people found this helpful.

Was this helpful?
Thank you for voting!
Scott
February 26, 2018
Can parts be returned if it doesn’t work
For model number Gu2455xtsb3
Hello Scott, Thank you for your inquiry. Yes, we do have a 30 day return policy, some exceptions do apply. I have included a link to our return policy and to see the exceptions, just click on see more details. Hope this helps! https://www.partselect.com/Thirty-Day-Returns.htm

6 people found this helpful.

Was this helpful?
Thank you for voting!
Michael
January 14, 2019
I ordered a replacement gasket for my dishwasher, it is to take ps5136129 part, but new part w10542314 is too big and i can not get it into the section and the door refuses to closes. Can i get the original part or am i doing something wrong.
For model number MDBH969AWB5
Hello Michael, thank you for your question. The part number W10542314 is the correct and only replacement gasket for this unit. The original is no longer available. However, this is the correct replacement and will work with your model. You may need to remove the gasket and verify that you're starting with the correct end of the gasket on the correct side. If the gasket is turned around it won't fit into the channel. Check out our installation video at this link! https://www.partselect.com/PS5136129-Whirlpool-W10542314-Door-Gasket-with-Strike-Black.htm?SourceCode=1&SearchTerm=MDBH969AWB5&ModelNum=MDBH969AWB5&ModelID=6796926 I hope this helps!

6 people found this helpful.

Was this helpful?
Thank you for voting!
Mary
August 15, 2017
I am not having leaking issues (yet) but the door seal is stretched out and drying out, so looking to replace it. I notice the ends of the seal are flanged out where they seat into the bottom corners of the door, but i don't see such a "flange" at the ends of this seal- does the "flange" just get made by pressing the seal into that area? Thx! -maryo.
For model number GU1500XTLT2
Hi Mary, Thank you for your inquiry. The flanges that you are talking about should already be a part of the gasket when you get it. I hope this helps. Thank you and have a great day!

4 people found this helpful.

Was this helpful?
Thank you for voting!
David
December 10, 2018
Will this door gasket work on my machine
For model number GU2500XTPS0
Hello David, Thank you for contacting us. I have researched the model you have provided and have found the part you are looking for is Part Number: PS5136129. Thank you for your inquiry, good luck with this repair!

4 people found this helpful.

Was this helpful?
Thank you for voting!
Ken
September 28, 2017
Will this seal work on my unit
For model number gu2475xtvy3
Hi Ken, Thank you for your inquiry. Yes, this part will work on your appliance. I hope this helps. Thank you and have a great day!

4 people found this helpful.

Was this helpful?
Thank you for voting!
Maureen
December 8, 2017
Is there a gasket for the bottom of the door? We get small drywall-like debris. With a mirror the bottom of the door does not have a a gasket but an open, but dirty, grid-like bar across the entire length of the door
For model number GU1500XTLN1
Hi Maureen, Thank you for contacting us. You do not have a bottom door gasket on your model. Good luck with your repair.

3 people found this helpful.

Was this helpful?
Thank you for voting!
Goetz
April 30, 2018
Will this door gasket fit to my dishwasher 280-1? I am not really sure. Thank you !
For model number DU920PWKQ0
Hi Goetz, Thank you for the question. The door gasket for the model number provided is, PartSelect Number: PS11755809. Hope this helps!

3 people found this helpful.

Was this helpful?
Thank you for voting!
Part Videos

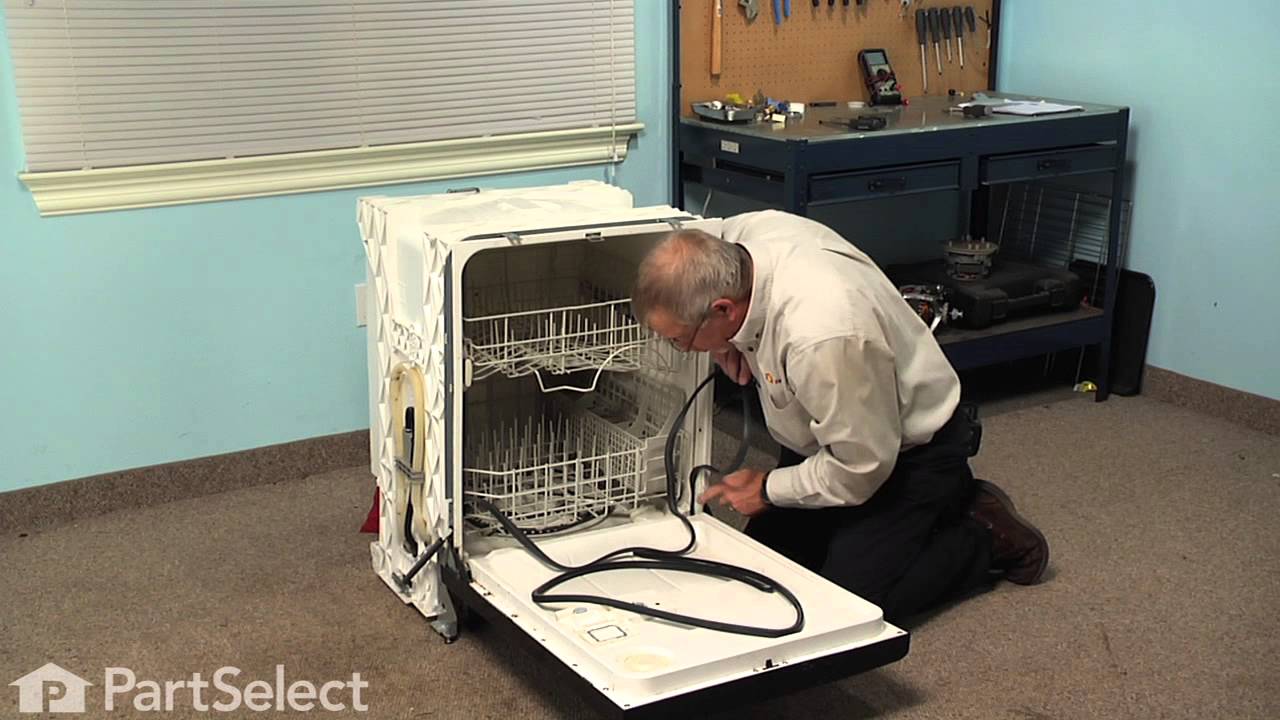

Replacing your Whirlpool Dishwasher Dishwasher Door Gasket with Strike - Black

Replacing your Whirlpool Dishwasher Dishwasher Door Gasket with Strike - Black play video
Customer Repair Stories
 Average Repair Rating: 4.4 / 5.0, 56 reviews. What's this?
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
The door gasket stuck to the door a pulled out of place after every use
Worked the new gasket into the groove with a smooth screwdriver and my fingers. No leaks and it stays in place. Parts Select had the right part and I got it fast
  • Penny from Manchester, MI
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Screw drivers
151 of 179 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Water leaking from front right corner (door) while washer running
The hardest part of this was figuring out the cause of the leak. It only leaked while the washer was running (arms spinning). I thought it might be the air intake seal at the lower part of the door-but that did not look damaged.
I cleaned off the door gasket really good and that slowed the leak - so I figured the gasket was the problem (plus changing the gasket is cheap and it was old anyway).

I pulled the old gasket off (no tools required).
I cleaned the track/slot that the gasket goes into, and the area around it from all the caked-on soap and gunk.
Cleaned off the door edge that seals with the gasket too.
I took the new gasket and folded it in half to find the middle, then started with the middle, putting it into the track (used the center door latch on the frame to know the middle on the washer).
I worked the gasket into the slot just with my fingers. I found that if I pinched the part that goes into the slot with my thumb/finger that helped get it deep into the slot without tools.
I worked around one side, slowly and carefully pushing it into the slot. Did the other side the same way - starting from the middle and working down to the end at the bottom of the washer. Checked the gasket to make sure it was all set in well.
There is an inch or so of the gasket left over at the bottom - I just bent that around the bend so it was not in the way.
  • Clifford from Centennial, CO
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
90 of 93 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
dishwasher leaked from left side of door
As I pulled out the old rubber gasket I noticed there was a flat side and a curved side, this is how the new one must go. When I put in the new gasket in I just made sure the flat side (faced out) and it really was very simple. It just fits inside a grove, very easy to install. I compared the to parts (old and new) they were exactly the same shape and length.
I was very impressed with the web site navigation and layout. I was able to zoom in on pictures of the part and there were exact measurements of dimensions.
  • Russell from Bellevue, WA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
36 of 37 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
water running in to dishwasher when not turned on any cycle. Water running out on to floor
removed bottom panel.disconnected water supply,fill hose,and wiring connector from faulty valve. Replaced in reverse order.
Other Parts Used:
Water Inlet Valve
  • Manuel from Winchester, TN
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver, Screw drivers
24 of 29 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Chopper not performing
I noticed some residue in the dishwasher so I decided to clean the chopper screen. I dismantled the screen and spray assemblies and removed the chopper. The chopper was extremely worn and the chopper washer/gasket was missing. I reassembled the parts I removed and as I was placing the screws in the screen assembly I dropped a screw into the impeller well. Since the screws are stainless I was forced to remove the whole motor assembly. Since I had to order a chopper I went ahead and ordered a motor assembly gasket for reassembly. The mistake I made was not ordering a drain valve at the same time for when I removed the valve to clean it the rubber separated. The dishwasher will not function without it. This is where PartsSelect really came through for me. The 2-3 day shipping came in 2 days and the drain valve which was really going to hold me up with standard shipping came the very next day! Way to go PartsSelect! Everything went back together just fine.
Other Parts Used:
Pump Sump Gasket Chopper Assembly
  • Dale from Oldsmar, FL
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Pliers
19 of 25 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Poor seal on old gasket caused water to leak during dishwasher operation.
I simply pulled out the old gasket and pushed the new one in with my fingers. I had to trim about an inch off the length with a utility knife. The seal is nice and tight now and we have no more water leakage.
  • Jennifer from Edina, MN
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
15 of 19 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Old gasket was stretched out and allowed leaking
The replacement of the gasket was simple and required only a flat-head screwdriver to push the rubber into the groove around the opening of the dishwasher. Took only about 15 minutes and the door is a tight fit now. I wish I had replaced the gasket 6 months ago when it first started coming loose when we opened the door to the dishwasher.
  • Jennifer from Stockbridge, MA
  • Difficulty Level:
    Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Screw drivers
10 of 13 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
D/W leaked a puddle of water onto the floor every Load
I removed the old gasket simply by pulling on it. I compared its length to the length of the new gasket, figuring there would be some trimming to do -- there wasn't. The replacement was exactly the same.
I placed a mark on the center of the new gasket, and marked the center of the mounting groove. I aligned the two marks, and pushed the new gasket into the groove, starting at the center, and worked my way out towards the two ends. After getting a majority of the new gasket to seat by hand, I GENTLY used the tip of a slotted screwdriver to ensure that the New Gasket was completely snapped into place.
The fit was perfect, and no more leaks. This repair was so simple, I'm embarressed for putting it off for so long. ;)
  • Michael J from Butler, PA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Screw drivers
9 of 13 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
dishwasher leaked
Our Kitchenaid dishwasher was leaking so I called a repair service. I gave the model number and serial number over the phone and explained the problem. I was told the rubber gasket would need to be replaced. When the repairman came 5 days later he told me that the gasket needed to be replaced but he didn't have a new one on his truck. He ordered one and said he would be back in a week to repair the dishwasher. That took 10 minutes at the most. He then gave me a bill for $200.49 ($71.49 for the part and $129 for the labor)that I had to pay right then. I wrote him a check so he would leave and immediately called the repair company to tell them the price was outrageous and that I had never before paid for a repair before the work was done. I was simply told it was their policy. I then told them I was stopping payment on the check - which I did. I checked on-line for the part and found your web-site and the the part I needed for $27.62. I ordered it on a Monday, it arrived on Tuesday and my husband easily installed it that evening. Thank you, thank you, thank you!
  • Sue from Hudson, OH
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
8 of 12 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Door gasket was falling out
I took out the old one and started in the lower left corner and threaded it all around the edge to make sure the placement and length was correct. Then I came back around with a plastic spatula to firmly seat the gasket into the groove. Worked perfectly and havent had any trouble since!
  • Ted from Los Osos, CA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
7 of 10 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer Reviews
Average Rating:
★★★★★
★★★★★
51 Reviews
4.6
Filter By Rating:
  • 5 Stars
    38
  • 4 Stars
    8
  • 3 Stars
    4
  • 2 Stars
    0
  • 1 Star
    1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
Model Cross Reference
This part works with the following models:
PartSelect Number: PS5136129
Manufacturer Part Number: W10542314
Brand
Model Number
Description
Kenmore
66213032K112
Dishwasher - Dishwasher
Kenmore
66213273K112
Dishwasher - Dishwasher
Kenmore
66513012K110
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513012K111
Dishwasher
Kenmore
66513012K112
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513012K113
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513013K110
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513013K111
Dishwasher
Kenmore
66513013K112
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513013K113
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513014K110
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513014K111
Dishwasher
Kenmore
66513014K112
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513014K113
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513019K110
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513019K111
Dishwasher
Kenmore
66513019K112
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513019K113
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513023K110
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513023K111
Dishwasher
Kenmore
66513023K112
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513023K113
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513032K110
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513032K111
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513032K112
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513032K113
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513033K110
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513033K111
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513033K112
Dishwasher - UNDERCOUNTER DISHWASHER
Kenmore
66513033K113
Dishwasher - UNDERCOUNTER DISHWASHER
