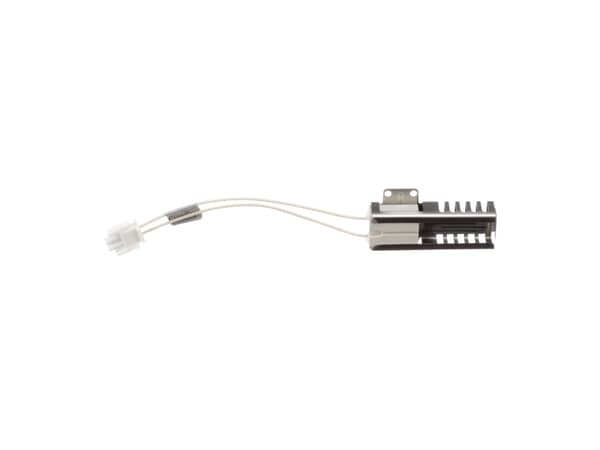

Oven Burner Igniter DG94-00520A

Hello Moke and thanks for writing. This is usually a defective ignitor, you can try to clean it and see if that helps. If it does not chances are it has become defective and needs to be changed. We hope this helps. Please contact us anytime.

Hello Elton, Thanks for your question. E08 means the oven is not heating. You will want to unplug the range and test the oven sensor, broil burner, bake burner, and convection heater. Replace any that do not have electrical continuity. I hope this helps.

Hello Andrew, Thank you for contacting us. You can test the parts with a multimeter. If you are unfamiliar with how a multimeter functions, we have videos available to assist you.

Hi Annette, Thank you for your question. Yes, the first part that I would suggest you test is your igniter to make sure that it is working correctly. If it is, you may want to test your temperature sensor next. If that part is fine it may actually be your electronic control board that is the issue. I hope that helps. Good luck with your repair.

Hi Janis, Thank you for the question. I suggest replacing or testing the thermister sensor, PartSelect Number: PS4240743.Testing the temperature sensor probe on your oven is easy. With the sensor at room temperature, measure the resistance between the two prongs at the end of the sensor connector. The resistance of the sensor should read approximately 1080 – 1090 ohms at room temperature. Hope this helps!

Hi Austin, thank you for your question. There are a few parts that could cause this issue in your appliance. First I would say test your igniters with a multi meter to see if they are working correctly or not. They should be reading between 0 - 1100 ohms to be working correctly. The other part you should check would be your oven temperature sensor. That can also be tested with a multi meter and should be reading between 1000 - 1100 ohms. If those three parts are fine however, then the issue may be in your control board. I hope that helps. Good luck with your repair.

Hi Michael, thank you for your question. There are a few parts that could cause this issue in your appliance. First I would say test your igniters with a multi meter to see if they are working correctly or not. They should be reading between 0 - 1100 ohms to be working correctly. The other part you should check would be your oven temperature sensor. That can also be tested with a multi meter and should be reading between 1000 - 1100 ohms. If those three parts are fine however, then the issue may be in your control board or the spark module. Good luck with your repair.

Hi Norm, Thank you for your question. If the oven is not heating correctly, then the issue is likely with the oven sensor, sometimes called the oven thermostat, and you will need to check it with a multi-meter. When testing the sensor with a multi-meter, the sensor should be tested at room temperature and it should be unplugged from the oven. You will need to measure the resistance between the two prongs at the end of the sensor connector. Replace the oven sensor if the reading is less than 900 Ohms or more than 1200 Ohms. If this checks out fine, you will need to check the electronic control board, both oven elements and the wiring between these parts to see which once is causing the issue. We hope this helps. Thank you and have a great day.

Hi Nasser, thank you for reaching out. The oven burner igniter, part number PS4241428, you have mentioned is for the broil burner. We hope this helps!

Hello Jason, Thank you for the question. I suggest testing the Sensor, PartSelect Number PS4240743. Testing the temperature sensor probe on your oven is easy. With the sensor at room temperature, measure the resistance between the two prongs at the end of the sensor connector. The resistance of the sensor should read approximately 1080 – 1090 ohms at room temperature. Thank you for your inquiry, good luck with this repair!
